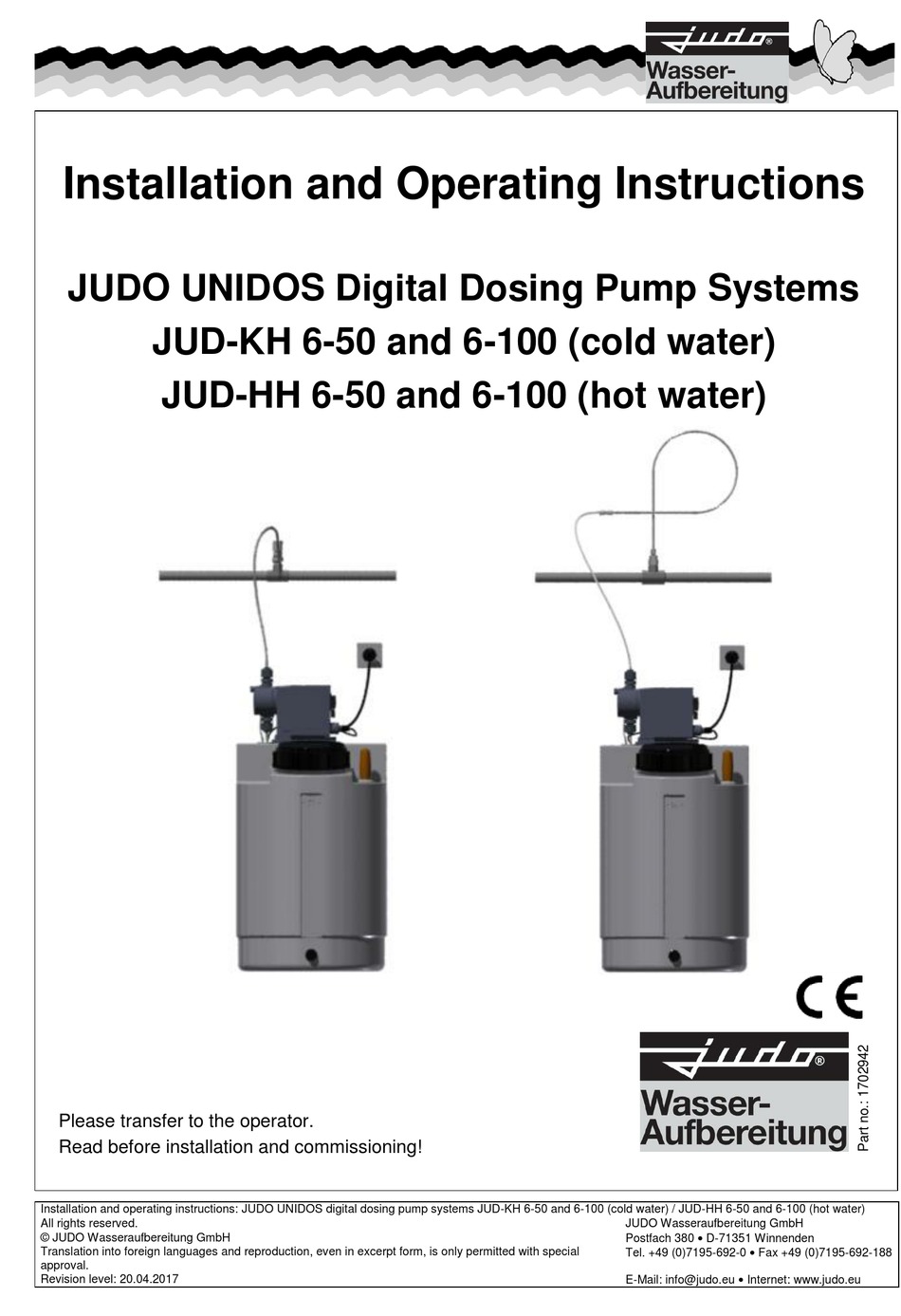

Installation and Operating Instructions

JUDO UNIDOS Digital Dosing Pump Systems
JUD-KH 6-50 and 6-100 (cold water)
JUD-HH 6-50 and 6-100 (hot water)
Please transfer to the operator.
Read before installation and commissioning!
Installation and operating instructions: JUDO UNIDOS digital dosing pump systems JUD-KH 6-50 and 6-100 (cold water) / JUD-HH 6-50 and 6-100 (hot water)
All rights reserved.
© JUDO Wasseraufbereitung GmbH
Translation into foreign languages and reproduction, even in excerpt form, is only permitted with special
approval.
Revision level: 20.04.2017
JUDO Wasseraufbereitung GmbH
Postfach 380  D-71351 Winnenden
Tel. +49 (0)7195-692-0  Fax +49 (0)7195-692-188
E-Mail: info@judo.eu  Internet: www.judo.eu
