Summary of Contents for Atlantic SOLW2

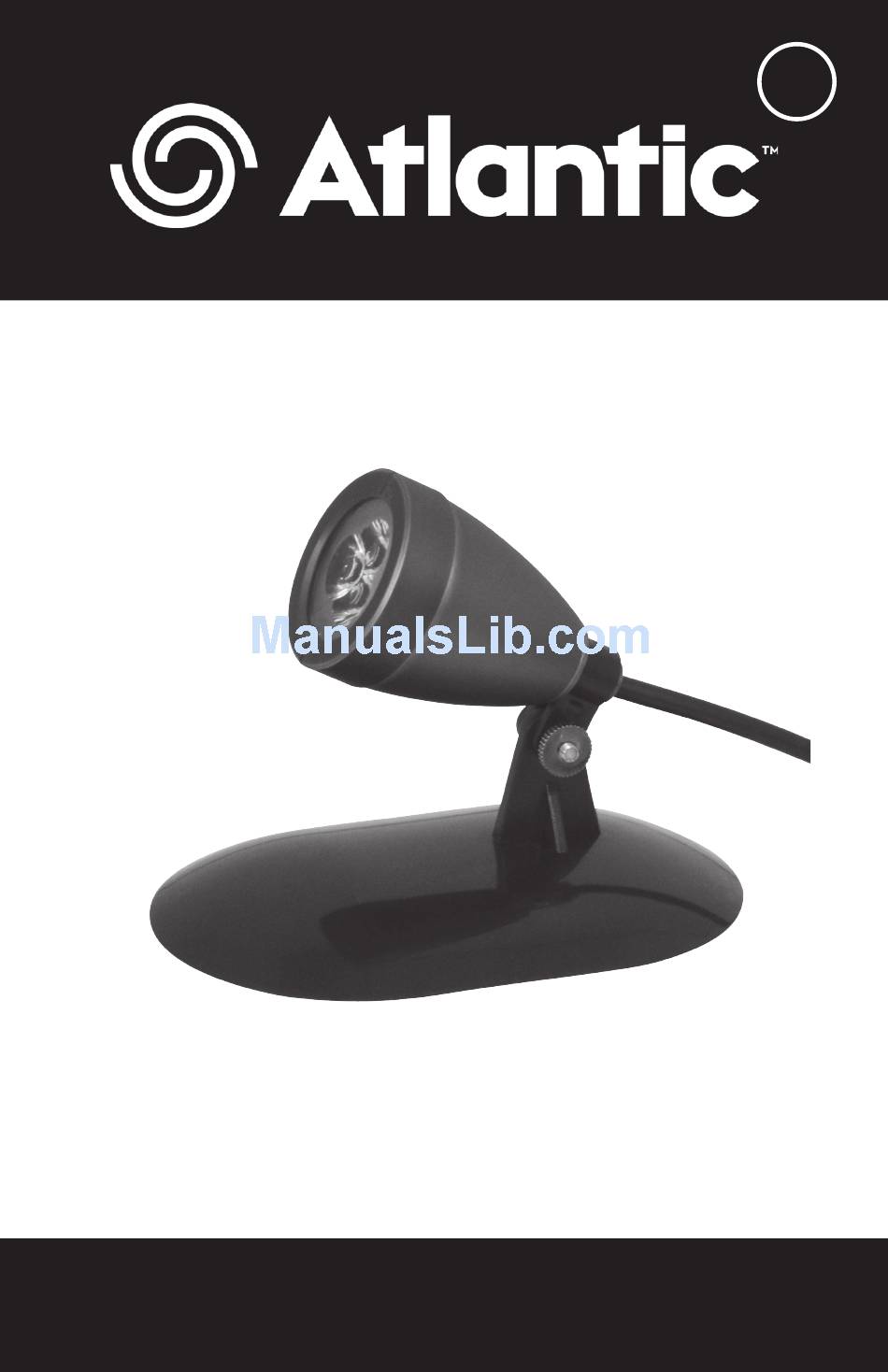

- Page 1 Product Manual | Manuel du Produit | Manual del Producto SOLW2 / SOLW6 / SOLWLR / SOLWH06 / SOLWH12 / SOLWSL2 / SOL30X4 / SOLW88X10 / SOLTRANS88 1.330.274.8317 www.ATLANTICWATERGARDENS.com...
- Page 2 SOL Light. Only one cord can be used on each light. Never connect multiple extension cords together. • Atlantic SOL Warm White lights can be connected to a larger outdoor lighting system by cutting the cord and stripping the wires, however this must be done on the 12 volt AC input side of the driver.
- Page 3 Simply place the key in the slots on the brass lens ring to loosen or tighten. Ensure that all components are installed correctly after servicing. Inspect the silicone gaskets for defects and proper placement before re-assembling. Ensure that the lens ring is tightly secured before submersing the fixture. SOLW2: Brass Lens Ring Brass Body...
- Page 4 Maintenance Replacement LED Bulbs are available for SOL Spout Lights. To loosen and tighten the brass lens ring on SOL Spout Lights, use the included key. Simply place the key in the slots on the brass lens ring to loosen or tighten. Ensure that all components are installed correctly after servicing. Inspect the silicone gaskets for defects and proper placement before re-assembling.
- Page 5 Maintenance Replacement LED fixtures are available for Hardscape Lights. Remove the screws on the existing light, being careful not to let the light strip fall, as this could break the plug connecting the light to the cord. Lower the light and squeeze the locking clip;...
- Page 6 WIRING KITS - SOLTRANS88 Installation Connect the supplied quick-connect pigtail to the power outlet on the back of the transformer. Loosen the screws on the Spade Connectors outlet terminals and slide the spade connectors on the pigtail under the screw plate. Tighten the screws to secure the spade connectors.
- Page 7 Warranty All Atlantic SOL Warm White Lighting carries a five-year limited warranty. All SOL Wiring Components carry a five-year limited warranty. Atlantic SOLTRANS88 carries a one-year limited warranty. This limited warranty is extended solely to the original purchaser commencing from the date on the original purchase receipt and is void if any of the following apply: •...
- Page 8 1.330.274.8317 www.ATLANTICWATERGARDENS.com...
