OPERATING MANUAL
MOTION SENSOR
HKZW-MS02
Motion sensor is a universal Z-Wave Sensor. It can detect motion and communicate with other
associated Z-Wave devices, such as Gateway, Siren, Smart Switch, etc.
Motion sensor can be included and operated in any Z-Wave network with other Z-Wave certified
devices.
The features list:
1) Z-Wave Plus certified for wide compatibility (500 serials product).
2) Supports security 0 and security 2 protected mode with AES-128 encryption.
3) Motion sensor.
4) Product shock alarm.
5) The battery life is up to 1 year.
6) Low battery alarm.
7) Support firmware OTA.
Ⅰ. GENERAL INFORMATION ABOUT MOTION SENSOR

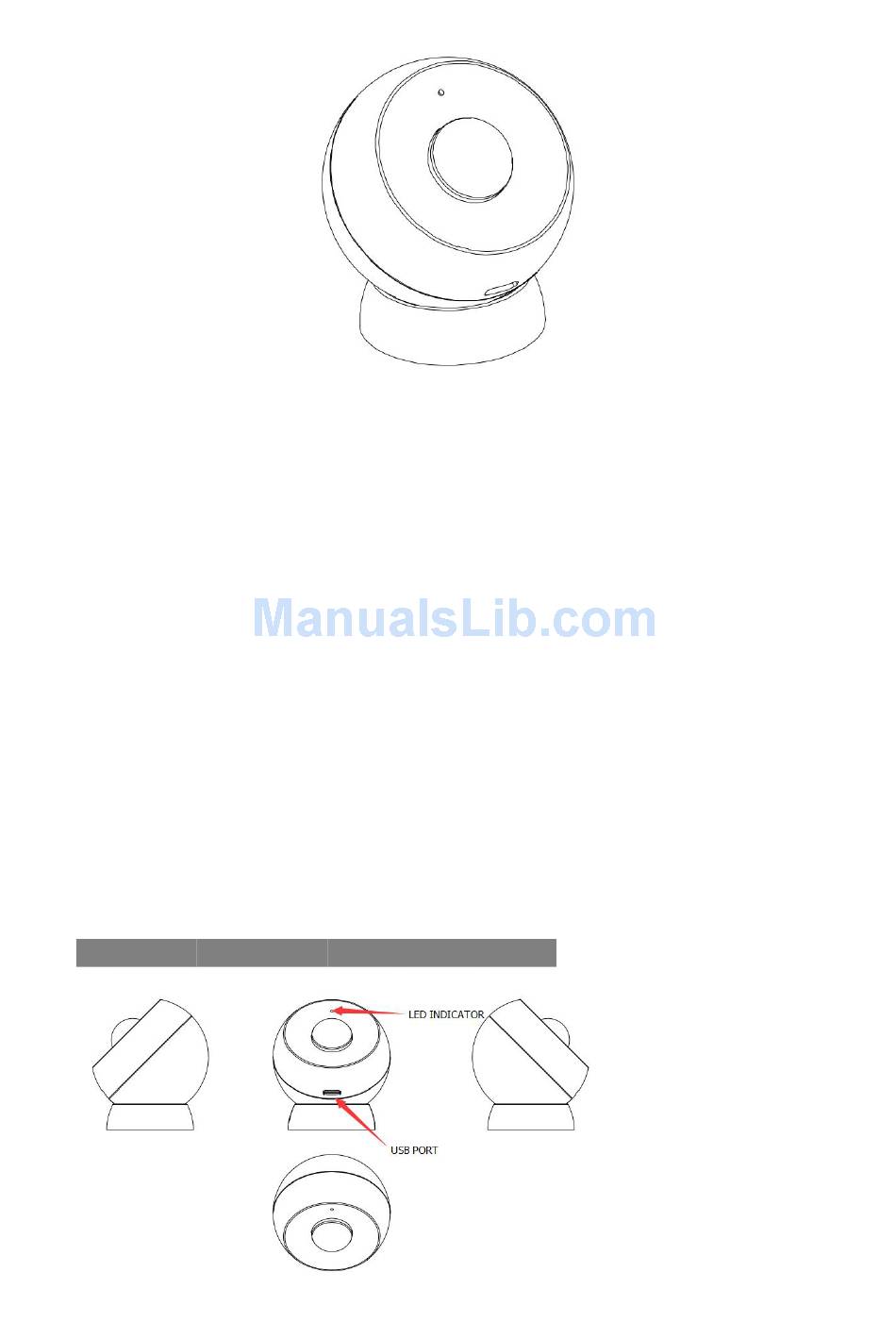

1. Product layout
Advertisement
Related Manuals for HANK Electronics HKZW-MS02
Summary of Contents for HANK Electronics HKZW-MS02
- Page 1 OPERATING MANUAL MOTION SENSOR HKZW-MS02 Motion sensor is a universal Z-Wave Sensor. It can detect motion and communicate with other associated Z-Wave devices, such as Gateway, Siren, Smart Switch, etc. Motion sensor can be included and operated in any Z-Wave network with other Z-Wave certified devices.
- Page 2 2. Specifications Power Supply: 3V: 1*CR123A or Micro USB Storage environment: -40 -70℃ Operational temperature : 0 - 40℃ Radio protocol: Z-Wave Plus Radio frequency: 868.42MHz (EU) 908.42MHz (US) 921.42MHz(ANZ) Range: More than 100m outdoors About 30m indoors Dimensions: 50mm(Φ) Working current: About 50mA Standby current:...
- Page 3 5. Place the sensor to anywhere you want. Ⅲ.DETECTION AREA Motion Sensor’s motion detection area is shown below. Actual range of the sensor can be influenced by environment conditions. Should false motion alarms be reported, check for any moving objects within the sensor’s detection area, such as trees blowing in the wind, cars passing by, windmills.
- Page 4 Ⅳ. ADDING/REMOVING THE DEVICE Adding 1) Open the cover. 2) Place the device within the direct range of your Z-Wave controller. 3) Set the main controller’s adding mode (see the controller’s manual). 4) Click the Z-button once or triple click the Z-button quickly, the LED indicator should blink fast. 5) Wait for the adding process to end.
- Page 5 NOTE If you want your motion sensor to be a security device that use secure/ ！ encrypted message to communicate in a Z-Wave network, then a securit y enabled Z-Wave controller is needed. Removing 1) Open the cover. 2) Place the device within the direct range of your Z-Wave controller. 3) Set the main controller remove mode (see the controller’s manual).
- Page 6 Setting examples: 0~3599 = 0 second, the device will not wake up by itself. 3600~7199 = 3600 seconds, the device will wake up every 3600 seconds. Ⅶ.RESETTING Reset procedure clears the motion sensor's memory, including Z-Wave network controller information. To reset Motion sensor: 1) Power on the device, 2) Press and hold the Z button for more than 20 seconds, If holding time more than 20seconds, the LED indicator will keep on for 2 seconds, which...
- Page 7 Parameter No.15 VALUE OF THE BASIC SET Motion Sensor can reverse its value of BASIC SET when motion is triggered. 0 –Send BASIC SET VALUE = 255 to nodes associated with group 2 when motion alarm is triggered. Send BASIC SET VALUE = 0 to nodes associated with group 2 when motion alarm is canceled. 1 –Send BASIC SET VALUE = 0 to nodes associated with group 2 when motion alarm is triggered.
- Page 8 against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
