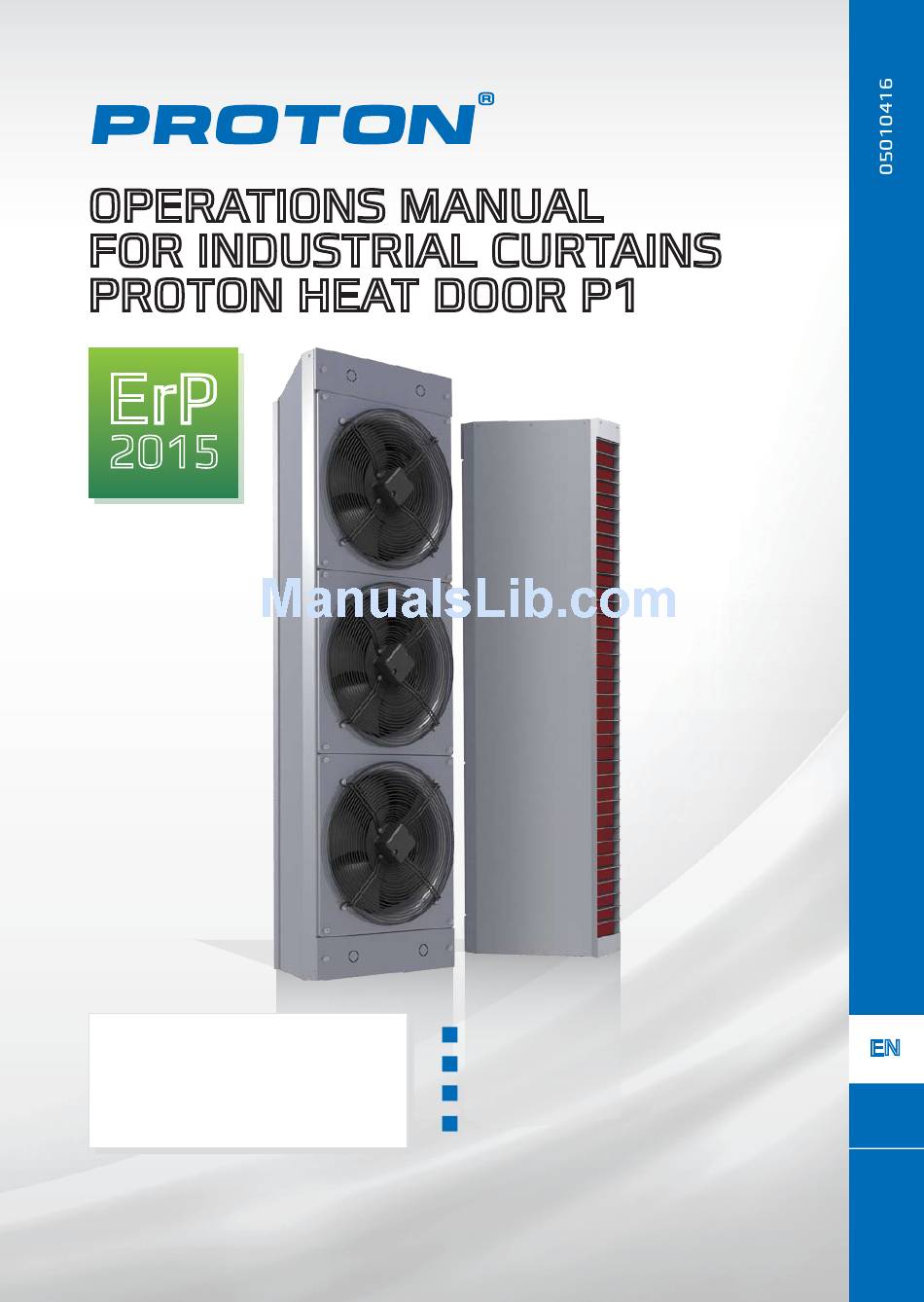

- Page 1 OPERATIONS MANUAL FOR INDUSTRIAL CURTAINS PROTON HEAT DOOR P1 2015 Safety precautions Water heating Construction and dimensions Electric heating Technical parameters Without heating Installation www.protongroup.org...
-
Page 2: Table Of Contents
CONTENTS Maintenance guide for industrial curtains PROTON HEAT DOOR P1: 1. Introduction ................................2. Safety precautions ............................. 3. General information ............................4. Dimensions ................................6 5. Construction ................................. 7 6. Technical characteristics ..........................8 7. Installation ................................8. Connection of heat medium ........................... -
Page 3: Introduction
1. INTRODUCTION The company PROTON GROUP LLC thanks you for choosing industrial curtains PROTON HEAT DOOR P1. This manual is an integral part of the product and must always accompany it, and should be transferred to the user. To provide proper wiring and application of the industrial curtain, please, study this manual thoroughly before installation. -
Page 4: Safety Precautions
2. SAFETY PRECAUTIONS Before any actions connected with the air curtains, please, study this manual to provide safety. Installation and connection of the equipment to pipelines and networks must be performed by qualified personnel only, having appropriate access. During installation, start-up, repair and maintenance of the industrial curtain follow the safety rules. -
Page 5: General Information
The air curtains PROTON HEAT DOOR P1 successfully solve the problem of heat losses in buildings by cutting o cold or hot outdoor air, and prevent access of dust, insects, gases, etc. -
Page 6: Dimensions
4. DIMENSIONS Dimensions of industrial curtain PROTON HEAT DOOR P1 Dimensions of a mounting console СM HD 13.2 13.2 13.2... -
Page 7: Construction
5. CONSTRUCTION PROTON HEAT DOOR P1 Major components of the industrial curtain PROTON HEAT DOOR P1: Casing The casing consists of galvanized or dyed metal. Single-phase AC-fan Rated power supply is 230 V/50 Hz. Motor protection grade is IP54, F-isolation class. -
Page 8: Technical Characteristics
– air consumption – water pressure drop in heat exchanger Data on operating characteristics of industrial curtains PROTON HEAT DOOR P1 when using heat medium with di ering temperatures is to be provided on demand. There is danger of heat exchanger defrosting (breakage) if room temperature falls lower than 0 °C. - Page 9 6. TECHNICAL PARAMETERS 6.2 Industrial curtains with electric heating PROTON HD P1-E-70 HD P1-E-7015 HD P1-E-7020 General parameters Air curtain’s standard size 1500 2000 m³/h Airflow 8000 11000 18.0 24.0 Heat power Max. warm air stream throw Air temperature increase °С...
-
Page 10: Installation
Minimal distances from walls and ceiling Installation Owing to the module construction, the curtains PROTON HEAT DOOR P1 are to be installed on the top or one/both sides of doorways by min 450 mm combining several modules of 1,5 and 2 m, that allows to cover the length of doorway. -
Page 11: Connection Of Heat Medium
8. CONNECTION OF HEAT MEDIUM Piping industrial curtains PROTON HEAT DOOR P1 Air outtake Two-way valve with actuator Ball cock Ball cock PROTON HEAT DOOR P1 Outlet pipeline 0,003 Inlet pipeline Drain Control board Coarse filter Industrial curtains can be installed in closed heating systems with forced circulation with maximal temperature of the heat medium 105 °C and maximal pressure 1,6 MPa. -
Page 12: Control Elements
Using PROTON PRO you increase equipment lifetime protecting it from functioning under alarm conditions. RDE Control board Protection equipment and control elements need to be used for correct use of a device, fed by the electrical network. -
Page 13: Wiring Control Elements
10. WIRING CONTROL ELEMENTS 10.1 Wiring of industrial curtain with water heating or curtain without heating to control board RDU Contacts of groups of the overheat sensors 2х1.5 Contactors of a group of electric motors 3х2.5 Indicators to the scheme —joint box of the curtain —control board RDU Notes... - Page 14 10. WIRING CONTROL ELEMENTS 10.2 Wiring of industrial curtain with electric heating to control board ЭК1 ЭК2 1112 X1; K3M (К5М) Contacts of groups of Contacts of a group the overheat sensors of electric heaters 2х1.5 4х6 X1; K2M (К4М) Contacts of a group Contactors of a group of electric heaters...
-
Page 15: Reference Information
11. REFERENCE INFORMATION 11.1 Table of pressure calculation on a wire depending on its section Material of the conductor – copper: Material of the conductor – copper Section of current Voltage, 380 V Voltage, 220 V conducting core, mm Power, kW Power, kW Current, A Current, A... - Page 16 11. REFERENCE INFORMATION 11.2 Recommended diameters of pipes depending on power of equipment’s heat output Water consumption Inside diameter Type 15 kW 0.6 m³/h 20 mm 23 kW 1.0 m³/h 25 mm 39 kW 1.6 m³/h 32 mm 61 kW 2.5 m³/h 40 mm 96 kW...
- Page 17 FOR NOTES...
- Page 18 FOR NOTES...
- Page 19 FOR NOTES...
- Page 20 In case of any failures in operation of equipment address the authorized support centers of the Manufacturer. For information about support centers and procedure of claim submission contact Manufacturer’s service department: PROTON GROUP LLC 03680, Ukraine, Kyiv, 3, Nesterova str. Tel.: +380 (44) 537 0930 Fax: +380 (44) 537 0903 E-mail: service@proton.kiev.ua...
