  • Page 1 - technical documentation A61 Y2 9 0020 D EN                    BSD 2.0         User manual –Technical documentation            A61 Y2 9 0020 D EN         ...
  • Page 2 user manual - technical documentation A61 Y2 9 0020 D EN        Technical documentation history  Date  Version  Comment  July, 2015  A  Initial edition  January, 2017  B  IP config utility is obsolete due to BSD 2.0 upgrades  January, 2017  C  Compatibility with MASTER 2.0   November 2017  D  DC Voltage range modification + Leds positioning change                           ...
  • Page 3: Table Of Contents

    user manual - technical documentation A61 Y2 9 0020 D EN        Summary   1  Presentation ..........................  5   2  Installation ..........................  7   2.1  Unpacking  ............................ 7  2.2  Mounting ............................. 7  2.3  Account configuration ......................... 8  2.4  Power ............................ 8  2.5  Connection and configuration  ..................... 8  2.5.1  Connectionbetween BSD 2.0 and Internet  .............. 9  2.5.2  GENSYS to BSD 2.0 connection  .................. 12  3 ...
  • Page 4 user manual - technical documentation A61 Y2 9 0020 D EN        6.2  LED RS485 / RS232 ........................ 33  7  Dimensions & Specifications .................... 34  7.1  Dimensions .......................... 34  7.2  Specifications  .......................... 35     ...
  • Page 5: Presentation

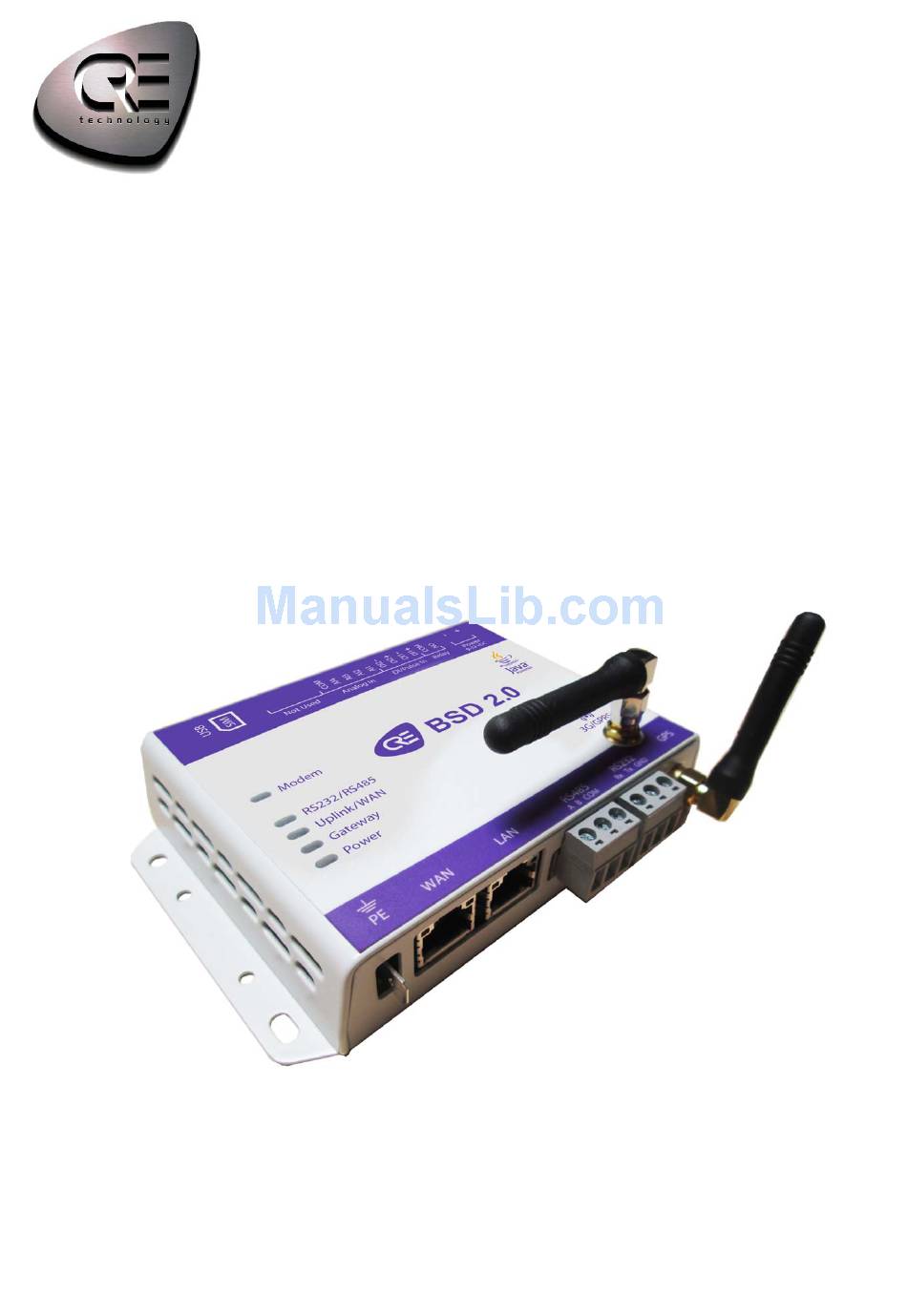

    user manual - technical documentation A61 Y2 9 0020 D EN        PRESENTATION   The  BSD  2.0  is  a  gateway  between  your  GENSYS  /  MASTER  and  Internet.  It  allows  you  to  remotely  monitor your GENSYS from any device with a web browser (Tablet, Computer and Smartphone). This  device is compatible with GENSYS 2.0, GENSYS COMPACT and MASTER 2.0. One BSD 2.0 is necessary  by unit. You will find below the functions provided by this module:  ‐ Sending of mails and/or text messages when an alarm or a fault appears on the GENSYS  ‐ Location of your generator  ‐ Control of your generator (Control of breakers, changing mode, start or stop the engine etc.)  ‐ Visualization of many parameters (generator, mains, engine, inputs/outputs, etc.)   ...
  • Page 6 user manual - technical documentation A61 Y2 9 0020 D EN        Once  the  connection  and  configuration  are  done,  you  can  access  the  GENSYS  connecting  to  the  websitehttp://bsd20.cretechnology.com/with your login and password provided by CRE Technology.    There are 2 types of users:    ‐ «  User  »  level:  You  can  use  all  the  functionalities  of  the  BSD  2.0  but  you  can't  realize  the  installation of the product (or any other configuration)  ...
  • Page 7: Installation

    user manual - technical documentation A61 Y2 9 0020 D EN        INSTALLATION   The GENSYS 2.0 and MASTER 2.0 firmware must be at least v4.66a5.    The GENSYS COMPACT firmware must be at least v1.01.  Warning   UNPACKING   Make sure the package includes:  ‐ The module  ‐ A 3G/GPRS antenna  ‐ A GPS antenna    Unpack and keep the package in case of any return.    Make sure the module doesn't have any scratches or visible faults/defects.    MOUNTING   Wall mounting    The  BSD  2.0must  be  wall  mounted,  by  screwing  the  unit  directly  to  a  flat  surface  using  the  screw  holes provided in the metal casing as shown below. ...
  • Page 8: Account Configuration

    user manual - technical documentation A61 Y2 9 0020 D EN        ACCOUNT CONFIGURATION   5 logins will be supplied to you, 1 login at Manager level and 4 logins at User level. The logins and the  password of each account will be given by CRE Technology.    For  each  account,  connect  on  http://bsd20.cretechnology.com/  using  the  logins  and  the  password  given by CRE Technology, click on the login on the top corner of the page and enter:   ‐ Password  ‐ Phone number (must be validated)  ‐ Email (must be validated)  ‐ Click on  « save »    POWER   9 – 32 V    ...
  • Page 9: Connection Between Bsd 2.0 And Internet

    user manual - technical documentation A61 Y2 9 0020 D EN        Configuration 1: Ethernet network connected to Internet      Switch     Internet    LAN      Gateway                  Configuration 2: SIM card with a "data" plan (Mobile internet bundle)          Internet          The  next  two  sections  detail  the  connection  between  the  BSD  2.0  and  Internet,  and  then  the  connection between the GENSYS / MASTER and the BSD 2.0. ...
  • Page 10 user manual - technical documentation A61 Y2 9 0020 D EN            If your network is equipped with a DHCP server (auto configuration of IP addresses), the connection  is automatic. Wait a few seconds and check if the light of the LED Uplink/WAN is green.    If your network does not use DHCP protocol or if you would like to manually configure an IP address  for the BSD 2.0:    Disconnect the WAN port of BSD 2.0 and connect your BSD 2.0 LAN port to your computer with an  Ethernet cable without using a switch. Open a web browser, type the LAN IP address of the BSD 2.0  (10.200.1.1) and be sure your computer is in the same subnet (IP address: 10.200.1.X with X between  2 and 250). You will see a message box requesting a username and a password:    Username: admin  Password: Type the activation code which is at the bottom of your BSD 2.0     When you are connected, you can modify the WAN IP address of your product selecting « Network  settings ». « Use DHCP to assign an IP address automatically » must not be checked.  Then, do not forget to reconnect the BSD 2.0 to your installation as described before.        10 / 37   ...
  • Page 11 user manual - technical documentation A61 Y2 9 0020 D EN        Configuration 2: SIM card with a "data" plan (Mobile internet bundle)    Note: A « data » plan is a mobile plan with an Internet connection    ‐ Deactivate  the PIN code of your SIM card  ‐ Insert the SIM card in the module    The SIM card should be pushed into the slot provided on the top side of the unit. The side of the SIM  card with the gold plating should face upwards, and the end with the cut corner should be inserted  first. When the card is fully inserted it will lock into position.                              Note: Push the SIM card again to extract it    Check that the BSD 2.0 is powered on.    Connect  on  http://bsd20.cretechnology.com/,  select  the  system  (BSD  2.0)  you  want  to  configure,  then, select« Management »and click on « Mobile network »: ...
  • Page 12: Gensys To Bsd 2.0 Connection

    user manual - technical documentation A61 Y2 9 0020 D EN          Go on http://bsd20.cretechnology.com/, select the system (BSD 2.0) you want to modify, then, go on  « Management » and click on « Status »:    ‐ Click on   of part « Extended remote gateway information »  ‐ Check live « information updated » to see if time is up to date   The internet connection is operational          2.5.2 GENSYS to BSD 2.0 connection   Connect your GENSYS on the LAN port of the BSD 2.0.    By  default  both  devices  are  configured  to  communicate  together  without  any  other  configuration.  Their IP addresses are: ...
  • Page 13 user manual - technical documentation A61 Y2 9 0020 D EN        To  change  the  IP  address  of  a  GENSYS  2.0  or  a  GENSYS  COMPACT,  please  refer  to  the  product  documentation.    Modification of the LAN IP address of the BSD 2.0    Connect on http://bsd20.cretechnology.com/, select the system you would like to modify, then, go  on « Management» and click on « Configuration»:  ‐ Click on « Gateway settings »  ‐ On   «  LAN  Configuration  »  select  the  mode  :  «  Manually  set  a  fixed  IP  address  and  netmask » ...
  • Page 14: Human-Machine Interface

    user manual - technical documentation A61 Y2 9 0020 D EN        HUMAN-MACHINE INTERFACE   LED   Indications  Modem status  Status for RS‐232 and RS‐485 port (Specific applications)  Connection status via WAN port  System status  Unit is powered on  Network speed    Note : While unit is booting up, all LED will be orange except Power LED    3.1.1 Uplink/WAN LED   This LED indicates the status of the connection between the BSD 2.0 and the Cloud (Internet).    Connected to the Cloud    Incorrect IP settings  ‐ For dynamic IP address, check for DHCP server on network  ‐ For fixed IP address, check the set IP address (see 3.2.2)      Unable to connect to the Cloud (Internet)  Check  all  network  settings  (gateway,  DNS  servers,  netmasks,  etc)  and  firewalls. ...
  • Page 15: Gateway Led

    user manual - technical documentation A61 Y2 9 0020 D EN        Modem failure     SIM card failure  Check that the SIM card is properly inserted and is not damaged      PIN code activated on SIM card  Deactivate the PIN code      No APN server specified    Modem is registered on mobile network    Modem is searching for mobile network        3.1.3 Gateway LED   No power, or unit is still starting up    Hardware failure ‐ Contact CRE Technology support    Application failure ‐ Contact CRE Technology support    Normal operation        3.1.4 Power LED  ...
  • Page 16: Power Of The Mobile Network

    user manual - technical documentation A61 Y2 9 0020 D EN        No Ethernet link detected    Activity on a 10 Mbps Ethernet network    Activity on a 100 Mbps Ethernet network        3.1.6 Power of the mobile network   For  an  indication  of  the  mobile  network  signal  strength,  press  and  release« MODE »  button  on  the  top of the BSD 2.0. The top 5 LEDs (i.e. all except the Power LED) on the front panel will now indicate  the signal strength as follows:  ‐ 1 Red LED: No/unknown signal  ‐ 1 Orange LED: Poor signal ...
  • Page 17: User Interface

    user manual - technical documentation A61 Y2 9 0020 D EN        USER INTERFACE   To  access  the  user  screen,  connect  with  your  user  name  and  password  on  :  http://bsd20.cretechnology.com/    All your company’s projects appear :        Each project allows you to access on one or several power generators called “System” :        This part details available pages for each power generator.    3.2.1 « Control » tab   This page contains the following functions: ...
  • Page 18: Display

    user manual - technical documentation A61 Y2 9 0020 D EN        ‐ Reset alarms and faults  ‐ Display of evolutionary curves (voltages, frequency, power).         3.2.2 Display   The pages Generator, Mains/Bus, Engine and  Inputs/Outputs are display pages. All of the variables  you will see in these pages are listed below:    GENSYS 2.0  Page Variable name Generator V1, V2, V3 U23, U31, U12 I1, I2, I3 P1, P2, P3 Q1, Q2, Q3 Pf1, Pf2, Pf3 Frequency...
  • Page 19 user manual - technical documentation A61 Y2 9 0020 D EN        Mains V1, V2, V3 U23, U31, U12 I1, I2, I3 P1, P2, P3 Q1, Q2, Q3 Pf1, Pf2, Pf3 Frequency Engine Oil pressure Coolant temperature Battery voltage Count of attempts to start Engine running hours Inputs/Outputs Emergency stop...
  • Page 20 user manual - technical documentation A61 Y2 9 0020 D EN        GENSYSCOMPACT PRIME  Page Variable name Generator V1, V2, V3 U23, U31, U12 I1, I2, I3 P1, P2, P3 Q1, Q2, Q3 Pf1, Pf2, Pf3 Frequency V1, V2, V3 U23, U31, U12 Frequency Engine Oil pressure Coolant temperature...
  • Page 21 user manual - technical documentation A61 Y2 9 0020 D EN        MASTER 2.0  Page Variable name Power plant V1, V2, V3 U23, U31, U12 I1, I2, I3 P1, P2, P3 Q1, Q2, Q3 Pf1, Pf2, Pf3 Frequency Mains V1, V2, V3 U23, U31, U12 I1, I2, I3 P1, P2, P3 Q1, Q2, Q3...
  • Page 22: Alarms/Faults

    user manual - technical documentation A61 Y2 9 0020 D EN        3.2.3 Alarms/Faults   When an alarm or fault is detected by the GENSYS, an email and/or text message is immediately sent  to all the users. This email/text message will tell you whether it is an alarm or a fault and how serious  the problem is:    Alarm:  ‐ Alarm    Faults:  ‐ Generator fault : ON if there is at least one « generator electrical fault » triggered by  GENSYS  ‐ Mains fault : ON if there is at least one « mains electrical fault » triggered by GENSYS  ‐ Soft shutdown : ON if there is at least one « minor fault » triggered by GENSYS  ‐ Hard shutdown : ON if there is at least one « serious fault » triggered by GENSYS  ‐ SSD + help  ‐ Generator electrical fault + help    Note: For more information, please refer to the module’s documentation.    Then you can connect on the user interface in order to obtain more information. You will be able to  see:  ‐ In red :Indication on the cause of the fault(triggers the sending of an email and/or text ...
  • Page 23: Map

    user manual - technical documentation A61 Y2 9 0020 D EN        To  draw  a  curve,  drag  a  parameter  from  the  « Available  Parameters»  column  to  « Left  Axis»  or  « Right Axis ».    Both  axes  automatically  adjust  themselves  to  the  parameters  values.  Put  the  variables  which  have  the same order of magnitude on the same axis in order to give you a better readability.  ...
  • Page 24: Gps

    user manual - technical documentation A61 Y2 9 0020 D EN          The BSD 2.0 offers a GPS location allowing you to:    ‐ Visualize the location of your power generator on a map  ‐ Receive  emails  and/or  text  messages  when  your  power  generator  is  out  of  a  predetermined geographic area    GPS activation    ‐ Connect the GPS antenna on the dedicated SMA port of the BSD 2.0  ‐ Connect on : http://bsd20.cretechnology.com/  ‐ Follow the procedure by clicking on the magic wand on the top corner of the page :    Warning:   ...
  • Page 25: Advanced Configuration

    user manual - technical documentation A61 Y2 9 0020 D EN        ADVANCED CONFIGURATION   Only a user with “Manager” access can realize the actions described in this section. Don't forget to  download the new configuration in the BSD 2.0 after each modification you make (refer to 2.5.2).    CREATE A VISUALISATION PAGE FOR INPUTS/OUTPUTS   The  spare  inputs  and  outputs  of  the  GENSYS  2.0  and  the  GENSYS  COMPACT  are  not  displayed  by  default. However it is possible to create one or more pages to visualize the inputs/outputs of your  application.    Step 1  ‐ Connect on : http://bsd20.cretechnology.com/  ‐...
  • Page 26: Create Alarms For Inputs And Outputs

    user manual - technical documentation A61 Y2 9 0020 D EN        Device: Select GENSYS COMPACT or GENSYS 2.0 according to your application  Group: All the groups ending by « user defined» are intended to the creation of inputs/outputs pages  Parameter: Select the parameter you want to add to this list  Description: Give a name to this input/output (Ex: Oil pressure for the parameter « Digital input J4 »  of the GENSYS 2.0)    ‐ Click on « save »  ‐ Start again for all the inputs/outputs you want to visualise    Note: The number of inputs/outputs you can add is limited. The list « Visualization » can't exceed 128  variables (taking into account the default variables already used on existing pages).    Step 2    You can now create pages which will enable you to visualize the variables configured in the step 1.  These pages will be observable by all the users in exactly the same way as the default pages.    To add a page :    ‐ Click on « Dashboards » in the « Management » tab  ‐ Click on « add »  ‐ By clicking on « edit » you can modify the name of the page and define an access level:  o Admin : Only the user with manager level will have access to this page  o User : All users will have access to this page  ‐...
  • Page 27 user manual - technical documentation A61 Y2 9 0020 D EN        Add to this list all the inputs/outputs which should trigger an alarm on the BSD 2.0. To do this:    ‐ Click on « add alarm parameter »        Device: Select GENSYS COMPACT or GENSYS 2.0 according to your application  Group: All the groups ending by « user defined» are intended to the creation of alarms  Parameter: Select the parameter which will trigger an alarm on the BSD 2.0  Description: Give a name to this alarm (Ex: Oil pressure for the parameter « Digital input J4 » of the  GENSYS 2.0)  Trigger & Value: This 2 fields need to be always filled as shown above.  Severity: Select « Warning »    ‐ Click on « save »  ‐ Start again for all the alarms    Note:  The  number  of  alarms  you  can  add  is  limited.  The  list  « Alarms »  can't  exceed  128  variables  (taking into account the default alarms). ...
  • Page 28: Modify The Configuration Of The Bsd 2.0

    user manual - technical documentation A61 Y2 9 0020 D EN        MODIFY THE CONFIGURATION OF THE BSD 2.0   When you receive your BSD 2.0, this one is configured to work with a GENSYS 2.0 or with a GENSYS  COMPACT according to your initial application. However, it is possible to change the configuration of  the BSD 2.0 by yourself. You need to:    Delete the initial device:    ‐ Connect on : http://bsd20.cretechnology.com/  ‐ Select the system for which the configuration needs to be modified  ‐ Go to the « Configuration » page on the « Management » tab  ‐ On the line GENSYS 2.0 or GENSYS COMPACT, click on « remove »    Add a device:    ‐ Click on « add device »        ‐ Tick « Use configuration from a profile »  ‐ Select Device type : « Modbus »  ‐ Choose the new profile you would like to use  ‐ Click on « next » ...
  • Page 29 user manual - technical documentation A61 Y2 9 0020 D EN        ‐ Complete the following fields:        Device name: This field will be automatically filled. It can be modified if necessary.  Modbus slave: This parameter isn’t used by the GENSYS. Write « 1 » as shown above  Modbus IP: Fill the IP address of the GENSYS connected to the BSD 2.0. By default, the address of the  GENSYS is « 192.168.11.1 »  Modbus port: This field will be filled by default with the value « 502 ». It is the Modbus port used by  default on the GENSYS. This parameter must be the same as the GENSYS configuration.    ‐ Click on « next »        ‐ Click on « save »      29 / 37   ...
  • Page 30: To Go Further

    user manual - technical documentation A61 Y2 9 0020 D EN        TO GO FURTHER   The standard BSD 2.0 application does not make use of the elements that follow. Their use is under  the responsibility of the user.    CONNECTIONS   6.1.1 Terminal block       Label Function (Analog In) COM Analog ground (Analog In) AI4 Analog input #4 (Analog In) AI3 Analog input #3 (Analog In) AI2 Analog input #2 (Analog In) AI1...
  • Page 31 user manual - technical documentation A61 Y2 9 0020 D EN        Relay output    There is one relay output with a rated load of 1A at 24V .    The relay output must be supplied from an isolating transformer using a secondary listed fuse rated  at maximum 3.3A and minimum 30V .    Connecting a Relay Output    Analog inputs    BSD 2.0 provides 4 analog inputs. All 4 inputs support:    ‐ Current: 0‐20 mA, ±3.5% (Input resistance 270 Ohm)  ‐ Voltage: 0‐10 V , ±2% (Input resistance 280 kOhm)    Analog inputs 1 and 3 also support the connection of:    ‐ PT100: PT100 temperature sensor (range ‐50° to +150°C)    Wire an Analog Input for Temperatures Readings        Wire an Analog Input for Voltage Readings   ...
  • Page 32: Rs-485 Serial Interface

    user manual - technical documentation A61 Y2 9 0020 D EN        Wire an Analog Input for Current Readings      6.1.2 RS‐485 Serial Interface     The RS‐485 serial interface is used to  connect Modbus slave units.      Pin  Function    RS‐485 Line A   RS‐485 Line B   COM ISO GND (isolated ground)     6.1.3 RS‐232 Serial Interface   The RS‐232 serial interface is used to    connect a single Modbus slave unit.        Pin ...
  • Page 33: Led Rs485 / Rs232

    user manual - technical documentation A61 Y2 9 0020 D EN        LED RS485 / RS232   This LED indicate the status of the serial ports, according to the following:    Port not in use    Port failure    Port enabled from Cloud      33 / 37   ...
  • Page 34: Dimensions & Specifications

    user manual - technical documentation A61 Y2 9 0020 D EN        DIMENSIONS & SPECIFICATIONS   DIMENSIONS   All measurements are shown in millimetres.      34 / 37   ...
  • Page 35: Specifications

    user manual - technical documentation A61 Y2 9 0020 D EN        SPECIFICATIONS   Ethernet 10/100 Mbit/s Mobile communication 5-band 3G/UMTS (WCDMA/FDD): 800/850, 900, 1900, 2100 MHz Quad-band GSM/GPRS: 850, 900, 1800, 1900 MHz Alarms Email, SMS Relay output 1(max 24V AC/DC, 1A) Digital inputs 2, dry contact type Analog inputs...
  • Page 36 user manual - technical documentation A61 Y2 9 0020 D EN        CRE TECHNOLOGY  130 allée Charles‐Victor Naudin  Zone des Templiers  Sophia‐Antipolis  06410 BIOT  FRANCE    Phone: +33 (0)4 92 38 86 82  Fax: +33 (0)4 92 38 86 83    Website: www.cretechnology.com  Email: info@cretechnology.com    Technical support: +33 (0)4 92 38 86 86 (office hours: 8.30AM ‐ 12AM / 2PM ‐ 6PM GMT +1)   Email: support@cretechnology.com    SKYPE: support‐cretechnology.com (voice only)  A worldwide coverage:   Head Office: FRANCE  Official Distributors  Agents      Check our entire distributors list around the world on our Web site http://www.cretechnology.com.            36 / 37   ...
