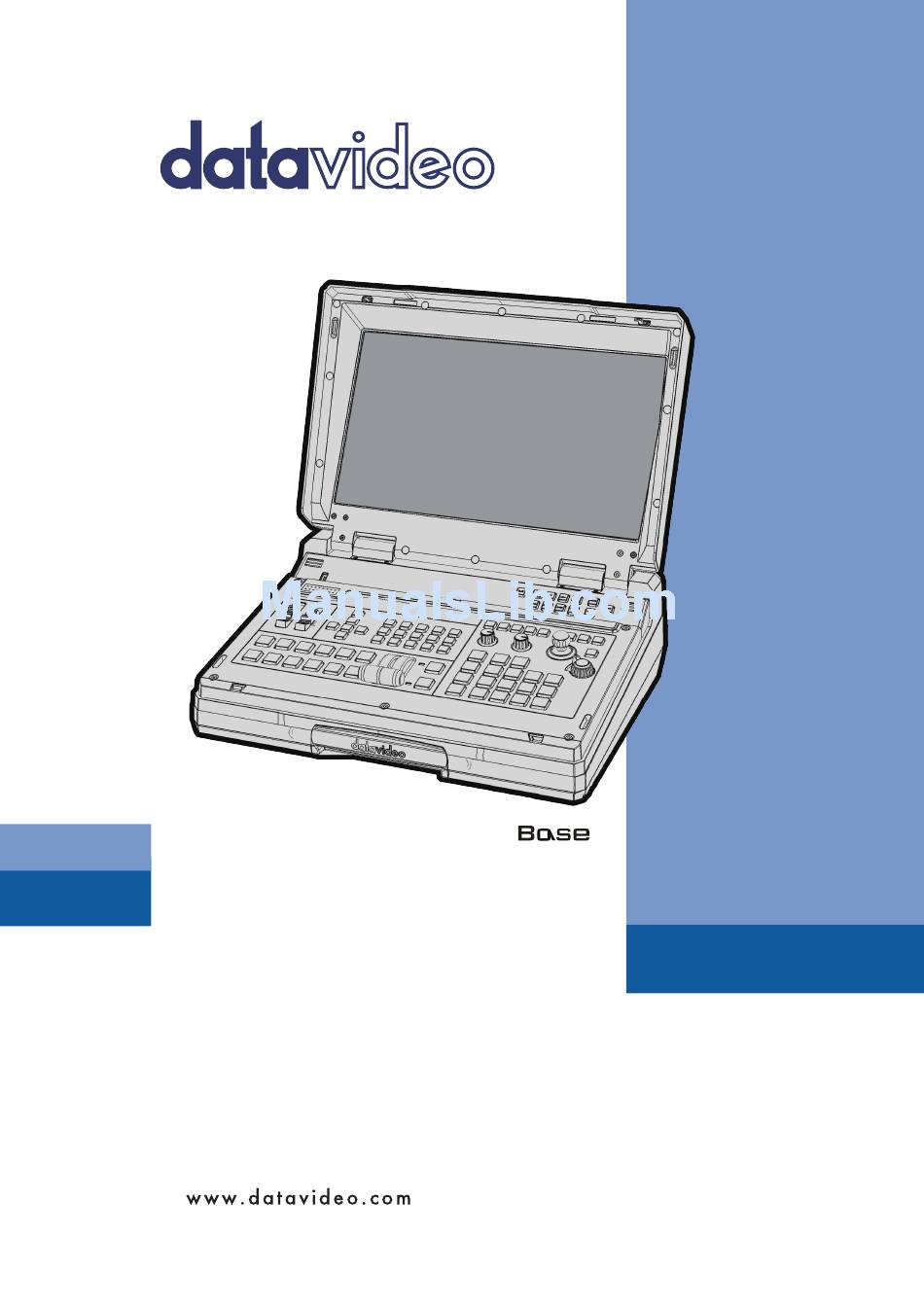

  • Page 1 HD/SD 4-CHANNEL HD PORTABLE VIDEO STUDIO HS-1500T Instruction Manual...

  • Page 2: Table Of Contents

    Table of Contents FCC COMPLIANCE STATEMENT ............................4 WARNINGS AND PRECAUTIONS ............................4 WARRANTY ..................................5 ................................5 TANDARD ARRANTY ................................5 HREE ARRANTY DISPOSAL ................................... 6 CHAPTER 1 INTRODUCTION ............................7 ..................................7 EATURES ................................ 8 YSTEM IAGRAM CHAPTER 2 CONNECTIONS AND CONTROLS ........................
  • Page 3 3.7.1 PGM Out Res..............................28 3.7.2 MV Out Res................................ 28 3.7.3 Save Setup ................................. 29 3.7.4 Factory Default ..............................29 3.7.5 Language ................................29 3.7.6 MB and KBD Software ............................29 ................................... 29 AMERA 3.8.1 Camera CH. Setup .............................. 30 3.8.2 PTC-150T-01/02/03 ............................

  • Page 4: Fcc Compliance Statement

    FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Warranty

    adjustment of other controls may result in damage to the unit and may often require extensive work by a qualified technician to restore the unit to normal operation; e. When the product has been dropped or the cabinet has been damaged; f.

  • Page 6: Disposal

    Disposal For EU Customers only - WEEE Marking This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 7: Chapter 1 Introduction

    PIP, WIPE Generator and Tally. The HS-1500T has a Joystick that allows the user to Pan, Tilt and Zoom the PTC-150T camera. In addition, the HS-1500T also allows the user to adjust the PTC-150T’s Focus, IRIS and other settings.

  • Page 8: System Diagram

    1.2 System Diagram...

  • Page 9: Connections And Controls

    Chapter 2 Connections and Controls 2.1 Rear Panel HDBaseT Port x 3 MIC IN – CH1/CH2 HDMI Video IN Audio Input – Stereo RCA (Left/Right) HDMI Video OUT x 3 DC IN USB F/W Upgrade Port Power Switch TALLY Output Port 1.
  • Page 10 Tally output port can connect other Datavideo peripheral devices such as ITC-100, ITC-200, AM-100 or other monitor models, allowing the peripheral device to communicate with the HS-1500T or send tally signal to be displayed on the monitor. 6. Audio Input – XLR Balanced (CH1/CH2) Two channels of XLR Balanced Audio Input.

  • Page 11: Switcher Keyboard Panel

    8. Power Switch Power switch ON/OFF 9. DC IN DC in socket connects the supplied 48V / 190W PSU. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. 2.2 Switcher Keyboard Panel Volume Control Focus / IRS /...
  • Page 12 Luma Keyer Enable/Disable buttons IRIS Adjustment Split Activation button White Balance Transition Control PAN / TILT / ZOOM T-Bar (manual transition) Speed Selection Buttons CUT button Joystick – PAN/TILT AUTO transition button VR Knob – ZOOM Program/Preview LOCK Button Camera MENU Control Program row Preview row MENU Button...
  • Page 13 Each Wipe button consists of black and white colors. The white represents the current Program image and the black represents the WIPE-IN image. The HS-1500T provides 3 WIPE presets with the Horizontal and Vertical WIPEs selectable on the control panel. The Center WIPE can be selected from the menu (Start).
  • Page 14 Luma Keyer Enable/Disable Buttons Luma Key PGM: Shows the luma key source on the PGM output and enables the luma key effect, however, the luma key effect cannot be previewed on the QUAD split view display. Luma Key PVW: Enables luma key source for the PGM output on the next transition.
  • Page 15 Program / Preview Outputs Program Source Row Pressing the number buttons along the PROGRAM row selects a video source for the PGM view. BKG button: Pressing the BKG button will switch the background to a Matte background. The BKG color can be configured on the OSD MENU and the available color options are listed as follows: •...
  • Page 16 Volume Control Volume Adjustment Sliders Sliders to control audio levels for the Main audio mixer. Headphone Volume: Audio volume of the connected headphone. Master: Main audio output volume. Headphone Jack Headphone jack accepts the mini jack plug of the stereo headphone type.
  • Page 17 STR Button Pressing this button enters the HS-1500T into STORE MODE. When activated, this allows the current camera position to be stored in a chosen Channel Preset Button. Press again to exit STORE MODE. FOCUS / IRIS / White Balance...
  • Page 18 Joystick – PAN / TILT PAN – Move the joystick left or right to pan the selected PTZ camera from left to right or vice versa. TILT – Move the joystick up or down to tilt the selected PTZ camera up or down. Note: Before attempting to use the joystick to PAN or TILT a selected camera, first make sure the LOCK button is not enabled.

  • Page 19: Monitor Control Panel

    2.3 Monitor Control Panel Power Switches the HS-1500T Monitor Power ON / OFF BLUE Press this button to eliminate the red and green component of input signals. Only the blue component of an input is displayed on the screen. This allows adjustments of chroma and phase. (Phase adjustment is effective with NTSC signals).
  • Page 20 Aspect Ratio Button Sets the Aspect Ratio to 16:9 / 4:3 Volume Control Adjusts the speaker / headphone volume up / down. MUTE Mutes the audio from the internal speakers or headphone socket.

  • Page 21: Switcher Osd Menu

    Blue Black 3.1.1 Transition Type The HS-1500T provides two types of transition effect, which are cross dissolve (MIX) and WIPE. The default setting is MIX. 3.1.2 Transition Speed The Transition Speed allows the user to set the MIX or WIPE effect duration, in frames. If the Transition Speed is set to a value of 60 then the transition will take effect over a period of 1 second if the progressive video is chosen and 2 seconds if the interlaced video is chosen.

  • Page 22: Wipe Effect

    3.1.3 Wipe Effect On the HS-1500T, there are three wipe effects available for the user to choose. The three wipe effects are HORIZONTAL, VERTICAL and CENTER. The default is Horizontal. 3.1.4 WIPE Border Size The WIPE Border Size generally allows the user to select an appropriate border width.

  • Page 23: Pip Source

    Input 1 Input 2 Input 3 Input 4* Background Color Bar PIP Size 1-100% Position X -50% - +50% Position Y -50% - +50% Black Input 2 Input 1 Input 2 Split Source Input 3 Input 4* Background Color Bar Small Small Border Size...

  • Page 24: Position X

    3.2.3 Position X Adjusting Position X parameter moves the PIP window horizontally. Pressing the left or right arrow button on the control panel allows the user to either decrement or increment Position X by 1. To change the parameter value at an accelerated rate, simply press and hold the left or right arrow button. 3.2.4 Position Y Adjusting Position Y parameter moves the PIP window vertically.

  • Page 25: Lumakey

    • Bot – Adjusts the position of the bottom edge of the PIP window. 3.4 Lumakey Keyer of the HS-1500T provides the user with the capability of luma keying. Note: When PIP and Lumakey features are enabled at the same time, the lumakey source will be the upper layer and the PIP source will be the lower layer.

  • Page 26: Cleanup Level

    OFF. 3.5.2 HDMI Input In this option, you can select the audio source. Selection of input 1-4 allows the HS-1500T to play the enabled audio source. If “Follow” is selected, the audio will enter Audio follow Video mode, i.e. playback of the audio of the output video.

  • Page 27: User Mems

    Use the up/down arrow to select the desired memory location and save the current setting by selecting “Save”. 3.7 Setup In the “Setup” menu, the user can change the output resolution, reset the HS-1500T to its Factory Default values, choose the preferred OSD menu language, upgrade firmware and view the current firmware versions (Mainboard and Keyboard).

  • Page 28: Pgm Out Res

    576i 480i 1080p/60 1080p/59.94 1080p/50 1080i/60 MV Out Res. 1080i/59.94 1080i/50 720p/60 720p/59.94 720p/50 Save Setup [Save] Factory Default [Reset] Language English Simplified Chinese Traditional Chinese MB Software Version KBD Software Version 3.7.1 PGM Out Res. In PGM Out RES., the user is allowed to select an appropriate PROGRAM output resolution. The available resolutions are listed as follows: •...

  • Page 29: Save Setup

    • 1080i/50 • 720p/60 • 720p/59.94 • 720p/50 Once done, simply go to “Save Setup” to confirm the selected output resolution. Note: The new resolution will be effective once selected. If you have selected a resolution that is not supported by the monitor, you will not be able to view the OSD menu. In this case, please reboot your machine to restore the default resolution previously configured in the “Save Setup”...

  • Page 30: Camera Ch. Setup

    Joystick Pan Normal Reverse Joystick Tilt Normal Reverse Memory Speed 1-16 Operator Power On/Off R-Gain 0-255 B-Gain 0-255 Tally LED Green 3.8.1 Camera CH. Setup By selecting this sub-option, you will be able to enable/disable the camera setup. 3.8.2 PTC-150T-01/02/03 The PTC-150T-01/02/03 options will allow you to configure basic settings of the respective cameras.

  • Page 31: Operator

    Operator The Operator sub-option offers the user basic camera operation functions. Parameters of this sub- option are described below: “Power” basically turns ON/OFF the selected camera. R-Gain/B-Gain: The red and blue components can be adjusted, ranging from 0 to 255. Tally LED: You can either turn the tally light off or enable the red or green tally light.

  • Page 32: Chapter 4 Monitor

    Chapter 4 Monitor The HS-1500T Monitor can be configured via an on screen menu. When the MENU button is pressed the Main Menu list is displayed on the monitor. This section covers the Menu options in the order that they appear on the monitor.

  • Page 33: Main Adjust

    OSD TIMOUT 5-120 SEC FRAME RATIO 80 / 90 / 0FF 4:3 MARK LINE ON / OFF CENTRAL MARK ON / OFF SPECIAL FUNCTION CINEMA ZONE MARK ON / OFF AUDIO CHANNEL L* AUDIO CHANNEL R* EXIT FACTORY RESET EXIT * Selectable on PGM only;...

  • Page 34: Factory Reset

    From time to time Datavideo may release new firmware to either add new features or to fix reported bugs in the current HS-1500T Monitor firmware. Customers can update the firmware themselves if they wish or they can contact their local dealer or reseller for assistance should they prefer this method.

  • Page 35: Chapter 5 Applications

    5.1 Placing a logo on the video using the lumakey function The HS-1500T allows the user to place a logo on the video using the lumakey function. First of all, create a 1920x1080 (16:9) logo against a black or white background on a laptop. Once the logo is created, please follow the steps outlined as follows to insert the logo layer.
  • Page 36 5: SET IR 6: PTZ INFO. OUTPUT: OFF 7: ESCAPE 6. Set the DVIP baud to 115200 [SET DVIP] DVIP BAUDRATE: 115200 2: ESCAPE 7. Connect the PTC-150T to the HS-1500T, which should automatically assign an IP to the PTC-150T.

  • Page 37: Chapter 6 Appendices

    Appendix 1 Tally Outputs The HS-1500T has a D-sub 15 pin female tally output port. These connections provide bi-colour tally information to a number of other Datavideo products, such as the ITC-100 eight channel talkback system and the TLM range of LCD Monitors. The ports are open collector ports and as such do not provide power to tally light circuits.

  • Page 38: Appendix 2 Firmware Upgrade

     USB Cable x 1 Update Procedure 1. On the PC, copy the two HS-1500T firmware binary files to the root directory of a USB thumb drive. After the files are successfully copied, safely remove the USB thumb drive from the PC.
  • Page 39 Note 2: The USB disk drive system supports FAT / FAT32 formats. Note 3: There is no guarantee that the HS-1500T supports all USB disks. When you see all buttons of the program and preview rows are illuminated pink or greenish pink, this indicates that the disk file...

  • Page 40: Appendix 3 Frequently-Asked Questions

    Appendix 3 Frequently-Asked Questions This section describes problems that you may encounter while using HS-1500T. If you have any questions, please refer to related sections and follow all suggested solutions. If problem still exists, please contact your distributor or the service center.

  • Page 41: Appendix 4 Tips For Establishing An Hdbaset Compliance Environment And Ethernet Cable Selection

    Appendix 4 Tips for Establishing an HDBaseT Compliance Environment and Ethernet Cable Selection Tips for Establishing an HDBaseT Compliance Environment HDBaseT alliance defines the maximum number of cables in a bundle use case to be six cables per bundle. Table below defines the maximum number of cables in a bundle as a function of cable type & the overlapping length.
  • Page 42 Tips for Establishing an HDBaseT Compliance Environment Outdoors/for the Strong Interference Environment 1. If customers want to establish an HDBaseT compliance environment outdoors, it is recommended that customers can use the UV resistant Ethernet cable to make sure that the Ethernet cable achieves its best connection quality.
  • Page 43 Please Do NOT use the flat ethernet cable due to following reasons. A) There is no twisted paired inside the flat ethernet cable to offset the interference. B) There is no cross-spacer between the cables inside the flat ethernet cable. C) The diameter of each core can not meet the AWG standard due to cut corners.

  • Page 44: Appendix 5 Dimensions

    Appendix 5 Dimensions All measurements in millimeters (mm)

  • Page 45: Specifications

    Appendix 6 Specifications Interfaces 3 x HDBaseT LAN Port (for PTC-150T) Video Inputs 1 x HDMI Video Outputs 3 x HDMI 1 x Stereo RCA (L/R) Audio Inputs 2 x XLR Balanced Audio Input De-embedded Digital Audio (2 CH) Tally Yes / D-Sub 15 male connector Software Update USB Port...
  • Page 46 Switcher Function Keyers Luma Keyer Split Transition WIPE / MIX / Fade / CUT Camera Control Function PAN / TILT / ZOOM Iris / Focus General Operating Temperature 0°C to 40°C (32°F to 104°F) Humidity 10% to 80% Voltage DC 48V/190W (48V/4.16A) Weight 7.6 Kg...

  • Page 47: Service And Support
