GS Racing Vision RTR Instruction Manual

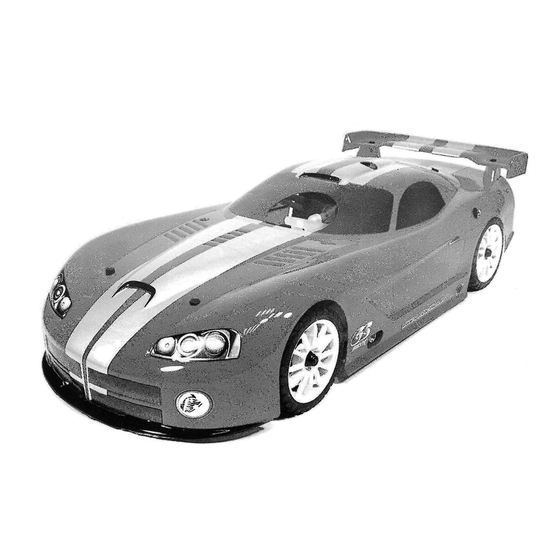

1/10 scale radio controlled gas powered racing touring car
Hide thumbs Also See for Vision RTR:

Advertisement

Quick Links

Download this manual
1
/
10
SCALE RADIO
Width/198 mm (7.8")
Height/104 mm (4.1")
Track: 172 mm (6.8")
Length/380 mm (15.0")
Wheelbase/260 mm (10.2")
Gear Ratio/Low 7.55:1/High 5.82:1
Ground Clearance Front~Rear/4.5~5.5 mm (0.18-0.22")
VISION RTR/Required for Operation
Assembly
General Information
Parts Name List
Optional Parts List
Foam Tire Part List
Exploded View (1)
Exploded View (2)
Engine Parts List
Set-up Sheet
This radio controlled racing car is not a toy!
This high-performance R/C model is recommended for ages 14 and older.
CONTROLLED GAS POWERED RACING
TOURING CAR
2-3
4-13
14-18
19-22
23-24
25
26-27
28
29
.30-31

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vision RTR and is the answer not in the manual?

Questions and answers

Related Manuals for GS Racing Vision RTR

Summary of Contents for GS Racing Vision RTR

  • Page 1 Width/198 mm (7.8") Height/104 mm (4.1") Track: 172 mm (6.8") Length/380 mm (15.0") Wheelbase/260 mm (10.2") Gear Ratio/Low 7.55:1/High 5.82:1 Ground Clearance Front~Rear/4.5~5.5 mm (0.18-0.22") VISION RTR/Required for Operation Assembly 4-13 General Information 14-18 Parts Name List 19-22 Optional Parts List...
  • Page 2 VISION RTR. Follow the directions in this manual closely so you don't encounter any problems on start up. We hope that you will enjoy your new GS Racing nitro VISION RTR. If you ever have any questions or need the further setup help, please feel free to contact our official dealers.

  • Page 3: Required Equipment For Operation

    Required Equipment for Operation 1. Tools required for building and maintenance: • Hobby knife • Needle nose pliers • Precision ruler or caliper • Phillips screwdriver (#0, #1, #2) • Hobby scissors • Wire cutters • Thread locking compound • CA glue •...
  • Page 4 1. Front Gear Differential 2. Front Gear Differential Fill Silicone Diff. Oil 3000 cps.
  • Page 5 3. Rear Gear Differential 4. Rear Gear Differential Fill Silicone Diff. Oil 3000 cps.
  • Page 6 5. Front Chassis Assembly...
  • Page 7 6. Rear Chassis Assembly...
  • Page 8 7. Shocks & Shock Springs...
  • Page 9 8. Transmission & Shocks...
  • Page 10 9. Radio Tray & Fuel Tank...
  • Page 11 1 0 . Radio Tray & Linkage...
  • Page 12 N o t e : (201) The air filter dose not come pre-oiled from the factory. 1 1 . Engine & Exhaust System Please make sure you properly oil the air filter.
  • Page 13 1 2 . Body...
  • Page 14 About Glow Fuel: The engines used for the GS Racing nitro VISION require glow fuel. To get the proper fuel is very important for long engine life. Improper fuel can cause starting problems, poor performance, and excessive wear on the engines.
  • Page 15 Checklist before Running • Ensure all screws are securely tightened. • Ensure all moving parts move without binding. Install an oiled air filter. Ensure it is clean and not clogged. • Ensure the fuel line is leak proof, with no cracks. Ensure it is not clogged. •...
  • Page 16 **Engine Adjustment Adjust in the order 1, 2, and 3 after completing the break-in. 1. Main Needle Adjustment (Top End R.P.M. Adjustment) • Start the engine and run your car until motor reaches operating temperature. Always make Main Needle Adjustments with the fuel tank half full. NEVER MAKE NEEDLE VALVE ADJUSTMENTS UNTIL MOTOR REACHES OPERATING TEMPERATURE! •...

  • Page 17: Shutting Off The Engine

    **Engine Adjustment 2 and 1/2 turns CCW from closed Shutting off the Engine: There are several ways to shut the engine off. Here are some suggestions. Please exercise caution when attempting to shut the engine off to avoid any bodily harm. 1.

  • Page 18: Maintenance

    Maintenance • Before storing your car away, draw out any fuel from the fuel tank. • Next, restart the engine to combust remaining fuel. Leaving fuel inside the engine will make engine starting difficult and may cause rust to form. Apply after-run oil to the engine. •...
  • Page 19 VISION RTR Key No. / Parts No. List Description Key No. Kit /Part Name Q'ty in Use Part No. Differential Outdrive GS-VS1304 Differential Outdrive (2) 10x15mm Ball Bearing GS-690010 10x15mm Ball Bearing (4) M2.6x6FH Screw (10) M2.6x6 FH Screw GS-620016...
  • Page 20 VISION RTR Key No. / Parts No. List Qty in Use Part No. Description Key No. Kit/Part Name Front Upper Suspension Hinge Pin GS-VS1017 Front Upper Suspension Hinge Pin (2) GS-610022 M4x6 Set Screw (10) M4x6 Set Screw GS-900018 5.8mm Ball Stud (Short) (10) 5.8mm Ball Stud (Short)
  • Page 21 VISION RTR Key No. / Parts No. List Part No. Description Key No. Kit/Part Name Q'tyin Use M3 Lock Nut GS-603007 M3 Lock Nut (10) Tapered Collet-7mm GS-VS1426 Tapered Collet-7mm M3x8 Cap Screw GS-611021 M3x8 Cap Screw (10) 5x10mm Ball Bearing...
  • Page 22 VISION RTR Key No. / Parts No. List Description Key No. Kit/Part Name Q'ty in Use Part No. Wheel Axle (SPORT.RTR) GS-VS1314 Wheel Axle ( S P O R T . R T R ) (2) M 3 x 1 0 F H / S T Screw...
  • Page 23 VISION RTR Key No. / Parts No. List Item No. Part Name Item No. Part Name GS-VS1312 Universal Drive Shaft (PRO) (2) GS-70004 Pure Silicone Shock Oil,250 cps. GS-VS1315 Aluminium Wheel Hub (5) GS-70005 Pure Silicone Shock Oil,300 cps. GS-VS1323...

  • Page 24: Optional Parts

    Optional Parts...
  • Page 25 Foam Tire List New Item No. Description New Item No. Description Dish Foam Tire / Front 30 White / D48W26mm Dish Foam Tire / Front 40 Yellow / D50W26mm GS-910014E-YL GS-910004A-WH Dish Foam Tire / Front 32 White / D48W26mm Dish Foam Tire / Front 42 Yellow / D50W26mm GS-910014F-YL GS-910004B-WH...

  • Page 26: Exploded View

    EXPLODED VIEW (1)
  • Page 28 EXPLODED VIEW (2)
  • Page 29 V12RSX Engine Parts List Part No. Name of Parts GS-SW1201 Crank Shaft Bearing (FRONT) GS-SW1202 Crank Shaft Bearing (REAR) GS-SW1203 Carburetor Retainer Set GS-SW1204 Glow Plug Set (w/Gasket) GS-SW1205 Carburetor Gasket GS-SW1206 Cover Plate Gasket GS-SW1207 Crank Case for V12RSX GS-SW1208 Conrod for V12RSX GS-SW1209...
  • Page 30 VISION RTR Set Up Sheet...
