- Page 1 HDBT PoC Outputs 8 HDMI in to 8 HDBT + 4 mirrored HDMI out SY Electronics Ltd, Unit 7, Worrall Street, Salford, Greater Manchester, M5 4TH, United Kingdom Tel: +44 (0) 161 868 3450 – Fax: +44 (0) 161 868 3459 –...
-
Page 2: Connectors And Controls

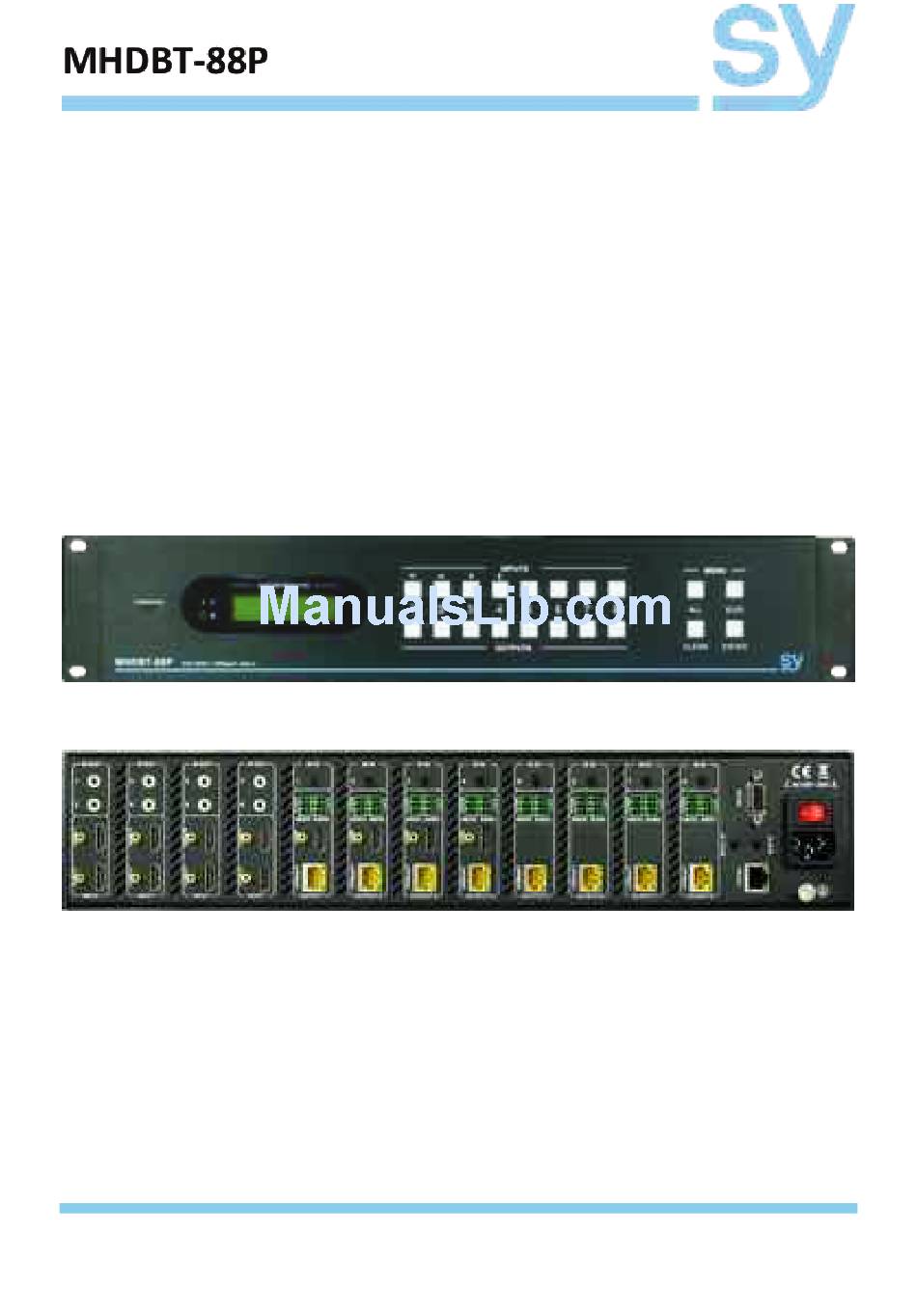

MHDBT-88P The SY-MHDBT-88P is an 8 channel HDMI matrix switcher with 8 HDBT outputs, 4 local HDMI outputs and 8 stereo de-embedded audio outputs. It can work with all the SY HDBT receivers. Its transmission distance for HDMI, IR, RS232 and PoC signals can up to 70 meters through CAT5e/6 cable. - Page 3 Connection with SY-HDBT-70PR MHDBT-88P can work with SY-HDBT-70PR to extend transmission distance up to 70m and the ports all support PoC, so a remote PSU is not required. Connect the HDBT output port of MHDBT-88P to SY-HDBT- 70PR with Cat5e/6 cable.
-
Page 4: Connection Diagram
IR receiver. The IR signal can also be transmitted bi-directionally (connect IR OUT port of the MHDBT-88P to IR IN port of a far-end IR device, and connect IR IN ports of the MHDBT-88P to IR OUT port of the far-end IR device), and in this mode, we can control the MHDBT-88P remotely. - Page 5 MHDBT-88P Input to output selections Operation: INPUT + OUTPUT + ENTER Example: Input 1 to Output 2: Note: In default status, 8 IR OUTs correspond with 8 HDMI INPUTS. When you connect an HDMI input to an output, the IR OUT will be switched at the same time.
-
Page 6: Output Check
IR Control By using IR & HDBT transmission technology, the MHDBT-88P provides the following features: Control of the remote output device from the location of the MHDBT-88P. Control local input/output device remotely. - Page 7 [x1] is the desired IR OUT port of the matrix, the IR transmitter connected to this port can be placed at IR receiving area of output device or in front of the MHDBT-88P itself. [x2] is the desired output channel number of the MHDBT-88P. There must be an HDBT receiver with an IR detector connected.
-
Page 8: Ir Control Setting
Control far-end device from Local Control far-end device through IR ALL IN port The IR signal received from IR ALL IN port will be transmitted to all the eight far-end HDBT receivers connected to HDBT ports of the MHDBT-88P. See as below: sy.co.uk... - Page 9 The user can control a local device such as a video player, the HDBT 8x8 matrix etc. from the remote location. In this case, the IR signal received from the HDBT receiver will be transmitted to the corresponding IR OUT port of the MHDBT-88P, as shown below: Control by a Third-party IR Control Device Use the included IR converting cable (see below), connect the 3 pole end to IR input port of the MHDBT- sy.co.uk...
-
Page 10: Rs232 Control
Through the RS232 communication port, the user can control a far-end device whose bound rate is 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Default settings of the MHDBT-88P: baud rate is 9600, data bit is 8, stop bit is 1 and parity bit is none. - Page 11 MHDBT-88P Command Code Function /%[Y]/[X]:[Z]. HDCP management command. [Y] is the input (value: I) or output (value: O). [X] is the number of the port, if the value of X is ALL, it means all ports. [Z] is for working status (value: 1 or 0).
- Page 12 MHDBT-88P Command Code Function EDIDUpgrade[x]. Upgrade EDID data via the RS232 port. [X] is for input port, when the value of X is 9, it means to upgrade all input ports. When the switcher receives the command, it will show a message to prompt you to send EDID file (.bin file).
- Page 13 MHDBT-88P 4) Type the command carefully, it is case-sensitive. sy.co.uk...
-
Page 14: Control 3Rd-Party Device From Local
Control the MHDBT-88P from a PC To control the MHDBT-88P from a PC, you need to connect its 9 pin female RS232 port to the RS232 port of the PC, or connect to the RS232 port of any one of the HDBT receivers to the PC (the RS232 command transmits to the MHDBT-88P via the Cat6 cable). - Page 15 MHDBT-88P Control 3rd-party Device through 9 pin female RS232 port Control 3rd-Party Device from Remote Location By connecting the 3-way captive screw RS232 port on the HDBT receiver to a PC (or the controlled device), the RS232 signal can be transmitted bi-directionally.
-
Page 16: Specification
Video Inputs: 8 HDMI Video Outputs: 4 HDMI and 8 HDBT HDBT Cable Length: Up to 70 m when using PoC to SY-HDBT-70PR Video Standards: HDMI or DVI-D Video Input Resolution: Up to 1920 x 1200@60Hz or 1080p@60Hz Video Output Resolution... -
Page 17: Safety Instructions
Damage to the product due to incorrect usage or storage Damage caused by unauthorised repairs Damage caused by mistreatment of the product 5. Please direct any questions or problems you may have to your local dealer before contacting SY Electronics. sy.co.uk...
