SPEAKER WIRING

Using 16 gauge or larger, run the speaker wires from the
amplifier location through the vehicle to the speakers. Observe
the same precautions for routing these wires that you followed
for running the power and remote turn-on wires. Cut off excess
and, using wire strippers, strip 1/4 inch of insulation. Locate
the speaker/remote turn-on PowerLock connector. Loosen the
four outer screws on top of the connector and insert the
Channels 5/6 speaker leads into the end. Check to be sure
you've maintained proper polarity before securing each wire.

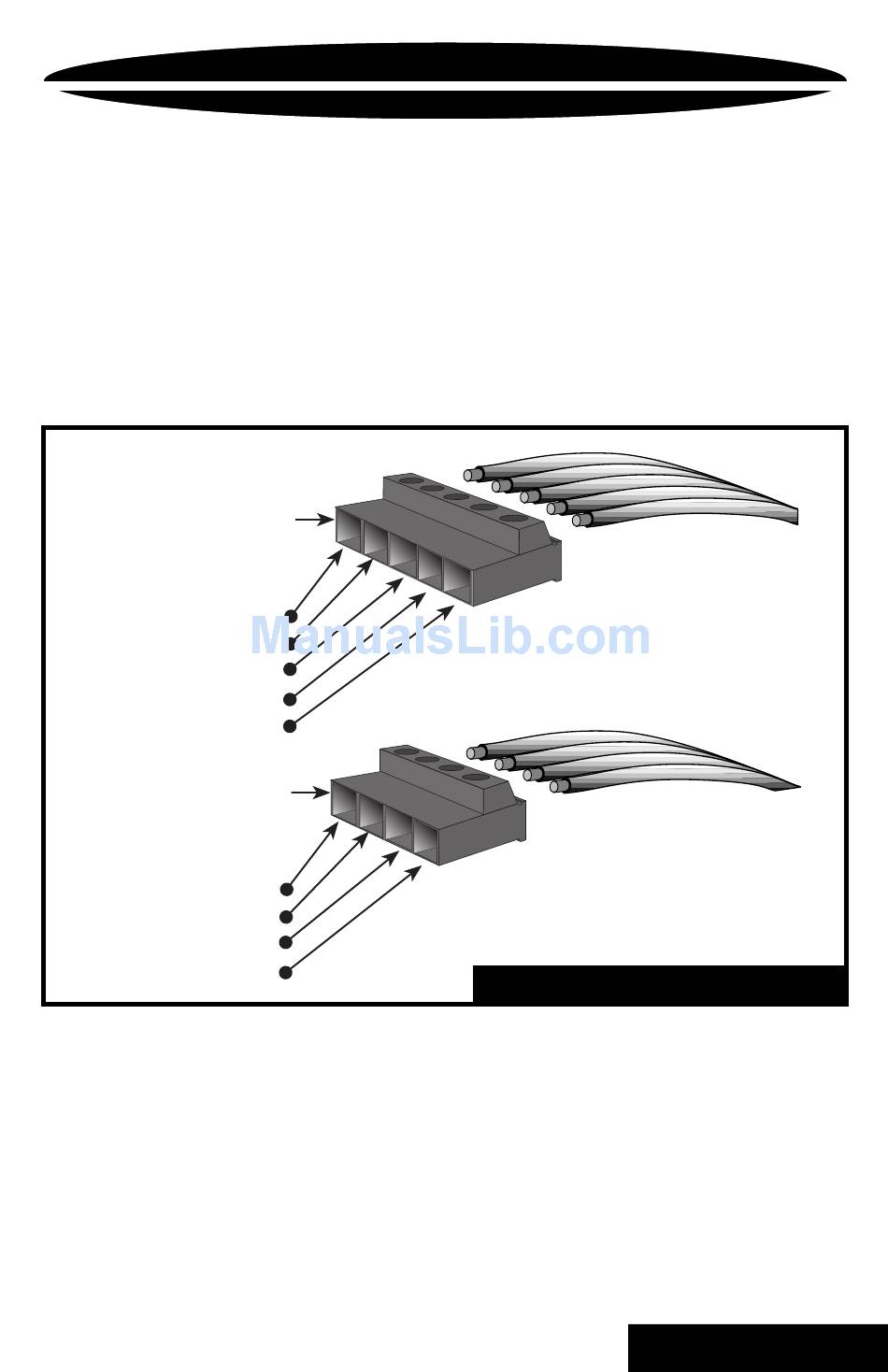

Speaker Power Lock Connector
Right Speaker negative
Right Speaker positive
Remote turn on
Left Speaker positive
Left Speaker negative
Speaker Power Lock Connector
Right Speaker negative
Right Speaker positive
Left Speaker positive
Left Speaker negative
Speaker/Remote PowerLock
For the front and rear channels, locate the four terminal speaker
PowerLock connectors. On your new Pro6800 PowerClass
Amplifier, all speaker PowerLocks plug into the amplifier with
the screws facing up. Loosen the screws on the top of the blocks
and insert the stripped ends of the speaker wires into the end.
Double check polarity, secure each wire by tightening the
screws, and plug the PowerLock connector into the amplifier
with the screws on top.
