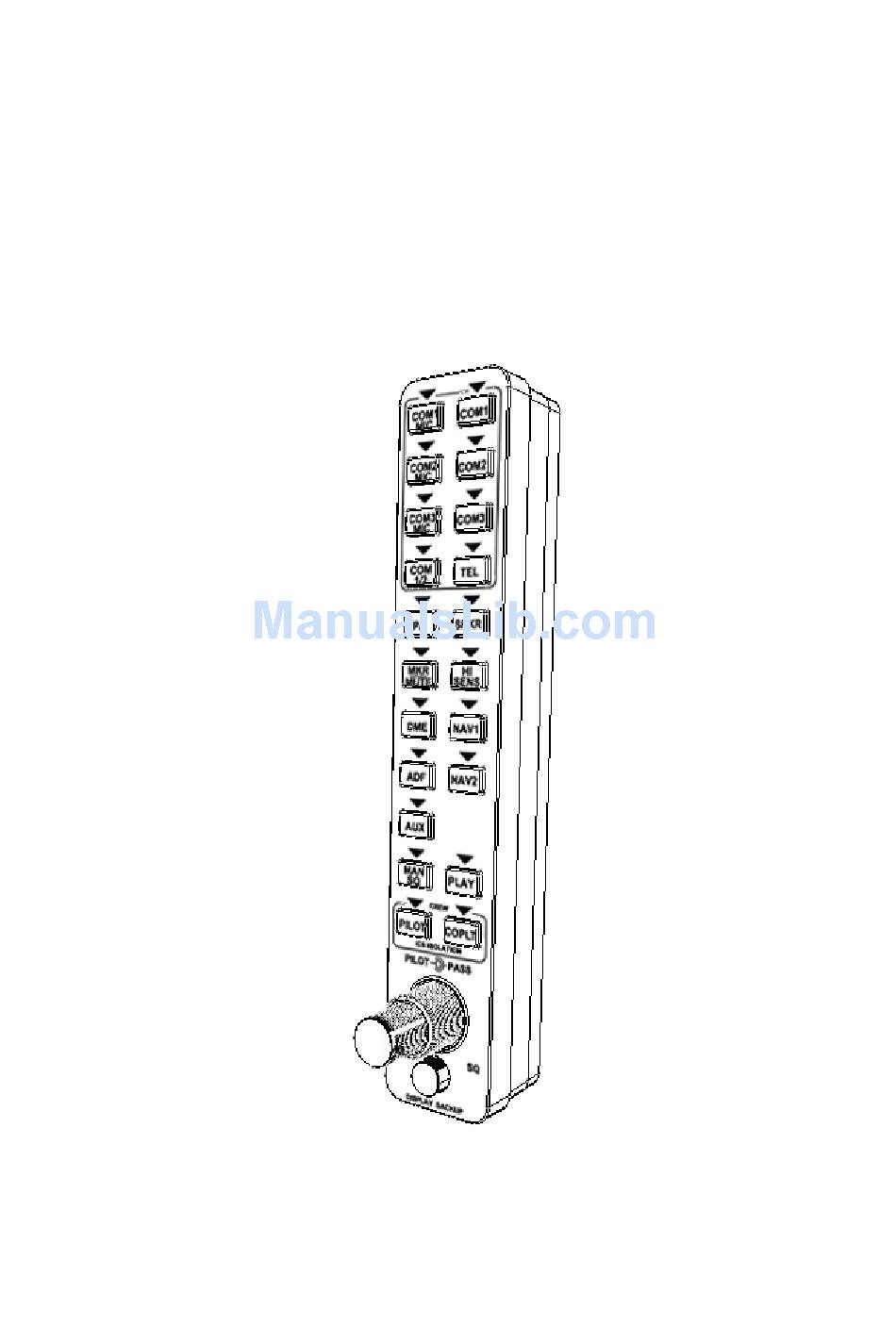

- Page 1 SH100AP User Manual Version 1.0 Oct 13 2017 SIMiONIC...
- Page 3 SH100AP User Manual V1.0 Important Notice Thank you for choosing SIMiONIC product. This SH100AP is a duplication of the audio panel used in Garmin G1000. To make it work, you need and must have at least one SHB1000, a duplication of G1000 bezel and the corresponding software. All the hardware and software mentioned above are products from SIMiONIC. Please refer to our website of more details: http://www.simionic.net The functionality of this SH100AP relies totally on the software. At the time of we are releasing this manual, there is no...
- Page 4 Bracket (2 parts) 2.0mm & 2.5mm SH100AP Clamp x 2 USB cable M3 x 6mm hex socket button M3 x 16mm hex M3 x 8mm hex...
- Page 5 Connections 1. Connect the SH100AP(audio panel) to the SHB1000(G1000 bezel) using the 10 pin data cable. Bigger(2.54mm pitch) plug to SHB1000, smaller(2mm pitch) plug to SH100AP. You can connect it to the bezel used as either PFD or MFD. 2. Plug USB power cable into the USB port to power up the audio panel. An USB power adapter with at least 500mA...
- Page 6 SH100AP User Manual V1.0 Mounting (to a cockpit panel) 1. Cut the mounting plane(cockpit panel) according to the cutout diagram. 2. Insert the audio panel throw the mounting plane from the font side. Install the 2 clamps to the back of the audio panel using M3x8mm hex socket screws. 3. Secure the audio panel by screwing 4 M3x16mm hex socket screws to the outer sides of the clamps until they are pushing the mounting plane. Do not let the screws push...
- Page 7 SH100AP User Manual V1.0 Mounting (to the bracket) 1. Assemble the brackets to the bezel stand(s) using the screws and nuts came with the bezel. 2. Mount the audio panel to the brackets using 4 M3x6mm hex socket button head screws.
- Page 8 SH100AP User Manual V1.0 Limited Warranty 1. The product is covered by a 1 year limited warranty from the date of purchase, against any defects in materials or workmanship. 2. This limited warranty does not cover any damage, deterioration or malfunction resulting from any improper use. 3. We will repair the product using either new or refurbished replacement parts.
