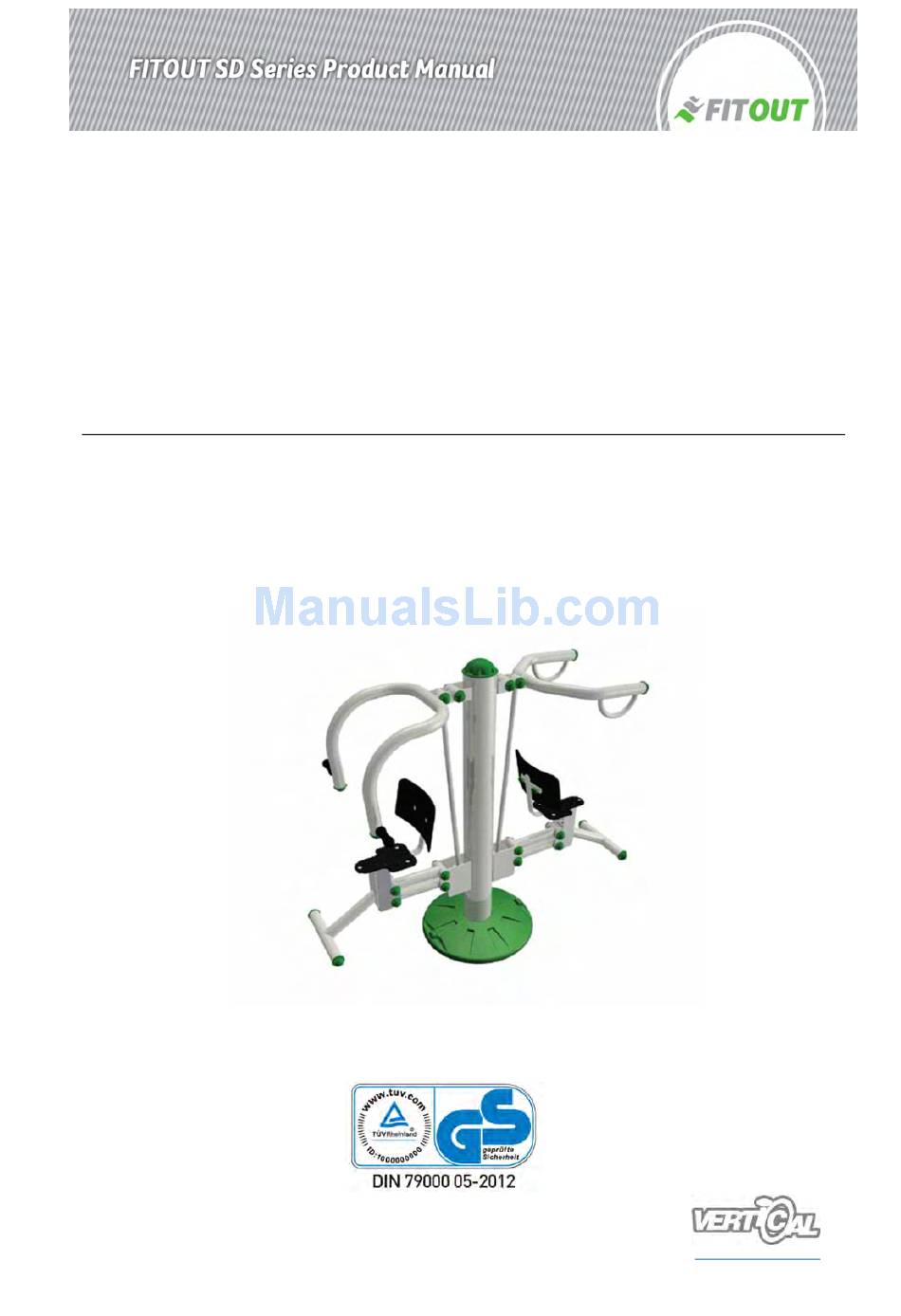

- Page 1 Chest and Pull Down Station SD13 Product Manual Distribution and Maintenance Vertical Technik AG, Bächliackerweg 6, CH-4402 Frenkendorf, Tel. +41 61 413 28 00 www.verticalskate.ch...
- Page 2 ☑ Strength ☑ Endurance ☐ Coordination This machine can be used from one or two persons at the same time. • Begin with the pull down station by positioning yourself facing away from center post • Begin to exercise pulling down the overhead bars for repetitions •...
- Page 3 SD 13 Chest and Pull Down Station: General Information: Length: 1930 mm Width: 860 mm Height: 1700 mm Weight: 75 KGS Required Safety Zone: 4930mm - 3680 mm Maximum User Weight: 120 KGS Number of Users: 2 Persons Torsion System: None.
- Page 4 Safety Zones: Safety zones of all products are given in the following pages. Please note that the products should be assembled in such a manner that safety zones of the products should not intersect. The illustrations given below try to explain this point. Distribution and Maintenance Vertical Technik AG, Bächliackerweg 6, CH-4402 Frenkendorf, Tel.
- Page 5 SD 13 Chest and Pull Down Station: There are three types of installations that can be done depending on the surfacing. Distribution and Maintenance Vertical Technik AG, Bächliackerweg 6, CH-4402 Frenkendorf, Tel. +41 61 413 28 00 www.verticalskate.ch...
- Page 6 Maintenance Plan: The following maintenance plan is according to DIN 79000. According to DIN 79000, it is the duty of the customer to comply with the following plan and document all inspections. The person performing the inspection should be competent to do so. Any failure may result in the product not being according to DIN 79000 and may void warranties.
- Page 7 Annual Inspection: • Perform monthly operational inspection. • Make sure the products are fixed to the foundations. It may be a good idea to remove the post covers and retighten the bolts that fix the structure to the foundation. • Check the central post for any wear.
