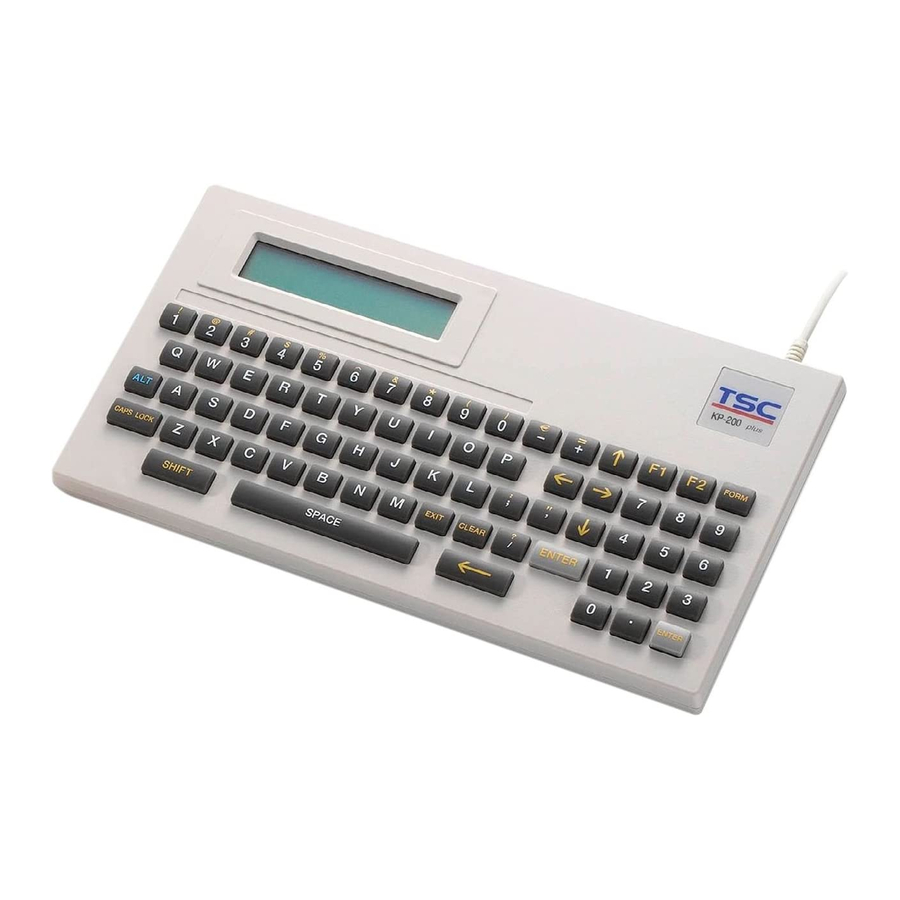

- Page 1 KP-200 Plus Stand-alone Keyboard Display Unit USER’S MANUAL...
-
Page 2: Table Of Contents
Contents 1. OUTLINE OF THE KP-200 PLUS ............... 3 2. KP-200 PLUS FEATURES................3 3. SPECIFICATIONS ..................4 4. INSTALLATION ................... 4 5. OPERATION ....................4 6. FUNCTION KEYS FOR KP-200 PLUS ............6 7. POWER-ON UTILITIES ................7 8. RS-232 INTERFACE AND COMMUNICATION PARAMETERS ....10... -
Page 3: Outline Of The Kp-200 Plus
Users can design their own label forms with the BASIC high level language and download the forms into the printer’s memory. As you go anywhere just taking the KP-200 Plus and the bar code printer, you will accomplish your jobs easily. Additional... -
Page 4: Specifications
(1) Download the well-designed label forms or programs into printer memory. (2) Turn off the printer power. (3) Connect the cable of the KP-200 Plus to the RS-232 port of the printer (4) Turn on the printer power. 5. Operation... - Page 5 Note: If no file is downloaded into printer memory, LCD will display as below, please to download the file to printer first. NO LABEL EXISTING! PRESS EXIT Press arrow keys to list stored label forms. Or press F1 key to input the file name.
-
Page 6: Function Keys For Kp-200 Plus
6. Function Keys for KP-200 Plus There are 68 keys on KP-200 Plus. Most of the keys are the same as normal keyboard of desktop computer. The followings are the descriptions of the special function keys: FORM key List the label forms downloaded in the printer memory... -
Page 7: Power-On Utilities
TEST LCD NOW When the LCD screen test is completed, please press EXIT key to enter the keypad test. KP200P SELFTEST TEST KEYPAD NOW There are 68 keys on KP-200 Plus. You should to press all of the keys to... - Page 8 complete this test, if you miss the key that you did not press, the keyboard will show you on the LCD screen as below: MISS PRESS: < x > TEST KEYPAD NOW When the keypad test is completed, please press the EXIT to next test. The next test need the test cable if you do not have it, please double press the EXIT to leave this self test utility.
- Page 9 Baud rate: 2400/ 4800/ 9600/ 19200/ 38400/ 57600 Parity: None/ Even/ Odd Data bits: 7/ 8/ 9 Stop bit: 1/ 2 COM2 setup This utility is used to set the COM1 settings. (BAUD RATE/ PARITY/ DATA BITS/ STOP BIT) Please refer to section 8 for default setting. SETUP MENU: COM1 SETUP Baud rate: 2400/ 4800/ 9600/ 19200/ 38400/ 57600...
-
Page 10: Rs-232 Interface And Communication Parameters
8. RS-232 Interface and Communication Parameters (1) The keyboard COM1 port should be connected to the bar code printer. Keyboard power is drawn from printer serial port. The communication parameters of the keyboard COM1 port is set as following: Baud Rate : 9600 bps Parity : None... -
Page 11: Country Code And Keyboard Layout
9. Country Code and Keyboard Layout Country Keyboard Layout Code ALT+1 ALT+2 ALT+3 ALT+4 ALT+5 ALT+6 ALT+7 ALT+8 ALT+9 ALT+0 ALT+1 ALT+2 ALT+3 ALT+4 ALT+5 ALT+6 ALT+7 ALT+8 ALT+9 ALT+0 É µ £ ¢ ½ ¼ ALT+1 ALT+2 ALT+3 ALT+4 ALT+5 ALT+6 ALT+7 ALT+8 ALT+9 ALT+0 Ñ... - Page 12 ä ß é ú ó Ü ü Ö ö ALT+1 ALT+2 ALT+3 ALT+4 ALT+5 ALT+6 ALT+7 ALT+8 ALT+9 ALT+0 Ä ä Ü ü Ö ö ß µ ALT+1 ALT+2 ALT+3 ALT+4 ALT+5 ALT+6 ALT+7 ALT+8 ALT+9 ALT+0 £ Ç ç ALT+1 ALT+2 ALT+3 ALT+4 ALT+5 ALT+6 ALT+7 ALT+8 ALT+9 ALT+0 ALT+1 ALT+2 ALT+3 ALT+4 ALT+5 ALT+6 ALT+7 ALT+8 ALT+9 ALT+0 £...
- Page 13 9F., No.95, Minquan Rd., Xindian Dist., No.35, Sec. 2, Ligong 1st Rd., Wujie Township, New Taipei City 23141, Taiwan (R.O.C.) Yilan County 26841, Taiwan (R.O.C.) TEL: +886-2-2218-6789 TEL: +886-3-990-6677 FAX: +886-2-2218-5678 FAX: +886-3-990-5577 Web site: www.tscprinters.com TSC Auto ID Technology Co., Ltd. E-mail: printer_sales@tscprinters.com tech_support@tscprinters.com...
