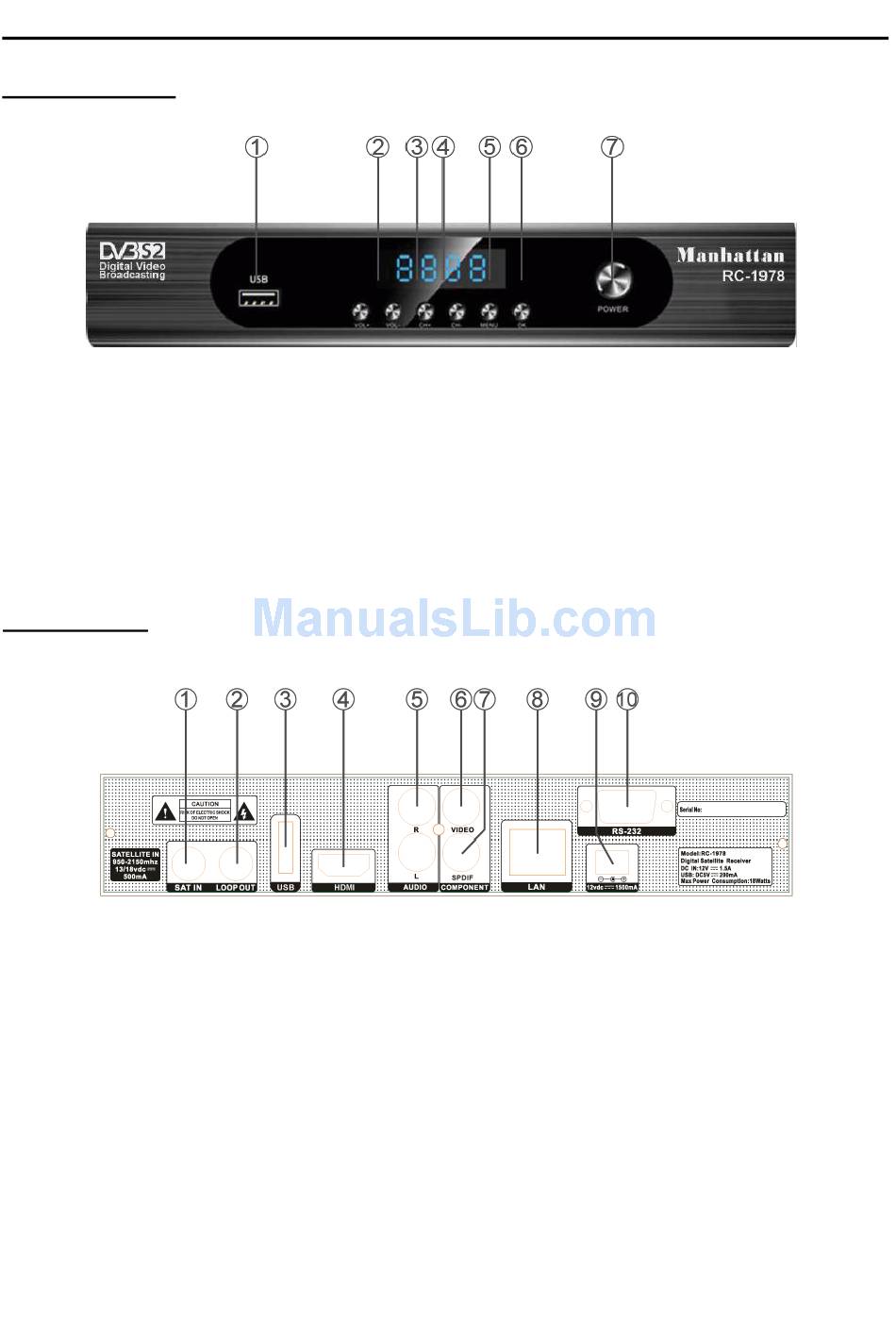

Front and Rear Panel Illustration

1. F ron t Pan e l
1.USB JACK: Used to connect to an external USB 2.0 device.
2.VOL +/-: Used to increase/decreas e the volum e without using the remote
control.
3.LED DISPLAY: Used to display the tim e or channel information.
4. CH +/-: Selects the next/previous Channel without using the remote control.
5.MENU: Turns on main menu.
6.OK: Confirms an entry or selection.
7.STANDBY INDICATOR: Used to visually show power state of the ST B.
2. Rear Panel
1. LNB IN: This socket connects the LNB to receive the signal.
2. LOOP OUT: This socket will bypass the RF signal to either your T V or another
video system.
3. USB JACK: Used to connect to an external USB 2.0 device.
4. HDM I OUT: This socket connects to HDMI in device.
5. AUDIO L/R: T his socket outputs analog audio L/R adapter.
6. CVBS: T his socket outputs composite video signal.
7. SPDIF: T his socket connects to a coaxial socket on your surround sound system.
8. LAN: Connect to RJ45 cable for internet connection
9. DC IN 12V: T his is used to connect the 12V DC adapter.
10. RS232: Connect to serial port of PC for software update.
2
