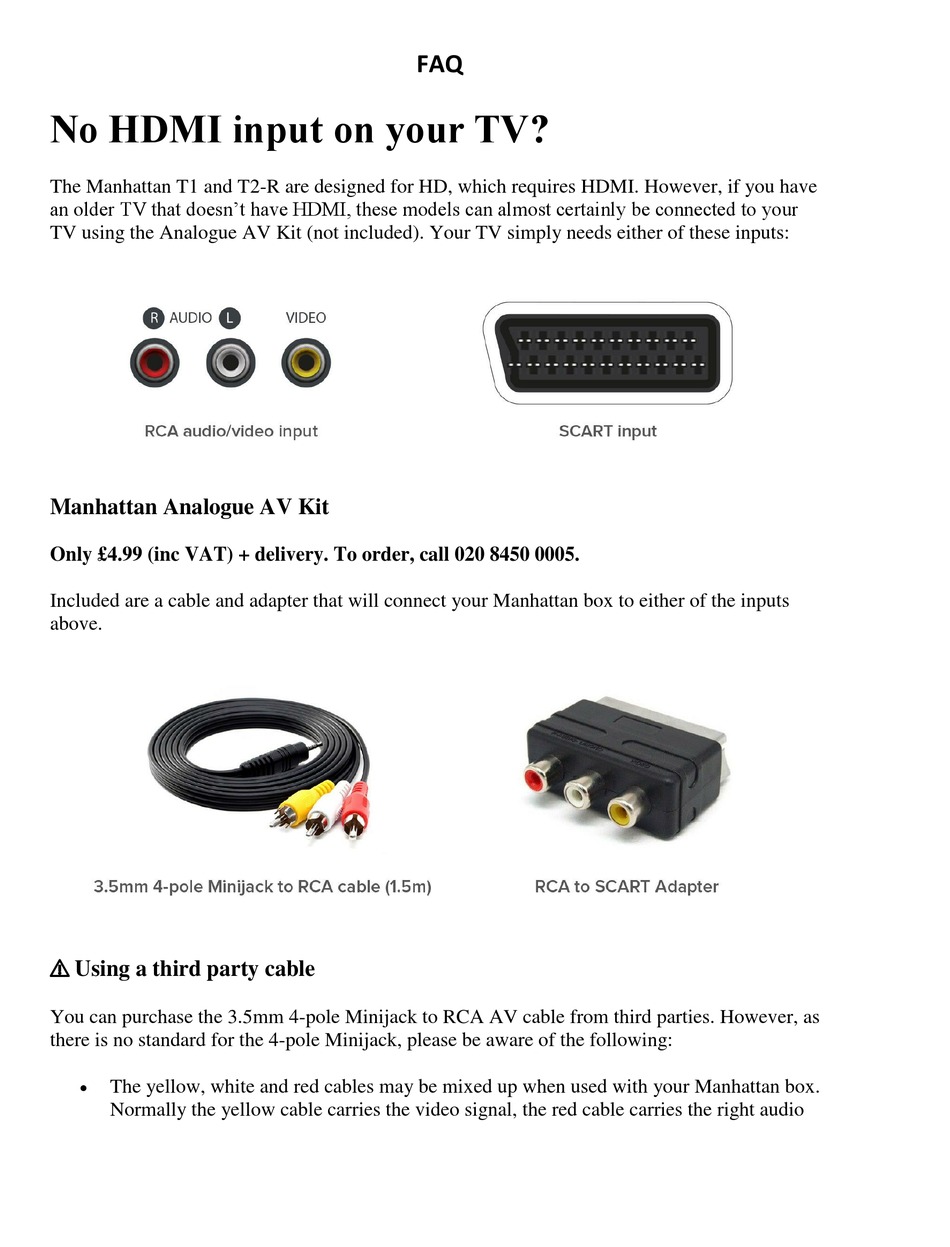

No HDMI input on your TV?

The Manhattan T1 and T2-R are designed for HD, which requires HDMI. However, if you have

an older TV that doesn't have HDMI, these models can almost certainly be connected to your

TV using the Analogue AV Kit (not included). Your TV simply needs either of these inputs:

Manhattan Analogue AV Kit

Only £4.99 (inc VAT) + delivery. To order, call 020 8450 0005.

Included are a cable and adapter that will connect your Manhattan box to either of the inputs

above.

You can purchase the 3.5mm 4-pole Minijack to RCA AV cable from third parties. However, as

there is no standard for the 4-pole Minijack, please be aware of the following:



The yellow, white and red cables may be mixed up when used with your Manhattan box.

Normally the yellow cable carries the video signal, the red cable carries the right audio

FAQ

Table of Contents

Do you have a question about the T1 and is the answer not in the manual?

Ian Cranston Baird

January 28, 2025

How to alter time as shown on unit

Page 1 No HDMI input on your TV? The Manhattan T1 and T2-R are designed for HD, which requires HDMI. However, if you have an older TV that doesn’t have HDMI, these models can almost certainly be connected to your TV using the Analogue AV Kit (not included). Your TV simply needs either of these inputs: Manhattan Analogue AV Kit Only £4.99 (inc VAT) + delivery.
Page 2 Once you find the input displaying the TV Guide, press EXIT and check if live TV is working. Try changing to BBC 1 by pressing '1' on the remote control. If the T1 says there is No Signal, you may have a problem with your aerial. To retune:...
Page 3 Select 'Smart Retune' and follow the on-screen instructions An incompatible HDMI resolution has been selected If you are using HDMI, the T1 may be set to an HDMI resolution that your TV does not support:  Normally the T1 is set to auto detect the HDMI resolution but this can fail with some TVs.
Page 4 T1's remote, change the 'Audio Output' setting in the Picture & Sound section of the Settings menu to 'Stereo PCM'. The T1 will the decode the Dolby Digital audio and output stereo audio instead.
Page 5 If you're having difficulties, contact us and we will send you a USB pre-loaded with the software via normal post.  Can I use the connect an external hard drive to the Manhattan T1 by USB and record or play video files? The USB connection is for software updates only.
