Flowtron Excel
Instructions for Use
...with people in mind
247933EN_0
•
/201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flowtron Excel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjohuntleigh Flowtron Excel

Summary of Contents for Arjohuntleigh Flowtron Excel

  • Page 1 Flowtron Excel Instructions for Use ...with people in mind 247933EN_0 • /201...

  • Page 3: Table Of Contents

    Flowtron Excel System ........
  • Page 4 (ii)

  • Page 5: General Safety

    Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30cm (12 in) to any part of the Flowtron Excel (ACS550), including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
  • Page 6 ArjoHuntleigh. Do NOT use unapproved accessories or attempt to modify, disassemble or otherwise misuse the Flowtron Excel system. Failure to observe this caution could result in injury, or in extreme cases, death. Environmental Protection Incorrect disposal of this equipment and its component parts, particularly batteries or other electrical components, may produce substances that are hazardous to the environment.

  • Page 7: Introduction

    Thrombosis (DVT). The garments are single patient use only. It is not for use in the home healthcare environment. The Flowtron Excel system should be used as part of a prescribed plan of care (refer to “Indications” on page 3).

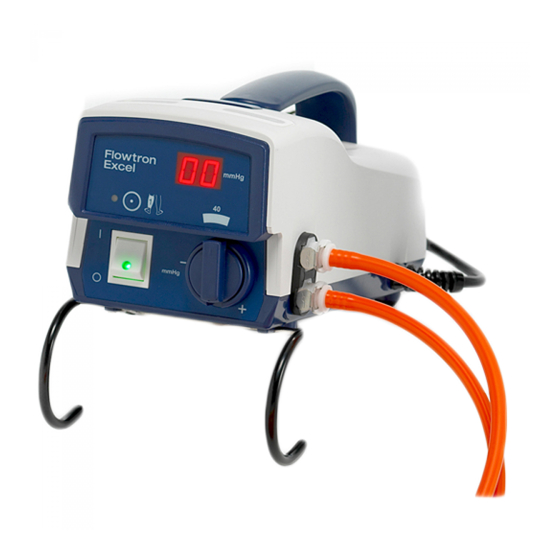

  • Page 8 Carry Handle Pressure Display Single Leg Mode Button and Indicator Garment Connectors Mains Power Switch Pressure Control Flowtron Excel Pump - Front View...

  • Page 9: Clinical Applications

    2. Clinical Applications Indications The application of the Flowtron Excel system is for the prevention of Deep Vein Thrombosis (DVT) when combined with an individualised monitoring programme. This system represent one aspect of a DVT strategy; if the patient's condition changes the overall therapy regimen should be reviewed by the prescribing clinician.

  • Page 10: Guidelines And Recommendations

    • The Flowtron Excel system should be applied to the DVT Prophylaxis patient pre-operatively, prior to the induction of anaesthesia.

  • Page 11: System Set Up

    3. System Set Up Installing the Pump Attach the pump to the bed frame using the bed bracket, or place the pump on the floor under the bed. Garment Application 1. Check that the mains power switch on the pump is in the off ( ) position.

  • Page 12: Pre-Use Check

    4. Pre-Use Check Before powering on the Flowtron Excel system, ensure that: • The pressure control knob has been set to the mid position marked 40 mmHg • Garments have been applied to the patient’s legs correctly, close-fitting and without creases or folds.

  • Page 13: Operation

    If the operation or performance of the pump changes during use, refer to “Troubleshooting” on page 11 of this IFU before calling a service engineer or contacting your local ArjoHuntleigh sales office.  Loss of mains power will halt therapy.

  • Page 14: Pressure Adjustment

    The recommended pressure setting is 40 mmHg. Alternatively, use the pressure prescribed by the treating physician. The Flowtron Excel pump pressure monitoring system is independent of the pressure control and delivery system, providing added reliability and safety. The digital display indicates the actual pressure that is delivered to the garments, and provides immediate and continuous feedback regarding pump performance.

  • Page 15: Decontamination

    Healthcare Facility or the country of use. If you are uncertain, you should seek advice from your local Infection Control Specialist. The Flowtron Excel pump should be routinely decontaminated between patients and at regular intervals while in use, as is good practice for all reusable medical devices.

  • Page 16: Routine Maintenance

    Servicing ArjoHuntleigh manuals, component parts lists and other information necessary for trained personnel to repair ArjoHuntleigh the system. recommends that the Flowtron Excel Service Period ArjoHuntleigh pump is serviced every 12 months by an ArjoHuntleigh authorised service agent. Flowtron Excel Pump...

  • Page 17: Troubleshooting

    9. Troubleshooting The Flowtron Excel system features an audible and visual alarm. If a problem occurs, the system will sense the fault and briefly flash a message on the front panel pressure display. If the same fault continues for 10 successive inflations, the audible alarm will sound and a flashing message will remain on the pressure display until corrective action is completed.

  • Page 18: Accessories

    10. Accessories GARMENTS AND TUBING Garment Size Description Part No. DVT10 Circumference up to 43cm (17”) Standard Calf Garment DVT10S Circumference up to 43cm (17”) Calf Garment (Sterile) DVT20 Circumference up to 58cm (23”) Large Calf Garment DVT30 Circumference up to 71cm (28”) Standard Thigh Garment DVT30S Circumference...

  • Page 19: Technical Specification

    11. Technical Specification Pump Model: Flowtron Excel Part Numbers: UK/AUS 247003 - UK 247009KSA 247001 247003AU - AUS 247004 (247EUR) - EU Supply Voltage: 230 V 230 V 120 V Supply Frequency: 50 Hz 60 Hz 60 Hz Power Input:...
  • Page 20 Symbols The operator must read this document Power: Do not dispose of in (Instructions for Use) Disconnects from domestic refuse before use. (Off) the mains supply Note: This symbol is blue on the product label. With respect to electric shock, fire and mechanical hazards only Power: in accordance with CAN/...
  • Page 21 Guidance and manufacturer’s declaration - electromagnetic immunity The pump is intended for use in the electromagnetic environment specified below. The customer or the user of the pump should assure that it is used in such an environment. Immunity IEC 60601 Test Compliance Electromagnetic environment - guidance Test...
  • Page 22 Recommended separation distances between portable and mobile RF communications equipment and the pump The pump is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the pump can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the pump as recommended below, according to the maximum output power of the communications equipment.
  • Page 23 Guidance and manufacturer’s declaration - electromagnetic immunity The pump is intended for use in the electromagnetic environment specified below. The customer or the user of the pump should assure that it is used in such an environment. Immunity Test IEC 60601 Test Compliance Electromagnetic environment - Level...
  • Page 27 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth Street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL-62-052 KOMORNIKI (Pozna ) AU-6163 Western Australia FR-59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
  • Page 28 Getinge Group is a leading global provider of products and systems that contribute to quality three brands of ArjoHuntleigh, Getinge and Maquet Getinge provides solutions for infection Maquet specializes in solutions, therapies and products for surgical interventions, interventional cardiology and...
