M900S™
900 MHz Wireless Broadband System

USER MANUAL

December 8, 2003
Revision A
-DRAFT-
for BETA Firmware Version 0.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M900S and is the answer not in the manual?

Questions and answers

Related Manuals for Trango brodband M900S

Summary of Contents for Trango brodband M900S

  • Page 1: User Manual

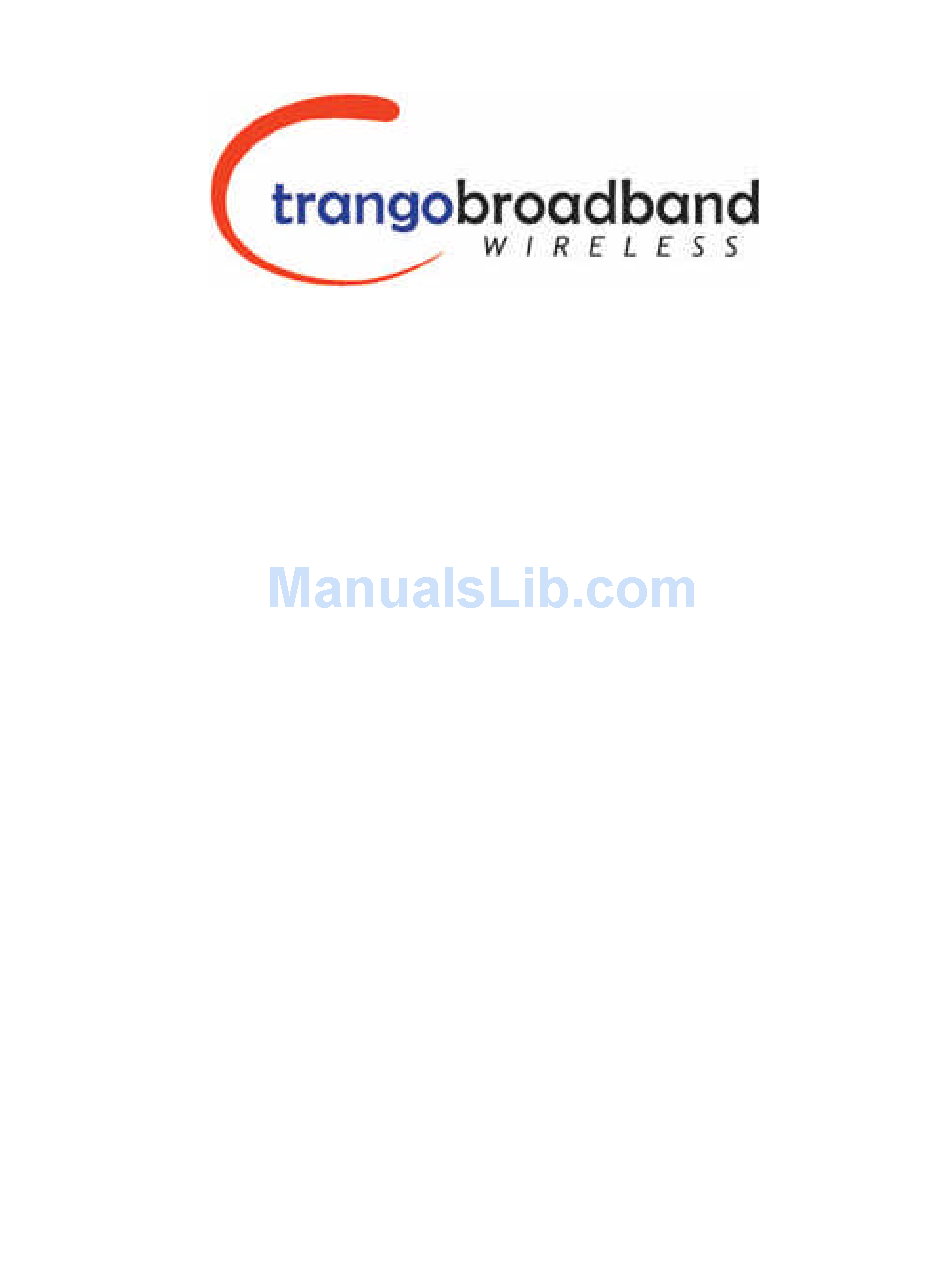

    M900S™ 900 MHz Wireless Broadband System USER MANUAL December 8, 2003 Revision A -DRAFT- for BETA Firmware Version 0.1...

  • Page 2: Table Of Contents

    Section 1 Introduction ..................................1 Overview......................................1 SmartPolling™ Overview ................................1 Section 2 Hardware Overview................................3 M900S AP and SU Hardware Components ............................ 3 Section 3 Getting Started .................................. 4 Connections and Power .................................. 4 Opmode and Radio Management Concepts ........................... 5 Browser Interface ....................................
  • Page 3 Figure 6-1 M900S Mounting Hardware Assembly ..........................23 Figure 6-2 Alternative Mounting................................ 23 Figure 6-3 Articulation for M900S with Mono Pod Mount (not supplied) ................... 24 Figure 6-4 Grounding Example................................24 Trango Broadband Wireless — M900S User Manual Rev. 1A...

  • Page 4: Preface

    Warranty Information Radios from Trango Broadband Wireless are warranted from one year from date of purchase. Please see www.trangobroadband.com for complete description of warranty coverage and limitations. Trango Broadband Wireless — M900S User Manual Rev. 1A page iv...

  • Page 5: Section 1 Introduction

    The M900S system consists of two types of radios: Access Points (AP) and Subscriber Units (SU). The AP unit acts as a hub in a star configuration wireless multipoint network supporting up to 126 subscriber units. The AP delivers wireless broadband service (Ethernet connectivity) to one or more SUs according to a proprietary adaptive dynamic polling algorithm called SMARTPolling™...
  • Page 6 Introduction Each of the above parameters are set in the AP by the system administrator and cannot be controlled at the SU. These parameters will be covered in greater detail later in this text. When power is first applied to a properly installed SU, it will scan all available channels, searching for an AP with matching Base ID and MAC in its SU Database.

  • Page 7: Section 2 Hardware Overview

    Power-over-Ethernet (POE) for ease of installation. The M900S Access Point, as well as the M900S subscriber units provide channels of operation within the 900 MHz ISM band which spans from 902 MHz to 928 MHz.

  • Page 8: Section 3 Getting Started

    Getting Started Figure 2-3 Back of Radio Trango Broadband Wireless M9000S-AP Rev. A S/N: 00000XXXX MAC: 00 01 DE 00 02 F3 FCC ID: NCYM900SAP Canada: XXXXXXXXXX This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 9: Opmode And Radio Management Concepts

    Switch Settings M900S firmware includes several “switches” which are used to set certain operational parameters of the radios. Switch settings can be changed via the HTTP browser interface or the Command Line Interface. For purposes of radio TCP/IP management, the following three switches are important: SU Switch 2 - TCP/IP access to SU from AP side of network requires that the SU’s switch 2 (SW 2 –...

  • Page 10: Browser Interface

    Getting Started AP and SU Switch 5 – In order to utilize the radio’s HTTP Browser interface, switch 5 (SW 5) must be “ON”. Default seting for SW 5 (from factory) is “ON”. SU Switch 6 - TCP/IP access direct to SU from SU side of network requires that switch 6 (SW 6) be “ON”. Default setting for SW 6 (from factory) is “ON”.

  • Page 11: Figure 3-3 Web Browser System Information Page

    Getting Started Figure 3-3 Web Browser System Information Page Figure 2-3 shows system information for an Access Point. Basic system information for a subscriber unit is similar and is covered in detail later in this text. The following describes the primary features and pages of the HTTP Browser interface: Navigation Column: Each page features a navigation column which runs along the left-hand side of the page.

  • Page 12: Command Line Interface

    Reset Button M900S APs and SUs feature a reset button (located under the translucent plug which can be pressed with a small object such as a paper clip. Pressing the reset button will reset all of the radio’s parameters (including IP address and passwords) to factory default 192.168.100.100 and password trango.

  • Page 13: Section 4 Basic Configuration Via Browser Interface

    AP will begin actively searching for the SUs in its SU database (SUDB). Once an active SU is detected, the authentication and association process will begin. Essentials to Establish a Wireless Link with M900S Series Radios ?? Base ID in AP and SU must match ?? MAC Address of SU must match an entry in the subscriber unit database (SUDB) ?? AP must be in Opmode “AP”...
  • Page 14 Basic Configuration via Browser Interface . To set up an SU in the SU Database, complete the following steps: Connect to the AP (see Getting Started) and open the Subscriber Database page. Enter SU ID Select: either PRIORITY or REGULAR. If SU will be part of an SU to SU group, enter the SU to SU group number.

  • Page 15: Configure Other Basic Ap Parameters

    Basic Configuration via Browser Interface Configure Other Basic AP Parameters In addition to setting up the SU in the SU Database, the following settings from the AP’s Configuration page must be set (or left at default). Base ID: Four character, alphanumeric, user definable base station ID. Input of BASEID shall be in the format of xxxx. Where x is any character from the set : { 0..9;...
  • Page 16 Basic Configuration via Browser Interface Set Base ID (Must match the SU) Set AP ID (used to identify the AP, not essential to establishing a link) Set IP, Subnet, and Gateway (Not essential for a link) Set Default Opmode to "ON" Set Active Channel Set Antenna Polarization (H or V) or choose E for external antenna Save and Activate Settings...

  • Page 17: Configure Basic Su Parameters

    Basic Configuration via Browser Interface Configure Basic SU Parameters In order to establish a working link, the Base ID in the SU must match the Base ID of the AP To set up the SU, complete the following steps: Connect to the SU (see Getting Started) and open the Configuration page. Set Base ID (Must match the AP) Set IP, Subnet, and Gateway (Not essential for a link) Set Default Opmode to "ON"...

  • Page 18: Evaluate Link Quality

    Once every second when unit is powered on but opmode is OFF Twice per second while in SU opmode and scanning for an AP. Solid after unit is associated with an AP. Figure 4-1 Bottom of M900S Radio with LEDs Insert new LED picture here Evaluate Link Quality It takes approximately 60 seconds for the radios to complete the boot-up cycle, which includes switching on the Opmode, handshaking, and association.

  • Page 19: Su Ranging / Rssi Test

    Basic Configuration via Browser Interface SU Ranging / RSSI Test For specified SU reports the distance from AP in miles, SU Tx Power, SU temperature, and the received signal strength for uplink and downlink. Use a link budget calculator to analyze results. Advanced Setup Page The advanced set up page includes several important parameters including RF TX Power, target RSSI from SU (AP only).

  • Page 20: Other Key Parameters

    Basic Configuration via Browser Interface Channel Table: Assigns channel numbers to actual frequencies of operation. Default settings allow the largest number of channels (4) within the band, while still maintaining 6 MHz channel spacing. Other Key Parameters This section describes the remainder of the parameters listed on the System Information page. Most of these parameters are the same for both APs and SUs.

  • Page 21: Site Survey Page

    Basic Configuration via Browser Interface RFRx Threshold: Sets the receive threshold of the radio. The radio will not process signals received below this level, so it is very useful for interference mitigation. For smaller radius of operation use a higher threshold (-65 is higher than -70). Broadcast Packet: This software switch (0) enables/disables the blocking of Ethernet control packet except ICMP and ARP to reduce the amount of unnecessary overhead introduced to the wireless link.

  • Page 22: Section 5 Basic Configuration Via Cli

    Basic Configuration via CLI Section 5 Basic Configuration via CLI It is important for users to be familiar with the CLI interface as well as the Browser Interface. This section covers how to utilize the radio’s CLI interface to establish a working wireless link. Much of the information presented here is similar to the information presented in Section 4.
  • Page 23 Basic Configuration via CLI AP SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS AP Parameter Description Related CLI Command reboot/power cycle. Opmode Start Determines the amount of time the set defaultOpmode ap [<time (sec)>] radio will remain in Opmode OFF after reboot before progressing to the Example: default Opmode.

  • Page 24: Subscriber Unit Basic Settings

    Basic Configuration via CLI AP SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS AP Parameter Description Related CLI Command the wireless link Remarks User definable radio information (i.e. remarks [remarks] customer name, address of Example: installation, and so on). Maximum 28 #>remarks 123 Elm Street characters can be stored.

  • Page 25: Subscriber Unit Database Settings

    Basic Configuration via CLI SU SYSTEM INFORMATION PARAMETERS AND RELATED COMMANDS SU Parameter Description Related CLI Command Opmode. IP, Subnet, and Gateway address ipconfig [<new ip> <new subnet mask> <new gateway>] Subnet of radio. Example: Gateway #>ipconfig 10.1.1.3 255.0.0.0 10.1.1.1 Tftpd Tftpd status (on or off).
  • Page 26 Basic Configuration via CLI MAC ID of SU (printed on the back of the SU) Polling priority; either PRIORITY or REGULAR. Note: SUs designated as PRIORITY will get polled more often by the AP. To add an SU to the database, use the following command and syntax: sudb add <suid>...

  • Page 27: Section 6 Mounting Hardware

    Mounting Hardware Section 6 Mounting Hardware Figure 6-1 M900S Mounting Hardware Assembly Figure 6-2 Alternative Mounting Trango Broadband Wireless — User Manual Access5830 Rev. D Page...

  • Page 28: Cabling And Grounding Considerations

    Mounting Hardware Figure 6-3 Articulation for M900S with Mono Pod Mount (not supplied) Standard Mounting Alternative Mounting Cabling and Grounding Considerations Figure 6-4 Grounding Example Proper mounting of the radio includes consideration for grounding. Please note that if the radio is attached to a metal pole which is earth-grounded, no other grounding is necessary.
  • Page 29 Mounting Hardware Note: Access to the radio RJ-45 Port and LED status lights are purposely located at the bottom of the radio to minimize the risk of water intrusion. Do not mount the radio upside down. Note: The J-Box is not a weatherized device and must be located either indoors or in a weather-protected cabinet. Shielded twisted pair Cat-5 cable is recommended for all installations.

  • Page 30: Section 7 Deployment

    Deployment Section 7 Deployment Once you are familiar with the basic operation of the radios you are ready for deployment in the field. The deployment process consists of the following steps: ?? Site Selection ?? Site Survey ?? Channel Planning ?? SU Antenna Alignment ?? Link Management Commands Site Selection...

  • Page 31: Ap Search And Su Antenna Alignment

    Deployment Freq 902 MHz peak -73 dBm max avg -91 dBm In this example of a survey on Freq 904 MHz peak -83 dBm max avg -94 dBm horizontal polarization for 30 Freq 906 MHz Ch 1 peak -90 dBm max avg -96 dBm seconds, the largest amount of Freq 908 MHz...

  • Page 32: Link Management Commands

    Deployment Step 2 The telnet session screen will begin a continuous readout of the received signal strength. As you read the RSSI reading, move the antenna in the horizontal and vertical planes until the maximum RSSI reading is achieved. For short links you can expect an RSSI of –60 dBm or better.
  • Page 33 Deployment In establishing and diagnosing the quality of the link between AP and SU(s), there are a few commands which are especially useful. All of these commands are performed at the AP. A summary of these commands follows: Displays the status of all SUs in the AP’s database. SUs in the SU database will appear by SU ID, classified into one of the following status categories: Associated, Associating, and OFF.
  • Page 34 Deployment rssi This command can only be executed on the SU while in Opmode "SU" #> rssi 1] peak -44 dBm avg -45 dBm **** 2] peak -44 dBm avg -45 dBm **** 3] peak -44 dBm avg -45 dBm **** 4] peak -44 dBm avg -45 dBm **** 5] peak -44 dBm...
  • Page 35 Deployment 3] ...[AP Tx] 20 [AP Rx] 20 [SU Rx] 20 4] ...[AP Tx] 20 [AP Rx] 20 [SU Rx] 20 5] ...[AP Tx] 20 [AP Rx] 20 [SU Rx] 20 Success. #> As another example, a result of 20..10..18 would indicate 20 packets sent from AP, 18 packets received at SU, 10 packets received back at the AP.

  • Page 36: Section 8 Management

    Management Section 8 Management In this section the following topics will be discussed: ?? SU Management from AP ?? TCP/IP SU Management ?? Security ?? SNMP SU Management from AP Network management can be performed by the following methods ?? HTTP Interface ?? CLI See Appendix on Command Set Reference ?? SNMP Manager...

  • Page 37: Loading Multiple Sus Into Sudb Using Dload Command

    Run command updateflash sudb to write the database to non-volatile memory. SNMP The M900S supports Simple Network Management Protocol (SNMP) for network management. Network management consists of the following 4 categories: configuration, accounting, alarm, monitoring, and control. These capabilities allow the network operator to provide superior services through higher network availability and integrated accounting system.

  • Page 38: Snmp Setup

    Unzip trangopkg.zip file to a local temporary directory. Go to your local temporary directory, you will see 4 files shown below. trango_m900sap_1p0.mib – M900S AP MIB file trango.ico – M900S AP icon autoico.txt – instruction file (Selects Trango icon automatically during initial set-up.) Copy trango_m900sap_1p0.mib file to C:\Program Files\SNMPc Network Manager\mibfiles...
  • Page 39 Management Trango Broadband Wireless — User Manual Access5830 Rev. D Page...

  • Page 40: Appendix A Command Set Reference

    <* | <current chscksum>> <* | <new to flash memory at main or fpga image section. checksum>> *: skip checksum verification save <systemsetting | ss> write current configuration into flash memory at system Both On/Off Trango Broadband Wireless — User Manual M900S Rev. A Draft Page...
  • Page 41 Both On/Off configuration section updateflash sudb> write downloaded su dbase into flash memory after On/Off unpacking display Both On/Off version number and date code firmware and fpga version code Trango Broadband Wireless — User Manual M900S Rev. A Draft Page...

  • Page 42: Appendix B Specifications

    Appendix B Specifications All specifications apply to M900S-AP and M900S-SU unless otherwise noted. Radio Transmit Specifications Storable Channels: 4 memory locations Agility: 906 to 924 MHz in 1 MHz increments Default channels- Channel 1: 906 MHz...
  • Page 43 24 Volt DC Power adapter and J-Box supplied with product. Type: Linear wallmount transformer Input: 120 VAC Output: 24 VDC +/- 1 V Max current: 1000 mA Connector: 5mm DC Barrel-type Plug. Standard External Power-over-Ethernet Junction Box Trango Broadband Wireless — User Manual M900S Rev. A Draft Page...
  • Page 44 +10 +/- 1 dBiL Az Beamwidth: 60 degrees (3 dB pts) El Beamwidth: 60 degrees (3 dB pts) Cross Pol: >15 dB Front/Back Ratio: 12 dB VSWR: < 2.0:1 over Bandwidth Trango Broadband Wireless — User Manual M900S Rev. A Draft Page...
