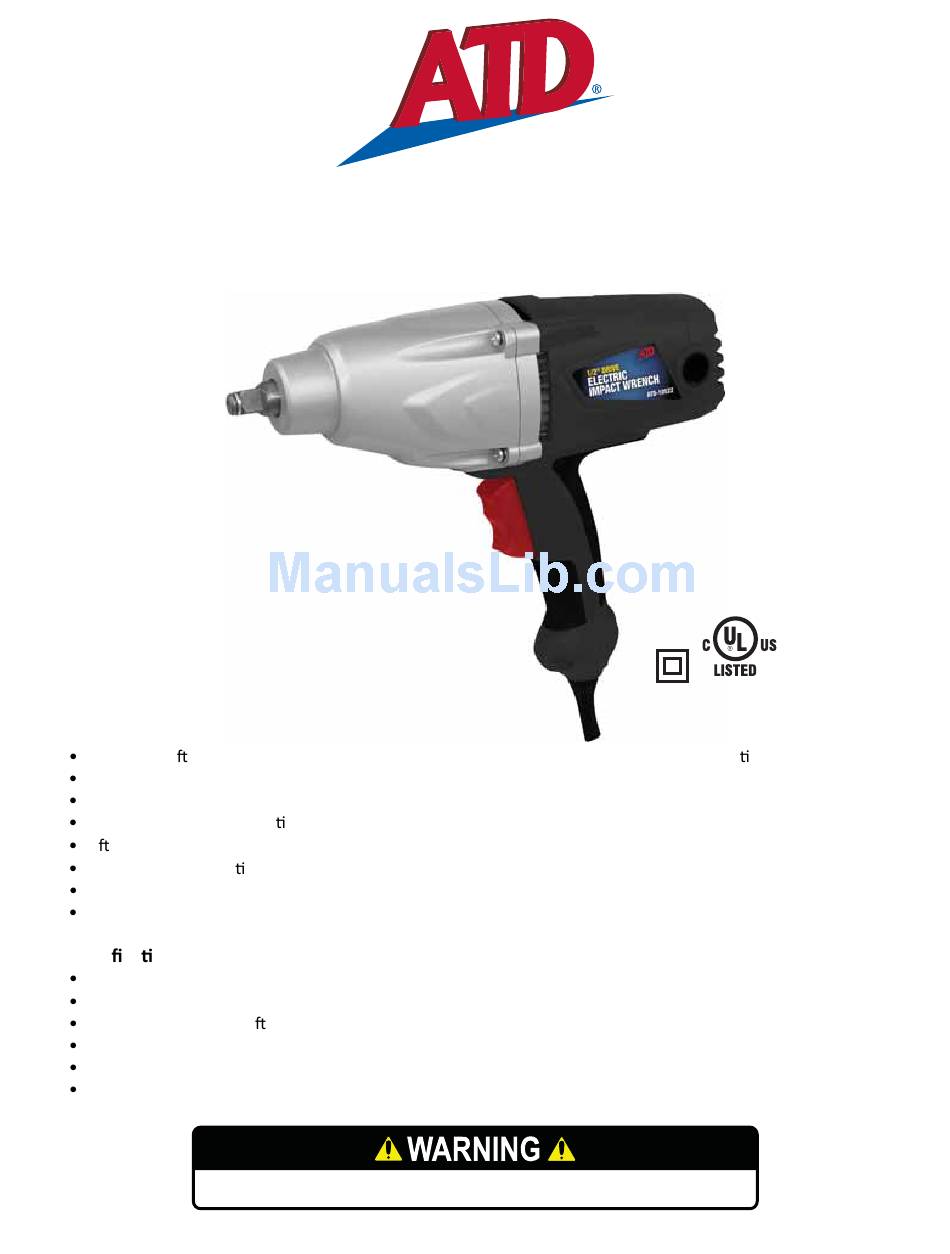

1/2" DRIVE ELECTRIC IMPACT WRENCH
Features:
Delivers 240 .-lbs. of torque for high-demand projects and heavy-duty fastening applica ons
Aliminum alloy gear housing provides reliability, durability & lighter weight for easy handling
Forward/reverse rocker switch for convenient one-handed use
1/2" square drive with fric on ring system that securely holds sockets and adaptors
So grip handle for superior ergonomics
Ball bearing construc on for increased durability
Improved gearbox structure to avoid oil leaks and enhance product performance
Packed in a custom case for easy transport and storage
Speci ca ons:
Rated Voltage: 120V, 60 Hz
Input: 7.5A
Maximum Torque: 240 .-lbs.
No-Load Speed: 2200 rpm
Blows per Minute: 2,700 bpm
Drive: 1/2" square
WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer,
ATD-10522
OWNER'S MANUAL
birth defects or other reproductive harm. Wash hands after handling.
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
39LH
E325983
012009
Advertisement
Table of Contents
Related Manuals for ATD Tools ATD-10522
Summary of Contents for ATD Tools ATD-10522
- Page 1 Drive: 1/2” square WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer, birth defects or other reproductive harm. Wash hands after handling. Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
-
Page 2: General Safety Warnings
General Safety Warnings WARNING: The instruc ons and warnings contained in this manual should be read and understood before using or opera ng this tool. Do not allow anyone to use or operate this tool un l they have read this manual and have developed a thorough understanding of how this tool works. Failure to observe any of the following instruc ons could result in severe personal injury to tool user and bystanders, or cause damage to the tool and property. -
Page 3: Electrical Safety Warnings
Electrical Safety Warnings WARNING: Read all safety warnings and instruc ons. Failure to follow all warnings and instruc ons may result in electric shock, re and/or serious injury or death. WARNING: Before conne ng a tool to a power supply, always check to ensure the power supply corresponds to the voltage on the nameplate of the tool. - Page 4 WARNING: If the work area is not equipped with a permanently installed Ground Fault Circuit Interrupter outlet (GFCI), use a plug-in GFCI between the power tool or extension cord and the power receptacle. WARNING: If an extension cord is necessary, use only ‘Listed’ extension cords. If used outdoors, they must be marked “For Outdoor Use”.
- Page 5 WARNING: Do not use the power tool if the switch loses its func on. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. WARNING: Do not operate power tools in explosive atmospheres, such as in the presence of mmable liquids, gases or dust.
-
Page 6: Maintenance
Functions The voltage specifications on the rating plate must correspond with the supply voltage. Before attempting to use your tool, familiarize yourself with all operating features and safety requirement. 1. Switch 2. Brush Cap 3. Gear Housing 4. Handle 5. Motor Housing Operating Instructions Switch This impact wrench is equipped with a rocker switch that switches rotation from clockwise to counter-clockwise... -
Page 7: Troubleshooting
motor housing to reveal the spring and brush assembly. Troubleshooting Problem Possible Causes Likely Solutions Tool will not start. 1. Cord not connected. 1. Check that cord is plugged in. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. - Page 8 ATD-10522 ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION PRT1 22- 1 SCREW ST X48F PRT1 22-2 EARING USH PRT1 22- 2 SPRING WASHER/ PRT1 22-26 WASHER/ 8.2X7.2 PRT1 WASHER/ PRT1 22-27 PIN/ 8X PRT1 22- 4 GEAR OX...
-
Page 9: Year Limited Warranty
WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES _______________________________________ DATE PURCHASED: ____________________________________________ INVOICE/REC during normal use of the product. This limited warranty is your exclusive remedy. To access the benefits of this warranty, contact your supplier, or point of sale directly. You may be advised to return the product under warranty, freight prepaid, to your supplier for warranty determination.
