A S S E M B LY I N S T R U C T I O N S
Burbank Raised Potting Bench
Please read through before starting assembly.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
(UK Tel: (44) 2038 687160 (Mon. to Fri. 1:00 PM to 10:00 PM GMT).

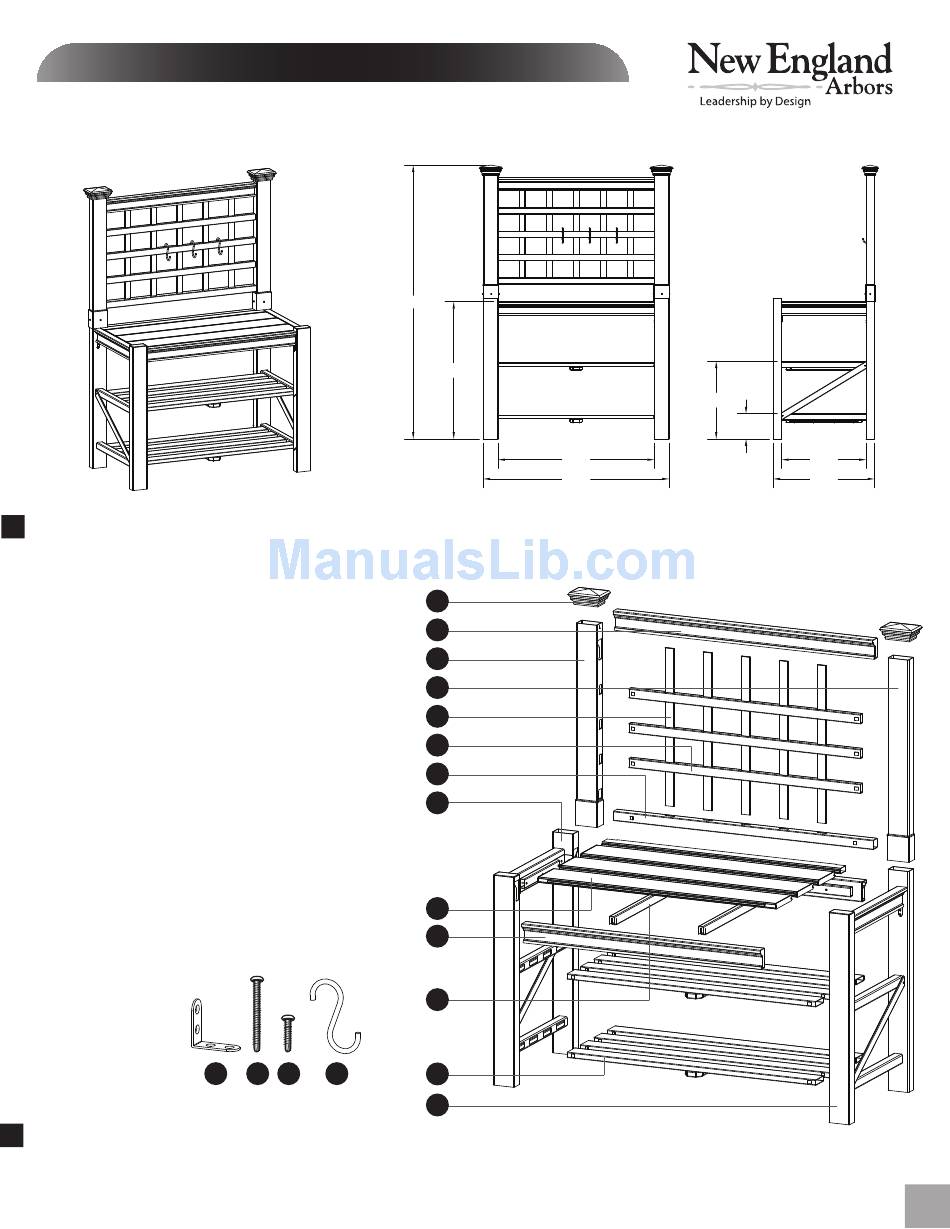

1. Post Caps (2) - 10611
2. Trellis Top Rail (1) - 10971
3. Trellis Post - Left (1) - 10972
4. Trellis Post - Right (1) - 10973
5. Trellis Slats - Vertical (5) - 10974
6. Trellis Horizontal Rail - Middle (3) - 10975
7. Trellis Horizontal Rail - Bottom (1) - 10976
8. Potting Bench Pre-assembled Left Panel (1) - 10226
9. Potting Bench Boards (4) - 10978
10. Potting Bench Pre-assembled Top Rail - (2) - 10979
11. Potting Bench Board Supports (2) - 10980
12. Potting Bench Pre-assembled Shelves (2) 10981
13. Potting Bench Pre-assembled Right Panel (1) - 10219
14. Corner Brackets (4) - 10227
15. 1 1/2" (38 mm) Stainless Steel Screws (16) - 20005
16. 5/8" (16 mm) Stainless Steel Screws (20) - 20016
17. S-Hooks (3) - 10990
14
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approx 4'x 8' (1.2 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling components.
65 in
(165 cm)
15
16
17
Not to Scale
32 1/2 in
(83 cm)
37 in
(94 cm)
44 in
(112 cm)
1
2
3
4
5
6
7
8
9
10
11
12
13
www.newenglandarbors.com
www.newenglandarbors.co.uk
18 1/2 in (47 cm)
6 in
20 in
(51 cm)
(15 cm)
24 in
(61 cm)
Ver 2.2/072617
