No part of this manual or document may be copied or re-produced in any form or by any means without the express permission of SMP (Playgrounds) Ltd.
E: sales@smp.co.uk - W: www.smp.co.uk - T: +44(0)845 260 1655

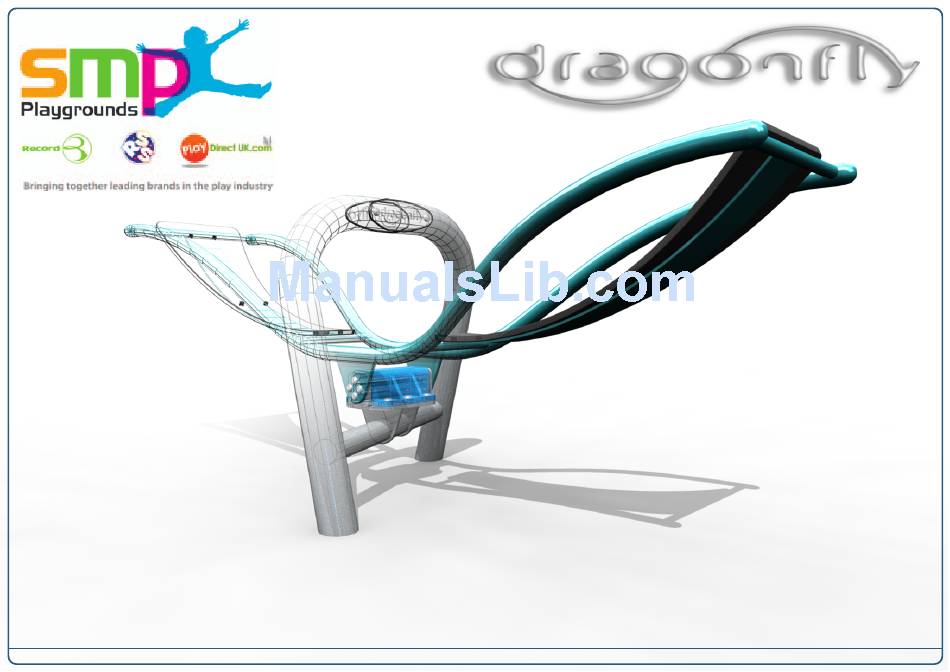

DF271 Dragonfly
Issue H _ 18/10/2011
1 / 13

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dragonfly DF271 and is the answer not in the manual?

Questions and answers

Related Manuals for SMP Dragonfly DF271

Summary of Contents for SMP Dragonfly DF271

  • Page 1 No part of this manual or document may be copied or re-produced in any form or by any means without the express permission of SMP (Playgrounds) Ltd. E: sales@smp.co.uk - W: www.smp.co.uk - T: +44(0)845 260 1655 DF271 Dragonfly Issue H _ 18/10/2011...
  • Page 2 502100 502101 62.5Kg! 40.6Kg! 1 No 1 No 144 - TYPE 1 Assembled Top Assembled Base 10231030 10391000 144 - TYPE 2 6 No 6 No M10 x 30 Bolt M10 Shakeproof Washer 144 - TYPE 3 Ø36mm Ø30mm 10309999 10291400 6 No 6 No...
  • Page 3 LxWxH (m) m³ m² EN1176 H=1.1m 2.19 x 0.76 x 0.79 0.47 10 x 10 TYPE 1 TYPE 2 S2 (50mm) ≥C20-25 7 x 24h DF271 Dragonfly Issue H _ 18/10/2011 3 / 13...
  • Page 4 LxWxH (m) m³ m² EN1176 H=1.1m 2.19 x 0.76 x 0.79 0.47 10 x 10 TYPE 3 EN1176 FHF ≥ 1.1m S2 (50mm) ≥C20-25 7 x 24h DF271 Dragonfly Issue H _ 18/10/2011 4 / 13...
  • Page 5 EN1176 H=1.1m R1524 5195 DF271 Dragonfly Issue H _ 18/10/2011 5 / 13...
  • Page 6 50 Nm! 7 x 24h DF271 Dragonfly Issue H _ 18/10/2011 6 / 13...
  • Page 7 Appendix A_502100 Assembled Top 1/2 19 20 DF271 Dragonfly Issue H _ 18/10/2011 7 / 13...
  • Page 8 Appendix A_502100 Assembled Top 2/2 502200 502203 41Kg! 1 No 1 No Wing Stop 502102 502510 1 No 1 No Suspension Unit Assembly Shaft 502511 502509 2 No 2 No Shaft End Cap PTFE Washer 502600 10121030 2 No 4 No Seat M10 x 30 Resistorx 10131020 10381000 12 No...
  • Page 9 Appendix B_502101 Assembled Base 10131030 4 No M10 x 30 Resistorx 10381000 4 No M10 Plain Washer 502201 40Kg! 1 No Base Unit 19023801 2 No Saddle Gasket 502506 2 No Footplate DF271 Dragonfly Issue H _ 18/10/2011 9 / 13...
  • Page 10 Appendix C_502102 Suspension Unit Assembly 502520 1 No Suspension Unit 502523 3 No M8 x 8 Grub Screw DF271 Dragonfly Issue H _ 18/10/2011 10 / 13...
  • Page 11 Appendix D_Surfacing Setting Out TYPE 3 Synthetic TYPE 5 Grassmat DF271 Dragonfly Issue H _ 18/10/2011 11 / 13...
  • Page 12 Appendix E_ROSTA Replacement 1/2 Step 2 Step 1 40 Nm! Step 3 Step 4 DF271 Dragonfly Issue H _ 18/10/2011 12 / 13...
  • Page 13 Appendix E_ROSTA Replacement 2/2 Step 6 Step 5 40 Nm! Step 7 Step 8 7 x 2 25 Nm! DF271 Dragonfly Issue H _ 18/10/2011 13 / 13...
