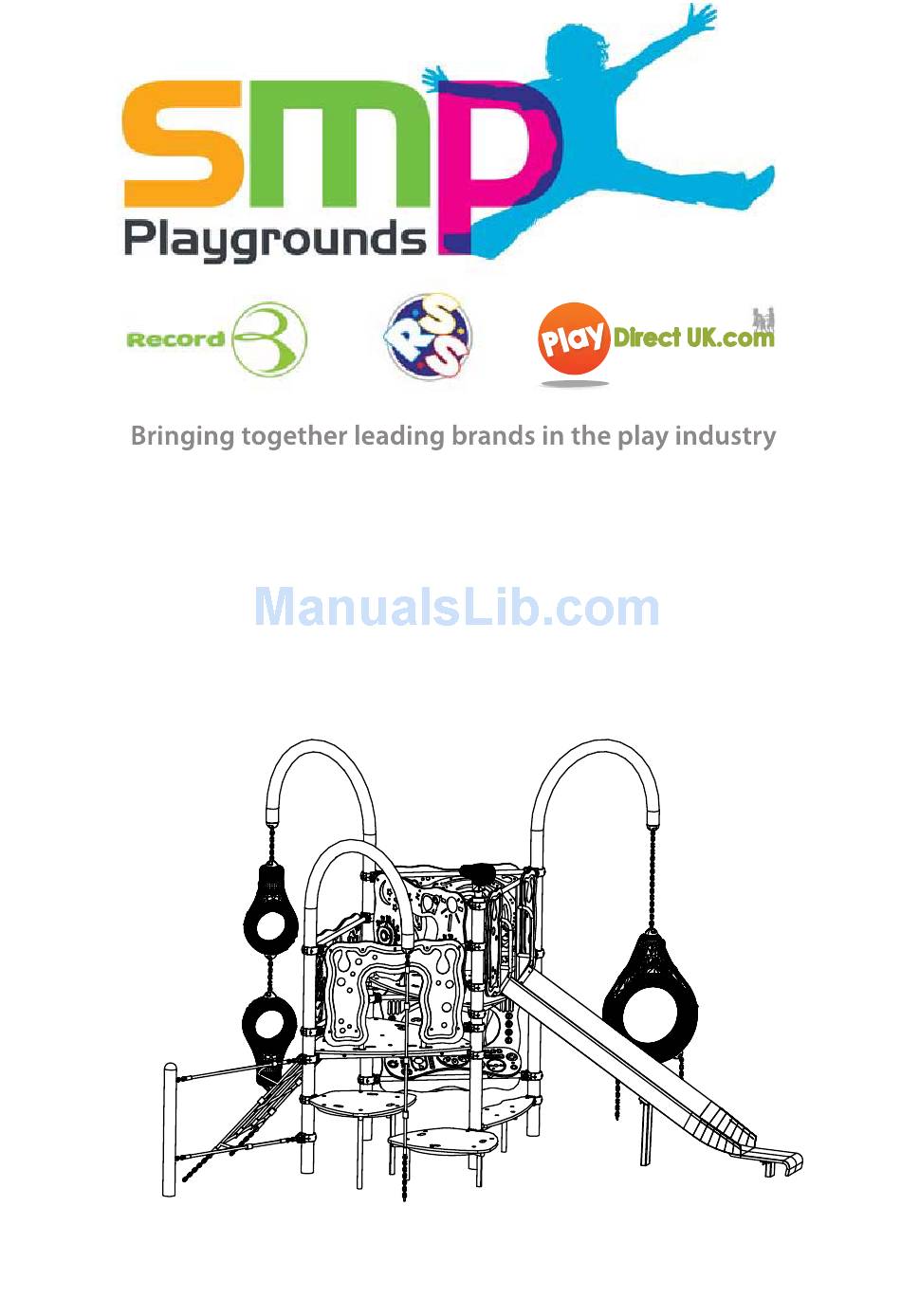

INSTALLATION INSTRUCTIONS

ZINGO DU
X-002/S, X-002/SD, X-002/P & X-002/PD
MODEL SHOWN = X-002/S
NO PART OF THIS MANUAL OR DOCUMENT MAY BE COPIED OR RE-PRODUCED IN ANY FORM OR BY ANY MEANS WITH OUT THE EXPRESS
WRITTEN PERMISSION OF SMP (PLAYGROUNDS) LTD.
- W: smp.co.uk -
T: +44(0)845 260 1655
E: sales@smp.co.uk

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZINGO DU X-002/S and is the answer not in the manual?

Questions and answers

Related Manuals for SMP ZINGO DU X-002/S

Summary of Contents for SMP ZINGO DU X-002/S

  • Page 1: Installation Instructions

    MODEL SHOWN = X-002/S NO PART OF THIS MANUAL OR DOCUMENT MAY BE COPIED OR RE-PRODUCED IN ANY FORM OR BY ANY MEANS WITH OUT THE EXPRESS WRITTEN PERMISSION OF SMP (PLAYGROUNDS) LTD. - W: smp.co.uk - T: +44(0)845 260 1655...
  • Page 2 ZINGO DU X-002 Page 2 ISSUE L 15-11-2010...
  • Page 3 ZINGO DU X-002 x 3= T X-002/S 4.71 x 3.10 x 2.84 528.0 1.48 10.00 x 9.00 1.3m X-002/P 4.90 x 3.10 x 2.84 576.0 1.46 X-002/S 1008 1043 1700R 39.56m 1850R 2100R 1545R 1602R 1545R 3215 1131 2246 3895 8308 ISSUE L 15-11-2010 Page 3...
  • Page 4 ZINGO DU X-002 X-002/P 1043 1696R 1850R 38.24m 1546R 1545R 1546R 1602R 1544R 3215 1826 3895 7900 Page 4 ISSUE L 15-11-2010...
  • Page 5 ZINGO DU X-002 X-002/S L x W x D ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x0.30 x 0.80 ‘C’ 0.40 x 0.40 x 0.70 ‘D’ 0.94 x 0.30 x 0.70 ‘E’ 0.30 x 0.30 x 0.70 ‘F’ 0.30 x 0.30 x 0.65 ‘G’...
  • Page 6 ZINGO DU X-002 X-002/P L x W x D ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x0.30 x 0.80 ‘C’ 0.40 x 0.40 x 0.70 ‘D’ 0.94 x 0.30 x 0.70 ‘E’ 0.30 x 0.30 x 0.70 ‘F’ 0.30 x 0.30 x 0.65 ‘G’...
  • Page 7 ZINGO DU X-002 X-002/S L x W x D ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x0.30 x 0.80 ‘C’ 0.40 x 0.40 x 0.70 ‘D’ 0.94 x 0.30 x 0.70 ‘E’ 0.30 x 0.30 x 0.70 ‘F’ 0.30 x 0.30 x 0.65 ‘G’...
  • Page 8 ZINGO DU X-002 X-002/P L x W x D ‘A’ 0.60 x 0.60 x 0.95 ‘B’ 0.30 x0.30 x 0.80 ‘C’ 0.40 x 0.40 x 0.70 ‘D’ 0.94 x 0.30 x 0.70 ‘E’ 0.30 x 0.30 x 0.70 ‘F’ 0.30 x 0.30 x 0.65 ‘G’...
  • Page 9 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 55003740 50.00 55003440 46.00 55012900 30.00 55011725 15.00 55041225 15.00 55040911 10.00 ISSUE L 15-11-2010 Page 9...
  • Page 10 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 55041190 12.00 55021809 11.00 55020911 6.00 55021200 10.00 55021300 7.50 55021301 3.00 55021082 2.50 Page 10 ISSUE L 15-11-2010...
  • Page 11 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 55020332 4 PAIRS 2.00 55021087 5.00 55020880 3.50 55059999 0.50 45031200 30.00 70032701 4.50 45039001 5.80 55081200 91.00 ISSUE L 15-11-2010 Page 11...
  • Page 12 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 55090010 16.00 55090040 16.00 55090050 16.00 55090020 8.00 55090030 4.00 55090090 11.00 55090201 9.00 55090205 9.00 Page 12 ISSUE L 15-11-2010...
  • Page 13 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 55090209 9.00 55090300 14.00 55090401 10.00 55090402 6.00 55090501 1 PAIR 8.00 55090503 1 PAIR 6.00 55050010 7.00 55062010 12.00 ISSUE L 15-11-2010 Page 13...
  • Page 14 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 55062020 10.00 38008060 1.00 55030201 0.50 38008027 1.50 55080010 0.50 55080011 0.50 55080012 0.25 55030899 0.15 55030799 0.20 Page 14 ISSUE L 15-11-2010...
  • Page 15 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 55030399 0.10 55030499 0.10 15715000 0.10 10121065 0.050 10121040 0.037 10121035 0.032 10121030 0.028 10120625 0.011 10120610 0.005 10251016 0.020 ISSUE L 15-11-2010 Page 15...
  • Page 16 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 10309999 0.011 10291000 0.002 10301000 0.002 10260600 0.002 10304010 0.003 10303212 0.011 14101225 0.032 14104942 0.001 14104749 0.007 14104750 0.005 Page 16 ISSUE L 15-11-2010...
  • Page 17 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 14104285 0.003 14104963 0.026 14110018 0.018 19024501 0.001 19055030 0.001 19055040 0.001 10121000 10120600 10120500 ISSUE L 15-11-2010 Page 17...
  • Page 18 ZINGO DU X-002 ITEM REF. X-002/S X-002/P 10120900 10121001 10121100 Page 18 ISSUE L 15-11-2010...
  • Page 19 ZINGO DU X-002 STEP 1 ‘X’ 20Nm ‘Y’ 20Nm ‘Z’ 20Nm ISSUE L 15-11-2010 Page 19...
  • Page 20 ZINGO DU X-002 STEP 2 ‘X’ 20Nm ‘Y’ 20Nm ‘Z’ 20Nm Page 20 ISSUE L 15-11-2010...
  • Page 21 ZINGO DU X-002 STEP 3 ‘X’ 20Nm ‘Y’ 20Nm ‘Z’ 20Nm ISSUE L 15-11-2010 Page 21...
  • Page 22 ZINGO DU X-002 STEP 4 ‘X’ 20Nm ‘Y’ 20Nm ‘Z’ 20Nm Page 22 ISSUE L 15-11-2010...
  • Page 23 ZINGO DU X-002 STEP 5 STEP 3 ISSUE L 15-11-2010 Page 23...
  • Page 24 ZINGO DU X-002 STEP 6 60° 30° STEP 1 STEP 2 STEP 3 Page 24 ISSUE L 15-11-2010...
  • Page 25 ZINGO DU X-002 STEP 7 X-002/P STEP 8 20Nm ISSUE L 15-11-2010 Page 25...
  • Page 26 ZINGO DU X-002 STEP 9 20Nm Page 26 ISSUE L 15-11-2010...
  • Page 27 ZINGO DU X-002 STEP 10 ISSUE L 15-11-2010 Page 27...
  • Page 28 ZINGO DU X-002 STEP 11 STEP 3 0° 60° Page 28 ISSUE L 15-11-2010...
  • Page 29 ZINGO DU X-002 STEP 12 20Nm STEP 13 ISSUE L 15-11-2010 Page 29...
  • Page 30 ZINGO DU X-002 STEP 14 20Nm 14 x 4 STEP 15 742 CRS Page 30 ISSUE L 15-11-2010...
  • Page 31 ZINGO DU X-002 STEP 16 20Nm 35° 50° STEP 17 X-002/P ISSUE L 15-11-2010 Page 31...
  • Page 32 ZINGO DU X-002 STEP 18 20Nm Page 32 ISSUE L 15-11-2010...
  • Page 33 ZINGO DU X-002 STEP 19 60° 1126 20Nm STEP 20A TYPE 3 1510 1001  7 x 24h ISSUE L 15-11-2010 Page 33...
  • Page 34 ZINGO DU X-002 STEP 20B TYPE 2 1706 1178  7 x 24h STEP 21  7 x 24h Page 34 ISSUE L 15-11-2010...
  • Page 35 ZINGO DU X-002 STEP 22 5 - 8 STEP 23 x 10 ISSUE L 15-11-2010 Page 35...
  • Page 36 ZINGO DU X-002 STEP 24 STEP 25 Page 36 ISSUE L 15-11-2010...
  • Page 37 ZINGO DU X-002 STEP 26 20Nm STEP 27 ISSUE L 15-11-2010 Page 37...
  • Page 38 ZINGO DU X-002 STEP 28 STEP 29 Page 38 ISSUE L 15-11-2010...
  • Page 39 ZINGO DU X-002 STEP 30 ISSUE L 15-11-2010 Page 39...
  • Page 40 ZINGO DU X-002 STEP 31 Page 40 ISSUE L 15-11-2010...
  • Page 41 ZINGO DU X-002 Appendix A: X-002/P STEP 7 STEP 9 ISSUE L 15-11-2010 Appendix A Page 41...
  • Page 42 ZINGO DU X-002 STEP 17A WASHER 3/8” UNC x 1” 3/8” UNC x 3/4” WASHER Appendix A Page 42 ISSUE L 15-11-2010...
  • Page 43 ZINGO DU X-002 STEP 17B 3/8” UNC x 1-1/4” ISSUE L 15-11-2010 Appendix A Page 43...
  • Page 44 ZINGO DU X-002 Appendix A Page 44 ISSUE L 15-11-2010...
  • Page 45 ZINGO DU X-002 Appendix B: X-002/SD / X-002/PD 1.3m ITEM REF. X-002/SD X-002/PD 54003740 42.00 54003440 38.00 54012900 22.00 ISSUE L 15-11-2010 Appendix B Page 45...
  • Page 46 ZINGO DU X-002 ITEM REF. X-002/SD X-002/PD 54011725 12.00 54040911 54041190 10.50 54021809 9.00 54020911 5.50 55081202 1.50 55081203 3.00 Appendix B Page 46 ISSUE L 15-11-2010...
  • Page 47 ZINGO DU X-002 ITEM REF. X-002/SD X-002/PD 55081201 3.00 38008026 1.50 55050011 1.00 15715000 0.10 ISSUE L 15-11-2010 Appendix B Page 47...
  • Page 48 ZINGO DU X-002 Appendix B Page 48 ISSUE L 15-11-2010...
  • Page 49 ZINGO DU X-002 Appendix C: ALL DIMENSIONS IN MM 1340 2053 3967 5133 1023 1475 3925 STRAIGHT LEG - 1200 DECK (ITEM 3 ). WE RECOMMEND THIS LEG IS INSTALLED FIRST TO PROVIDE A DATUM FOR THE REST OF THE STRUCTURE TYPE 1/2 LOOSE FILL AREA ST.
  • Page 50 ZINGO DU X-002 INFORMATION TO FOLLOW TYPE 1/2 LOOSE FILL AREA PLASTIC SLIDE Appendix C Page 50 ISSUE L 15-11-2010...
  • Page 51 ZINGO DU X-002 ALL DIMENSIONS IN MM 1084 1543 7224 1668 1150 1277 1316 15° 3288 STRAIGHT LEG - 1200 DECK (ITEM 3 ). WE RECOMMEND THIS LEG IS INSTALLED FIRST TO PROVIDE A DATUM FOR THE REST OF THE STRUCTURE TYPE 3 WET POUR AREA ST.
  • Page 52 ZINGO DU X-002 ALL DIMENSIONS IN MM 1087 1543 6494 1665 1517 1277 1074 15° 2560 STRAIGHT LEG - 1200 DECK (ITEM 3 ). WE RECOMMEND THIS LEG IS INSTALLED FIRST TO PROVIDE A DATUM FOR THE REST OF THE STRUCTURE TYPE 3 WET POUR AREA PLASTIC SLIDE Appendix C Page 52 ISSUE L 15-11-2010...
  • Page 53 SPECIFICATIONS SMP Playgrounds Ltd recommends an effective Impact Absorbing Surface tested to EN1177 & BS7188 beneath this play equipment. Refer to manufacturers instructions for details of installation. The surface should have a Critical Fall Height greater than the Maximum Free Fall Height of the equipment.
  • Page 54 ZINGO DU X-002 NOTE: This is a minimum guide only. ESTABLISH DATUM LEVEL If a rubber tiled Impact Absorbing surface is to be laid, see separate instructions (base may incorporate up to 2% falls etc). If equipment is to sit in loose fill or wet pour rubber surfaces allowances will need to be made for its recommended thickness.
  • Page 55 ZINGO DU X-002 Assemble to 1 off Curved Leg - 1200 deck (item 1) 2 off Clamp Rings (half) (item 46) at 600 position down from the top clamp rail. Align Clamp Ring (half) radially to match with other rings on the post. STEP 1 (Detail Z) For assembly method see Note 4.1, 2), i) to iii).
  • Page 56 ZINGO DU X-002 17) Assemble to 1 off Straight Leg - 1200 deck (item 3) 2 off Clamp Rings (half) (item 46) at 600 position down from the bottom clamp rail. Align Clamp Ring (half) radially to match with other rings on the post. STEP 3 (Detail Z) For assembly method see Note 4.1, 1), i) to iii).
  • Page 57 ZINGO DU X-002 31) Repeat the above process for the installation of the other Curved Leg - 1200 (item 1). 32) Shim the legs as required ensuring that they are plumb and square and orientated correctly with the welded F.S.L. mark at the correct level. STEP 6 33) Position Slide Deck (item 23) onto Deck Frame as shown and secure using 7 off M10 x 40 Resistorx bolts (item 51) and M10 Washers (item 58) in positions shown.
  • Page 58 ZINGO DU X-002 Shim under legs of frames ensuring that they are plumb and square and orientated correctly with the welded F.S.L. mark at the correct level. NOTE: See “Appendix A STEP 17” for assembly of Plastic Slide and relevent components. 44) Assemble Slide Feet (items 19 &...
  • Page 59 ZINGO DU X-002 54) Fill the holes with concrete to the required level, taking into account any Impact Absorbing Surfacing requirements. Ensure that a full volume of concrete is used. The top of the concrete should gradually (1:100) slope down & outwards locally from the equipment upstand to the required level to form a watershed. Concrete mix is recommended at: 1 part cement;...
  • Page 60 ZINGO DU X-002 71) Attach the end cap of the Small Hanging Assembly (item 38) to the appropriate post end using 3 off M10 x 40 Resistorx bolts (item 51) and Shockproof washers (item 59). STEP 30 72) Attach the Small Hanging Assembly by connecting the Ground Fixing Chain (item 41) previously cemented into the ground, to the swivel link in the lower end cap using 1 off Coupling Link (item 49).
