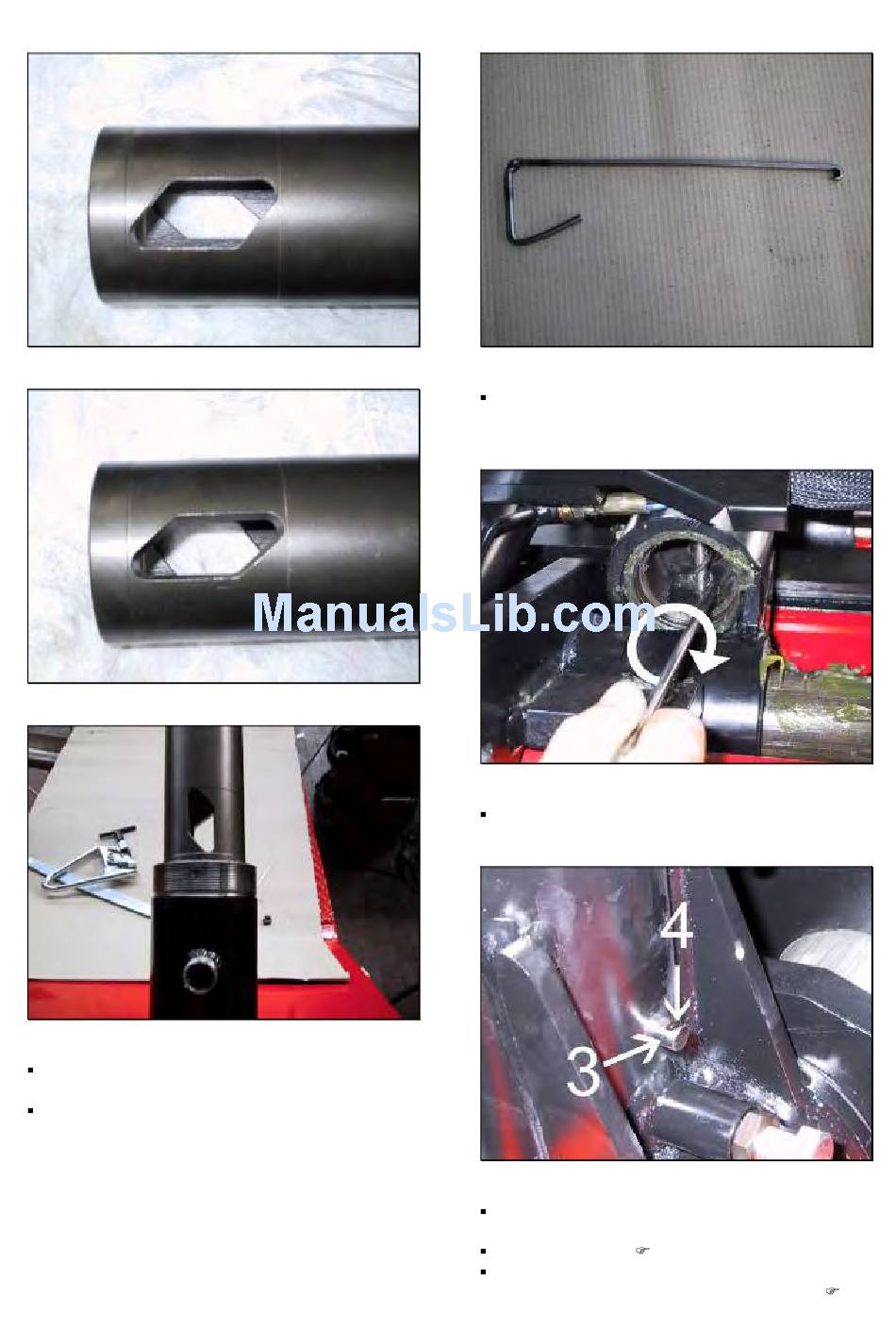

BOXER KING 5600 Service Manual page 114

Fig.264
Fig.265
Fig.266
Insert the pin #3 for 1/3 of its length and with
the sign #4 (Fig.269) towards the top.
Take a hook like that one of Fig.267.
Fig.267
Pull and turn clockwise of ½ of a turn the
spring (Fig.268) and at the same time insert
the pin #4 (Fig.269).
Fig.268
Mount the stopper #2 and its screw #1
(Fig.261).
Fig.269
Mount the lower cover with bolt and lock by
the seeger ring (Fig.260).
Mount the rotor
Check if the robotic assy works fine and if
necessary make the rotation adjustment
114
7.6.
Service Manual 04/2010 Rev.B
7.5.
