Global Point Products 00082 User Manual

Pixie princess with flash
Hide thumbs Also See for 00082:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

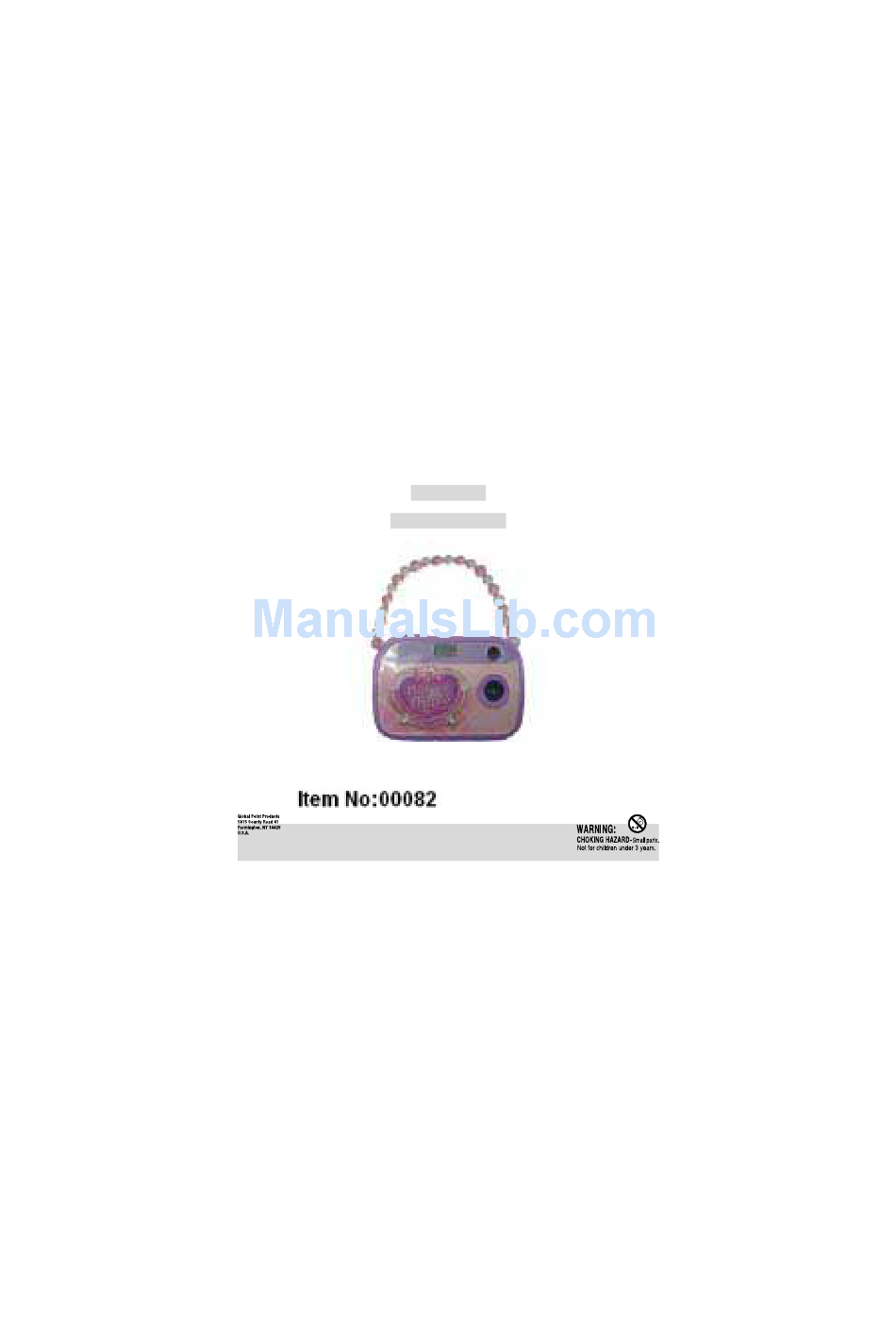

Item no.00082 pixie
princess with flash
U
U
s
s
e
e
r
r
M
M
a
a
n
n
u
u
a
a
l
l
F
C
C
I
D
:
V
B
Y
0
0
0
8
2
F
C
C
I
D
:
V
B
Y
0
0
0
8
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 00082 and is the answer not in the manual?

Questions and answers

Related Manuals for Global Point Products 00082

Summary of Contents for Global Point Products 00082

  • Page 1 Item no.00082 pixie princess with flash...
  • Page 2 Thank you for purchasing our digital camera. Please read the following instructions carefully before use. This camera can capture up to 1.3M pixel still photos and video clips. The photos and illustrations in this manual may differ from actual product due to custom requirements.
  • Page 3 System with better performance is strongly recommended. System requirements Operating System Microsoft Windows2000, Me, XP IntelPentium166MHzAboveorequivalent performance CPU 128 MB Above. Sound and Video DirectX8 or above CDROM 4X or above Hard disk 500 MB free space or above USB 1.1 or USB 2.0...
  • Page 4 General information: General cautions: Do not attempt to disassemble the camera, certain components may cause electric shocks. Do not subject the camera to moisture, pressure, impact or heat. Permanent malfunction would be caused as a result. About memory: The camera requires an external SD card to store all captured images. So SD card must be inserted before taking photo/video.
  • Page 5 Maintaince: When not in use, remove the batteries and store the camera in a dry and dark place. Always use the hand strap during use to avoid dropping accidentally. When cleansing the lens, blow away all dusts and clean the surface softly with a damped cloth.

  • Page 6: Table Of Contents

    Contents 1. Installing the driver 2. Before use 2.1 Inserting the batteries 2.2 Using the SD card 3. Physical features 3.1 Buttons and sockets 3.2 Display icons 4 .Main functions 4.1 Capturing still photos 4.2 Photo options 4.3 Capturing video clips 4.4 Video clip options 4.5 Playback 4.6 Playback options...

  • Page 7: Installing The Driver

    1.1 Supported operating systems • Windows Me • Windows 2000 • Windows XP Microsoft Windows 2000 Professional, Windows ME or Windows XP systems are pre-installed. Installing the driver Driver installation is similar for the various Windows systems. When specifying the path, you must simply select the driver in the CD-ROM drive. The camera has two USB driver modes: PC Camera and Mass Storage.
  • Page 8 2. Click “Next”. 3. Select “I accept the terms in the license agreement”. Then click “Next”.
  • Page 9 4. Now click “Install”: 5. Now the system are installing the driver when the following window appears:...
  • Page 10 6. Click “Finish” to complete installation. 7. Now the system had installed the driver finished when the icon appears on your PC desktop. You can double click the icon to run PC CAMERA.
  • Page 11 8. USB line, used for connecting the camera to the computer using the USB. System discovers the new equipment, according to the suggestion to install the new software for the equipment. Note: Always install the driver provide before connecting the camera to your computer.

  • Page 12: Inserting The Batteries

    2.1 Inserting the batteries 1. Open the battery cover 2. Insert 2 AAA batteries as shown (observe polarity carefully) 2.2 Using the SD card 1. Open the battery cover 2. Insert the SD card as shown (observe orientation carefully) 3. Press the SD card inward gently, the SD card will pop out slightly for easy removal.

  • Page 13: Physical Features

    3.1 Physical features:...

  • Page 14: Display Icons

    3.2 Display icons The camera will enter still image mode upon switching on. Press MODE button to switch among the following modes: Photo Mode Video Mode Photo playback Mode Video playback mode Setup mode Use the directional button to select the desired mode, and press OK to confirm your selection.

  • Page 15: Main Functions

    Icons Capture Modes Photo Video Flash Modes: Forced Self-timer indicator Battery meter: Full Record counter: images / clips captured Clip duration: time lapse of video being captured 4.1Capturing still images 1. Press the MODE button to enter Photo mode (The camera will enter Photo mode automatically upon switching on) Buttons and functions...

  • Page 16: Photo Options

    Photo Mode Buttons Functions Shutter Capture Enter / exit Menu Left Flash mode switch MODE Mode switch 4.2Photo options 1. Press OK to enter options’ menu 2. Buttons and functions...
  • Page 17 Photo options Buttons Functions Enter / exit menu Down Down LEFT LEFT RIGHT RIGHT Note: You must press OK to confirm your selections...
  • Page 18 3. Option List Single Burst 10s self-timer Capture options 15s self-timer 20s self timer 640×480 1280×1024 1600×1200 Resolutions 2048×1536 Flash modes Forced Auto Sunny Cloudy White balance Fluorescent Tungsten Exposure -2.0 to +2.0 step 0.5 (+EV brighter –EV darker) compensation Note: The charging indicator will blink when charging, and stay lit upon completion.

  • Page 19: Capturing Video Clips

    4.3Capturing video clips 1. Press the MODE button to enter Video mode 2. Buttons and functions Video Mode Buttons Functions Shutter Start / stop capture Enter / exit menu MODE Mode switch 4.4Video options 1. Press OK to enter options’ menu 2.

  • Page 20: Playback

    4.5 Playback modes 1. Press MODE button to switch to Photo playback or Video playback modes 2. Buttons and functions Playback modes Buttons Functions File types Photo Video clips Delete / confirm delete Delete / confirm delete Shutter ------- Start / stop playback Mode Mode switch Mode switch...
  • Page 21 3. Display icons Icons Playback: Photo playback Video Playback Playback indicator Battery meter: full File number...

  • Page 22: Playback Options

    4.6Playback options 1. In Photo playback mode and Video playback mode, press OK to delete. Press MODE button to switch modes...
  • Page 23 2. Buttons and Function Play options Buttons Functions File types Photos Video clips Confirm selection Confirm selection Delete LEFT LEFT LEFT Options RIGHT RIGHT RIGHT Confirm selection Confirm selection Mode Switch Options LEFT LEFT LEFT RIGHT RIGHT RIGHT...

  • Page 24: Mass Storage

    3. Delete options Icons Delete one Delete all exit Cancel delete Confirm delete 4.7 Mass storage 1. No drivers needed for ME or later versions of Windows 2. Enter SETUP mode and select the Mass Storage option (see 5 SETUP) 3.

  • Page 25: Webcam

    4.8 PCcam 1. Install the driver provided (see 1 installing the drivers) 2. Enter SETUP mode and select the Webcam option (see 5 SETUP) 3. Connect the camera to your PC via the USB cable provided 4. Double click the icon and the window (1) below will pop up.

  • Page 26: Setup

    Note: if no live view is shown, restart computer and try again. 5. At window (2), press to capture live view as a still image. Click to capture live video. Click to store image shown. Click to store all images. 6.
  • Page 27 3. Intercalate option Menu Options Set date /time Set date and time Stamp off Day stamp only Time stamp Stamp only Date and Time stamp Re-format SD card (all files will be erased Format permanently) Frequency 50Hz 60Hz USB modes Mass Storage PC cam Language...

  • Page 28: Specifications

    Maximum output pixels 204×1536 Effective pixels 1280×1024 Lens 1.2M~ 2048×1536 interpolated 1600 1200 interpolated Photo resolutions 1280×1024 1.3M 640×480 0.3M Video resolution 320X240 460×330 Exposure Control - 2.0 to + 2.0 EV in steps of 0.5 EV Shutter speed 1/10 ~ 1/1000 Zoom 4 ×...
  • Page 29 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
