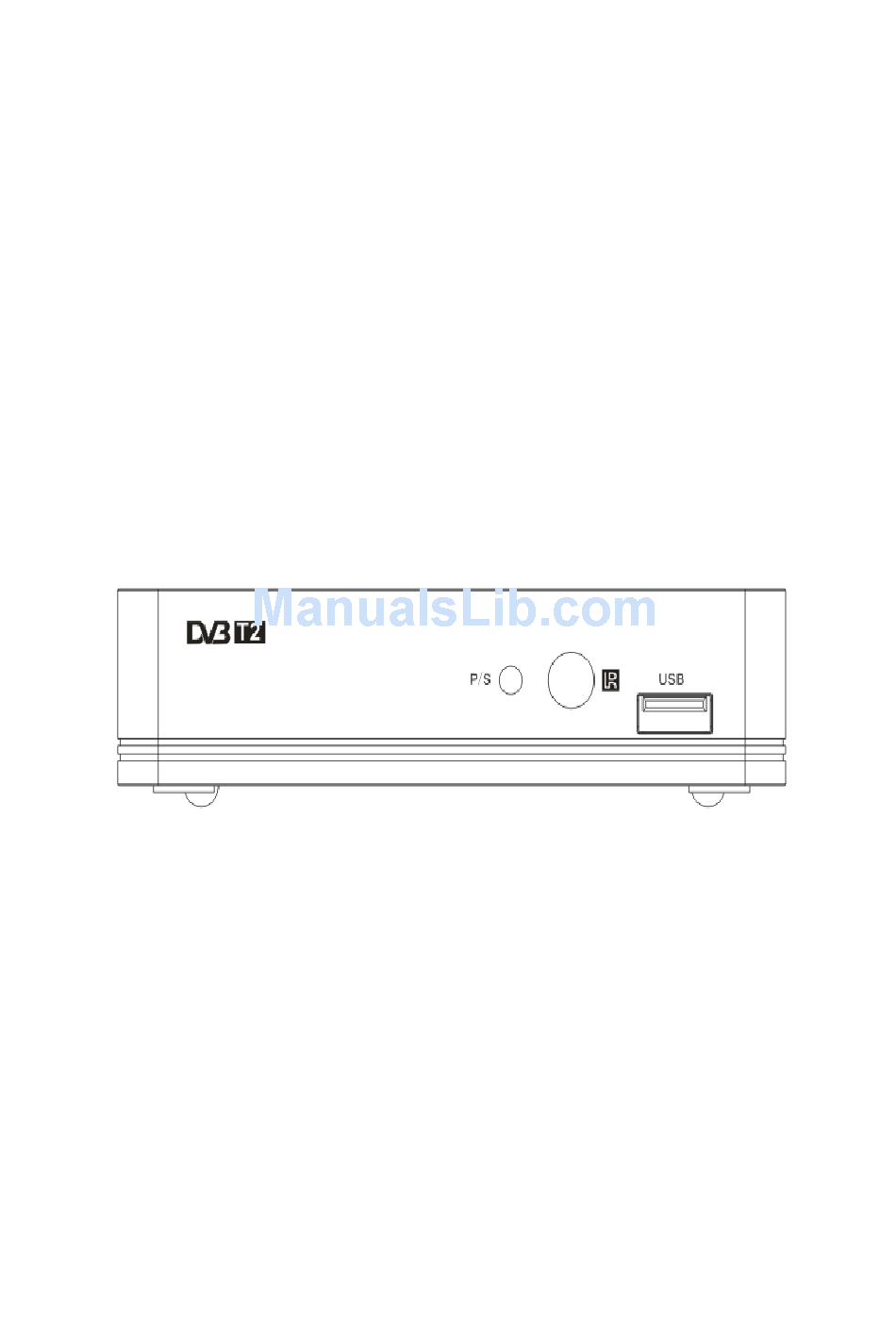

DVB-Terrestrial Receiver
SMP124 HDT2(DDR2 512M)
Service Manual
This service manual should be used with the User Manual together.
Please read this Service Manual and User Manual carefully before service this product.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMP124 HDT2 and is the answer not in the manual?

Questions and answers

Summary of Contents for BBK SMP124 HDT2

  • Page 1 DVB-Terrestrial Receiver SMP124 HDT2(DDR2 512M) Service Manual This service manual should be used with the User Manual together. Please read this Service Manual and User Manual carefully before service this product.
  • Page 2: Table Of Contents

    Contents Safety Instructions ..................3 Generally Guide ..........................3 Low Voltage Leakage Testing ........................3 High Voltage Leakage Testing ........................3 Electrical Specifications ................. 5 Mechanical Exploded View Drawing .............. 6 Mechanical Parts List .......................... 6 Packaging and Accessories ................7 Packaging Exploded View Drawing ....................7 Appendix 1 Flowchart and Circuit Diagram ............
  • Page 3: Safety Instructions

    Safety Instructions Generally Guide 1. Please check electric circuits before maintenance and change the damaged or over heated components if short-circuit has been found. 2. Please check all protective devices have been installed well after maintenance, such as insulation covering and paper.
  • Page 4 Please install the electrostatic-sensitive devices on conductor products such as aluminum foil to prevent static build-up after disassembling from this DVB-T receiver. The soldering iron must be earthed while soldering and unsoldering the electrostatic-sensitive devices. Only antistatic solder can be used for electrostatic-sensitive devices disassembly. The electrostatic-sensitive devices will be damaged by static without ESD prevention solder while disassembling.
  • Page 5: Electrical Specifications

    Electrical Specifications A Audio Section (MPEG-1 Layer Ⅱ, R. L Track Output) ITEM UNIT REQUIREMENTS Test Environment 1.0~2.0 Audio Output Level Output impedance is 10KΩ 1KHz 0dB +1/-2.0 20Hz-60Hz 0.5 60Hz-17.5KHz Frequency Characteristics +1/-3 17.5KHz-20KHz 1KHz 0dB weighting ≥70 N-CBAR100.TS f= 1KHz ≥60 R Channel Separation P-CBAR75.TS...
  • Page 6: Mechanical Exploded View Drawing

    Mechanical Exploded View Drawing Mechanical Parts List Part No. Part Name Notes 4110-1704-000H Top Cover Transparent ABS 2104-1710-300H Decoding Board ST2.855.0644MX 4111-1704-003H Bottom Cover Transparent ABS 3141-5132-0363 Power Cord 1250mm, VDE 3000-4000-0800 Feet Pad Rubber, Black 3211-2008-0005 ST2X8PANi Screw 3 ST2 X 8PANi...
  • Page 7: Packaging And Accessories

    Packaging and Accessories Packaging Exploded View Drawing Material List Material No. Name 4401-1704-000H White Box ST2.025.0525SS User Manual 2301-1555-000H Remote Control 4413-1812-1100 Bubble Bag 180*210mm 1...
  • Page 8: Appendix 1 Flowchart And Circuit Diagram

    Appendix 1 Flowchart and Circuit Diagram Flowchart Wiring Diagram Circuit Diagram of Decoding Board Circuit Diagram of Control Board...
  • Page 9 RF OUT RF 输出 CVBS+R/L RF天线IN(75ohm) RF IN (75ohm) MXL603 ALI M3812 USB Port USB 接口 供电系统 Power Supply +12V HDMI 输出 HDMI Output Flowchart...
  • Page 10 275V 50HZ VIDEO RFIN HDMI DVT DECODCER BOARD SDRAM M3812 27MHz FLASH Wiring Diagram...
  • Page 11 DDRII STRAP PIN DDRII_A[0..13] DDRII_A[0..13] DDRII_DQSJ[0..1] DDRII_DQSJ[0..1] DDRII_DQS[0..1] STRAPPIN1 DDRII_DQS[0..1] STRAPPIN1 DDRII_DQM[0..1] STRAPPIN2 DDRII_DQM[0..1] STRAPPIN2 DDRII_DQ[0..15] STRAPPIN5 DDRII_DQ[0..15] STRAPPIN5 DDRII_BA[0..2] DDRII_BA[0..2] VREF DEMOD&Tuner I/F VREF DDRII_WEJ DDRII_WEJ DDRII_CASJ GPIO25 DDRII_CASJ DDRII_RASJ IIC_SCK DDRII_RASJ DDRII_CKJ IIC_SDA DDRII_CKJ DDRII_CK GPIO15 DDRII_CK SSI2_D0 SSI2_CLK FLASH I/F SSI2_VALID...
  • Page 12 Strap_Pin DDRII DDRII_A[0..13] STD3V3 DDRII_A[0..13] DDRII_DQSJ[0..1] DDRII_DQSJ[0..1] DDRII_DQS[0..1] DDRII_DQS[0..1] DDRII_DQM[0..1] DDRII_DQM[0..1] DDRII_DQ[0..15] DDRII_DQ[0..15] DDRII_BA[0..2] STRAPPIN1 DDR II 4.7K DDRII_BA[0..2] CPU_PROBE_EN:default L VREF JUMPER2 VREF DDRII_WEJ JUMPER2 不插为 L DDRII_WEJ DDRII_CASJ DDRII_DQ0 DDRII_A0 DDRII_CASJ DDRII_RASJ DDRII_DQ1 DDRII_A1 DDRII_RASJ DDRII_CKJ DDRII_DQ5 DDRII_A2 STRAPPIN2 4.7K DDRII_CKJ...
  • Page 13 Audio LINE-OUT R139 5V_AMP To RCA 220K LINE_OUT_R RCA_R_OUT 0R/0603 R170 C147 C120 C210 C201 R171 10uF/10V/0805 0.1uF 6.8pF 1000pF UVP>1.15V From AudioDAC 5V_AMP R132 SGM8905 1.2K 5.1K 2.2uF/0603 AUDIO_DR C211 CVBS_OUT AUDIO_DR -IN1 OUT1 R114 C200 PVDD 5V_AMP 100K 390pF R174 MUTE...
  • Page 14 BC67 33pF TUNER I/F 20.48MHz BC66 33pF TUN_AGC TUN_AGC TUN_SDA TUN_SDA TUN_SCL TUN_SCL B C65 B C64 B C63 B C60 VDD1.2V_Demod B C62 B C61 IF line: the shortest line,same length, 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF line width >0.5mm DEMOD I/F IR pin resistance, tolerance is less than 1.0%, Ref: Panasonic: ERJ2RKF1002 (0402)
  • Page 15 Vdd_3.3V_Tuner Vdd_1.8V_Tuner I2C Dem od to Tuner BC23 BC26 22pF 100R 22pF TUN_SDA I2C_SDA_TUN_M BC22 B C20 B C19 TUN_SDA 16MHz R47 560pF 0.1uF 0.1uF TUN_SCL I2C_SCL_TUN_M TUN_SCL 100R C203 C202 22pF 22pF Close to tuner 4700pF 4700pF 1000pF C283 C285 C282 GND1...
  • Page 16 VDD33 R154 LED1 STANDBY POWER ON R165 R164 120R R166 10K F_STANDBY F_STANDBY 2N3904 VDD33 R112 10R/R0603 R117 U12 IRM-3638T TC14 10uF/10V IRRX R116 IRRX C232 330pF Decoding Board Schematic Diagram (6)
  • Page 17 STD12V(12mA) MOSFET Scart control CORE POWER SD43-4R7MC 4.7uH/1.7A VDDCORE SI2323 STD5V(30mA) MOSFET Audio amp circuit BC74 22pF 12V(800mA) BC71 0.1uF 150K 1% 100uF/10V 10uF/10V/0805(Ceramic) STD5V(50mA) 10uF/10V/0805(Ceramic) 0.1uF HDMI APS2408ES5-ADJ BC70 5V(1500mA) SY6288AAAC DC-DC 220K 1% one way USB_VDD5(500mA) 47nF SY8133 0.6A protect Power...
  • Page 18 PD10 PD11 ! IN4007 IN4007 ! PD12 PD13 100K/1W PC25 PR17 IN4007 IN4007 10uF/400V PC20 2.2nF/630V_tery lene PD17 NC(FR104) P12V ! PD15 PC16 FR107 NC(47uF/25V) NC(0.1uF) T1AL250V ! ! 1N5822 PD18 PC15 C135 10uH/1.5A 1000uF/10V 1000uF/10V 0.1uF PC14 KB1341-17855 0.1uF PIC6 PN8106 PR16...
  • Page 19: Appendix 2 Silkscreen Of Pcb

    Appendix 2 Silkscreen of PCB Silkscreen of Decoding Board Top PCB Diagram of Decoding Board Top Silkscreen of Decoding Board Bottom PCB Diagram of Control Board Bottom...
  • Page 20 Silkscreen of Decoding Board Top...
  • Page 21 of Decoding Board Top PCB Diagram...
  • Page 22 Silkscreen of Decoding Board Bottom...
  • Page 23 PCB Diagram of Decoding Board Bottom...
  • Page 24: Appendix 3 Component List

    Appendix 3 Component List Component List of Decoding Board...
  • Page 25 Component List Component List of Decoding Board (1) Material No. Name Specification Position 4208-1710-000H Decoding Board ST7.820.1388,102×93×1.2mm, 94V0 double-sided fiber board, ROHS 3260-1000-1400 ST7.061.0069,14.3×14×6mm Upside of U1 Heat Sink Aluminium 3020-1000-0004 SMD Resistor 0Ω±5%,1/16w,0402 L3,L4,PR15,R39,R44,R47, R48,R160,R135 3020-1330-0007 SMD Resistor 33Ω±5%,1/16w,0402 R10,R15,R17,R29,R30, R31,R162,R163, R170,R251 3020-1470-0002...
  • Page 26 Component List Component List of Decoding Board (2) Material No. Name Specification Position 3020-6100-0200 SMD Resistor 1KΩ±1%,1/10w,0402 R22,R24 3020-1331-0000 SMD Resistor 300Ω±5%,1/10w,0603 PR25 3020-6015-0000 SMD Resistor 1.5Ω±1%,1/8w,0805, R188 3020-1000-0001 SMD Resistor 0Ω±5%,1/8w,0603 PR14,R80 3020-1100-0005 SMD Resistor 10Ω±5%,1/10w,0603 R112 3020-1220-0001 SMD Resistor 22Ω±5%,1/10w,0603 PR16 3020-3470-0002...
  • Page 27 Component List Component List of Decoding Board (3) Material No. Name Specification Position 3040-2106-0011 Electrolytic Capacitor 10uF+80-20%,50V,Φ5×11mm TC10 3040-2106-0010 Electrolytic Capacitor 10uF+80-20%,16V,Φ5×11mm TC13,TC14 3040-2476-0002 Electrolytic Capacitor TC5,TC11 47UF±20%,16V,Φ5×11mm, 3040-2107-0010 Electrolytic Capacitor 100uF±20%,16V,Φ5×11mm TC2,TC6,C2,C4,TC3 3040-2337-0017 Electrolytic Capacitor 330uF±20%,10V,Φ6.3×11mm 3040-2227-0038 Electrolytic Capacitor 220uF+80-20%,10V, 105°...
  • Page 28 Component List Material No. Name Specification Position 3070-1253-2003 SMD IC GD25Q32BSIG,SOP8,32M,208MIL,ROHS 3070-1890-5000 SMD IC SGM8905,MSOP-10 3070-1532-1602 NT5TU32M16DG-BE.FBGA-8 SMD IC 3070-1813-6100 PN8136,DIP-7,ROHS PIC6 3162-0104-2800 10428-01944 HDMI Socket Concentric Socket AV3-8.3-11, 3160-9383-1101 Fuse Slow type,1A,250V 3120-1102-0007 3160-5000-0000 USB Socket ZX-USBSOCKET-A 3110-2204-8600 Crystal 20.48MHz,49S,30PPM, 3110-2270-0600 Oscillator...
