Summary of Contents for Arizona Hansa Brandenberg W.29

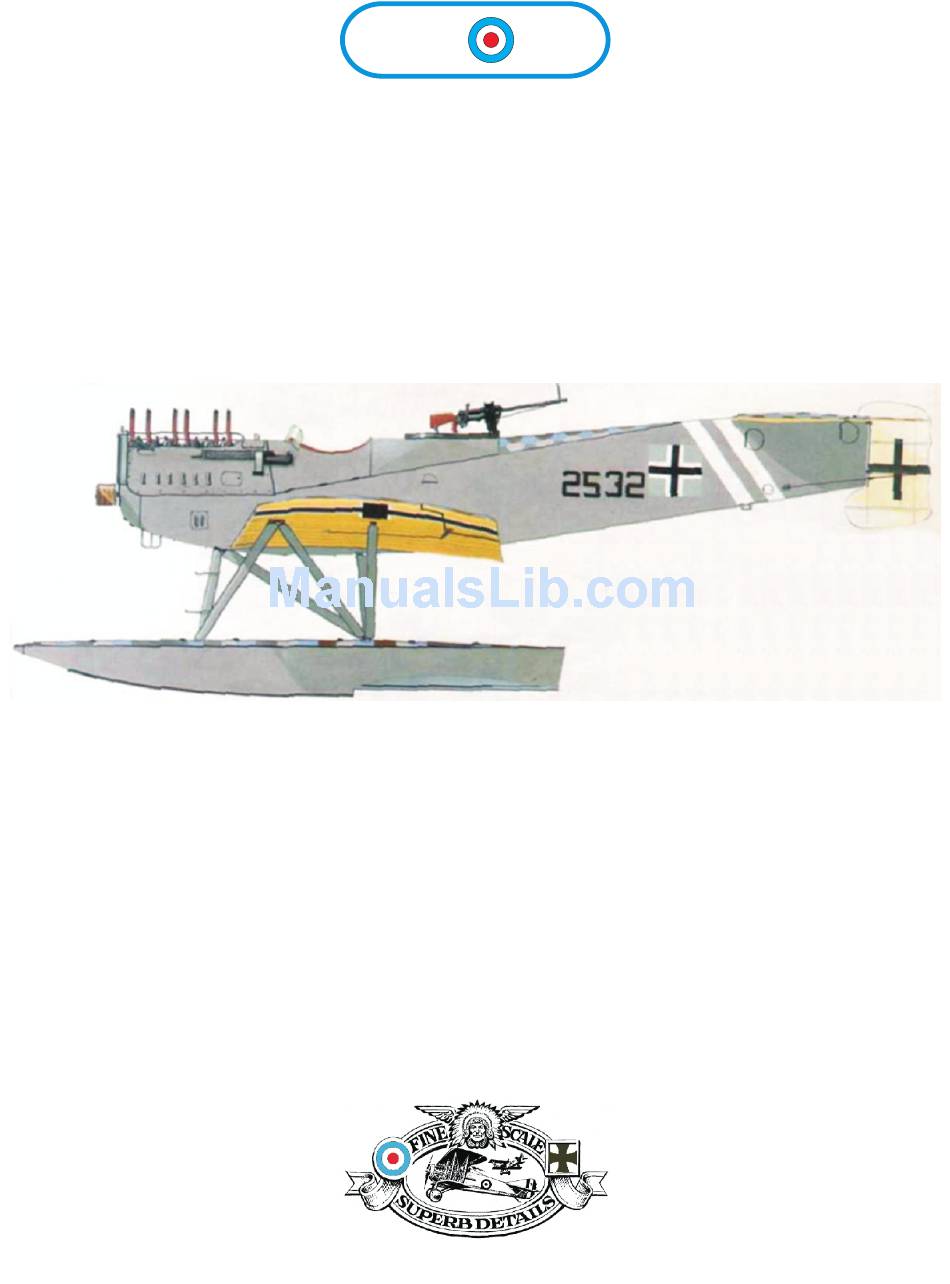

- Page 1 Model Aircrafters www.arizonamodels.com Hansa Brandenberg W.29 Assembly and Historical Information...
- Page 7 7. The seams on the wing should be covered with either pink, light purple or light blue 21 century fabric or Arizona Models Rib Tape. 8. Markings are painted on using Sig’s butyrate color dope or Krylon paint.
- Page 8 Important Note: The colors used in the printing are soluble with acetone and MEK. If you are going to use a fuel proofing or other finish check for color fastness first. If the solution you are going to use reacts with the finish try a different brand not based with acetone or MEK.
- Page 24 Fokker D.VII OE.P. ANLASS Throttle Make from wire (not supplied) OE.P. ANLASS Use music wire for throttle cable Magneto Switch Internal Detail Tips Assemble with steel or brass brads or small size D.VII Rudder Bar hardware. Use spacers between assemblies to (shown at 1/12) allow the throttle handle to freely move OE.P.
-
Page 25: Engine Controls
Fokker D.VII DRUCK OE.P. ANLASS HAND MOTOR NOTB PUMPE PUMPE TANK Magneto Engine Controls Bend pin for handle ALBATROSS FLUGEWERKS HAND MOTOR TANK PUMPE PUMPE Paint Silver Paint Black NOTB DRUCK Make switch levers from scrap wood sand to shape. Refer to photographs of your prototype aircraft for arrangement. - Page 26 UMAMIN PHYLAX 105225 WILHELM MORELL 6. Rpm. H. Propeller Logo Tach Face Instrument Assembly Instrument bodies made from brass tube or Lense rolled up tube made from manila paper. Assemble with white glue only DO NOT use CA it will fog the crystal. Indicator and handle made Instrument Face from wire.
-
Page 27: Actual Size
Compass Details ( Not to scale ) Metal tube. ACTUAL SIZE 1 /4 SCALE Aluminum covered or painted acrylic. Aluminum Tube sections Face mounting plate Printed Face Clear Lense Optional Hardware (place groove to brass tube) 12 sets required or you can use the trimmed Scrap Aluminum tube heads of small nails. - Page 28 Fuel Gauge Assembly Music wire Brass or Aluminum tubes Lense Acrylic ring Face Base Plate Face Base Plate Paint Black no hole with hole Full airplane kits include part as part of the metal sets. Stand alone kits have 1/64 Patent Miesten In den...
-
Page 29: Seat Bottom
Seat Seat Bottom Fokker Configuration Shown Seat Back Leather Set Cockpit Combing Seat Harness Stitch around edge of cockpit opening. Use a split Paint clips to steel or flat black. Wire parts are fuel tube section and wrap the leather around. made from music wire or a paper clip (not Use a sharp needle, Soaking the leather first will supplied) the fastener pin and chain are... - Page 30 Typical set up for a working cockpit Shown in the illustration is the layout for an Albatross D.III Specific cockpit details for your model will vary but the basic principal works for most all early aircraft. Instrument Body Assembly Make instrument bodies from rolled strips of aluminum lithoplate or strips of manila folder paper.
- Page 34 Model Aircrafters www.arizonamodels.com Arizona Model Aircrafters is a registered trade name of Digital Design LLC 13814 N. 56th place Scottsdale, AZ 85454 602 971 5646 602 971 5644 www.ArizonaModels.com...
