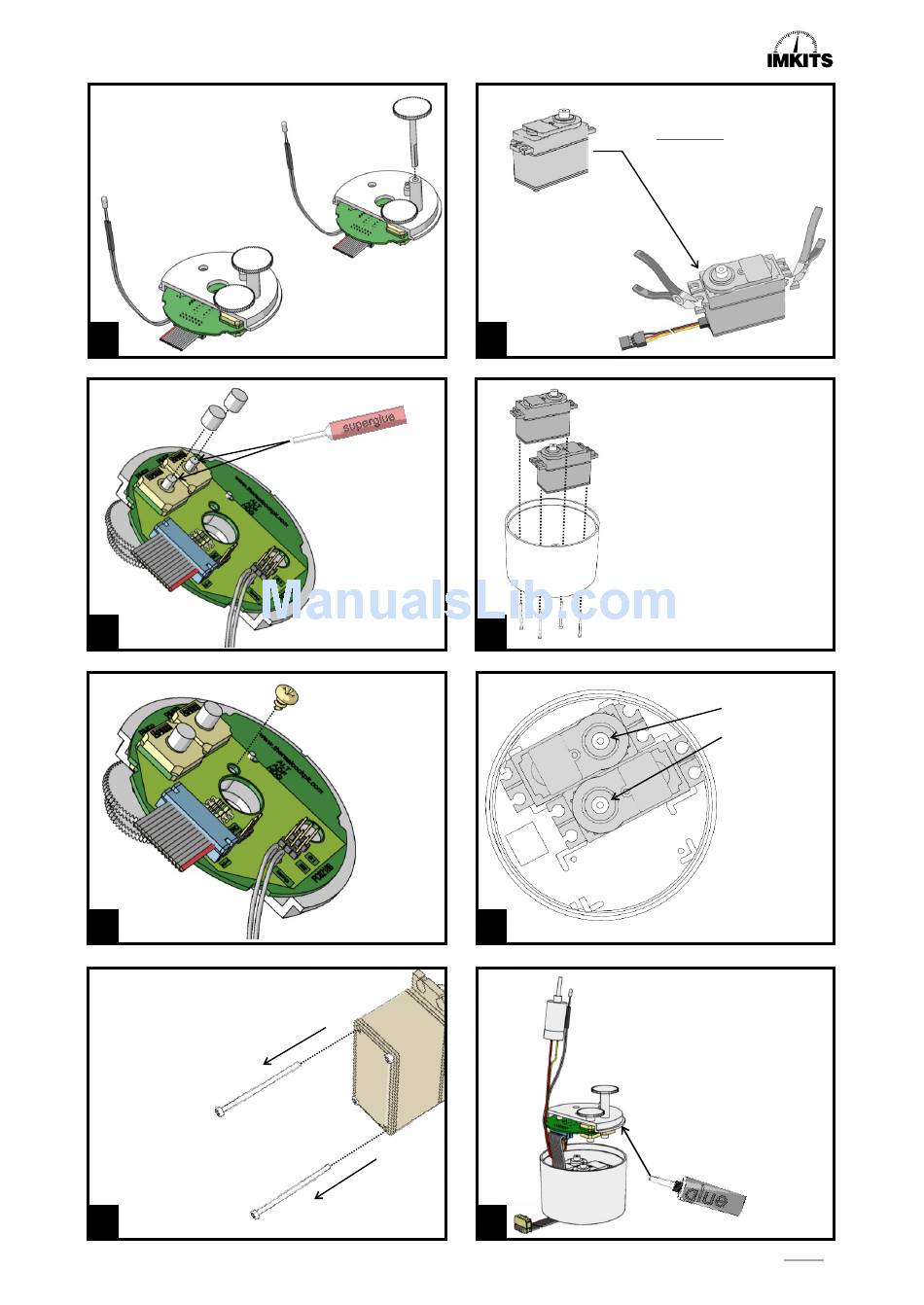

Simkits USB Altimeter Construction Manual page 5

Make sure the PIHER position
sensors are properly arranged
as indicated in drawings 20
and 21.
Once the shafts of gearwheels
P and R are in position, you can
carefully check whether they
can twist freely.
R
P
25
T
S
26
27
Unfasten two diagonally placed long screws
from each servo casing as indicated in
the illustration.
28
Altimeter Construction Manual
R
P
!!!!!
Using superglue,
cement caps S and
T onto gearwheel
shafts P and R.
TAKE NOTE: Under
no circumstances
should the PIHER
position sensorrs
come into contact
with glue!
A9
Screw the circuit
board onto the plate
using screw A9
(included).
2X
29
Place the servos into lower casing
A4 as indicated in drawings 30 and 31.
Use the screws you previously
unfastened from the servos (see
drawing 28) to lock them into position.
Take note: do not wind the screws
too tightly!
It's easy to damage the thread
30
31
Place the plate with circuit board
onto the lower casing, and guide
out the rotary encoder assembly
and the light between the casing
and the circuit board.
Mind the proper positioning of
the plate. Use the positioning
notch to find the right position.
Cement the plate to the lower
casing by applying a few
drops of glue.
32
S
SIMULATOR PARTS
Cut the ears from the
unmodified servo
as indicate din the drawing.
Normal servo.
Modified servo.
Page 5
