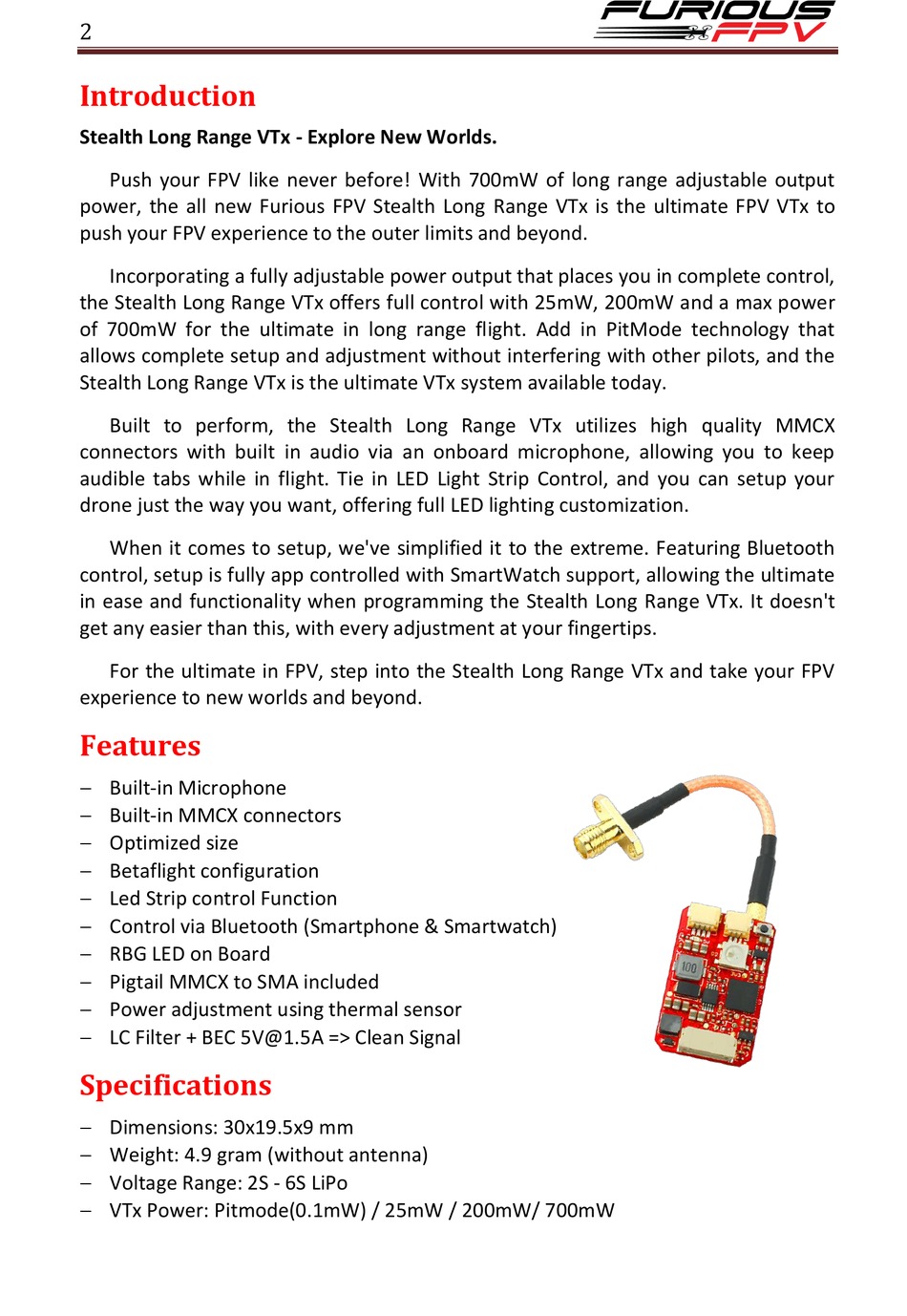

Introduction; Features; Specifications - FURIOUS VTX 700mW User Manual

2

Introduction

Stealth Long Range VTx - Explore New Worlds.
Push your FPV like never before! With 700mW of long range adjustable output
power, the all new Furious FPV Stealth Long Range VTx is the ultimate FPV VTx to
push your FPV experience to the outer limits and beyond.
Incorporating a fully adjustable power output that places you in complete control,
the Stealth Long Range VTx offers full control with 25mW, 200mW and a max power
of 700mW for the ultimate in long range flight. Add in PitMode technology that
allows complete setup and adjustment without interfering with other pilots, and the
Stealth Long Range VTx is the ultimate VTx system available today.
Built to perform, the Stealth Long Range VTx utilizes high quality MMCX
connectors with built in audio via an onboard microphone, allowing you to keep
audible tabs while in flight. Tie in LED Light Strip Control, and you can setup your
drone just the way you want, offering full LED lighting customization.
When it comes to setup, we've simplified it to the extreme. Featuring Bluetooth
control, setup is fully app controlled with SmartWatch support, allowing the ultimate
in ease and functionality when programming the Stealth Long Range VTx. It doesn't
get any easier than this, with every adjustment at your fingertips.
For the ultimate in FPV, step into the Stealth Long Range VTx and take your FPV
experience to new worlds and beyond.

Features

 Built-in Microphone
 Built-in MMCX connectors
 Optimized size
 Betaflight configuration
 Led Strip control Function
 Control via Bluetooth (Smartphone & Smartwatch)
 RBG LED on Board
 Pigtail MMCX to SMA included
 Power adjustment using thermal sensor
 LC Filter + BEC 5V@1.5A => Clean Signal

Specifications

 Dimensions: 30x19.5x9 mm
 Weight: 4.9 gram (without antenna)
 Voltage Range: 2S - 6S LiPo
 VTx Power: Pitmode(0.1mW) / 25mW / 200mW/ 700mW
