Summary of Contents for Stanley EA08

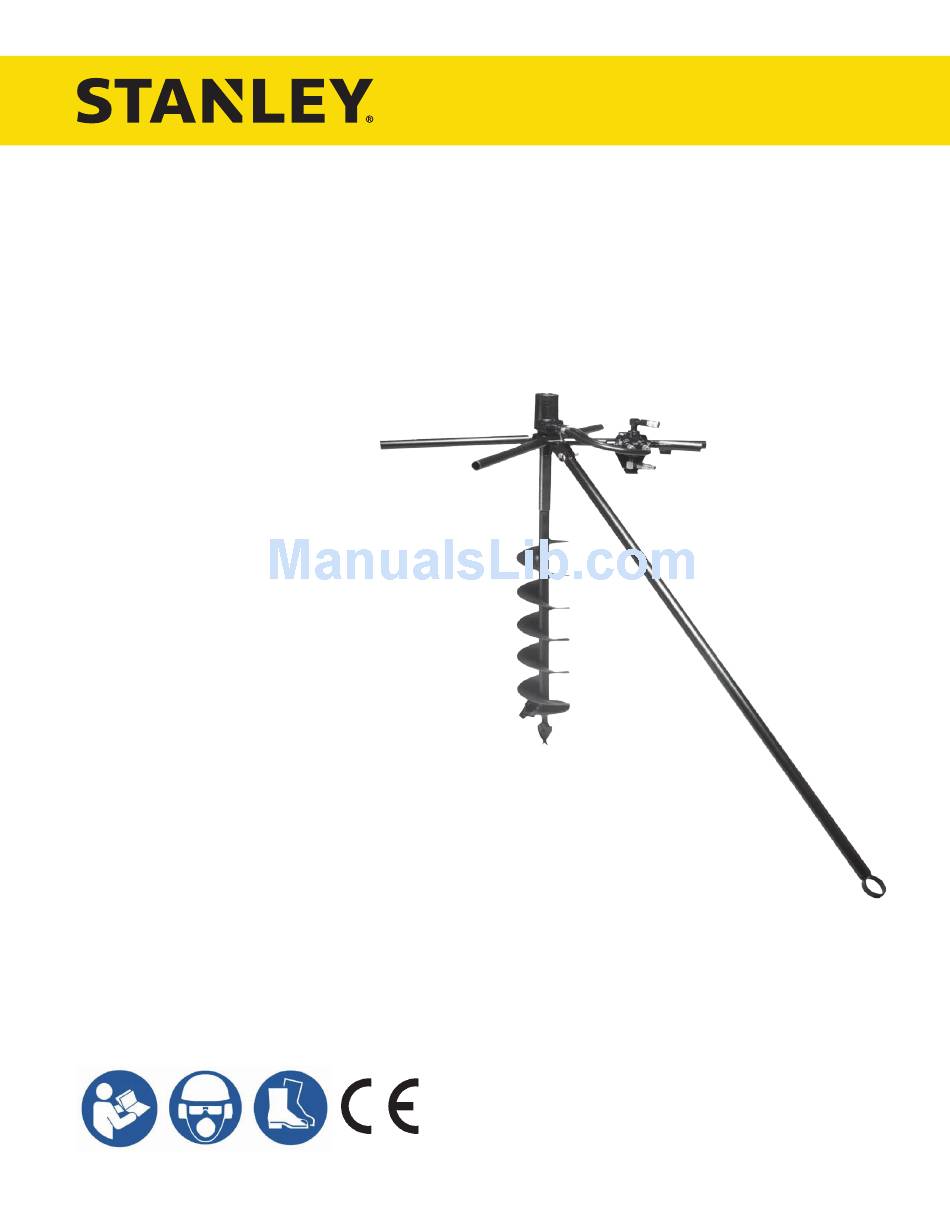

- Page 1 EA08 HYDRAULIC EARTH AUGER USER MANUAL Safety, Operation and Maintenance © 2014 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 43668 1/2018 Ver. 7...
-
Page 2: Declaration Of Conformity
Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a Stanley Hydraulic Tools, Milwaukie, Oregon USA... -
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. EA08 User Manual ◄ 3... -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► EA08 User Manual... -
Page 5: Safety Precautions
• Supply hoses must have a minimum working The EA08 Hydraulic Earth Auger will provide safe and pressure rating of 2500 psi/175 bar. dependable service if operated in accordance with the •... -
Page 6: Tool Stickers & Tags
OPERATION MANUAL. OPERATION MANUAL. TAG TO BE REMOVED ONLY BY TAG TO BE REMOVED ONLY BY TOOL OPERATOR. TOOL OPERATOR. SEE OTHER SIDE SEE OTHER SIDE SAFETY TAG P/N 15875 (Shown smaller then actual size) 6 ► EA08 User Manual... -
Page 7: Hose Types
This hose is not certifi ed non-conductive and must never be used near electrical conductors. HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► EA08 User Manual... -
Page 9: Htma / Ehtma Requirements
2000 psi 2000 psi (At the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) NOTE: These are general hydraulic system requirements. See tool specifi cation page for tool specifi c requirements. EA08 User Manual ◄ 9... -
Page 10: Operation
1. Check that the trigger operates smoothly and is free to travel between the ON–OFF–ON positions. INSTALL AUGER BIT The EA08 Earth Auger accepts a standard 1-3/8 inch female hex socket. 1. Align the hole on the auger chuck with the hole in Figure 3. -
Page 11: Operating Procedures
Your helper positions himself/herself directly opposite and facing you and grasping each handle firmly. 4. Lift the EA08, with auger attached, and position the auger so it is perpendicular to where you intend to dig. The auger should be just above (not touching) the ground. -
Page 12: Troubleshooting
Provide cooler to maintain proper fluid temperature. Earth auger operates slow. Low oil flow from power unit. Check power source for proper flow. High back-pressure. Check hydraulic system for excessive back pressure and correct as required. 12 ► EA08 User Manual... -
Page 13: Specifications
4 in. Center Screw Bit ............................47432 13/16 × 1-3/8 in. Hex Coupler for use with 47406 Auger ...................58585 1-1/8 × 1-3/8 in. Hex Coupler for use with 47407 Auger..................58586 Coupler, 1-1/4 inch Hex Assy..........................65477 EA08 User Manual ◄ 13... -
Page 14: Ea08 Parts Illustration
EA08 PARTS ILLUSTRATION 14 ► EA08 User Manual... -
Page 15: Ea08 Parts List
HOSE, LONG 39282 HOSE, SHORT 10351 ADAPTER 39278 VALVE, BRAND A0755-T-4-J-S 37923 TORQUE TUBE ASSY 23139 NAME TAG 21181 39424 WARNING DECAL 44908 CLEVIS PIN 44909 HAIRPIN COTTER 66409 SOUND POWER LEVEL DECAL (NOT SHOWN) EA08 User Manual ◄ 15... - Page 16 STANLEY Infrastructure 6430 SE Lake Road Portland, Oregon 97222 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
