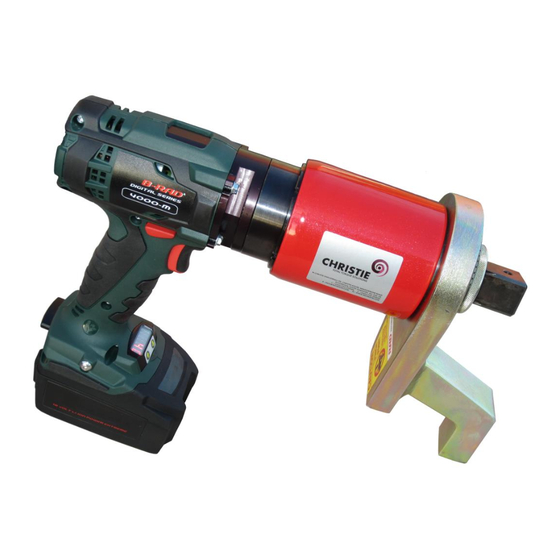

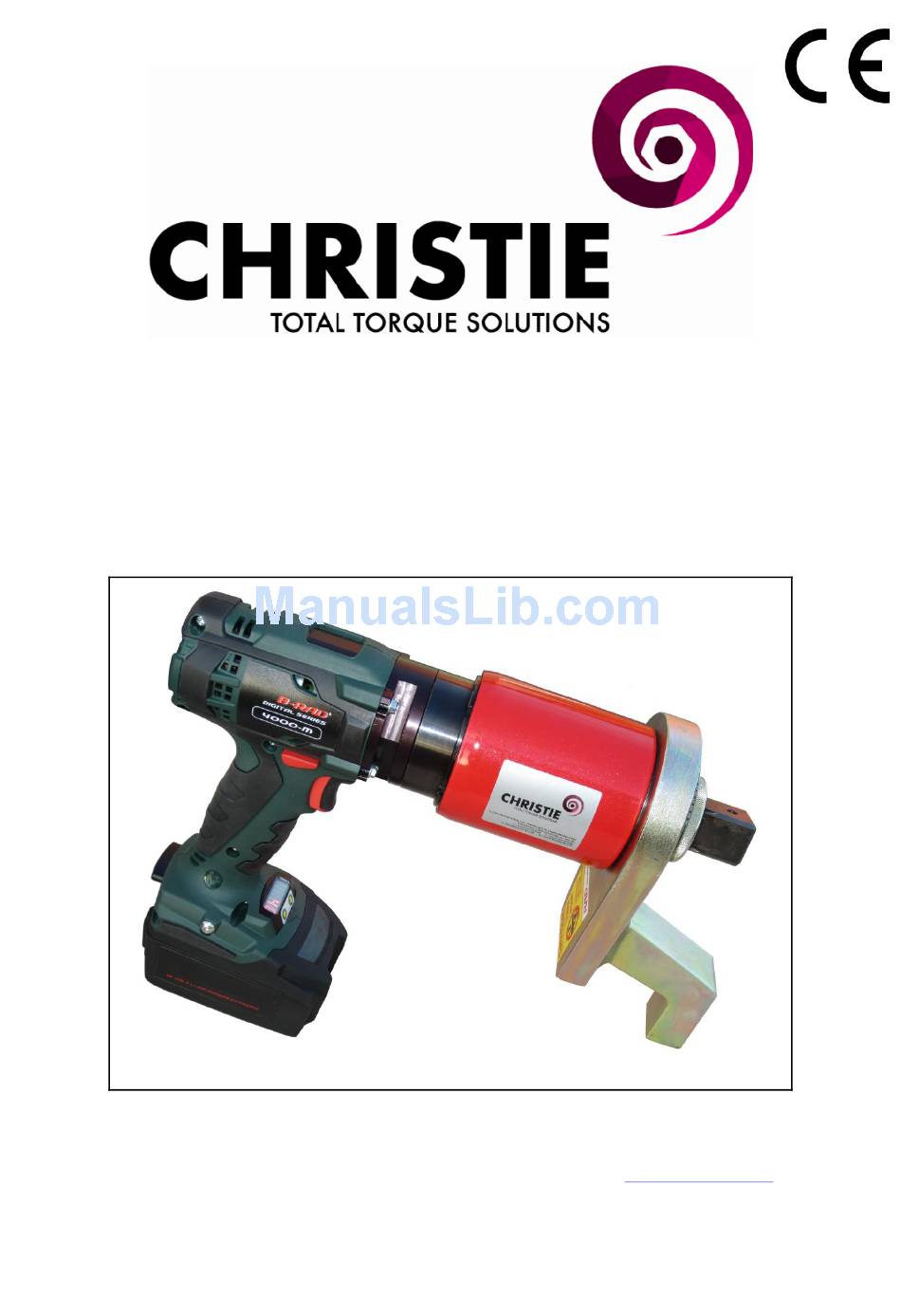

- Page 1 DIGITAL BATTERY TORQUE WRENCH (BC-RAD SELECT) USER GUIDE W.CHRISTIE (INDUSTRIAL) LTD CHRISTIE HOUSE, MEADOWBANK ROAD, ROTHERHAM, SOUTH YORKSHIRE, S61 2NF, UK T: +44(0)1709 550088 F: +44(0)1709 550030 E: INFO:WCHRISTIE.COM WWW.WCHRISTIE.COM Ref: WCOI.097 Date: March 2017 Issue: 2...
- Page 2 240V or 110V electrical battery charger (dependant on model purchased) If the intended use is other than for nuts, bolts and threaded fasteners contact W. Christie (Industrial) LTD for guidance. It is the responsibility of the user to consider associated site risks before introducing the equipment into...
-
Page 3: Important Safety Notice
BC-RAD Select Tool System fails to operate correctly, contact W. Christie (Industrial) LTD Technical Support (refer to Section 7.0 – Contact Us). The BC-RAD Select Tool System should only be used if environmental storage and operation specifications have been met. -
Page 4: Bc-Rad Select Li-Ion Battery Pack Safety
BC-RAD Select Li-Ion Battery Packs cannot be disposed of with regular waste. Return BC-RAD Select Batteries to W. Christie (Industrial) LTD. # Ensure battery is changed when the charge level reaches 2 bars. Using the tool at 2 or less bars of... -
Page 5: System Components
The following table outlines the torque ranges, in Newton-Meters, of each BC-RAD Select Tool System: Model Weight Max Speed (RPM) Torque Range (Nm) Square (Kg) Drive Single Auto 2 Minimum Maximum BC-RAD 3X Select 3/4" BC-RAD 7X Select 3/4" BC-RAD 7XA Select 57.2 3/4" BC-RAD 14X Select 1400 3/4" BC-RAD 14XA Select 19.9 1400 3/4"... -
Page 6: Tool Handle
1.2.2 – Battery Specifications Ensure that all Battery Specifications are followed when utilising the BC-RAD Select Tool System. Battery Output Voltage 18 VDC Current 30 A Charge Time 60 minutes Charger Voltage Input 115 VAC Output 12 – 18 VDC Charger Output Current 2.5 A Table 1.2.2: Battery Specifications... -
Page 7: Led Display Interface
1. Trigger Switch – tool activation. 2. Forward/Reverse Switch – controls direction of rotation. 3. LED Display and Up/Down Button Module. 4. BC-RAD Select Li-Ion Battery Pack – refer to Section 2.3 – BC-RAD Select Li-Ion Battery Pack. 5. Battery Release Button – refer to Section 2.3.1 –... -
Page 8: Bc-Rad Select Li-Ion Battery Pack
2.3 – BC-RAD Select Li-Ion Battery Pack CAUTION Only use the BC-RAD Select Li-Ion Battery Pack with the BC-RAD Select Tool System. Using third-party batteries may damage the BC-RAD Select Tool System. CAUTION Keep the BC-RAD Select Li-Ion Battery Pack away from any metal objects. If the battery terminals are connected by a metal object, the battery will short and cause damage to the battery and injury to the operator. -
Page 9: Bc-Rad Select Battery Charger
BC-RAD Select Battery and replace it correctly on the BC-RAD Select Battery Charger. If the Red Warning Light continues to flash, the BC-RAD Select Battery is defective; remove the BC-RAD Select Battery immediately. If these problems continue, contact W. Christie (Industrial) LTD. Technical Support (refer to Section 7.0 – Contact Us) -
Page 10: Torque Select Mode
The tool must be calibrated before use. If the LED Display shows anything but the normal Torque Select screen, the Unit Select screen, or the Calibration Menus, contact W. Christie (Industrial) LTD. Technical Support (refer to Section 7.0 – Contact Us). -
Page 11: Lock Mode
The set torque value will remain saved on the LED Display even if the BC-RAD Select Battery is removed. The BC-RAD Select requires a combination code to enter or exit Lock Mode. Contact W. Christie (Industrial) LTD. See Section 7.0 for contact information. -
Page 12: Reaction Arm
5.0 – GENERAL OPERATING INSTRUCTIONS WARNING Only qualified personnel with training in the safe operation of torque tooling and the BC- RAD Select Tool System should operate this tool. Refer to the Important Safety Notice for more information. The BC-RAD Select operates in Torque Cycles. The Torque Cycle passes when the Actual Torque reaches the Target Torque, and the Cycle fails if it is interrupted before the Actual Torque reaches the Target Torque. - Page 13 CAUTION Keep your hand and body parts clear of the Reaction Arm and barrel when the tool is in operation. 5.1.2 – Reaction Arm Height Ensure the height of the socket is even with the height of the Reaction Arm as seen below in Figure 5.1.2- 1.
- Page 14 INCORRECT: The foot of the Reaction Arm is too short on the left side, and too long on the right side. Figure 5.1.3-2: Incorrect Length Please contact W. Christie (Industrial) LTD for custom Reaction Arms. 5.1.4 – Reaction Points Ensure the Reaction Arm reacts off the middle of the foot as seen in Figure 5.1.4-1. Do not react off the heel of the reaction foot as seen in Figure 5.1.4-2.
-
Page 15: Torque Operation
IMPORTANT Disassembling or attempting repair will void warranty. If breakdown, malfunction, or error occurs, contact W. Christie (Industrial) LTD Support (refer to Section 7.0 – Contact Us). The LED Display may exhibit abnormal behaviour depending on operating conditions, frequency of use, or excessive wear on the Display Module. -
Page 16: E.c. Declaration Of Conformity
European Machinery Directive 2006/42/EC published on the 9 June 2006 W Christie (Industrial) Ltd, Meadowbank Road, Rotherham S61 2NF, United Kingdom. This machinery has been designed and manufactured in accordance with the following transposed harmonised European Standard:- Safety of Machinery –... - Page 17 7.0 CONTACT US...
