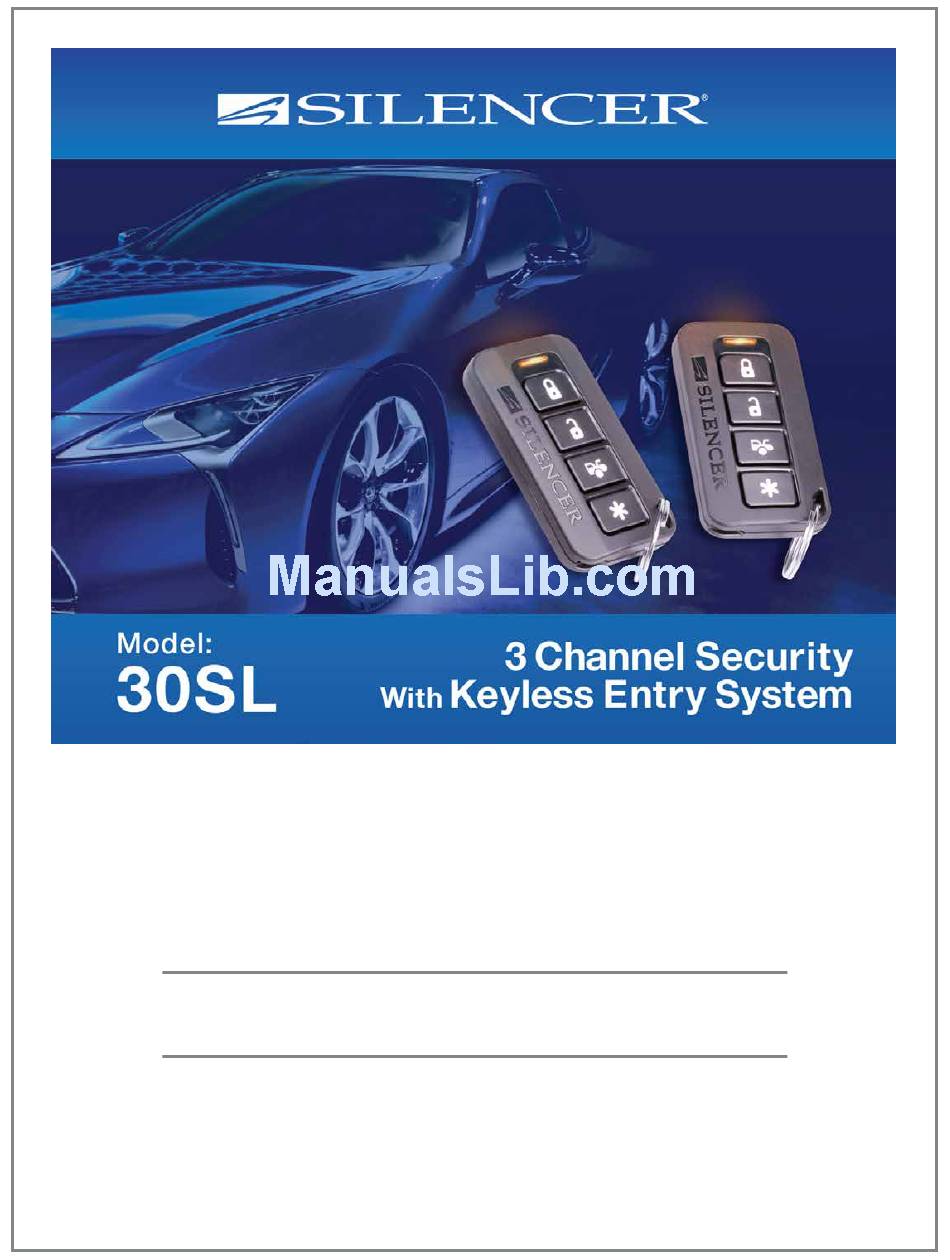

Page 1: Installation Manual
INSTALLATION MANUAL This unit is designed for professional installation only and must be installed by an authorized Silencer dealer. For Warranty information: Please visit our website at www.magnadyne.com... -
Page 2: Installation Diagram
INSTALLATION DIAGRAM IM-FULL-30SL rev A... -
Page 3: Main Power Connector
Leave at least 6mm space behind the mounting location for LED housing. Once a suitable location is chosen, drill a 6mm hole. Run the LED wires through the hole, then press the 2 pin LED housing into place. Route the LED wires to the control module. IM-FULL-30SL rev A... - Page 4 YELLOW / IGNITION INPUT (+) GREEN / (-) DOOR TRIGGER INPUT BLUE / (-) INSTANT TRIGGER INPUT ( HOOD, TRUNK) VIOLET / (+) DOOR TRIGGER INPUT BROWN/ WHITE / (-) HORN OUTPUT. WHITE: DOME LIGHT OUTPUT(OR CH#4 O/P) RELAY REQUIRED IM-FULL-30SL rev A...
- Page 5 Factory Security Rearm Signal Output –(See Alarm Feature Programming) – This output is programmable. If programmed to rearm a factory installed security system, this wire will supply a pulse whenever the remote start times out or is shut down using the transmitter and remote door locking. IM-FULL-30SL rev A...
- Page 6 “12 volts”. Cut this wire and make connections. Be sure to program door lock timer to +12V 3.5 seconds. (See Alarm Feature B – 3 Programming.) 3 Pin Plug To Compressor Alarm Blue Wire IM-FULL-30SL rev A...
-
Page 7: Transmitter Programming
Press any button on the second transmitter until the horn or optional siren responds with a confirming chirp; the second transmitter is now programmed. 3. Apply the same procedure to program 3rd and 4th transmitters. IM-FULL-30SL rev A... - Page 8 This is useful in a vehicle that has a long dome light delay after the door has been closed. If the system is armed before the dome light has turned off, the security system will generate the door trigger error chirp. Use this feature to disable the door open error chirp. IM-FULL-30SL rev A...
- Page 9 Horn Chirp Duration Horn Chirp Duration Horn Chirp Duration Horn Chirp Duration Standard 20mS 50 mS 30 mS 10 mS Exit: Turn Ignition to “ON” position, or leave it for 15 seconds. 3 long chirps will confirm exit. IM-FULL-30SL rev A...
- Page 10 One long siren chirp will indicate that the unit has locked in the adjustment. Note: If 30 seconds of inactivity expires or you turn “ON” the ignition during the above steps, the unit will exit the program mode. Three long chirps will confirm exit. IM-FULL-30SL rev A...
- Page 11 In adults, the thyroid gland helps regulate the metabolism by releasing hormones, while in children; the thyroid helps in proper development. Perchlorate is becoming a serious threat to human health and water resources. “Perchlorate Material – Special handling may apply.” For more information, go to http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ IM-FULL-30SL rev A...
- Page 12 Magnadyne Corporation 1111 W. Victoria Street Compton CA 90220 (800) 340-3200 www.magnadyne.com For Warranty information: Please visit our website at...
