Overview
M-508 is a Linux ready Single Board Computer featuring four
Serial Ports, 10/100 Mbps Ethernet, USB port and SD socket for
flash disk expansion. The pre-install Linux OS and GNU tool
chain make M-508 ready for your application development.
Features
1.
ARM920T ARM Thumb Processor with 200MIPS at
180MHz, Memory Management Unit
2.
16-KByte Data Cache and 16-KByte Instruction Cache
3.
64MB SDRAM, 32MB Flash on board
4.
512KB non-volatile FRAM (M-508T only)
5.
One 10/100 Mbps Ethernet
6.
Two USB 2.0 full speed (12 Mbps) Host Ports
7.
Multimedia Card Interface for SD memory card
8.
Four RS-232/485 ports software selectable
9.
Port 4 also supports RS-422
10.
32 General Purpose DIO
11.
+5VDC power input
12.
Pre-installed Standard Linux 2.6.14 OS
13.
GNU tool chain available in Artila CD
Packing List
M-508 is shipped with following items
1.
M-508
2.
CB-F10M9-20 10-pin header to DB9 male cable x4
3.
Artila CD includes Tool Chain, Installation guide and
example programs
Optional Accessory
1.
CB-F9F9-150: DB9 Female serial console Cable

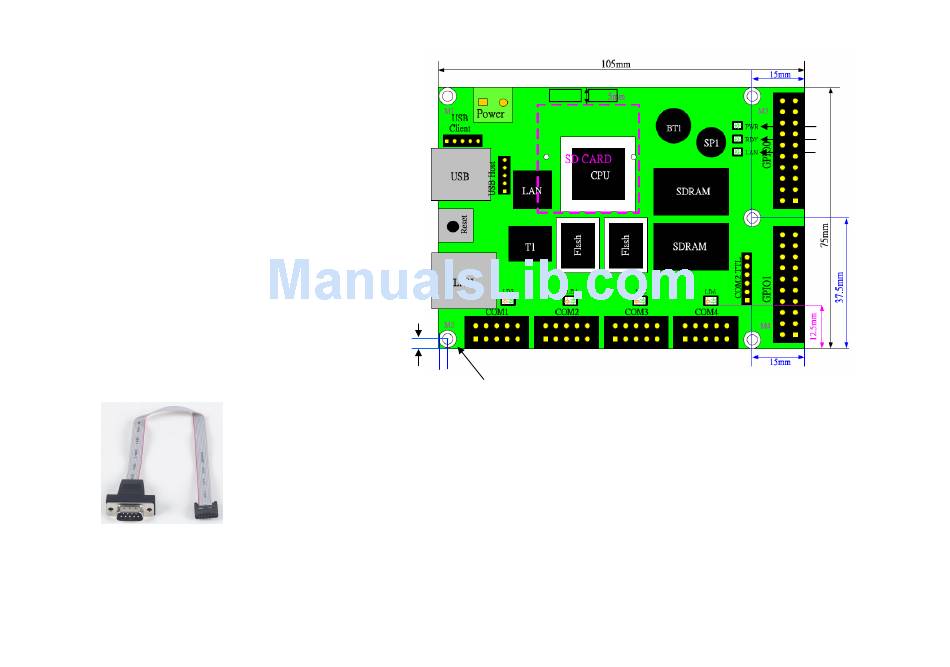

M-508 Quick Installation Guide
3.0 mm
3.0 mm
Screw: Φ 3 mm
M-508 Layout
JTAG
CN1
Power LED
Ready LED
LAN LED
Advertisement
Table of Contents
Related Manuals for Artila M-508
Summary of Contents for Artila M-508
- Page 1 M-508 Quick Installation Guide Overview M-508 Layout M-508 is a Linux ready Single Board Computer featuring four serial ports, 10/100 Mbps Ethernet, USB port and SD socket for flash disk expansion. The pre-install Linux OS and GNU tool chain make M-508 ready for your application development.
- Page 2 After Power ON, M-508 will decompress the kernel and root file system to RAMDISK. Once system is boot up, the Ready LED will show solid green. The Ready LED will be turned off after M-508 received “halt” command. Link/Act (LAN)
- Page 3 DI12 DI29 DI28 This connector allows user to design an internal Modem to work DI11 DI10 DI27 DI26 with M-508. DI25 DI24 DI23 DI22 JP2 Boot manager selection DI21 DI20 JP2 is boot selection jumper near CN1. Set to position 2-3 DI19 always.
- Page 4 USB RS-232 adaptor (fdti_sio.ko) rtc: Real Time Clock Network Settings M-508 configures the root file system as RAMDISK and the user gpio: General Purpose digital I/O disk (/disk) which includes /home and /etc directory are ttyACM0 and ttyACM1: USB Modem (CDC compliant) configured as Flash Disk.
- Page 5 If you want, you can ftp or copy the utility update—help to find the command usage software to M-508 user disk (/disk). Also you can use find the source code and use the GNU Tool Chain to make the utility by yourself.
- Page 6 To compile and link the library. Once done, use ftp command ftp 192.168.2.127 And bin command to set transfer mode to binary ftp>bin to transfer the execution file to M-508 user disk (/disk) and use chmod +x file.o Change it to execution mode and ./file.o...
- Page 7 To format disk. 3. Forgot the IP address If you forgot the M-508 IP address, you can use the Java Manager available in Artila CD to search the IP address of M-508 Or use serial console port to find out the IP address by...
