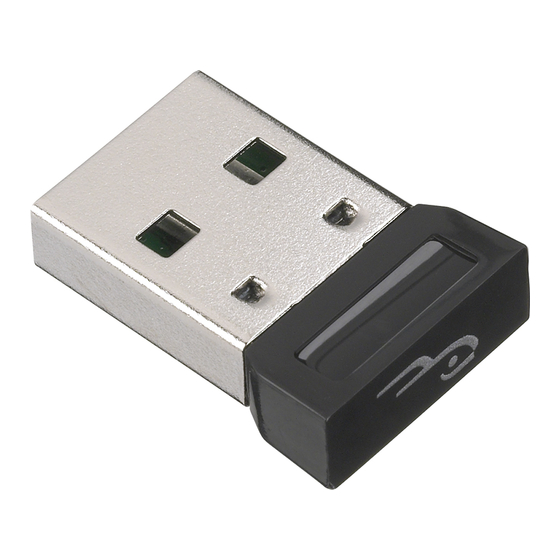

RocketFish RF-MRBTAD User Manual
Rf micro bt 2.0 edr usb
adapter
Hide thumbs
Also See for RF-MRBTAD:
- User manual (84 pages) ,
- Manual de l'utilisateur (40 pages) ,
- Quick setup manual (1 page)
Related Manuals for RocketFish RF-MRBTAD
Summary of Contents for RocketFish RF-MRBTAD
- Page 1 RF Micro BT 2.0 EDR USB Adapter Description [French] Description [Spanish] RF-MRBTAD User Guide Guide de l’utilisateur Guía del Usuario...
-
Page 2: Table Of Contents
Rocketfish RF-FLBTAD RF Micro BT 2.0 EDR USB Adapter Contents Introduction............4 Features..............5 Installing the software ........8 Connecting to a Bluetooth device....20 Uninstalling the software ......26 Troubleshooting..........30 Specifications ............. 30 Legal notices............31 One-year limited Warranty......35 Français ........xx Español........ -
Page 3: Introduction
140 pages. I deleted several screen shots. Are there others I can delete? Introduction Congratulations on your purchase of a high-quality Rocketfish product. Your RF-MRBTAD represents the state of the art in Bluetooth adapter design and is designed for reliable and trouble-free performance. -
Page 4: Features
Features • Bluetooth specification v1.2, v2.0 compliant RF-MRBTAD... - Page 5 • The adapter is compatible with the following profiles: Advanced Audio Distribution Profile Generic Access Profile (GAP) (A2DP) Audio Video Remote Control Profile Hardcopy Cable Replacement Profile (AVRCP) (HCRP) Basic Imaging Profile (BIP) Headset/Audio Gateway Profile (HSP) Basic Printing Profile (BPP) Human Interface Device Profile (HID) BNEP...
-
Page 6: Package Contents
System requirements Does this product work with Mac and Linux OS? If yes, which versions? • One available USB port (USB 2.0 or 1.1) • CD drive • Operating system: Microsoft® Windows 2000, Microsoft Windows XP, or Microsoft Windows Vista® RF-MRBTAD... -
Page 7: Installing The Software
Installing the software Windows 2000 or Windows XP software To install the Bluetooth software: 1 Insert the installation CD into your computer’s CD drive. The Welcome screen opens. Note: If the program does not start automatically, open Windows Explorer, browse to the BTW5 folder on the CD, then double-click Setup.exe. - Page 8 2 Click the language you want to use. The CD option screen opens. 3 Click Windows 2000/XP. The Welcome to the Installshield Wizard screen opens. 4 Click Next. The License Agreement screen opens. RF-MRBTAD...
- Page 9 5 Read the agreement, click I accept the terms in the license agreement, then click Next. The Destination Folder screen opens.
- Page 10 Bluetooth adapter into an available USB port on the your computer, then click OK. The wizard installs the software. The installation may take several minutes. When the installation is complete, the InstallShield Wizard Completed screen opens. RF-MRBTAD...
- Page 11 9 Click Finish. You are ready to use the Bluetooth software. Does the Initial Bluetooth Configuration screen open automatically after you click Finish? Or do you need to click an icon? Please explain.
- Page 12 10 Click the locations where you want the icon to appear, then click Next. The Bluetooth Service Selection screen opens. Note: You can access the Bluetooth features through the Bluetooth icon on the desktop or on the toolbar. RF-MRBTAD...
- Page 13 11 Make sure that each Bluetooth service that you want to use has a check mark, then click Next. The connection setup screen opens. 12 If you want to set up a Bluetooth connection, make sure that the Bluetooth device is in pairing mode, then click Next.
- Page 14 If you clicked Next, the Initial Bluetooth Configuration Wizard screen opens. 13 Click Next. When the configuration is complete, the Congratulations screen opens. 14 Click Finish. RF-MRBTAD...
- Page 15 Windows Vista software To install the Bluetooth software: 1 Insert the installation CD into your computer’s CD drive. The Welcome screen opens. Note: If the program does not start automatically, open Windows Explorer, browse to the BTW6 folder on the CD, then double-click Setup.exe.
- Page 16 2 Click the language you want to use. The CD option screen opens. 3 Click Windows Vista. The Welcome to the Installshield Wizard screen opens. 4 Click Next. The License Agreement screen opens. RF-MRBTAD...
- Page 17 5 Read the agreement, click I accept the terms in the license agreement, then click Next. The Destination Folder screen opens.
- Page 18 Or, to install the program in a different location, click Change, type the new location, then click Next. The Ready to Install the Program screen opens. 7 Click Install. When the installation is complete, the InstallShield Wizard Completed screen opens. 8 Click Finish. RF-MRBTAD...
-
Page 19: Connecting To A Bluetooth Device
Connecting to a Bluetooth device Windows 2000 or Windows XP To connect to a Bluetooth device: 1 Make sure that: • You have installed and configured the Bluetooth software. For more information, see “Windows 2000 or Windows XP software” on page 8. •... - Page 20 The Bluetooth Device Selection dialog box opens, the wizard starts searching for Bluetooth devices, and the LED on the Bluetooth adapter starts flashing. 2 When a Bluetooth device is found and a message prompts you to confirm the connection, click Click here. RF-MRBTAD...
- Page 21 Windows Vista To connect to a Bluetooth device: 1 Make sure that: • You have installed and configured the Bluetooth software. For more information, see “Windows Vista software” on page 16. • You have plugged the Bluetooth adapter in a USB port on your computer. •...
- Page 22 2 Right-click the Bluetooth icon on the toolbar, then click Show Bluetooth Devices. The Bluetooth Devices dialog box opens. RF-MRBTAD...
- Page 23 3 Click Add to search for Bluetooth devices. When a Bluetooth device is found, the Add Bluetooth Device Wizard dialog box opens. 4 If more than one Bluetooth device is found, click the device you want to connect to.
- Page 24 5 Click Next. The Completing the Add Bluetooth Device Wizard screen opens. 6 Click Finish. RF-MRBTAD...
-
Page 25: Uninstalling The Software
Uninstalling the software Windows 2000 or Windows XP To uninstall the Bluetooth software: 1 Unplug the Bluetooth adapter. 2 Click Start, then click Control Panel. The Control Panel opens. - Page 26 3 Click Add or Remove Programs. The Add or Remove Programs window opens. 4 Click WIDCOMM Bluetooth Software, then click Remove. RF-MRBTAD...
- Page 27 Windows Vista To uninstall the Bluetooth software: 1 Unplug the Bluetooth adapter. 2 Click Start, then click Control Panel. The Control Panel opens.
- Page 28 3 Under Programs, click Uninstall a program. The Program and Features window opens. 4 Click WIDCOMM Bluetooth Software 6.0.1.4400. 5 When a message asks you if you want to uninstall the software, click Yes. RF-MRBTAD...
-
Page 29: Troubleshooting
Troubleshooting If you experience problems connecting a Bluetooth device: 1 Double-click My Bluetooth Places on the Windows desktop or click the Bluetooth icon on the toolbar. The My Bluetooth Places window opens. 2 Click Help in the menu bar at the top of the window, then click Bluetooth Help Topics. -
Page 30: Legal Notices
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or RF-MRBTAD... - Page 31 television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver.
- Page 32 Canadian ICES-003. RSS 310 statement To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. RF-MRBTAD...
-
Page 34: One-Year Limited Warranty
IC Statement...
