Summary of Contents for Unical EASYr

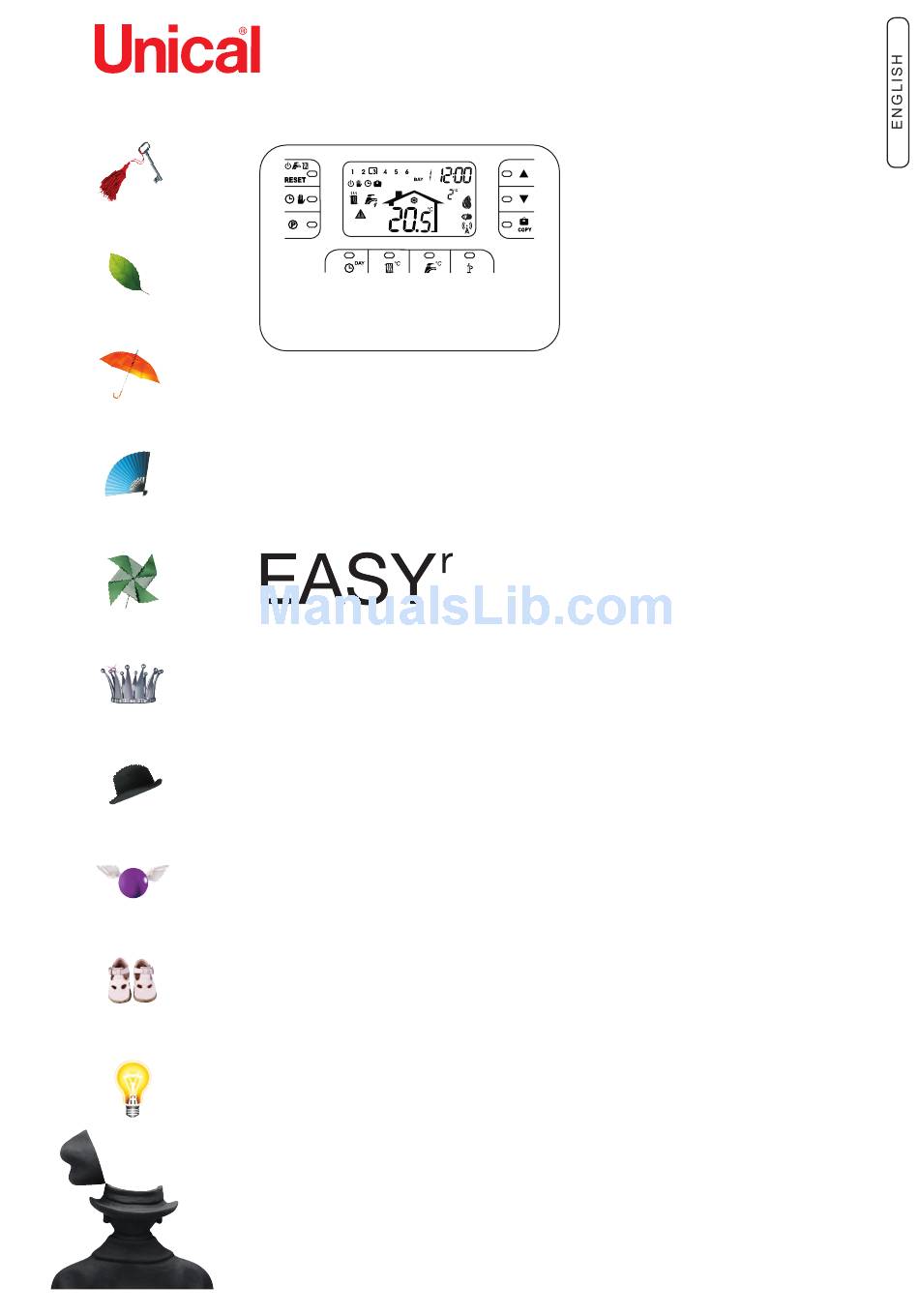

- Page 1 REMOTE CONTROL / ROOM THERMOSTAT Wireless INSTALLATION SERVICING AND USER MANUAL...
-
Page 2: Table Of Contents
DANGER! ATTENTION! Serious danger Possible dangerous NOTE! to safety situation for the product Tips and health and the environment for the user Attention: The manufacturer will not be held liable in case of damage to persons, animals or objects resulting from failure to comply with the instructions contained in the manuals supplied with the boiler. -
Page 3: Genera Features

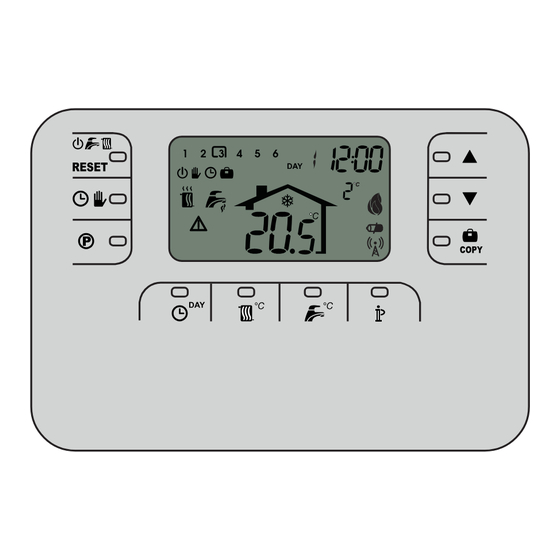

General Features TECHNICAL CHARACTERISTICS AND DEFAULT SETTINGS Time setting 12:00 EASYr is a remote control with the chronotermostat Day setting Day 1 = Monday functions integrates (it allows to obtain and display information such as temperature, operating states, Operation mode... - Page 4 Button and symbol description EASY r OFF, summer-winter mode/reset faults selection button Automatic/manual heating programs button Heating - DHW programming button Time and day setting button Heating temperature adjustment button DHW temperature adjustment button User information/settings button Holiday function button/copy heating - DHW programme day Manual room temperature decrease button Manual room temperature increase button...
-
Page 5: Application
Application Bridge can be hidden inside the boiler. Connect the Bridge to the TA1 / OT ter- minals of the boiler after removing the jumper from TA2. -
Page 6: Installation
Disconnect the power supply from the boiler Wiring (EASY r and Bridge) EASYr (A) Warning: EASY r does NOT need to be wired. if is the replacing of another Chrono, insulate the conductors and bring them back into the wall. -
Page 7: Easy User Guide
Remove the front cover by prising with a lf the problems remain, see: screwdriver at points EASYr - BRIDGE ASSOClATION. b. Insert two 1,5V AA LR6 batteries, making sureto fit them in the right direction. c. Refit front panel of EASY r . - Page 8 Test Follow the instruction given below to activate test procedure 1. Press the middle button of the Bridge The heating demand is activated for 30 seconds with maximum set. The left LED lights up for 2 seconds to indicate that there is communication.
- Page 9 Setting automatic weekly programme The heating programme provides for 6 daily time bands for temperature levels, numbered from 1 to 6. The time bands can be set between 00:00 and 24:00 in 10 minute increments. Each temperature level can be set between 7°C and 32.5°C in 0.1°C increments. Therefore any combination of time and temperature during the day can be programmed, and different for each day of the week.
- Page 10 Holiday Function The Holiday Function is used to switch off heating (also domestic hot water production for boilers with a storage tank) for a given period of time, from 1 hour to 45 days, adjustable in 1 hour increments. This makes it possible to save energy when away from home, whereas the previously set operation mode resumes as soon as the Holiday function ends.
- Page 11 User parameter Editing Sliding Temperature - Compensation Curve By installing the external probe (optional), the control system can work with a Sliding Temperature. The external probe must be connected to the boiler card: refer to the relevant handbook for details. In this mode, the heating system temperature is adjusted according to the outside weather conditions in order to ensure high comfort and energy saving throughout the year.
- Page 12 Enable DHW programming Follow the instructions given below to enable domestic hot water programming. 1. Keep the button pressed for 3 seconds. 2. The display shows the CU parameter. 3. Press the button twice. 4. The display shows parameter P1. Set to 0 using the buttons to disable domestic hot water programming.
- Page 13 Maximum number of daily time bands The heating programme provides for 6 daily time bands for temperature levels, numbered from 1 to 6. If necessary, the time bands can be reduced to a minimum of two. 1. Keep the button pressed for 3 seconds.
- Page 14 Other function Information menu The remote control can provide the user with information on boiler status. Each press of the button allows the cyclic display of the following information: T1 - Heating circuit delivery water temperature T2 - Domestic hot water temperature T3 - Heating circuit return water temperature (boilers with sensor only) T4 - Delivery water temperature setpoint calculated by the remote control P5 - Actual burner power...
- Page 16 - export@unical-ag.com - www.unical.eu Unical declines every responsibility for the possible inaccuracies if owed to errors of transcript or press. Also reserves the right to bring those changes that it will hold necessary to it own products or profits, without jeopardizing its essential characteristics.
