XV-100 / XU-100 Portable Radio Manual
* This Service manual is subject to change according to improvement of XV-100 / XU-100 Portable
Radio without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XV-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Tekk International XV-100

Summary of Contents for Tekk International XV-100

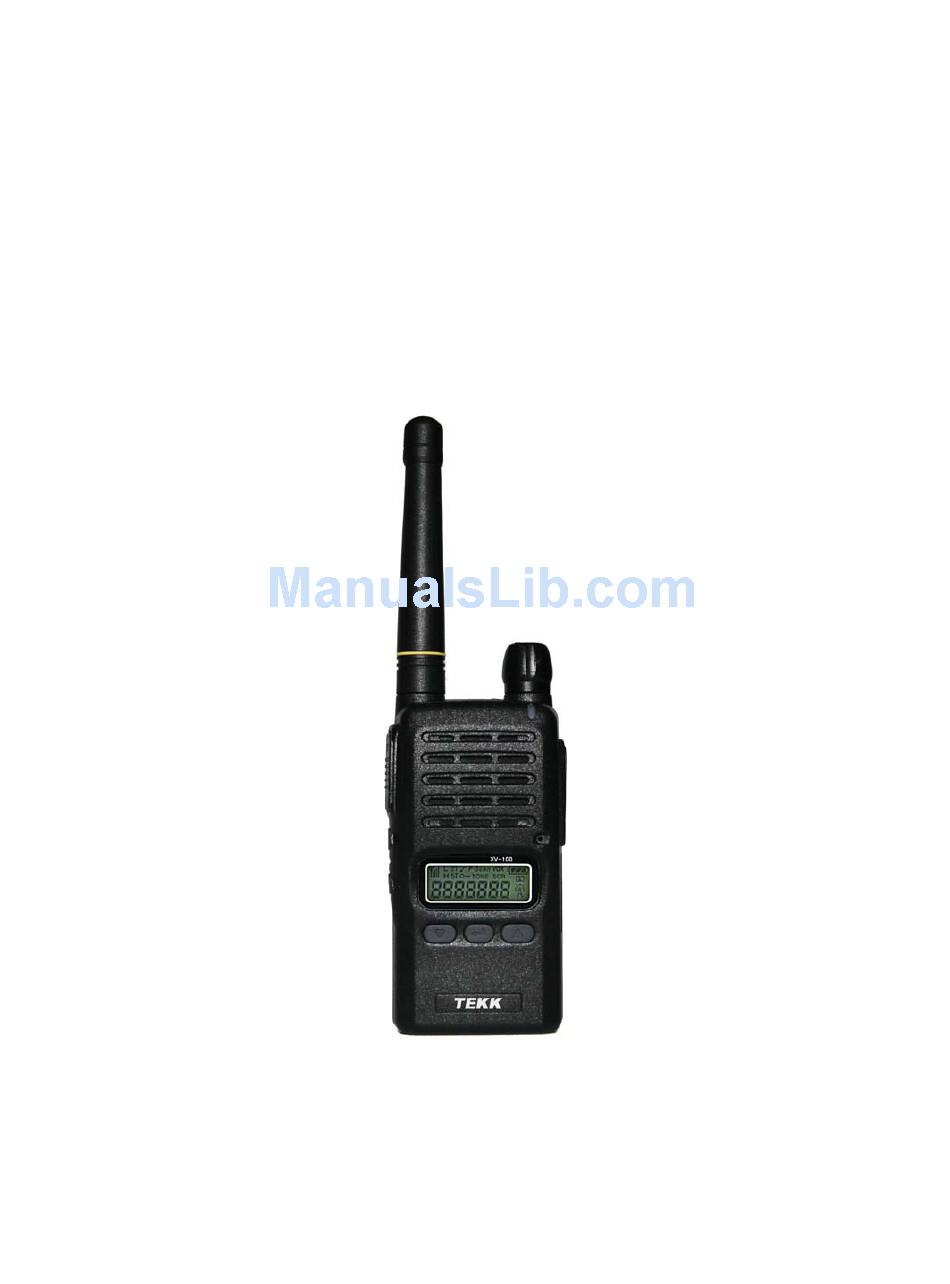

  • Page 1 XV-100 / XU-100 Portable Radio Manual * This Service manual is subject to change according to improvement of XV-100 / XU-100 Portable Radio without notice.

  • Page 2: Table Of Contents

    2. Components of XV/XU-Series Radio ------------ 6 3. Appearance of XV/XU-Series Radio ------------ 7 4. Basic Operation of XV/XU Series Radio ------------ 8 5. Operating XU/XV-100 RADIO ------------ 11 6. Operating Instructions of XV/XU Series Radio ------------ 15 7. Precautions ------------ 26 8.

  • Page 3: Xv/Xu-100 Features

    1. XV/XU-100 Features The features of XV/XU-100 are various as below. XV/XU-100 can used under tough industrial environments as well as public places. XV/XU-100 series have following functions: 128 channels and 16 groups are selectable Call guard squelch of standardized CTCSS(52) / DCS(104), Invert DCS(104) Built-in Scrambler Built-in Compander Dual Tone Modulation Frequency (DTMF)
  • Page 4 1) Numeric LCD Windows Numeric LCD Windows enable to represent any kind of expression on LCD Display. 2) Built-in Scrambler Maintaining private and secure communications is increasingly important, with potentially sensitive information flowing back and forth. The XV/XU-100 Scrambler feature provides enhanced security for your important public safety and private security communications.
  • Page 5 1.1 Part Number Breakdown The following is a breakdown of the part number used to identify this transceiver – Enhanced Or Extreme TEKK International Inc Radio Version NO V : VHF Portable Radio U : UHF Portable Radio Model History Table...

  • Page 6: Components Of Xv/Xu-Series Radio

    Components of XV/XU-Series Radio * Components could be changed by buyer request. Figure 1-1) standard components of XV/XU series Radio...

  • Page 7: Appearance Of Xv/Xu-Series Radio

    3. Appearance of XV/XU-Series Radio Figure 3-1) Appearance of XV/XU-100 Series Radio...

  • Page 8: Basic Operation Of Xv/Xu Series Radio

    Figure 3-2) XV/XU-100 Series LCD Indication 4. Basic Operation of XV/XU Series Radio Pease read this manual carefully before using XV/XU series Radio. This manual contains important information about using Radio. 4.1 Installation and Removing the Antenna To install the antenna, insert the antenna into antenna connector and screw the antenna clockwise. To remove the antenna, screw the antenna counter clockwise.
  • Page 9 When installation of the antenna, giving a strong pressure to the Radio or pulling the antenna with a strong power from the Radio can make a damage on the antenna connector, which may cause the Radio to have a critical problem. 4.2 Installation and Removing the Battery 4.2.1 Installation of the battery To install battery, slide up the battery towards the top of the radio until battery latch is locked.
  • Page 10 Installation and Removing the Belt Clip - To attach belt clip to radio, align belt clip rails with the grooves in radio and slide the belt clip onto the mounting rails until it latches into place. - To remove belt clip from radio, push up on tab of belt clip with flat bladed screwdriver and at the same time, slide the belt clip towards the top of Radio (Figure4-3).

  • Page 11: Operating Xu/Xv-100 Radio

    5. Operating XU/XV-100 RADIO 5.1 On/Off/Volume Control Turns the radio on and off and adjusts audio volume level. 5.2 PTT Button(Push-To-Talk Button) Radio transmission button. 5.3 Menu Button(P, Program Menu Button) Enter into Menu mode by pressing the Menu button (P) for 2 seconds.

  • Page 12: Charging The Battery

    5.6 Channel Buttons( ▼,▲) Channel Buttons(▼,▲) have 3 functions as shown in following. ① Channel buttons(▼,▲) are to change channels. ② Channel buttons(▼,▲) are to select menu at menu mode. ③ Channel buttons(▼,▲) are to change transmission power. By pressing Up button(▲) while PTT button is being pressed, the user can select ”H”(High Power), or by pressing Down button(▼), the user can select ”L”(Low Power).
  • Page 13 The continuous rapid discharge (for example, when making a short circuit on the ‘+’ terminal of battery by a metal substance) may make a fatal defect and the battery can be exploded. Also, it can cause a fire. 4) Using the correct battery will improve the efficiency and safety. 5.2 The Time of Charging Low battery voltage will make the radio less coverage and also make the performance worse.
  • Page 14 5.3 How to Charge 1) Plug the DC-100 charger into the electricity power outlet. 2) When charging the Radio with the battery installed, please turn off the power of the Radio and place the Radio on the charger (The charger has a slide slot.). After completion of the charging, the green LED on the charger will light.

  • Page 15: Operating Instructions Of Xv/Xu Series Radio

    6. Operating Instructions of XV/XU Series Radio 6.1 Power On/Off Turn Power switch clockwise. As soon as power is supplied, the backlight will be turned on. If the user had set up the user ID, it will be displayed on the LCD and radio will enter into the latest state as a signal sound is generated.
  • Page 16 6.4 Changing Channels Channel buttons (▼,▲) are to change channels. Press Up button (▲). Then, “beep” sound will be generated and the channel number will be increased. Or press Down button (▼) to decrease the channel. If the user presses Up or Down button while only one channel is set, the channel will not be changed and a different sound from “beep”...
  • Page 17 6.6.2 Priority Scan At the Priority Scan mode, the LCD displays ‘SCAN’ and ‘P-‘ icons. The Radio scans the channel in the sequence of P, S1, P, S2, P, S3, … at the priority scan mode. During receiving signal through the common channel, the Radio scans the priority channel periodically and if the Radio detects the Priority channel, it starts receiving the channel.
  • Page 18 converted to the general mode. By using the channel buttons (▲,▼) at the call mode, the call number of a channel which is available for the call is displayed. Figure 6-6) General Mode Figure 6-7) Call Mode 1) 1:1 Call at call mode Press the “Enter”...
  • Page 19 3) If the caller makes a call to the group of baseball players, the caller’s Radio should press the “Menu” and “▲” buttons at the same time after selecting the party with ID “1AAAA”. In this case, the Radios of the party1 and the party2 display the ID "1AAAA". In case of the group call, the party’s Radio displays the group ID number.
  • Page 20 (The Stun ID can be set up by PC Program.) If the STUN ID is saved in the Radio, the Radio can’t be used even after the power off & on of Radio. After receiving the UNSTUN ID, you can use the Radio. Figure 6-11) STUN Screen 6.11 Programming function The Programming is the function for input of the data such as Frequency/Tone/Scan...

  • Page 21: Menu Description

    ☞Caution) If the Cloning is made into the other brand’s Radio, a malfunction can happen. Figure 6-13) CLON Screen 6.13 Menu description If pressing the "P" button on the side for 2 seconds, the Radio will be in Menu mode. The Menu mode consists of 9 Menus and you can use your desired Menu after selection.
  • Page 22 6.13.2 Group change The Radio is designed to have total 512 channels and 16 Groups and the selection of each Group & Channel can be available by PC program and Menu. ① Enter into the Menu mode. ② By using the channel button(▲, ▼), choose the "Group" and press the "Enter" button. ③...
  • Page 23 ④ Comes out of the Menu mode by pressing the “P” button. 6.13.4 Scramble selection The Scramble is for protection from overhearing and the scramble reverses the voice signal from microphone to a specific frequency and a mixed voice in order for the other person not to hear your voice.
  • Page 24 4. Exit Menu mode by pressing Menu Button(P). 6.13.6 Set KEY Sound Set Key Sound menu is to decide whether to generate sound or not when the user presses four buttons . By PC Program and menu, it could be set. 1.
  • Page 25 4. Select on(y). Then, the “vox , H-Fr 05“ symbol s will appear on the LCD. Set sensitivity by pressing Channel buttons (▼,▲), and press Enter button( 5. Select “Off”. Then, the “ vox “ symbol will disappear on the LCD. 6.

  • Page 26: Precautions

    7. Precautions 7.1 When using the XP Series Radios Don’t remove the antenna from the Radio or don’t transform the antenna or don’t make any change on the antenna. The strong electronic wave to be emitted from the Radio can have an effect on the performance of the Radio and can cause the Radio to have a defect.
  • Page 27 7.2 Influences to the operations of Radio or other Equipments The Radio emits a strong electronic wave, which may have an effect on the operation of other equipments and also, can be influenced by the other devices. Please turn off the Radio before boarding on airplane. When you want to use the Radio in the airplane, please follow the rules in the airplane or the instructions by crew.

  • Page 28: Safety Notes

    8. Safety Notes Please make sure to read the followings for safe and effective use of the Radio. • Please keep the Radio away at least 1inch from the body. • If the outside surface of antenna gets stripped out, it can make a burn on the skin.
  • Page 29 FCC/IC Compliance Information This device complies with part 15 of the FCC rules. Modifications or changes not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 30: Specification

    9. Specification 9.1 XV-100 Specification General Frequency Range VHF: 140 ~ 170 MHz Frequency Stability ±2.5PPM (-30 to +60℃) Programmable Channels 128 Channels/16 Group Channel Spacing Dual Channel Spacing 12.5 KHz Dimensions 97.5mm (H)×49.5mm (W)×25.5mm (D) Weight 150g (with Battery pack & Antenna) Power Source DC +3.7V rechargeable Li-ion 1800㎃H battery pack...
  • Page 31 9.2 XU-100 Specification General Frequency Range UHF: 440 ~ 470 MHz Frequency Stability ±2.5PPM (-30 to +60℃) Programmable Channels 128 Channels/16 Group Channel Spacing Dual Channel Spacing 12.5 KHz Dimensions 97.5mm (H)×49.5mm (W)×25.5mm (D) Weight 150g (with Battery pack & Antenna) Power Source DC +3.7V rechargeable Li-ion 1800㎃H battery pack Current Drain (maximum)
