Summary of Contents for Sky Angel A-6

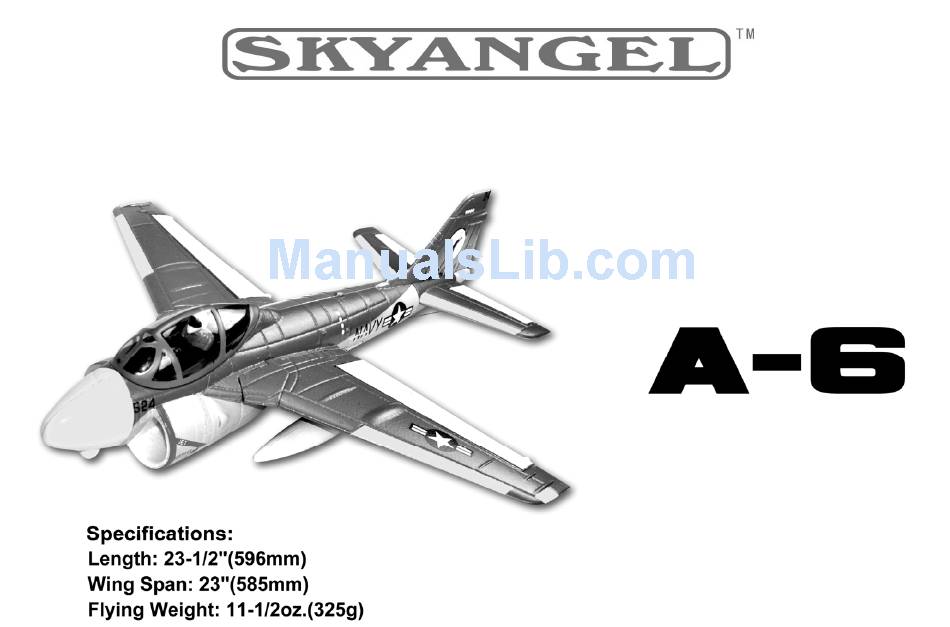

- Page 1 Assembly and Operating Manual...
- Page 2 The radio control system Glued joints, suitable adhesives Congratulations on your choice of a To fly the A-6 you will need a radio control system Foam safe epoxy is recommended and available factory-assembled model aircraft from the with at least four channels. 2.4GHz radios systems from most reputable model retail shops.
-
Page 3: Parts Illustration
Assembly and Operating Manual Fig. 1 Open the box and check all the parts. Parts Illustration Parts List Description Fuselage Wing Set – One Left (and one Right) Wing Panel Tail Set – One Horizontal Stabilizer with Elevator Tail Set - One Vertical Fin Cockpit Canopy Control rods Set Large size Missiles... - Page 4 Assembly and Operating Manual Fig. 2 - Apply glue to the slot of main wing (glue Fig. 3 - Remove any excess glue and hold the Fig. 4 - Connect the push rods to the aileron servo not included) control rods in position until the glue sets. The arm.
- Page 5 Assembly and Operating Manual Fig. 8 - Insert the servo cable to the fuselage. Fig. 9 - Apply glue to the slot of fuselage. Fig. 10 - Apply glue to the main wing, and then glue it to the fuselage. Fig.
- Page 6 Assembly and Operating Manual Fig. 14 - Apply glue to the slot of horizontal Fig. 15 - Remove any excess glue and hold in Fig. 16 - Apply glue to the horizontal stabilizer stabilizer. position until the glue sets. The photo shows the finished view.
- Page 7 Assembly and Operating Manual Fig. 20 - The photo shows the finished view of Fig. 21 - Apply glue to the vertical fin. Fig. 22 - Apply glue to the rear of horizontal connecting push rods to control horns. stabilizer.. Fig.
- Page 8 Assembly and Operating Manual Fig. 26 - Apply glue to the missile. Fig. 27 - The photo shows the finished view. Fig. 28 - Carding the cables according to the channel. Fig. 29 - Connect to the receiver and locate the Fig.
- Page 9 Assembly and Operating Manual Fig. 32 - Assemble the cover with screw. Fig. 33 - Locate the battery and canopy. Charge Fig. 34 - Photo shows battery leads connected to the battery according to the safety instructions the electronic speed controller. before installing.
- Page 10 Assembly and Operating Manual Fig. 38 - Switch the transmitter on, and move the throttle stick to the “Motor OFF” position. (Diagram MODE 1 right throttle control stick) Fig. 39 and 40 - Checking Ailerons and Elevators Check that the control surfaces respond to the appropriate movements of the transmitter sticks.
- Page 11 Assembly and Operating Manual Place the flight battery in its compartment, without connecting. Mark the Centre of Gravity (CG) on both sides of the fuselage; the position is shown in the photo. Support the model at the marked points and allow it to hang freely.
- Page 12 Switch the motor on, and launch the airplane strongly into the wind, with the fuselage and wings level. Allow the A-6 Jet to fly straight and level initially, do not try to turn it when it is close to the ground.
