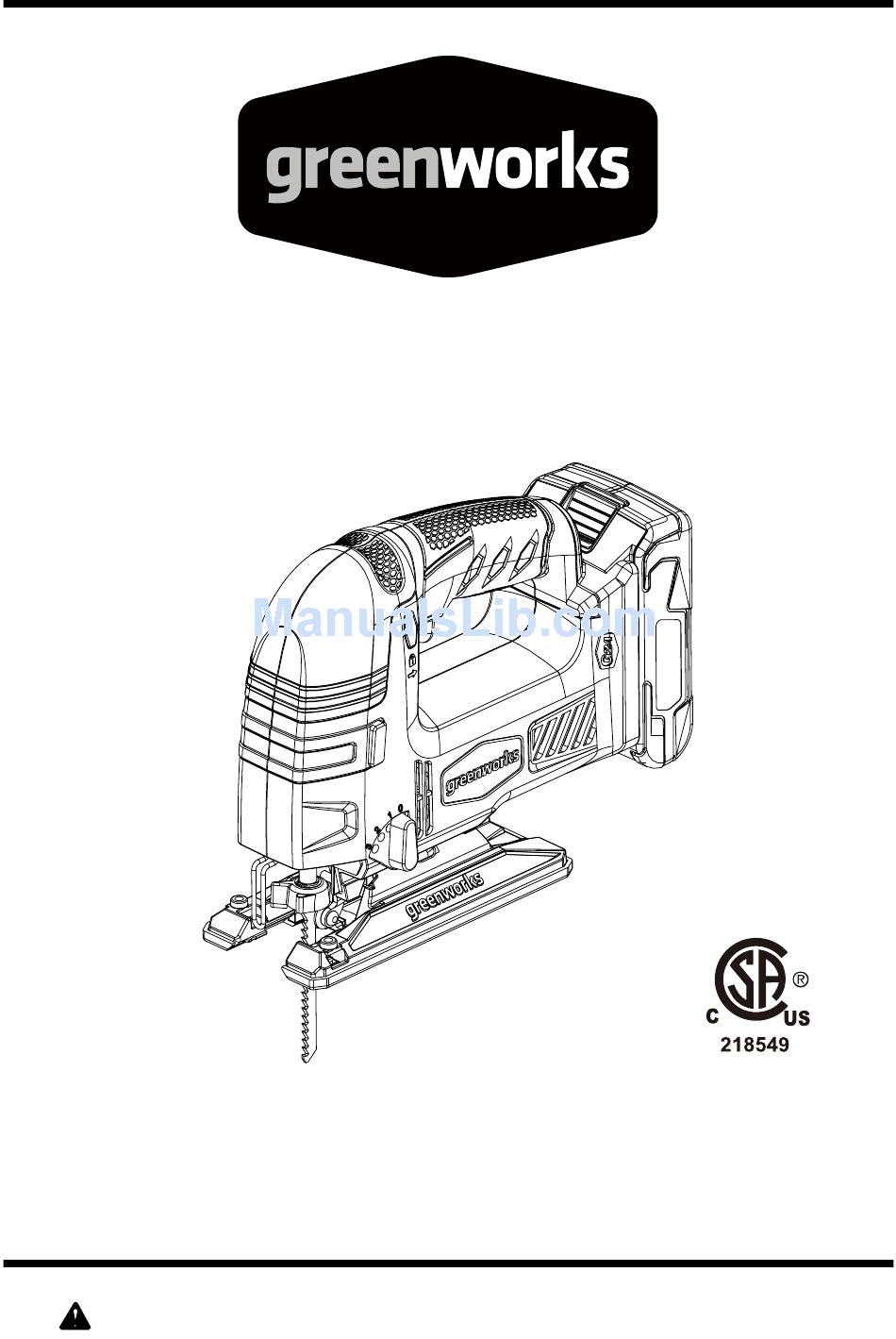

- Page 1 24V VOLT JIG SAW 36102a Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 ......................2 General safety rules ......................3-5 ......................6-8 Symbols .......................... 9-10 Know your blower .......................11 Assembly instruction ......................12-13 Operation ........................14-17 Maintenance..........................18 Environmentally safe battery disposal...................19 Warranty..........................20 Exploded View........................21 Parts List..........................22 PRODUCT SPECIFICATIONS 24V LITHIUM-ION JIG SAW Length of Stroke ...................... -
Page 3: General Safety Rules
GENERAL SAFETY RULES IMPORTANT SAFETY INSTRUCTIONS W A R N I N G READ ALL INSTRUCTIONS BEFORE USING THIS TOOL. Failure to follow all instructions listed of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 GENERAL SAfETy RULES • Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. • If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 5 GENERAL SAfETy RULES SERVICE • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. W A R N I N G To reduce the risk of injury, user must read instruction manual. •...
-
Page 6: Specific Safety Rules
SPECIFIC SAFETY RULES • Hold power tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will also make exposed metal parts of the tool “live” and shock the operator. •... - Page 7 SPECIFIC SAFETY RULES C A U T I O N To reduce the risk of electric shock or damage to the charger and battery, charge only nickel- cadmium rechargeable batteries as specifically designated on your charger. Other types of batteries may burst, causing personal injury or damage. •...
- Page 8 SPECIFIC SAFETY RULES shock or damage to the charger if metal items should fall into the opening. It also will help prevent damage to the charger during a power surge. • Risk of electric shock. Do not touch uninsulated portion of output connector or uninsulated battery terminal.
-
Page 9: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 10 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
- Page 11 KNOW YOUR JIG SAW RUBBERIZED GRIP Battery pack SWITCH LOCK release button TRIGGER SWITCH FINGER BLADE ORBIT GUARD SELECTOR LEVER FOOTPLATE GUIDE ROLLER Fig. 1 BLADE KNOW YOUR JIG SAW (See Figure 1.) The safe use of this product requires an understanding of the information on the tool and in this operator’s manual as well as a knowledge of the project you are attempting.
-
Page 12: Assembly Instruction
ASSEMBLY INSTRUCTION UNPACKING BLADE INSTALLATION AND REMOVAL INSTALLING BLADES • Remove battery pack. • Blade clamp lock located on front of saw. • Insert saw blade between blade clamp and saw bar. • Close blade clamp lock. • Replace battery pack. ANTI-SPLINTER INSERT To minimize splintering of the top surface of the material being cut, place the anti-splinter insert in the blade opening of the footplate, or the non-marring overshoe... - Page 13 ASSEMBLY INSTRUCTION PACKING LIST • Orbital Jig Saw • Hex Key • T-Shank Saw Blades (3) • Operator’s Manual W A R N I N G If any parts are damaged or missing do not operate this tool until the parts are replaced. Failure to heed this warning could result in serious personal injury.
-
Page 14: Operation
OPERATION W A R N I N G Do not allow familiarity with tools to make you careless. Remember that a careless fraction of a W A R N I N G Always wear safety goggles or safety glasses with side shields when operating tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury.. - Page 15 OPERATION BLADE ORBIT SELECTOR LEVER material being cut. The following chart will help you determine which setting to use for your application. This chart is intended as a guideline only, and test cuts in scrap material should be performed first to determine the best setting.
- Page 16 OPERATION FLUSH CUTTING To allow the saw to make a perpendicular cut close to a vertical surface, the footplate may be repositioned as follows. Loosen screw, move the footplate back in the 0° alignment slot, and securely tighten screw. Note that when the footplate is retracted in this manner, only 90° cuts are possible, and the optional cutting guide and anti-splinter insert guide may not be used.
-
Page 17: Maintenance
MAINTENANCE W A R N I N G before adjusting, inspecting, or cleaning the blower. Cleaning Remove the battery pack. 1. Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips. Do not spray, wash, or immerse the air vents in water. -
Page 18: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. W A R N I N G environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency, or the local Environmental Protection Agency for information and lithium-ion disposal. -
Page 19: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 20: Exploded View
EXPLODED VIEW... -
Page 21: Parts List
PARTS LIST ITEM NO. PART NO. DESCRIPTION 34102794 24V battery socket 369001115 369011115 Switch 34202786 Rubber pin 341021115 Anti self-lock button 333001115 Button spring 34106788 Logo 341011115 Left housing 341031115 Knob 311071115 Orbital action 332001115 Orbital shaft 34203788 Rubber ring 342001115 Rubber gasket 341061115... - Page 22 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (03-21-14) Printed in China on 100% Recycled Paper...
