Thanks for purchasing Olymbros Trail Watcher. For making best use of all the functions of
this Trail Watcher,please read this manual carefully before you use the watch and keep it as
handy reference.

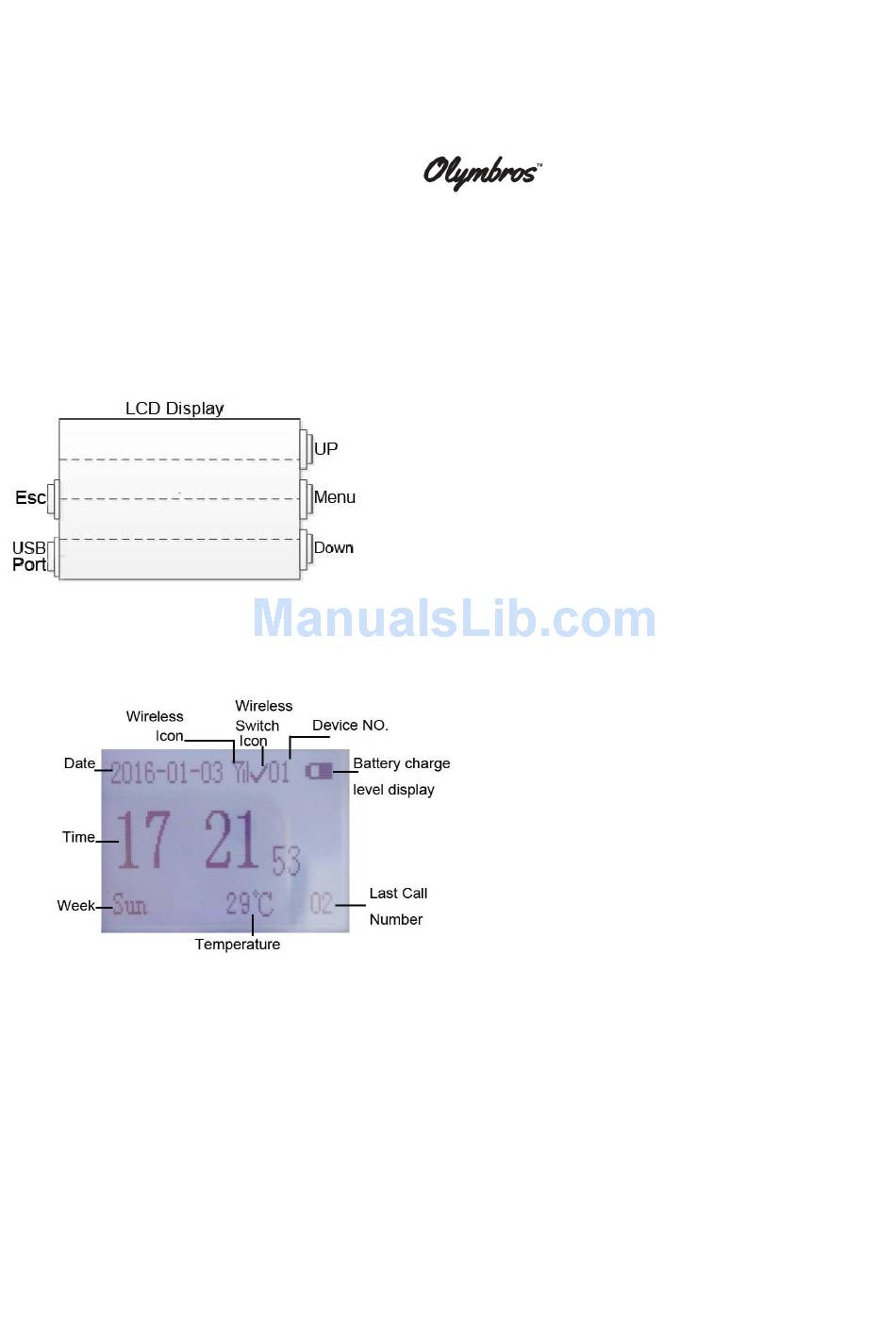

1.Operation and LCD Display Interface
2.Main Interface
1.Interface
2.Operating Instruction
2.1 Press the Menu button to open the settings menu
2.2 The other buttons are invalid.
3. Menu Interface
3.1 Menu List
1.Receive Pairing
2.QueryLog
User Manual
Model: Z3
Brand:
1
Advertisement
Related Manuals for Olymbros Z3
Summary of Contents for Olymbros Z3
- Page 1 User Manual Model: Z3 Brand: Thanks for purchasing Olymbros Trail Watcher. For making best use of all the functions of this Trail Watcher,please read this manual carefully before you use the watch and keep it as handy reference. 1.Operation and LCD Display Interface 2.Main Interface...
- Page 2 3.DevNO.Setting 4.Prompt Setting 5.Receiving Switch 6.Date and Time 8.Version Number 9.Factory Reset 3.2.Button Operation 3.2.1.Press Menu button to open the corresponding sub-menu or interface 3.2.2.Press UP and Down button to select the desired menu 3.2.3.Press ESC key to exit menu list and return to the main menu interface 4.Pairing Menu 4.1 Sub-menu setting 4.1.1 Pairing menu list...
- Page 3 Pairing Introduction: 1)The receiver receives a transmit signal after transmitter is pressed. Pairing is successful when transmitter codes show on the interface. For Example: Transmit signal is sent via transmitter 1 (Code 0a-0a-0a ) The code 0a-0a-0a will display in the area xx-xx-x when pairing is successful 2)Latest transmitter codes are saved and old codes will be deleted.
- Page 4 Menu button: Delete current zone pairing ESC button :Return to the Receive Pairing menu interface 4.4. Delete All Pairings 4.4.1 Setting Interface 4.4.2.Button Operation Return to the Receive Pairing menu interface until all pairings have been deleted. 4.5 Trace Records 4.5.1 Interface 4.5.2.Button Operation Menu button: Switch records...
- Page 5 6.2.Button Operation UP and DOWN button: Set device number among 0-99 ESC button: Save current settings and exit. Return to the main menu 7.Prompt Setting 7.1.Setting Interface 7.2.Button Operation Menu button: Select or cancel the item :Valid :Invalid UP and DOWN button : Select the current item ESC button: Save current settings and exit.
- Page 6 :Valid : Invalid ESC button: Save current settings and exit. Return to the main menu 9.Date and Time Setting 9.1.Setting Interface 9.2.Button Operation Menu button: Enter or exit setting and select the item you want to change. UP and Down button : Set date or time ESC button: Save current settings and exit.
- Page 7 11.2.Button Operation ESC button: Return to the main menu 12.Factory Reset Setting 12.1.Setting Interface 12.2.Button Operation Menu button: Restore default settings ESC button: Exit and return to the main menu 13.Prompt Interface 13.1 Setting Interface 1)Each remote control corresponds to 1 numbers. 2)Calling Index Number : Total times of remote control calling and current index number 3)Corresponding Index Number : Remote control pairing number 4)Calling times by this number: calling times by the remote control...
- Page 8 13.2.Button Operation UP and DOWN button: View records Set button: Clear current index ESC button : Exit and return to the main interface FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
