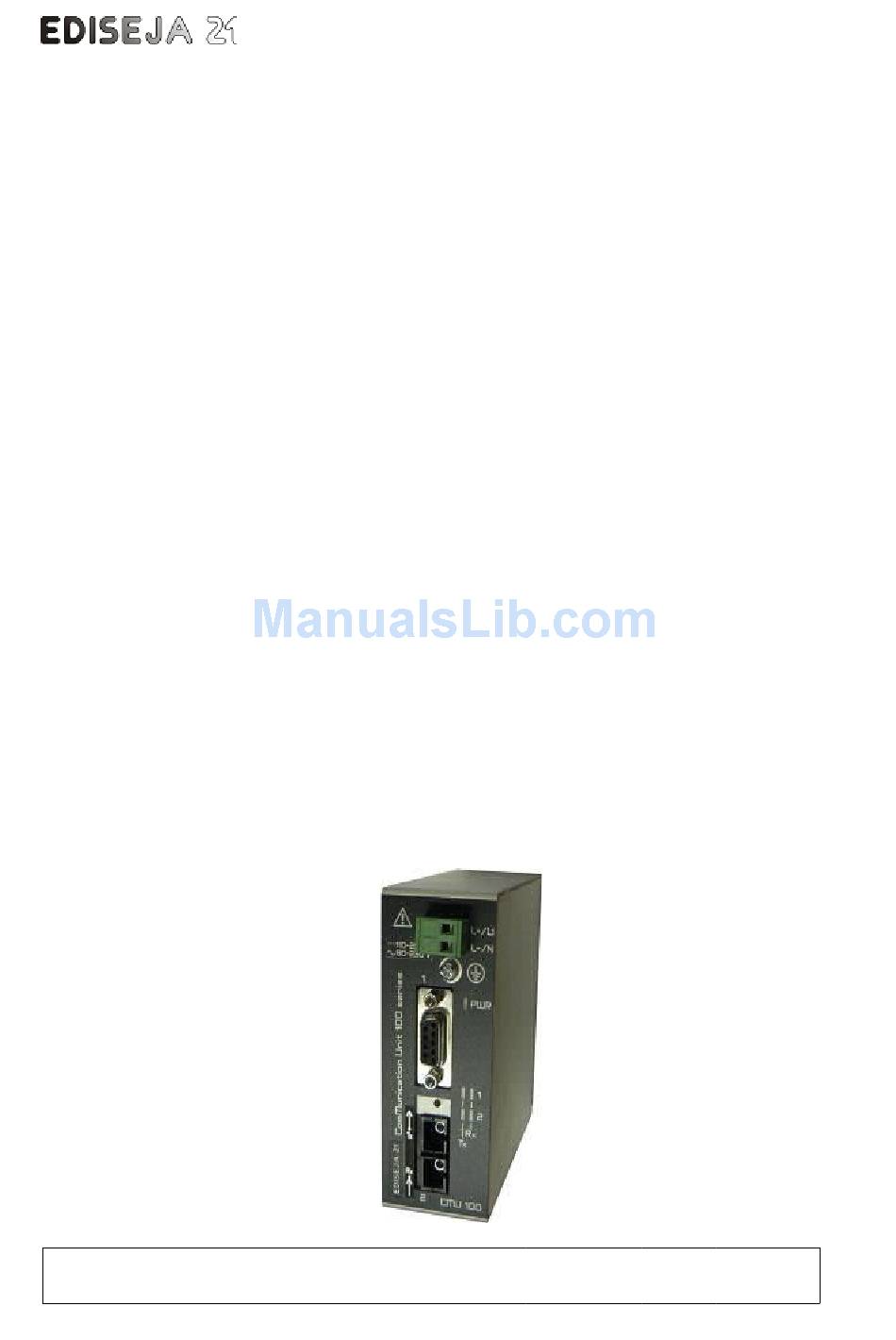

Page 1: User Manual
CMU 100 RS232 to Singlemode Fiber Optic Converter User Manual CMU 100 / 1.1.S - 0 CMU 100 / 7.1.S - 0 Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... -
Page 2: Table Of Contents
3.4.3 SINGLEMODE FIBER OPTIC INTERFACE BOARD............9 SCHEMATIC....................11 INSTALLATION....................12 5.1 INSTALLATION........................12 COMMISSIONING & MAINTENACE............14 6.1 COMMISSIONING......................14 6.2 MAINTENANCE......................... 14 TECHNICAL DATA..................15 DIMENSIONS....................17 ORDERING....................18 Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... -
Page 3: Preface
Tel: 00 386 51 643 411, 051 643 411 Email: grega.flander@ediseja21.com www.ediseja21.com Copyright Copyright © Ediseja 21, 2016. All rights reserved. Explanation of the symbols Read the instructions! Device was tested with 2,5 kV AC voltage to check the device insulation. Device ground terminal. - Page 4 If device is damaged disconnect it from power supply! Send it to the manufacturer for inspection. Warning! Connect to earth before attaching power supply! Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016...
-
Page 5: Cmu 100 System
All settings on the device can be made from outside by a DIL switch. It is not necessary to open the housing. Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... - Page 6 CMU 100 - RS232 to Singlemode Fiber Optic Converter Picture 1: CMU 100 system general diagram Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016...
-
Page 7: Rs232 To Singlemode Fiber Optic Converter
Fiber optic communication allows longer distances between devices without electromagnetic disturbances. TYPICAL APPLICATION Picture 2: Typical application Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... -
Page 8: Appearance
Description Single, nonisolated, full duplex, RS232 port with DB9 female connector. Supported Rx, Tx and GND pins. Connector pin table Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... -
Page 9: Singlemode Fiber Optic Interface Board
Radiation emitted by single mode laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation. Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... - Page 10 CMU 100 - RS232 to Singlemode Fiber Optic Converter Picture 5: Singlemode fiber optic interface board appearance Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016...
-
Page 11: Schematic
SCHEMATIC SCHEMATIC Picture 6: General diagram Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... -
Page 12: Installation
Protective earthing wire must be terminated with tinned copper ear terminal. The prescribed bending radius of the optical fibre cables must be observed. Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... - Page 13 INSTALLATION Picture 7: left. installation, right: deinstallation Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016...
-
Page 14: Commissioning & Maintenace
If single mode fiber optic interface is used, do not look into the laser beam. MAINTENANCE The device is maintenance-free. Disconnect power supply before cleaning it. Use moist cloth. Do not use liquids. Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... -
Page 15: Technical Data
-7 to 0 dBm Optical output power Reciver sensitivity -18 dBm Receiver overload -7 dBm I (IEC 60825-1) Laser class full duplex Direction Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... - Page 16 95 % (noncondensing) Humidity operating Material Enclosure Mount type standard DIN 35 rail (acc. to DIN EN 50022) Class Overvoltage category Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016...
-
Page 17: Dimensions
DIMENSIONS DIMENSIONS Picture 8: Dimensions Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... -
Page 18: Ordering
- power supply cable with „schuko“ plug, 2 m - RS232 cable to PC (state the lenght up to 15 m) - fiber optic cables (state the lenght) Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016... - Page 19 20 km, up to 2,048 Mbit/s, high voltage power FO SM FO MM FO MM CMU 100 / 2.6.6.S - 2 supply Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016...
- Page 20 Ediseja 21, razvoj elektronskih naprav, d.o.o. Drenov Gric 175 1360 Vrhnika Slovenia – EU Tel: 00 386 51 643 411, 051 643 411 grega.flander@ediseja21.com www.ediseja21.com Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 100 / 1.1.S - 0 User manual CMUMU11S V1 15.11.2016...
