Summary of Contents for EXCURSION 36007

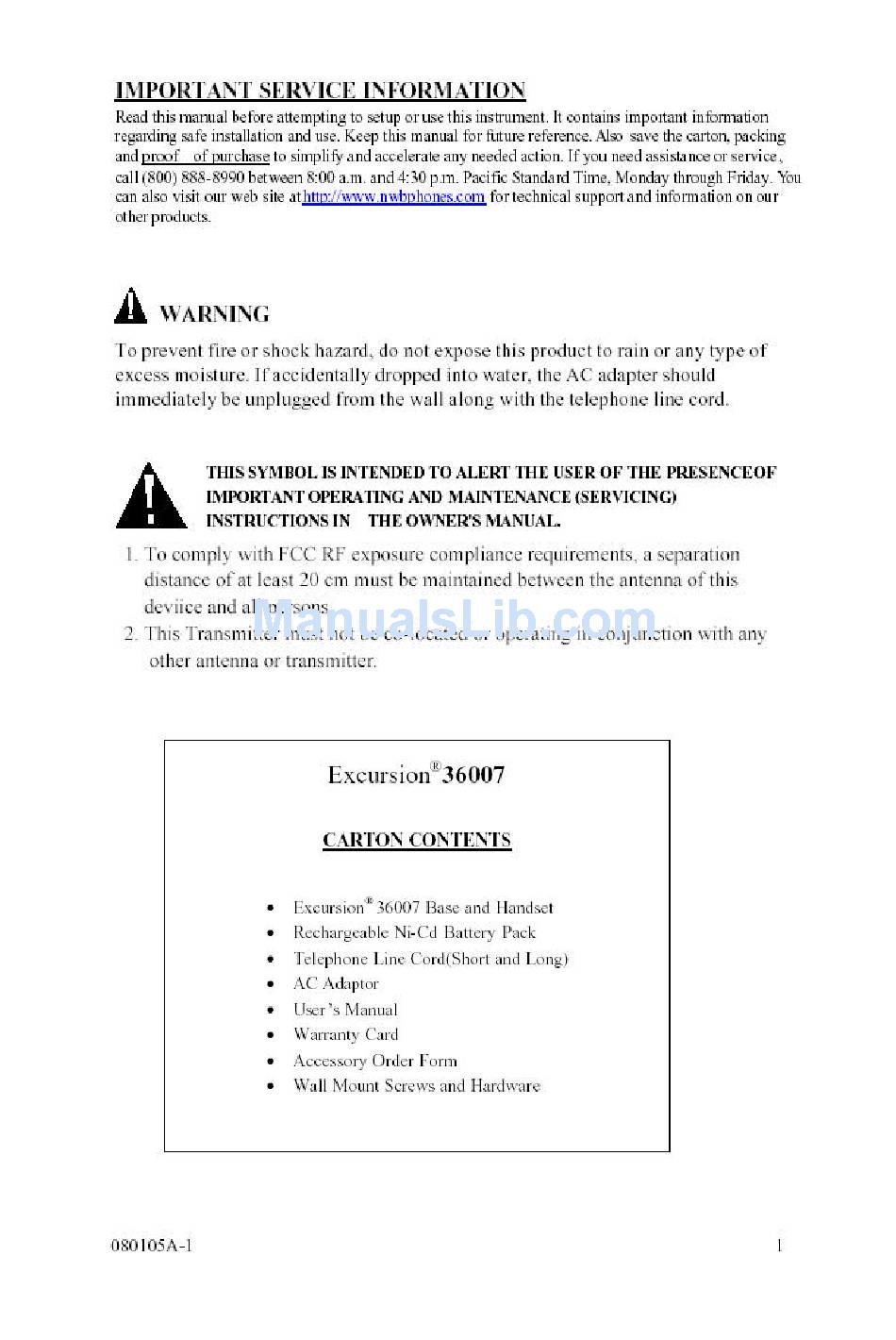

  • Page 2: Important Safety

    SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning.

  • Page 3: Fcc Notice

    INSTALLATION PRECAUTIONS Never install telephone wiring during a lightning st orm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
  • Page 4 The REN is useful to determine the quantity of devices you may connect to your telephone line and still have all of those devices ring when your number is called. In most, but not all areas, the sum of the RENs of all devices should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should call your local telephone company to determine the maximum REN for your calling area.

  • Page 5: Charge Led

    ® Excursion 36007 CONTROLS DIAGRAM MSG WTG /NEW CALL /IN USE LCD Display / Visual Ringer LED Indicator Visual Ringer /IN USE LED Indicator TALK Button CHARGE LED Indicator UP Button 2.4 Ghz DN Button CALLS Button # Button IN USE...
  • Page 6 DESCRIPTIONS Handset Controls: LCD Display - Shows call information, phone status, prompts and Phonebook items. MSG WTG LED Indicator/NEW CALL LED Indicator/ IN USE LED Indicator/Visual Ringer LED Indicator – (MSG WTG LED)Red LED blinks when you have new message(s). (NEW CALL LED Indicator) The LED Indicator will blinks when you have new call(s).

  • Page 7: Installation

    BASE UNIT CONTROLS: Base Antenna - A fixed antenna. Base Unit Charge Terminals - Used for charging handset batteries. We recommend that you clean these contacts periodically with an alcohol-moistened cloth or cotton swab. IN USE LED Indicator / Visual Ringer LED Indicator -Lights up steadily when the phone is in talk mode and turns off when the handset is not in use.
  • Page 8 Insert the Ni-Cd battery into the battery compartment. Replace the battery compartment cover by sliding it up towards the handset. NOTE: Use the type and size of Ni-Cd battery pack, 3.6V, 450mAh. It is recommended that the Ni-Cd battery pack should be fully charged overnight prior to initial use. Belt Clip Installation With the back of handset facing up, insert one side of the belt clip hook into the matching slots at the top side of handset as shown in Figure2.

  • Page 9: Power Connection

    smooth part of the screw head outside the wall. Hand the unit onto the screws, then slide it down firmly to fasten the base securely. Uninstalling the Wall Mount Bracket To remove the wall mount bracket from the base unit, pull it front as shown in Figure 5. (Figure 5) POWER CONNECTION CAUTION: You must use a Class II, 120 Volt AC/9 Volt DC adaptor that delivers at least 200mA.

  • Page 10: Initial Setup

    INITIAL SETUP Please follow these steps before using the cordless telephone for the first time. Ensure that the handset battery pack is installed and charged fully for at least 14 hours. Ensure that all connections(line cord and adaptor cord) are properly inserted into rear of the base unit.
  • Page 11 If you get a busy tone, press handset TALK button to hang up. Press the handset TALK button again and listen for a dial tone. Press the handset RE/PA/DEL button. This will automatically redial the last telephone number you called (up to 32 digits). When finished with your call, press the TALK button or place the handset on the base unit.
  • Page 12 Press the MENU/ MUTE button twice. The LCD Display will show “REJ”. Press the SAVE/PHONE BOOK button to save the preferred call and go back to STANDBY mode. JOHN SMITH 888-555-1212 2 TOTAL20 TELEPHONE KEYPAD CHARACTERS The TELEPHONE KEYPAD buttons(0-9) are used to enter the characters when entering names. Press the appropriate KEYPAD button to get the following characters.

  • Page 13: Editing Name And Number In The Phonebook

    NOTE: To exit the Phonebook at anytime, Press the SAVE/PHONE BOOK button. EDITING NAME AND NUMBER IN THE PHONEBOOK Press the SAVE/PHONE BOOK button. Press the UP or DN button to find the one you want to edit. Press the EDIT/FLASH button to edit the name. ALEX BROWIN cursor is blinking 6045551212...
  • Page 14 ERASE ITEM? 604-555-1212 TOTAL Press again the “RE/PA/DEL button to delete. The LCD Display will show “ERASED”. Press the SAVE/PHONE BOOK button to return to STANDBY mode. MIXED MODE DIALING (Temporary Pulse to Tone Dialing) If you only have pulse (rotary dialing) service in your area and want to access Tone services (Bank by Phone , etc.), ensure that the Tone/Pulse switch on the rear of the base unit is set to the Pulse position.

  • Page 15: Caller Id Operation

    ® Excursion 36007 telephone gives you the ultimate in cordless telephone sound quality with the luxury of Caller ID and Call Waiting ID. If this is your first cordless telephone, you will soon discover that your cordless is similar to regular telephones, except without the cord.
  • Page 16 • When you receive a new call, the call information is stored under CALLER ID List. The “NEW” segment of LCD Display and NEW CALL LED indicator will flash if there is new call(s). • When you receive a call, the system displays the caller information sent by the telephone company, called a Call Record.
  • Page 17 Display shows when a voice mail message has been RING: ON received and is stored by message waiting service provided by the phone company. 9:07 12/25 TOTAL JOHN SMITH Display shows when the incoming call is a priority call. 888-555-1212 9:07 12/25 TOTAL...
  • Page 18 Press the CALLS button. Press the button or button to select the call record you wish to call back. If the number displayed is not correct(needing 7,10,11 digits), press the OPTION button to select call number. JOHN SMITH 555-555-1212 9:07 12/25 Press OPTION button JOHN SMITH...
  • Page 19 Press and hold RE/PA/DEL button. The LCD Display will show “ ERASE ALL?” To delete all Caller ID records, press RE/PA/DEL button. The LCD Display will show “ERASE ALL” and return to standby mode. ERASE ALL? 555-1212 PROGRAMS OPERATION 10:00 12/25 This unit contains the following special Programs: RING ON/OFF...
  • Page 20 3. Press the EDIT/FLASH button. 4. Use the TELEPHONE KEYPAD button to enter the month, date, hour and minute. The cursor moves automatically after entering each item. Press the TELEPHONE KEYPAD #1 for AM setting, or Press the TELEPHONE KEYPAD #2 for PM setting. 5.
  • Page 21 5. Press the SAVE/PHONE BOOK button to save the setting. 6. Press the MENU/ MUTE button to go back to STANDBY mode. NOTE: When placing a call in PBX mode ON, this telephone will automatically add the PBX number and a pause time before the dialed telephone numbers. I.

  • Page 22: Improving Cordless Reception

    When you notice the usable charge duration decreasing, fully discharge the Ni-Cd battery and recharge as described: DISCHARGING ® Unplug the telephone line cord from the Excursion 36007. Make sure that the adapter is connected. Lift the handset out of the base cradle.

  • Page 23: Maintenance

    Leave the handset charging on the base for 12 hours continuously to get a maximum charge. The Excursion ® 36007 is now ready for regular use. Discharge and charge the Ni-Cd battery again once you notice a decrease in the useable charge time. MAINTENANCE Your phone should be situated away from heat sources such as radiators, heaters, stoves or any other appliance that produces heat.

  • Page 24: Telephone Unit Troubleshooting Table

    TROUBLESHOOTING A. TELEPHONE UNIT TROUBLESHOOTING TABLE SYMPTOM SOLUTION • No dial tone Check the telephone line cord connectors at both ends that they are pushed in firmly until they click. • If you had a power failure or had unplugged the base unit, replace the handset on the base unit for two to five seconds to reset the system.
  • Page 25 B. CALLER ID SYSTEM TROUBLESHOOTING TABLE SYMPTOM SOLUTION • The Caller ID panel Check the power connection. • is blank Check the telephone line cord connections. • Check the batteries for proper installation. • The Caller ID does The Caller ID unit will not function until you have Caller ID service not show the caller’...
  • Page 26 AC ADAPTOR:USE ONLY WITH CLASS 2 POWER SOURCE, OUTPUT 9VDC, 200mA . THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER’ S MANUAL. Distributed Exclusively Worldwide by Unical Enterprises, Inc., Industry, California, USA 36007/080105A-1 www.nwbphones.com 080105A-1...
