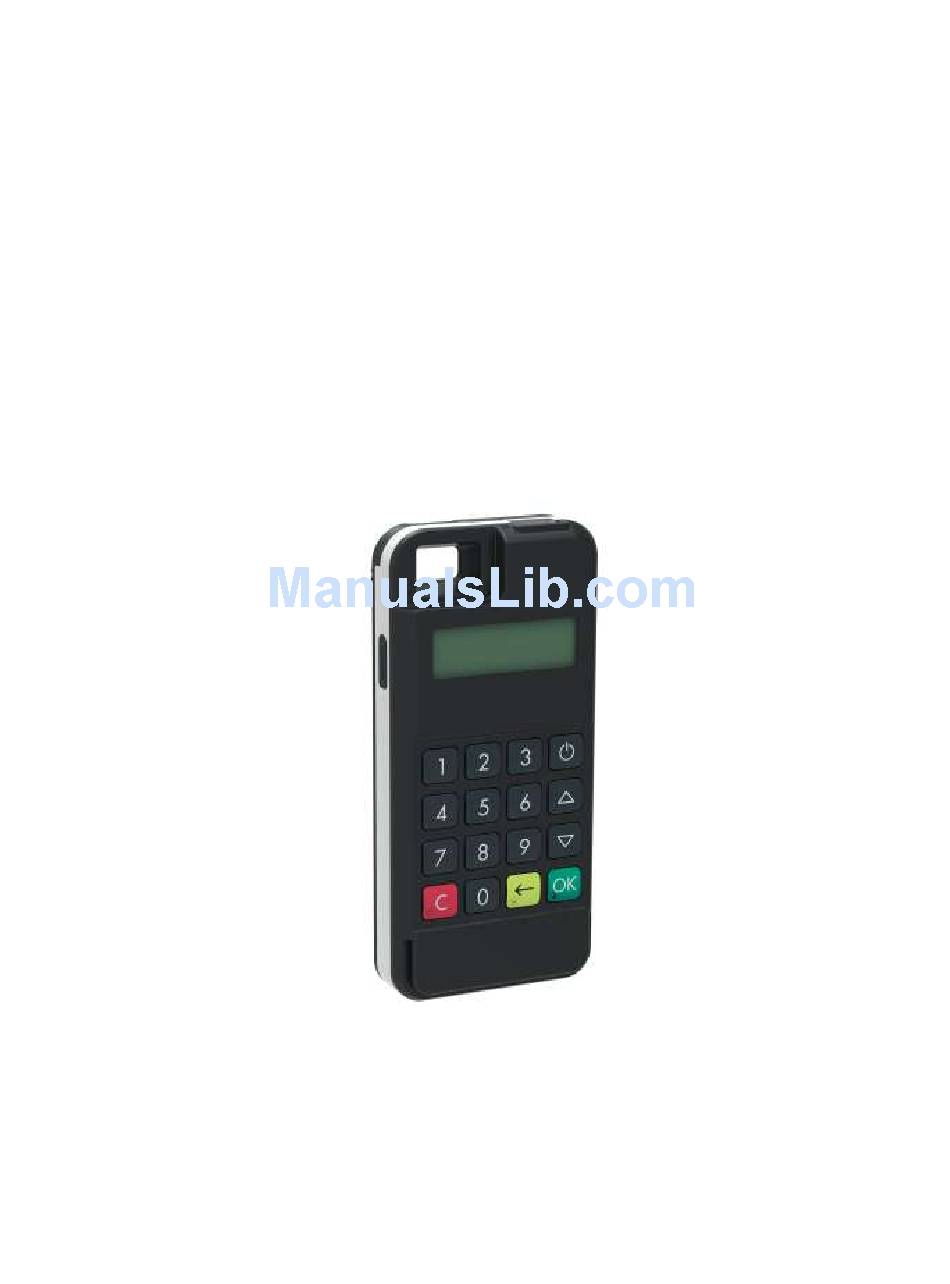

- Page 1 1 DATECS BLUEPAD-500 USER GUIDE BLUEPAD-500 User Guide © 2017 Datecs, Ltd.
- Page 2 Datecs, the Datecs logo, are registered trademarks of Datecs. Other brand names or trademarks associated with Datecs’s products and services are trademarks of Datecs, Ltd. All other brand names and trademarks appearing in this manual are the property of their respective holders.
-
Page 3: Legal Notice
Please note that the use of this accesory with iPod. Compatibility Made for iPod 6 generation iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc. 1 DATECS Page 3 of 29 BLUEPAD-500 USER GUIDE... -
Page 4: Fcc Notice
BluePad-500, are set to their highest transmission levels and placed in position that simulate use against the body, with 5mm separation. Carry the BluePad-500 at least 5mm away from your body to ensure exposure levels remain at or below the as-tested levels. - Page 5 1 DATECS Revision History Version Description Date First release 22.08.2014 Changed barcode engine model and specification 24.11.2015 Updated all document 11.04.2017 1 DATECS Page 5 of 29 BLUEPAD-500 USER GUIDE...
-
Page 6: Table Of Contents
..................................... 17 APPLICATION DOWNLOAD MODE ..........................17 COMMUNICATION PARAMETERS ........................... 17 SETTINGS IN APPLICATION(DEPENDS OF THE APPLICATIONS) ..................17 INSERTING A IPHONE IN THE BLUEPAD-500 ........................19 BARCODE READER USE* ..............................20 MAGNETIC CARD READER USE ............................21 ......................21... - Page 7 ................................26 ERVICE AND UPPORT ..................................26 ERVICE ETURNS PAD-500 F ......................26 ONNECTING LAT TO LUETOOTH EVICE PAD-500 F ........................27 OUNTING EVICE ON LAT VERSION INDIVIDUAL PACKING ................................29 1 DATECS Page 7 of 29 BLUEPAD-500 USER GUIDE...
-
Page 8: Preface
1 DATECS PREFACE This guide is the primary source of information for setting up and installing BLUEPAD-500. Audience This guide provides simple descriptions of BLUEPAD-500 features, as well as basic information for anyone installing and configuring BLUEPAD-500. Organization This guide is organized as follows: Chapter 1, Overview. -
Page 9: Related Documentation
1 DATECS Related Documentation To learn more BLUEPAD-500, refer to the following set of documents: • BLUEPAD-500 Physical Security Features • BLUEPAD-500 Firmware API Specifications • BLUEPAD-500 Software Design Specifications ONVENTIONS Various conventions are used to help you quickly identify special formatting. -
Page 10: Overview

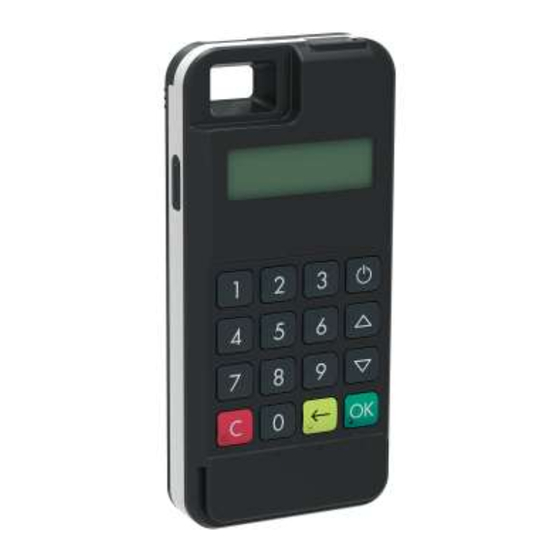

This chapter provides a brief description of Datecs’s BLUEPAD-500 device. BLUEPAD-500 The BLUEPAD-500 unit is a handheld PIN pad with an integrated smart and magnetic stripe card reader stripe reader, offering advanced security and smart card processing capabilities. BLUEPAD-500 supports both symmetric encryption algorithms (DES, 3DES, and AES) and asymmetric encryption (RSA). -
Page 11: Features And Benefits
Primary smart card reader support for synchronous and asynchronous smart cards. • Support for international character sets and Unicode standard. • BLUEPAD-500 has received EMV Level 1 approval for smart card solutions. • BLUEPAD-500 has received PCI PTS 3.x SRED Security Certification. 1 DATECS... -
Page 12: Device Specifications
C / 5% to 90% RH • 5V through mini USB Power Supply • 5V through single or 5 station charger • Single station charger - SC-1 Accessories • 5 stations charger - GC-5 1 DATECS Page 12 of 29 BLUEPAD-500 USER GUIDE... -
Page 13: Device Operation
1 DATECS Device Operation Figure 1 Scan button Keyboard Magnetic card reader Barcode reader Display Contacless reader LED indications Smart card reader 1 DATECS Page 13 of 29 BLUEPAD-500 USER GUIDE... - Page 14 The BLUEPAD-500 is switched on and off by pressing the button. The BLUEPAD-500 comes with a USB communication cable. The USB communication cable is connected to the BLUEPAD-500’s mini-USB connector 1. 1 DATECS Page 14 of 29 BLUEPAD-500 USER GUIDE...
-
Page 15: Setup
1 DATECS Setup When a BLUEPAD-500 is switched on and the button is kept pressed, on the display will be shown the name and the version of the Secure Boot Loader and the firmware. Service personnel can access two different system modes: Service Mode and Application Download Mode. -
Page 16: Info Hardware
RS-232 interface using proprietary communication protocol.To exit the mode the C button has to be pressed. CLEAR DEA KEYS Deletes the customer’s DEA key hierarchy. 1 DATECS Page 16 of 29 BLUEPAD-500 USER GUIDE... -
Page 17: Exit
Exit the service menu forwarding the control to the application. APPLICATION DOWNLOAD MODE To enter application download mode on the BLUEPAD-500, the button UP has to be maintained pressed while switching on the PINPAD. A characteristic sound is played and on the display appears the name and version of the Secure Boot Loader. - Page 18 ENABLED) - Pass through charge – iOS device only is charging from USB port, when is connected USB cable, communication is remain to BluePAD-500 (HOTSYNC DISABLED) - When charging current is 0mA, charge is disabled - For clear Bluetooth settings use Bluetooth master reset.
-
Page 19: Inserting A Iphone In The Bluepad-500
1 DATECS Inserting a iPhone in the BluePAD-500 Step 1 – slide back cover, like is shown on Figure 3 Step 2 – pull up back cover and insert iPhone Step 3- pull down back cover and slide back Figure 3... -
Page 20: Barcode Reader Use
The barcode scanning procedure can vary depending on the POS application loaded on the iPhone. Verify the proper procedure with your POS application provider before performing a barcode scanning procedure. Point BluePAD-500 with the Barcode scanner facing the barcode and press scan button. Figure 4 1 DATECS... -
Page 21: Magnetic Card Reader Use
Magnetic Card Reader Use The magnetic card transaction procedure can vary depending on the application loaded on the BLUEPAD-500. Verify the proper procedure with your application provider before performing a magnetic card transaction. To Conduct a Magnetic Credit/Debit Card Transaction... -
Page 22: Datecs
(Error! Reference source not found.). Insert it into the ICC card reader slot in a smooth, continuous motion until it seats firmly. Hand BLUEPAD-500 to customer for PIN entry Remove the card when the display indicates the transaction is completed. Figure 6 Smart card with the gold contacts upward Leave the smart card in the card reader until the transaction is completed. -
Page 23: Contactless Card Reading
Contactless Card Reading* The contactless card transaction procedure can vary depending on the application loaded on the BLUEPAD-500. Verify the proper procedure with your application provider before performing a contactless card transaction. In order to use the Contactless card reading function, special software must be used. Please contact your distributor in order to get the latest demo application and SDK. -
Page 24: Display Sings
BLUEPAD-500 units. If you are having problems operating your BLUEPAD-500 unit, please read through these troubleshooting examples. If the problem persists even after performing the outlined guidelines or if the problem is not described, contact your local Datecs representative for assistance. -
Page 25: Transactions Fail To Process
If the problem persists, contact your local Datecs representative. Due to risk of shock or damage, do not use the BLUEPAD-500 unit near water, including a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool. -
Page 26: Main Battery Replacement
Connecting BluePAD-500 Flat to Bluetooth Device Turn on BluePAD-500 and go to setting to enable Bluetooth. Open setting on device which you what to connect to BluePAD-500, and select Bluetooth. Search for BluePAD-500(will shown serial number of the device) and click on connect. -
Page 27: Mounting Device On Bluepad-500 Flat Version
1 DATECS Mounting Device on BluePAD-500 Flat version Figure 8 Mounting hard case on BluePAD-500 Flat, using four screws M1,6x4. 1 DATECS Page 27 of 29 BLUEPAD-500 USER GUIDE... - Page 28 1 DATECS Figure 9 1 DATECS Page 28 of 29 BLUEPAD-500 USER GUIDE...
-
Page 29: Datecs
1 DATECS INDIVIDUAL PACKING Figure 10 1 DATECS Page 29 of 29 BLUEPAD-500 USER GUIDE...
