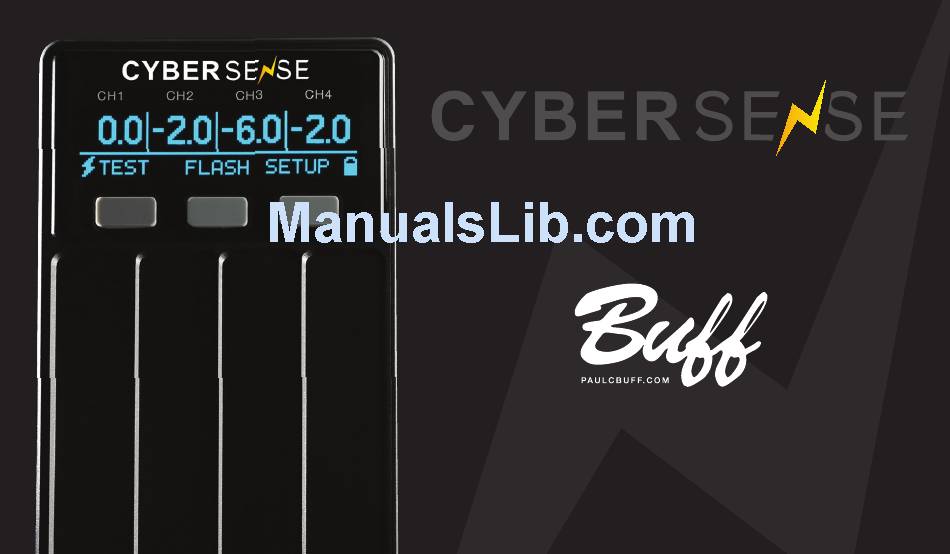

- Page 1 MANUAL FOR VIDEOS AND ADDITIONAL INFORMATION VISIT: PAULCBUFF.COM...
-
Page 2: General Specifications
GENERAL SPECIFICATIONS The CyberSense can be used to control the output of both the flash and modeling lamp on up to four Paul C. Buff, Inc. flash units. Compatible with all previous / current CyberSync remotes. RADIO RANGE Up to 300 ft. (when on a flat and level terrain with no obstructions) - Page 3 INITIAL SETUP TRANSMITTER and RECEIVER / TRANSCEIVER STEP 1 | TRANSMITTER Set the FREQUENCY dial to the desired frequency number on the TRANSMITTER. Slide the transmitter into the camera’s hot shoe. STEP 2 | RECEIVER / TRANSCEIVER SETUP LEGEND RJ-11 Telephone-style Cord AC Power Cable AlienBees / White Lightning...
- Page 4 INITIAL SETUP TRANSMITTER and RECEIVER / TRANSCEIVER DigiBee / Einstein First, insert the transceiver into the transceiver receptacle located on the top of the DigiBee or Einstein . Next, turn on the flash unit(s). For the DigiBee, press the FREQUENCY button located on the control panel on the back on the unit. Then, choose the frequency that the transmitter is set to by using the up and down arrows on the back of the unit.
- Page 5 Once your FREQUENCY is set, press in on the (R) button (DONE) to complete your FREQUENCY setup. The CyberSense will then revert back RIGHT to the either the MODEL or FLASH ADJUST screen. *The sliders have no function when the CyberSense is in this mode.
- Page 6 CONNECTING TO FLASH UNITS The CyberSense is equipped to control up to four different flash units using the touch sensitive sliders. Each slider corresponds with the channel label (CH1, CH2, CH3, CH4) that is located above the CyberSense digital display.
- Page 7 Modeling light shuts off. The model mode chosen affects ALL CHANNELS on the CyberSense. Example: CH1 cannot be set to TRACK and CH2 cannot stay on FULL POWER. NOTE: The (C) button functions as a toggle between the FLASH and MODEL modes.
- Page 8 ADJUSTING FLASH OUTPUTS / STANDBY MODE ADJUSTING FLASH OUTPUTS IN THE FLASH MODE Using the TOUCH SLIDER associated with the channel that the flash unit is set to, SLIDE UP to INCREASE the output, and SLIDE DOWN to DECREASE the output. TEST FLASH SETUP...
- Page 9 ADJUSTING MODELING LIGHTS ADJUSTING MODELING LIGHTS IN THE MODEL MODE When the MODELING MODE is set to ADJUST (ADJ), use the TOUCH SLIDER associated with the channel the flash unit is set to; SLIDE UP to INCREASE the output, and SLIDE DOWN to DECREASE the output. MODEL SETUP The sliders for the modeling lights adjust in 1/10 of a stop.
- Page 10 15 seconds to 15 minutes. Finally, press the (R) button, indicated with DONE in the digital display, to finalize your changes. To turn OFF the CyberSense before it enters SLEEP mode, press and hold the (R) button until the unit shuts off.
- Page 11 The icon will show the depletion of the battery in various stages. The battery icon will flash when it is time to replace the batteries in the CyberSense. If the battery life has been completely exhausted, it will power on and prompt to replace the batteries before you are able to proceed with using the remote.
- Page 12 Defective units should be returned to us at the address below with a note explaining the defect or problem. We will return repaired or replaced units to you at our cost. Designed in the USA by: Paul C. Buff, Inc., 2725 Bransford Ave., Nashville, TN 37204 USA Toll Free: 1.800.443.5542 (USA) | Local: 615.383.3982 | info@paulcbuff.com | paulcbuff.com...
