Summary of Contents for Showerbuddy SB2

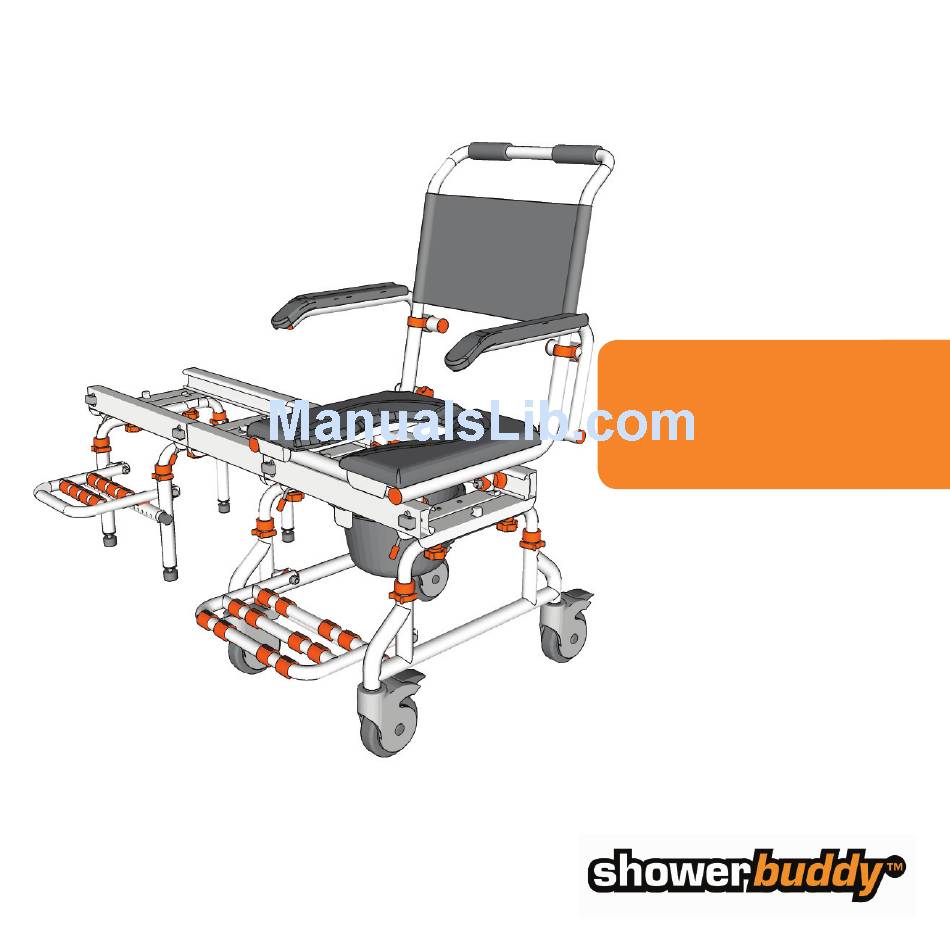

- Page 1 TubBuddy Owners Manual elimination through innovation...
-
Page 3: Table Of Contents
SB2 TubBuddy contents Exploded Parts ............... 3 Parts List ................ 4 Securing Clip Sizes ............4 TubBuddy Assembly ............5 TubBuddy Setup ............. 12 TubBuddy Operation ............17 Cleaning + Maintenance ..........Safety Instructions ............Warranty Information ............25 Registration Form ............28... -
Page 4: Exploded Parts
SB2 TubBuddy exploded parts page 3... -
Page 5: Parts List
SB2 TubBuddy parts list See the exploded chair image for the location of parts. 5” Castor Wheel Arm Rest Clip Height Adjustment Tubes (Wheeled Base) Arm Rest Lock Base Legs Cushion Securing Clip (Large) Cushion Connectors Wheeled Base Track Commode Bucket... -
Page 6: Tubbuddy Assembly
SB2 TubBuddy assembly step 1 Insert both height adjustment tubes into the base legs. Ensure the holes on the height adjustment tubes align with the holes on the base legs. Secure both height adjustment tubes at the required height using 1 large securing clip on each base leg. - Page 7 SB2 TubBuddy step 3 With the wheeled base track assembled on a flat surface apply the brakes on the 4 castor wheels. Slide the seat base into the wheeled track by aligning the track wheels with the grooves in the track. When inserting...
- Page 8 SB2 TubBuddy step 5 Insert the arm rests into the sockets on the seat base until the clip pin clicks and locates the arm rests in position. Screw the arm rest knob into the arm rest to firmly secure the arm rest in position.
- Page 9 SB2 TubBuddy step 7 The armrests can be easily swung-away when required. Unlock the armrest by sliding the armrest lock away from the armrest. Once this is done the armrest can be swung away. The clip pin which secures the armrest in position stops the armrest from rotating to far.
- Page 10 SB2 TubBuddy step 9 Rotate the chair so that you have easy access to the underside of the seat base. From the back of the chair slide the commode bucket into the 2 brackets on the underside of the seat base.
- Page 11 SB2 TubBuddy step 11 Using the grooves on the underside of the bath base track as a guide, place the bath base track onto the height adjustment tubes. Position the bath base track on the height adjustment tubes so that the 4 threaded...
- Page 12 SB2 TubBuddy step 13 To attach the chest belt rotate the chair so that you have easy access to the back of the back rest. Slide the chest belt through the 2 attachment loops on the back rest. Before use adjust the length of the chest belt to suit the user.
-
Page 13: Tubbuddy Setup
SB2 TubBuddy setup step 1 Align the side of your chair with the threshold of your bath. Check to ensure that the height of the bottom of the wheeled track is higher than the bath threshold If required the height of the wheeled track can be raised or lowered depending on the bath threshold height. - Page 14 SB2 TubBuddy step 3 Place the assembled bath base into your bath. NOTE - When positioning the bath base ensure it is located so there is enough room to allow the chair to transfer freely without hitting any other obstructions.
- Page 15 SB2 TubBuddy step 5 Align the bridge with the bath base and insert the tongues into the bath base. Firmly push the tongues on the bridge into the bath base so the secondary brakes are pushed out of the way.
- Page 16 SB2 TubBuddy step 7 The wheeled base, bridge and bath base should now be securely connected together using the latches. Before continuing with the setup it is important to ensure that the tracks are level horizontally. step 8 If the tracks are not level horizontally, adjust the height of the bath base until the tracks are level.
- Page 17 SB2 TubBuddy step 9 With the bath base placed in the bath secure it in position by adjusting the stabilising tubes. Press the clip pin in on the stabilising tube and slide outwards to the correct position. For smaller adjustments unscrew the rubber stopper to firmly secure the bath base.
-
Page 18: Tubbuddy Operation
SB2 TubBuddy operation step 1 Securely attach the bridge to the bath base using the latches. Next securely attach the bridge to the wheeled base using the latches. NOTE - Ensure all latches securely ‘snap’ into the locked position. Ensure you lock all castor wheels before beginning the transfer. - Page 19 SB2 TubBuddy step 3 Transfer your Tubbuddy from the wheeled base onto the shower base. Ensure the chair is transferred all the way onto the bath base and primary brake clicks to secure the chair in position. step 4 With your Tubbuddy secured in position on the bath base remove the bridge and wheeled base.
- Page 20 SB2 TubBuddy step 5 Reconnect the bridge to the bath base and secure in position with the latches. Reconnect the wheeled base to the bridge and secure in position with the latches. NOTE - Ensure all latches securely ‘snap’ into the locked position.
- Page 21 SB2 TubBuddy step 7 Transfer your Tubbuddy from the bath base onto the wheeled base. Ensure the chair is transferred all the way onto the wheeled base and primary brake clicks to secure the chair in position. NOTE - Ensure all latches securely ‘snap’ into the locked position.
-
Page 22: Cleaning + Maintenance
SB2 TubBuddy cleaning + maintenance It is recommended that your shower chair is serviced annually by your Showerbuddy Dealer or an authorised, competent service agent, in addition: 1. Regularly inspect all parts of the chair for defects. Any defective part should be removed promptly. -
Page 23: Safety Instructions
It is important that the user(s), and/or the caregivers of the user(s), learn how to safely operate the Showerbuddy shower chair. The following must be read before use of the Showerbuddy shower chair to ensure the safe operation of your Showerbuddy shower chair: The Owner(s) Manual must be read and understood before using the Showerbuddy shower chair. - Page 24 A slippery floor can be caused by dust, water, soap or any substance that doesn’t Transfers should never be attempted with the Showerbuddy allow the tires (tyres) to grip. shower chair positioned on slippery surfaces since the wheel locks can only prevent the wheels from rotating.
- Page 25 SB2 TubBuddy Showerbuddy shower chairs are supplied with chest and lap restraining straps which ensure the correct and safe operation of the shower chair for both the user(s) and the caregiver. It is important Showerbuddy that these straps are used every time the shower chair is operated. Your shower chair is equipped with fitting points so that these can be easily and effortlessly attached.
-
Page 26: Warranty Information
- Do not return the unit to Showerbuddy without first obtaining a Return Authorization Number from Customer Service - A defective unit must be shipped to Showerbuddy within 14 days of issuance of a Return Authorization Number by Customer Service... - Page 27 SB3T TubBuddy Our Responsibilities - Showerbuddy’s sole responsibility is to repair or replace, at our discretion, the covered components of the unit. This is the exclusive remedy for consequential or incidental damages. - Upon pre-approval, Showerbuddy may provide exchange services for Warranty returns.
- Page 28 SB2 TubBuddy page 27...
-
Page 29: Registration Form
SB2 TubBuddy registration form Register your Showerbuddy Thank you for purchasing a Showerbuddy product!! About You Salutation Name First Last Your Date of Birth Month Year Address Street Address City State / Province Zip / Postal Code Country Phone Email... - Page 30 SB2 TubBuddy Please send your completed Registration Form to one of the addresses below. For all USA & Canada Warranties Warranties for all Other Countries http://www.myshowerbuddy.com/resources/register Register online at Or you can fax or email it to us. Or you can fax or email it to us.
- Page 32 All rights reserved No part of the contents of this manual may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the written permission of Showerbuddy Global Limited.
