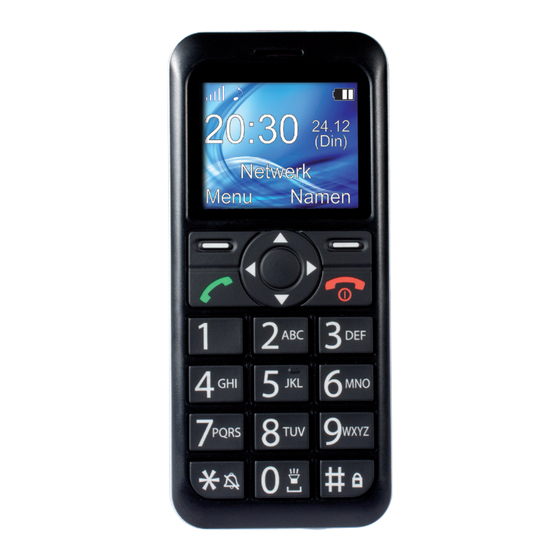

Fysic FM-7600 User Manual
  1. Manuals
  2. Brands
  3. Fysic Manuals
  4. Cell Phone
  5. FM-7600
  6. User manual

Fysic FM-7600 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FM-7600
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM-7600 and is the answer not in the manual?

Questions and answers

Related Manuals for Fysic FM-7600

Summary of Contents for Fysic FM-7600

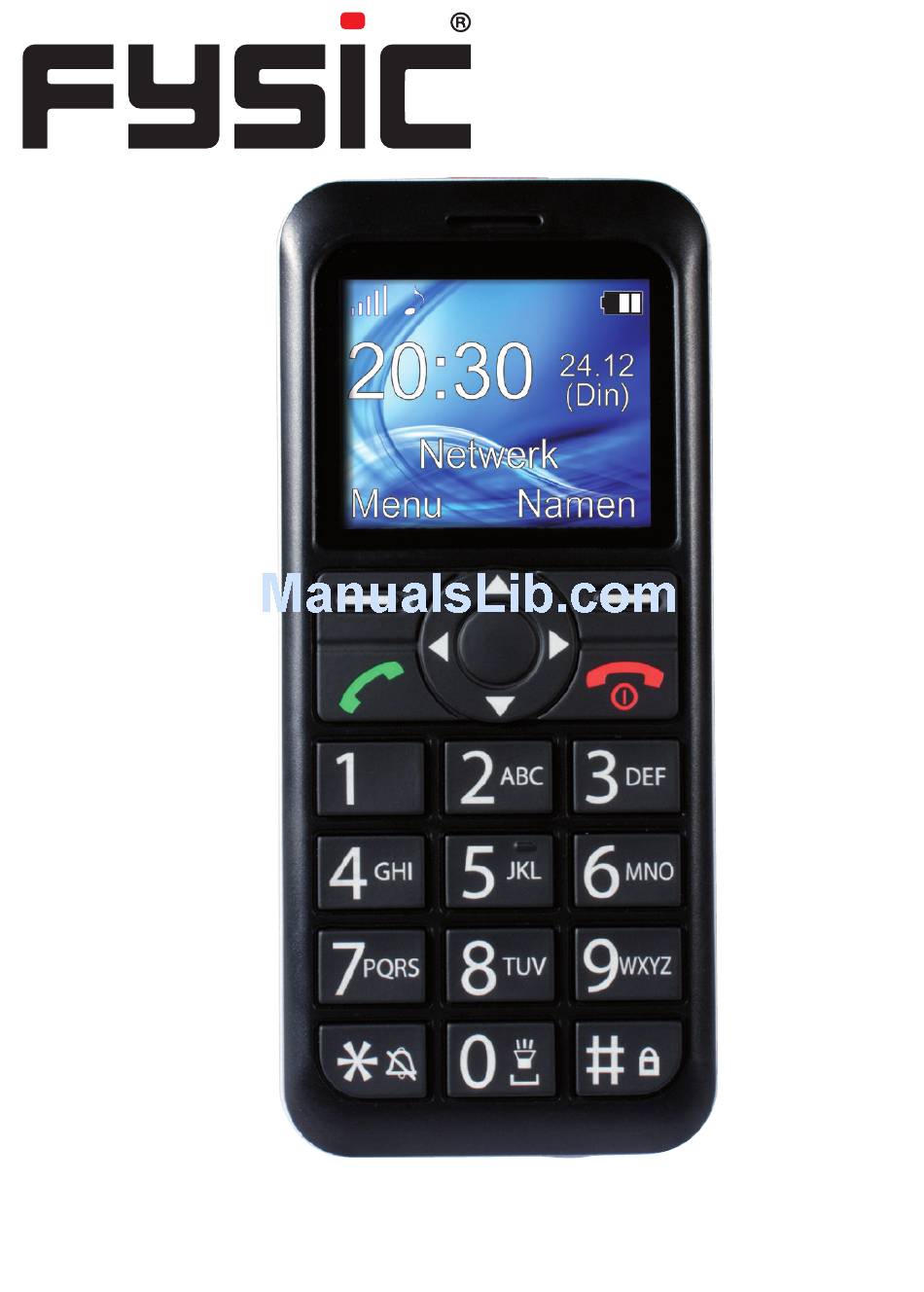

  • Page 1 FM-7600 User’s Manual...
  • Page 3 To be able to make full use of this phone, a SIM card must be inserted (not inclu- ded). Without this SIM card, most functi- ons of this phone are unavailable or set- tings are not saved. This manual assumes you’ve already installed the SIM card according to the installation guide.

  • Page 4: Concepts

    1 CONCEPTS Provider: ‘Provider’ is another name for ‘Telephone Company’. The documentation accompanying the SIM card and/or the SIM card itself will show through which provider you’re calling. SIM card: A SIM (‘Subscriber Identity Module’) is a small card containing a chip. The phone number is programmed in this chip and it also allows you to store several numbers and messages, so you can take this infor-...
  • Page 5 This means the phone is not bound to SIM cards of a certain provider, allowing you to choose any desired telephone company. PIN code / PUK code: Each SIM can be secured using a PIN. This PIN code helps you to prevent unau- thorised persons from using your phone.
  • Page 6 Prepaid or subscription: Prepaid or subscription determines how you pay for your phone bill. In short: using the prepaid option, you’re paying before- hand, in the case of a subscription, you’re paying afterwards. This payment method is linked to your SIM. Ask the help desk of your provider about all of your options.

  • Page 7: Important Safety Information

    2 IMPORTANT SAFETY INFORMATION 2.1 Important Not complying with this manual can lead to serious personal injury and damage to the device. Carefully read all instructions, especially the safety information, before using the product and keep the user’s manual in a safe place. When passing this product over to a third party, please also include this manual.

  • Page 8: Warnings

    2.2 Warnings The following warnings must be complied with to reduce the risk of injury to the user and others. • Different countries can have different regulations regarding the use of mobile phones (e.g. while driving, in hospi- tals, near fuel stations or in airplanes). Always comply with your national laws regarding the use of mobile phones.
  • Page 9 Only use the original adaptor and bat- tery supplied by the manufacturer. Us- ing an unsuitable or incorrectly installed battery causes a risk of explosion. • Never disassemble the battery nor ex- pose it to open fire. • The functioning of medical equipment can be affected.
  • Page 10 • This phone is not a toy; keep it out of reach of (small) children. • The battery contains poisonous sub- stances. Make sure children do not remove the battery from the phone and put it into their mouth. • A SIM card is a small item. Make sure children do not remove it from the phone and swallow it.
  • Page 11 • Avoid extremely high and low tempera- tures. For example, do not leave the phone in a car exposed to direct sun- light. • The phone may only be opened to change the battery or SIM card. Modifi- cation of this device is forbidden. In any case, this will cause you to lose your user licence and warranty.

  • Page 12: Contents Of The Packaging

    2.3 Contents of the packaging • Mobile phone • Battery • Power adaptor • Desk charger • User’s manual • Starting guide 2.4 Instructions regarding discarding: • Packaging can be reused or recycled for raw materials. Discard of packaging you no longer use according to local regulations.
  • Page 13 tronic devices to a local collection point or to the store, this way ensuring en- vironment-friendly processing, regard- less of the device containing hazardous substances or not. • Remove the battery before you discard this device (see paragraph 4.3). Do not discard of batteries with normal house- hold waste, but bring them to a collec- tion point for small chemical waste or to...

  • Page 14: Description Of Functions

    3 DESCRIPTION OF FUNCTIONS 3.1 Phone 1. Speaker for 7. Recharge input for the conversations power adaptor (Micro 2. Display USB) (see chapter 3.3) 8. Recharge input for the 3. SOS button desk charger 4. Flashlight 9. Headphones output 5. Speaker for ringtone / (3.5mm,4-pin) hands-free 10.

  • Page 16: Touch-Buttons

    3.2 Touch-buttons Call button: To accept incoming calls or call numbers. In standby mode: Opens the call log. Left and right soft-buttons: This button performs the function shown above the button in the dis- play. Power/end button: To end your current phone conversati- on.
  • Page 17 SOS button: Press and hold this button at any moment for 3 seconds to start the alarm mode (if enabled). See also chapter 10.6. Navigation buttons: To scroll settings during program- ming and setup. From standby: To open menus assigned to the shortcut buttons. * button (asterisk): During a call: ‘Asterisk’...

  • Page 18: Display Symbols

    # button (pound sign): During a call: ‘pound’ button for teleservices. In standby mode (after holding for 2 seconds): Turn all sounds on or off. While com- posing SMS messages: Press to switch between capital letters, lower-case letters and numbers. Keypad: For entering numbers, names or SMS messages...
  • Page 19 Battery indication. The alarm function is enabled. Indicates that the melody function for incoming calls is enabled. Indicates that the melody and vibra- tion functions for incoming calls are enabled. Indicates that a headphones is con- nected. You’ve received a new SMS mes- sage.

  • Page 20: Battery

    4 BATTERY 4.1 Charging Attention! Only use the included battery. Using other models could cause damage to the phone which is not covered by the warranty conditions. Never charge the phone with the back cover of the phone removed. Always connect the adaptor with the phone before putting the adaptor into a 230V wall socket.

  • Page 21: Operating Time

    from the wall socket and disconnect it from the phone. You can charge the battery both with the phone switched on and switched off. It takes approx. 3 hours to fully charge an empty battery. 4.2 Operating time A fully charged battery kept in a good state offers a standby time of up to 300 hours and a call time of up to 3 hours.

  • Page 22: Battery Replacement

    If the operation time of the phone shortens considerably while being used as normal, it’s time to charge the battery. 4.3 Battery replacement If your battery needs replacing, please turn off the phone and remove the back cover. You can use your nail to lift up the battery and take it out of the phone.

  • Page 23: Operation

    5 OPERATION 5.1 Turning the phone on/off Turning on: Press and hold the power/end button for 3 seconds to turn on the phone. If required, enter the PIN code of your SIM card and press the button or [Enter] soft- button.

  • Page 24: Calling From The Phonebook

    Use [Delete] soft-button to delete a wrong input. Press the call button to call the number. 5.3 Calling from the phonebook In standby mode, press the right soft-but- ton (Contacts). Select the desired number using the direc- tion buttons. Press the call button to call the number. 5.4 Accepting calls Press the call button to accept an inco- ming call.

  • Page 25: Calling From The Call Log

    5.5 Calling from the call log In standby mode, press the call button. Scroll to the desired number using the up/ down button. Press the call button to call the number. 5.6 Call volume During a conversation, use the volume buttons on the phone left side to adjust the volume;...
  • Page 26 Right button: Hands-free: During a conversation, press the right soft-button to hear the sound through the speaker, allowing you to call without ha- ving to hold the phone to your ear. Press this button again to cancel the hands-free function. Left button: Options: To put on hold / To retrieve the call: During a conversation, select this option to...
  • Page 27 Call log: Opens an overview of dialled and received calls during a conversation. Messages: Opens the SMS menu during a call. Mute: Select this option to turn off the microp- hone, your conversation partner will no longer be able to hear you. Here you’ll see the current status, use the [On] or [Off] soft-button to change this status.

  • Page 28: Open Menu

    End call: Use the power/end button to end a call at any time and return to the home screen. 5.8 Open menu In standby mode, press the [Menu] soft- button to open the menu. Use the up or down button to select a sub-menu and press the [Enter] button to enter the se- lected sub-menu.

  • Page 29: Phonebook

    6 PHONEBOOK You can store names and phone numbers in the internal memory of the phone or in your SIM card. The phonebook memory of this phone has a capacity for 100 names with numbers. The capacity of your SIM card depends on the card itself.
  • Page 30 When entering the name, you can press the # button to switch between capital letters, lower- case letters and numbers. Use the * button for special characters and symbols, press the 0 button to insert a space. Programming emergency numbers: In Case of Emergency (abbreviation: ICE) is an international abbreviation established in 2005.
  • Page 31 0 + X + Description Where X is a number between 1 and 9. This means that ICE contacts should be entered and displayed in the phonebook as follows: 01Annie 02Husband 03Mother Although this input is very useful, it has never been decided that the number must be called by an emergency service.

  • Page 32: Seend Sms

    6.3 Send text message To send a message to the selected con- tact, with the number automatically ente- red as the recipient. 6.4 Edit To edit the selected contact. 6.5 Copy You may use these options to copy a contact from the phone memory to the SIM memory and vice versa.

  • Page 33: Advanced

    6.7 Advanced Memory status: This option shows how much memory is being used and how much is remaining. Voicemail: This option allows you to change the voice-mail service number. After setup, you can dial it by pressing and holding the ‘1’...

  • Page 34: Messages

    7 MESSAGES SMS stands for Short Message Service. This phone is provided with an internal memory for 100 standard SMS messages. 7.1 Messages menu structure Messa- Write message Send to ging Input method Advanced Save Inbox View Drafts Forward Outbox Reply Sent messages Delete...
  • Page 35 can be used for special characters and symbols and you can press the ‘0’ button to insert a space. Use the direction buttons to move the cur- sor to e.g. make corrections or insert text. Press the [Delete] soft-button to delete characters.

  • Page 36: Read Message (Inbox)

    7.3 Read message (Inbox) As soon as you receive a new SMS mes- sage, the SMS ringtone will sound while the SMS icon appears. Press the [Open] soft-button to read the new SMS message directly or press the [Stop] soft-button to go back to the home screen.

  • Page 37: Options When Reading Messages

    In Sent, you’ll find all sent messages. 7.5 Options when reading messages When reading a message, you can press the [Options] soft-button to perform the fol- lowing functions: • Forward: Use this option to place the received text in a new SMS (only avai- lable for received messages) •...

  • Page 38: Sms Setup

    7.6 SMS setup • Memory status: This shows the per- centage of memory remaining for storing messages. • Counter: This menu provides an over- view of your received and sent SMS messages. You may also use this menu to reset the counter to zero. •...

  • Page 39: Calls

    8 CALLS Information about recent calls is automati- cally saved in the phone (received, dialled and missed calls). 8.1 Calls menu structure Calls Missed View Dialled Call Received Send text message Save to phonebook Delete Delete call logs 8.2 Open call log Missed Calls will show all calls you’ve missed.
  • Page 40 Use the [Options] soft-button to perfom va- rious actions: • Show: View the details of the call • Call: Call the contact of this message • Send message: Start a new SMS, with the contact of this message automati- cally entered as the recipient •...

  • Page 41: Sos

    9 SOS The SOS menu allows you to enable the SOS function, to adjust the SOS text mes- sage and to program up to 5 numbers that must be dialled when the SOS function is activated. 9.1 SOS menu structure On/Off Numbers Add from Phone-...
  • Page 42 Numbers: To set up to 5 numbers that must be dialled. Voice message: Choose or make a recor- ding of a message that must be played as soon as one of your dialled numbers answers. The default text contains the instruction: “This is an emergency call, press 0 to ans- wer this call.”...

  • Page 43: Sos Operation

    9.3 SOS operation In case of an emergency, press and hold the SOS button for 3 seconds. Pay atten- tion not to press this button by accident. Press the Power/End button to cancel the SOS mode. 9.4 SOS operating principle When you activate the alarm mode, the following will happen: 1.
  • Page 44 the called person disconnects the call. - If the person does press the 0 button, playback of the emergency text will be stopped to allow you to explain the situation with the phone set to spea- ker mode giving you free use of your hands.
  • Page 45 3. The second (up to the fifth) number will be dialled, provided these numbers are preset. 4. The entire process will be repeated starting with step 3. Keep in mind that you can cancel the SOS mode at any time be pushing the power/ end button.

  • Page 46: Settings

    10 SETTINGS In this menu, you can customize the entire phone according to your preferences: 10.1 Settings menu structure Settings Sounds Activate Customize Reset Phone Time and date Language Display Shortcuts Flight mode Calls Call waiting Call divert Call barring Advance settings Security Phone...

  • Page 47: Sound

    10.2 Sound You may switch between these profiles according to your current situation to adjust the call volume, vibration mode, ringtones and notification tones. Various standard profiles are already provi- ded for frequently used situations (General, Silent, Meeting and Outdoors). Use the Edit option to change the following settings: •...

  • Page 48: Telepone

    • Volume: This option determines the vo- lume of the ringtone. • Message: This option allows you to deter- mine which notification tone must sound when receiving a text message. • Keypad: Here you may determine whether a tone or click sound must be emitted when pressing buttons.

  • Page 49: Call

    Up direction button (shortcut) and you can enable the flight mode. 10.4 Call • Call waiting: Determine whether you allow a second call to be received while already in a call. You can answer this call be switching conversations and you can also merge the call with your current call (conference).

  • Page 50: Security

    after a preset time duration during a call. • Answer mode: To determine whether incoming calls can be answered by only pressing the Call button or by pressing any random button. 10.5 Security Determine whether the phone must re- quest codes to prevent unauthorised use. You can also customize these codes.

  • Page 51: Defaultl

    • PUK: After you enter the wrong PIN code three times, you’ll need to enter the PUK code. This code can usually also be found in the documentation of your SIM card. • Phone code / password: In addition to securing the SIM card, you can also lock the phone itself with a code, preventing anybody from viewing your phone’s information by using a different...

  • Page 52: Tools

    11 TOOLS Here you’ll find various useful functions in- cluding a calculator, calendar, alarm clock, to-do-list, unit converter, currency conver- ter and stopwatch. 11.1 Tools menu structure Tools Calendar Jump to date Go to today Go to weekly/monthly view Calculator Alarm Sim toolkit 11.2 Calendar...

  • Page 53: Alarm Clock

    a number and use the direction buttons to choose between subtracting, adding, dividing and multiplying. Use # to insert decimals and press the [OK] soft-button for the result. 11.4 Alarm clock You can use this function to set up to five alarm times.

  • Page 54: Flashlight

    12 FLASHLIGHT In addition to all the functions available in the menu, the phone is also provided with a flashlight function. Press and hold the 0 button to enable and disable this flashlight. 13 DECLARATION OF CONFORMITY This device meets the essential requi- rements and other relevant provisions as stipulated by the European Guideline 1999/5/EC.

  • Page 55: Specifications

    14 SPECIFICATIONS Network: GSM900 / DSC1800 SAR: <1.0W/kg / <1.0W/kg Dimensions: 114 x 50 x 16 mm Battery: Li-Ion, 3.7V 900mAh Standby time: up to 350 hours (depending on network) Call time: up to 3 hours (depending on how the phone is setup and used) Weight: 78g (incl.

  • Page 56: Table Of Contents

    15 TABLE OF CONTENT 1 CONCEPTS.......... 4 2 IMPORTANT SAFETY INFORMATION 7 2.1 Important ........... 7 2.2 Warnings ........... 7 2.3 Contents of the packaging ....12 2.4 Instructions regarding discarding..12 3 DESCRIPTION OF FUNCTIONS ..14 3.1 Phone ..........14 3.2 Touch-buttons ........
  • Page 57 5.7 Functions during calls ...... 25 5.9 Open menu ........28 6 PHONEBOOK ........29 6.1 Phonebook menu structure ..... 29 6.2 Add contact ........29 6.3 Seend SMS ........32 6.4 Edit ..........32 6.5 Copy ..........32 6.6 Delete ..........32 6.7 Advanced .........
  • Page 58 9.2 SOS setup ........41 9.3 SOS operation ......... 43 9.4 SOS operating principle....43 10 SETTINGS........46 10.1 Settings menu structure....46 10.2 Sound ..........47 10.3 Telepone ........48 10.4 Call ..........49 10.5 Security.......... 50 10.6 Defaultl .......... 51 11 TOOLS ..........
  • Page 60 Aziëlaan 12 ‘s-Hertogenbosch WWW.HESDO-SERVICE.NL INFO@HESDO-SERVICE.NL NL +31 (0) 73 6411 355 FR +32 (0) 3 238 5666 Service Aziëlaan 12 ‘s-Hertogenbosch Help WWW.HESDO-SERVICE.NL INFO@HESDO-SERVICE.NL NL +31 (0) 73 6411 355 FR +32 (0) 3 238 5666 0700 v2.0...
