KENWOOD CORPORATION
INSTRUCTION MANUAL

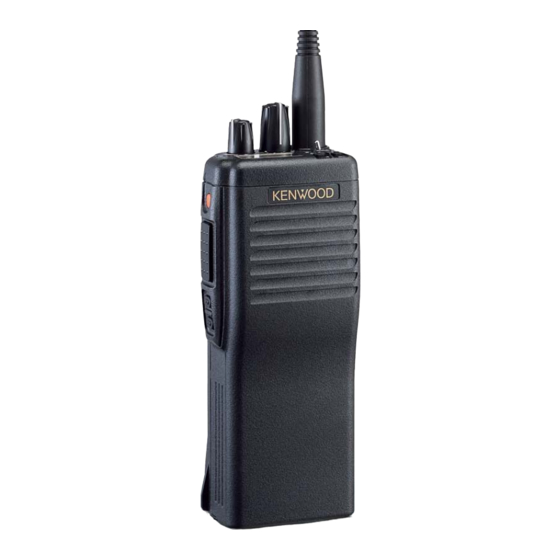

TK-5400:
THANK YOU!
We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver
will provide dependable communications to keep personnel operating at peak efficiency.
KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be
pleased with the quality and features of this product.
NOTICES TO THE USER
WARNING:
GOVERNMENT LAW PROHIBITS THE OPERATION OF UNLICENSED RADIO TRANSMITTERS WITHIN THE
◆ ◆ ◆ ◆
TERRITORIES UNDER GOVERNMENT CONTROL.
ILLEGAL OPERATION IS PUNISHABLE BY FINE OR IMPRISONMENT OR BOTH.
◆ ◆ ◆ ◆
REFER SERVICE TO QUALIFIED TECHNICIANS ONLY.
◆ ◆ ◆ ◆
DO NOT OPERATE YOUR TRANSCEIVER IN EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, ETC.).
◆ ◆ ◆ ◆
TURN OFF YOUR TRANSCEIVER WHILE TAKING ON FUEL, OR WHILE PARKED IN GASOLINE SERVICE
◆ ◆ ◆ ◆
STATIONS.
SAFETY:
It is important that the operator is aware of and understands hazards common to the operation of any transceiver.
WARNING:
EXPLOSIVE ATMOSPHERES (GASES, DUST, FUMES, etc.)
Turn off your transceiver while taking on fuel, or while parked in gasoline service stations.
One or more of the following statements may be applicable:
FCC WARNING
This equipment generates or uses radio frequency energy. Changes or modifications to this equipment may cause
harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the
authority to operate this equipment if an unauthorized change or modification is made.
INFORMATION TO THE DIGITAL DEVICE USER REQUIRED BY THE FCC
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can generate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer for technical assistance.
FCC ID: ALH33063110
Advertisement
Table of Contents
Related Manuals for Kenwood TK-5400
Summary of Contents for Kenwood TK-5400
-
Page 1: Instruction Manual
We are grateful you chose KENWOOD for your land mobile radio applications. We believe this easy-to-use transceiver will provide dependable communications to keep personnel operating at peak efficiency. KENWOOD transceivers incorporate the latest in advanced technology. As a result, we feel strongly that you will be pleased with the quality and features of this product. -
Page 2: Unpacking And Checking Equipment
FCC ID: ALH33063110 ATTENTION (U.S.A. Only): The RBRC Recycle seal found on KENWOOD nickel-cadmium (Ni-Cd) battery packs indicates KENWOOD’s voluntary participation in an industry program to collect and recycle Ni-Cd batteries after their operating life has expired. The RBRC program is an alternative to disposing Ni-Cd batteries with your regular refuse or in municipal waste streams, which is illegal in some areas. -
Page 3: Installing/ Removing The Optional Battery Pack
KENWOOD CORPORATION FCC ID: ALH33063110 Installing/ Removing the Optional Battery Pack PREPARATION The battery pack is not charged at the factory; charge it before use. CAUTION: DO NOT RECHARGE THE BATTERY PACK IF IT IS ALREADY FULLY CHARGED. DOING SO MAY CAUSE ◆... -
Page 4: Installing The Antenna
KENWOOD CORPORATION FCC ID: ALH33063110 Installing the Antenna Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. Installing the Belt Clip If necessary, attach the belt clip using the two supplied 3 x 6 mm screws. -
Page 5: Installing The Optional Kmc-25 Speaker/ Microphone
KENWOOD CORPORATION FCC ID: ALH33063110 Installing the Optional KMC-25 Speaker/ Microphone 1 Insert the guide of the speaker/ microphone connector into the groove of the universal connector. 2 Secure the connector in place using the attached screw. GETTING ACQUAINTED Knob Lock/ NO．... - Page 6 KENWOOD CORPORATION FCC ID: ALH33063110 ＜Top > Lock/ NO． Name Description Non Lock Programmable default：No Function Toggle SW Lock Non Lock Programmable default：No Function Top 1 Non Lock Programmable default：No Function Top 2 ＜Left side＞ Lock/ NO． Name Description Non Lock...
- Page 7 KENWOOD CORPORATION FCC ID: ALH33063110 4.3.2 LCD Fig. 3 LCD Indicator Details Displays the operating zone or channel number，or the zone or channel Alphanumeric display name．Also displays various menu functions． Displays the operating zone or channel number，or the zone or channel 7 Segment display name．Also displays various functions．...
- Page 8 KENWOOD CORPORATION FCC ID: ALH33063110 TERMINAL Universal connector connector cover for blindfold mode of resin is possible． NO． Name Description EXT/INT SP switch input BTL output ＋ for external speaker BTL output − for external speaker MSW/CTS EXT/INT MIC switch input...
- Page 9 KENWOOD CORPORATION FCC ID: ALH33063110 Appearance Appearance without 12key Pad (with KNB-17A) Appearance with 12key Pad (with KNB-17A)
-
Page 10: Operating Basics
KENWOOD CORPORATION FCC ID: ALH33063110 OPERATING BASICS ATING BASICS Switching Power ON/OFF ◆ ◆ ◆ ◆ Turn the Power switch/ Volume control clockwise to switch the transceiver ON. Turn the Power switch/ Volume control counterclockwise to switch the transceiver OFF.
