G23-2, G26-2, WSM

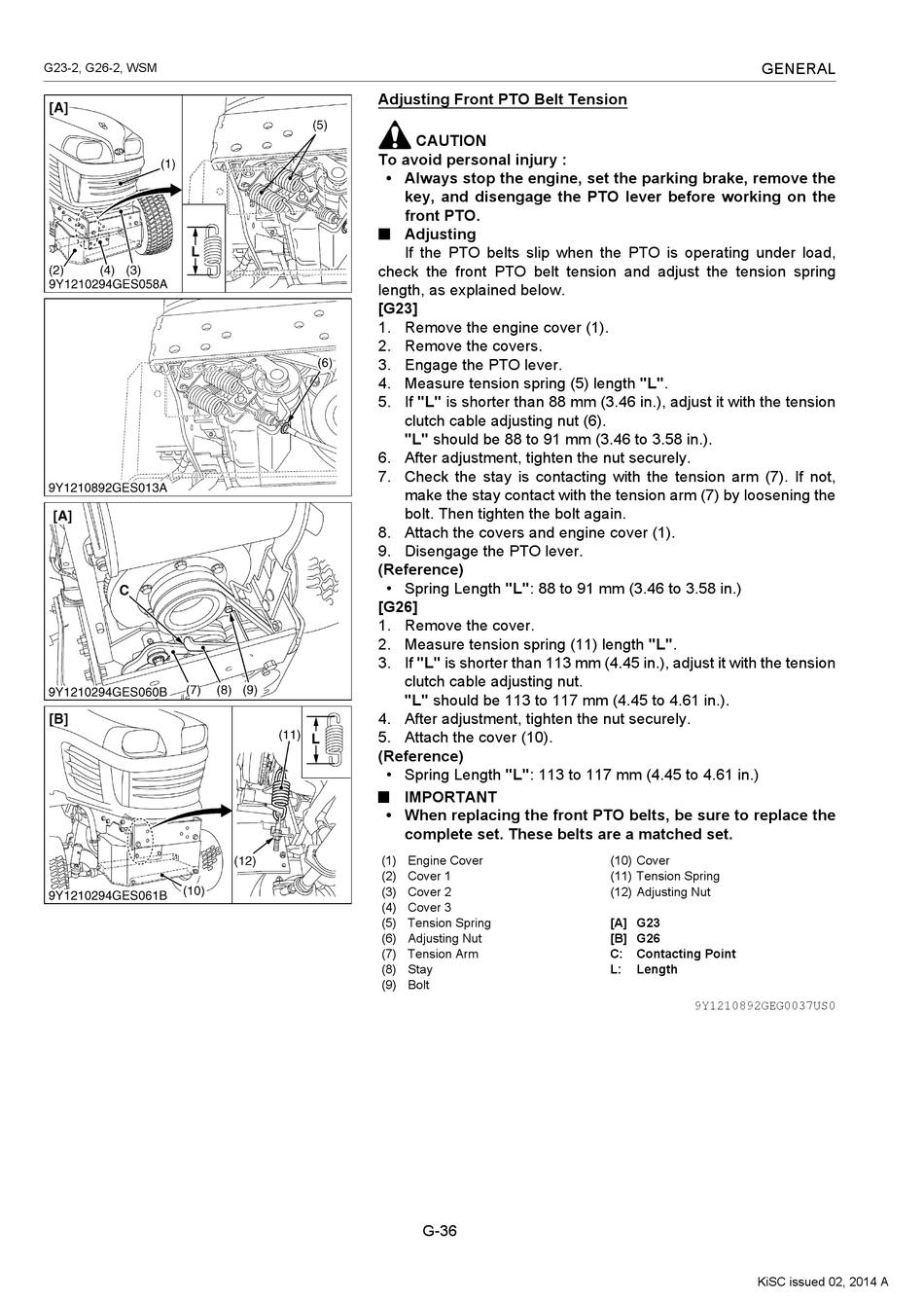

Adjusting Front PTO Belt Tension
CAUTION
To avoid personal injury :
• Always stop the engine, set the parking brake, remove the
key, and disengage the PTO lever before working on the
front PTO.
 Adjusting
If the PTO belts slip when the PTO is operating under load,
check the front PTO belt tension and adjust the tension spring
length, as explained below.
[G23]
1. Remove the engine cover (1).
2. Remove the covers.
3. Engage the PTO lever.
4. Measure tension spring (5) length "L".
5. If "L" is shorter than 88 mm (3.46 in.), adjust it with the tension
clutch cable adjusting nut (6).
"L" should be 88 to 91 mm (3.46 to 3.58 in.).
6. After adjustment, tighten the nut securely.
7. Check the stay is contacting with the tension arm (7). If not,
make the stay contact with the tension arm (7) by loosening the
bolt. Then tighten the bolt again.
8. Attach the covers and engine cover (1).
9. Disengage the PTO lever.
(Reference)
• Spring Length "L": 88 to 91 mm (3.46 to 3.58 in.)
[G26]
1. Remove the cover.
2. Measure tension spring (11) length "L".
3. If "L" is shorter than 113 mm (4.45 in.), adjust it with the tension
clutch cable adjusting nut.
"L" should be 113 to 117 mm (4.45 to 4.61 in.).
4. After adjustment, tighten the nut securely.
5. Attach the cover (10).
(Reference)
• Spring Length "L": 113 to 117 mm (4.45 to 4.61 in.)
IMPORTANT
• When replacing the front PTO belts, be sure to replace the
complete set. These belts are a matched set.
(1) Engine Cover
(2) Cover 1
(3) Cover 2
(4) Cover 3
(5) Tension Spring
(6) Adjusting Nut
(7) Tension Arm
(8) Stay
(9) Bolt
G-36
GENERAL
(10) Cover
(11) Tension Spring
(12) Adjusting Nut
[A] G23
[B] G26
C: Contacting Point
L: Length
9Y1210892GEG0037US0
