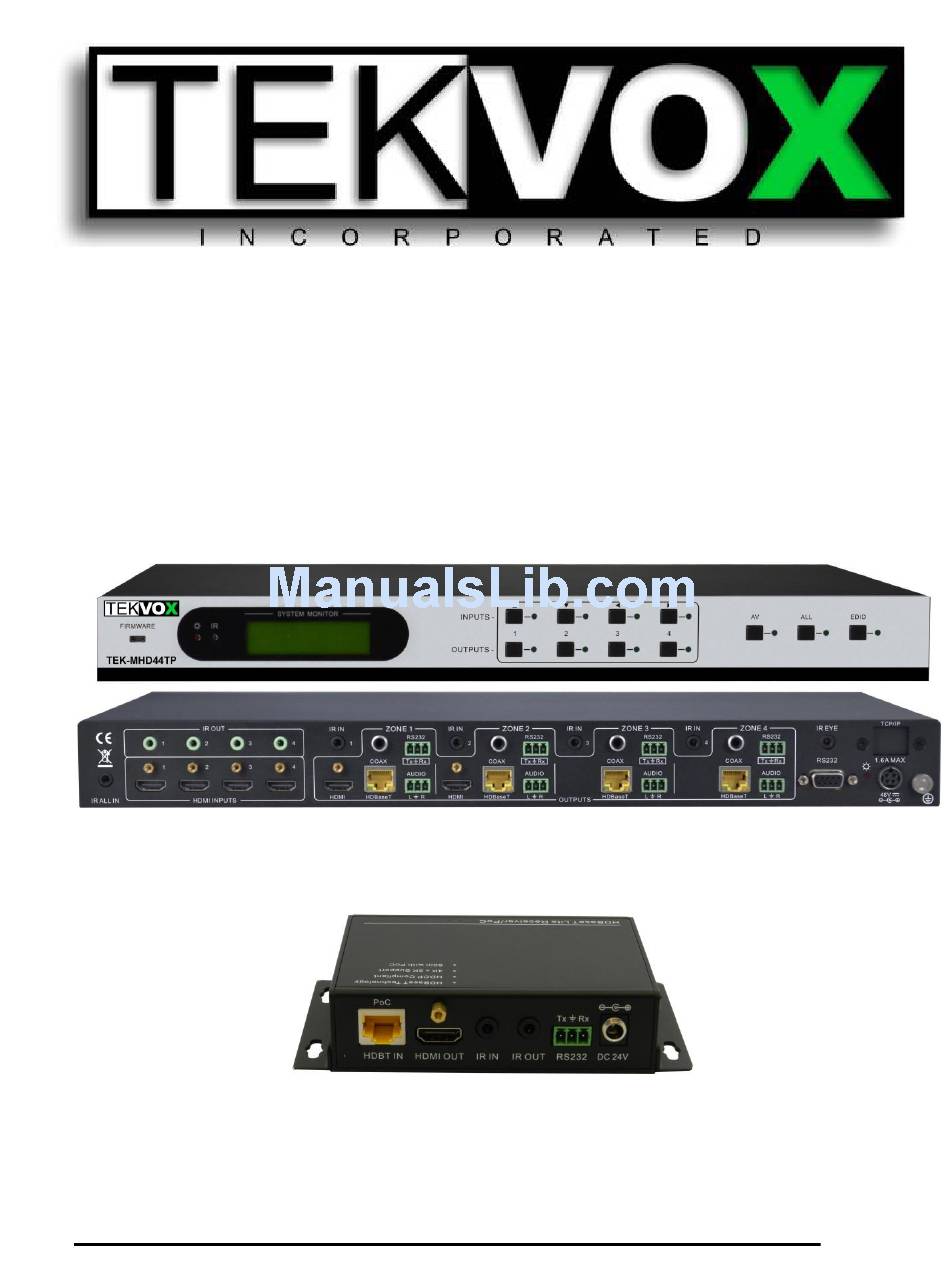

- Page 1 TEK-MHD44TP 79055 4x4 HDMI Matrix with HDBaseT Lite Outputs TEK-TPHD402PR User’s Manual March 15, 2014...
- Page 2 Please ask your local dealer for detailed information. © Copyright 2014 - TEKVOX, Inc. No part of the contents of this book may be transmitted or reproduced in any form or by any means without the written permission of TEKVOX, Inc. All rights reserved.
- Page 3 Operation Notice In order to ensure the proper use of the product and the user’s safety, please comply with the following items during installation and maintenance: The system must be properly connected to earth ground. Do not use ungrounded or two bladed plugs and ensure the alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
Table of Contents 1. DESCRIPTION ......................1 2. FEATURES ......................... 1 3. PACKAGE CONTENTS ....................1 4. FRONT AND REAR PANEL DESCRIPTION ............. 2 4.1 F ............................2 RONT ANEL PERATION 4.2 R ............................3 ANEL PERATION 4.3 RS-232 C .......................... -
Page 7: Description
TEK-MHD44TP 4x4 HDBaseT Matrix 1. Description The TEK-MHD44TP 79055 is a unique 4x4 HDMI matrix switcher with HDBaseT outputs with EDID & HDCP management. Included in the unit are IR and RS-232 inserters for the HDBaseT connections, and audio de-embedders with both analog and digital outputs. Any input can be routed to any output with support for high resolution 1080P and HD-3D. -
Page 8: Front And Rear Panel Description
4. Front and Rear Panel Description 4.1 Front Panel Operation Name Description ① Firmware Micro USB port for update firmware. Power ② Keep light when power on. Indicator ③ IR Receiver Receive control signal from IR remote. ④ Real-time shows system status. Indicator Normal mode: Input buttons, ranging from "1"... -
Page 9: Rear Panel Operation
Connect with 48V DV power adaptor. ⑧ GROUND Connect to grounding, make the unit ground well. ⑨ TCP/IP TCP/IP port for unit control, optional function. Connect with extended IR receiver, use the IR remote to control ⑩ IR EYE MHD44TP. TEKVOX, INC. www.tekvox.com 210.348.6565... -
Page 10: Rs-232 Communication Port
4.3 RS-232 Communication Port Use this connector to operate the switcher using a third party control system. The RS-232 communication port is a DB9 female connector operating at 9600 baud. 2 ---------- TX Out 3 ---------- RX In 5 ---------- Ground 4.4 HDBaseT Twisted Pair Cable Connection Always use a minimum of 30 feet Cat 5E or Cat 6 solid twisted pair cable. -
Page 11: System Diagram
TEK-MHD44TP 4x4 HDBaseT Matrix 5. System Diagram TEKVOX, INC. www.tekvox.com 210.348.6565... -
Page 12: System Operation
6. System Operation 6.1 Front Panel Button Control The operation examples are showed in 2.1 Front Panel. Here we make a brief introduction to the system inquire operations. Keep pressing the button “AV” for 3 seconds, it will enter into system inquire menu. Use Left and Right direction button two check the previous/next item. -
Page 13: Ir Remote Operation
“THROUGH”, the result will be: 11, 22, 33, 44 Output channels, range from 1~4. Each channel has 1 IR IN, 1 COAX, 1 HDBaseT, 1 RS232, and 1 AUDIO outputs, and channel No.1 & No.2 has 1 HDMI output. TEKVOX, INC. www.tekvox.com 210.348.6565... -
Page 14: Ir Operations
6.2.2 IR Operations IR Matrix Switching By using the 4 “IR OUT” ports and the “IR IN” ports of the far-end receivers, the HDBaseT Matrix can be used as an IR router. Commands can be sent to the Matrix for the IR to follow the video or to switch separately. - Page 15 The IR signal is transferred to the corresponding zone connected with an HDBaseT receiver that has an IR transmitter. When the IR receiver is connected to IR ALL IN port, the IR signal can be transferred to all 4 IR transmitters connected with HDBaseT receivers. See figure below: TEKVOX, INC. www.tekvox.com 210.348.6565...
- Page 16 Control far-end device through IR ALL IN port The IR signal received from IR ALL IN port will be transmitted to all the four far-end HDBaseT receivers connected to HDBaseT ports on the matrix switcher. See figure below:...
- Page 17 Connect the red end to IR Input port on the HDBaseT matrix and the black end to IR Output port of the third-party control device. This allows the IR signal to be transmitted through the receivers to control a remote device. TEKVOX, INC. www.tekvox.com 210.348.6565...
-
Page 18: Rs-232 Control
6.3 RS-232 Control Communication protocol: Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Connector type: DB9 FM (Use Straight Through Cable) 6.3.1 Commands Command Command Functions Types Codes /*Type; Inquire the models information. Lock the keyboard of the control panel on the /%Lock;... - Page 19 X=1, 2, 3, 4, enable this one port. X=5, enable all the 4 ports. Disable HDMI audio output of port x. DigitAudioOFF[x]. X=1, 2, 3, 4, disable this one port. X=5, disable all the 4 ports. TEKVOX, INC. www.tekvox.com 210.348.6565...
- Page 20 Send embedded RS-232 commands to device at HDBaseT receiver. Y is for RS-232 port (connect with RS-232 port of HDBaseT receiver) Value = 1,2,3,4,5,A,B,C,D,E,F,G or H The value of Y is defined into the following meanings (in a given baud rate depended by the value of X): a.
- Page 21 2. In above commands, “[”and “]” are symbols for easy reading and do not need to be typed in actual operation. 3. Please remember to end the commands with the ending symbols “.” and “;”. 4. Commands are case-sensitive. TEKVOX, INC. www.tekvox.com 210.348.6565...
-
Page 22: Control The Hdbaset 4X4 Matrix Switcher
6.3.2 Control the HDBaseT 4x4 Matrix Switcher To control the HDBaseT 4x4 matrix switcher connect its 9 pin female RS-232 port to a PC’s or control system’s RS-232 port. It is also possible to control the Matrix using one of the HDBaseT receiver’s RS-232 ports. - Page 23 Connect the RS-232 (3P captive screw) port in one zone to PC, and connect the controlled RS-232 device (3rd party device) to the corresponding (same zone as PC) receiver. This method allows for bi- directionally RS-232 data between controller and device at receiver. TEKVOX, INC. www.tekvox.com 210.348.6565...
-
Page 24: Tcp/Ip Operation - Optional
6.4 TCP/IP Operation - Optional The optional network port of TEK-MHD44TP is used for sending commands using TCP/IP control. These commands are sent the same as when using RS-232 control at TCP/IP port 4001. There is no Web based control for the unit. The Web interface is used for network configuration only. 6.5 IP Configuration To connect a computer to the network port you must use a crossover network cable or network switch. -
Page 25: Change Ip/Serial Port
Enter into right IP for each item, better has the same IP section with the router Change DO NOT This After configuration, reset device to use the new IP address for controlling Matrix. TEKVOX, INC. www.tekvox.com 210.348.6565... -
Page 26: Connection And Control
Change Serial Port and Network Port Number Select the tab “serial info” to change the serial settings. When finished, press the ally button. Set as 4001 6.6 Connection and Control To send IP commands to the TEK-MHD44TP connect using TCP/IP port 4001 and the set IP address of the unit. -
Page 27: Technical Specification
50/60Hz Supply Consumption Output: DC48V,1.6A Temperature -20 ~ +70℃ Humidity 10% ~ 90% W19 x H1.73 x Case D9.25 IN. Product 1.8Kg Dimension (1U high, full Weight rack wide) Specifications are subject to change without notice. TEKVOX, INC. www.tekvox.com 210.348.6565... -
Page 28: Troubleshooting & Maintenance
TEKVOX, Inc. makes no further warranties either expressed or implied with respect to said product, or its quality, performance, or operation for any particular use. In no event will TEKVOX, Inc. be liable for direct, indirect, or consequential damages resulting from any defect in this product even if TEKVOX, Inc.
