D1325
Quick Installation Guide
V1.0
* Images Used for Reference Only
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1325 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gigabyte D1325

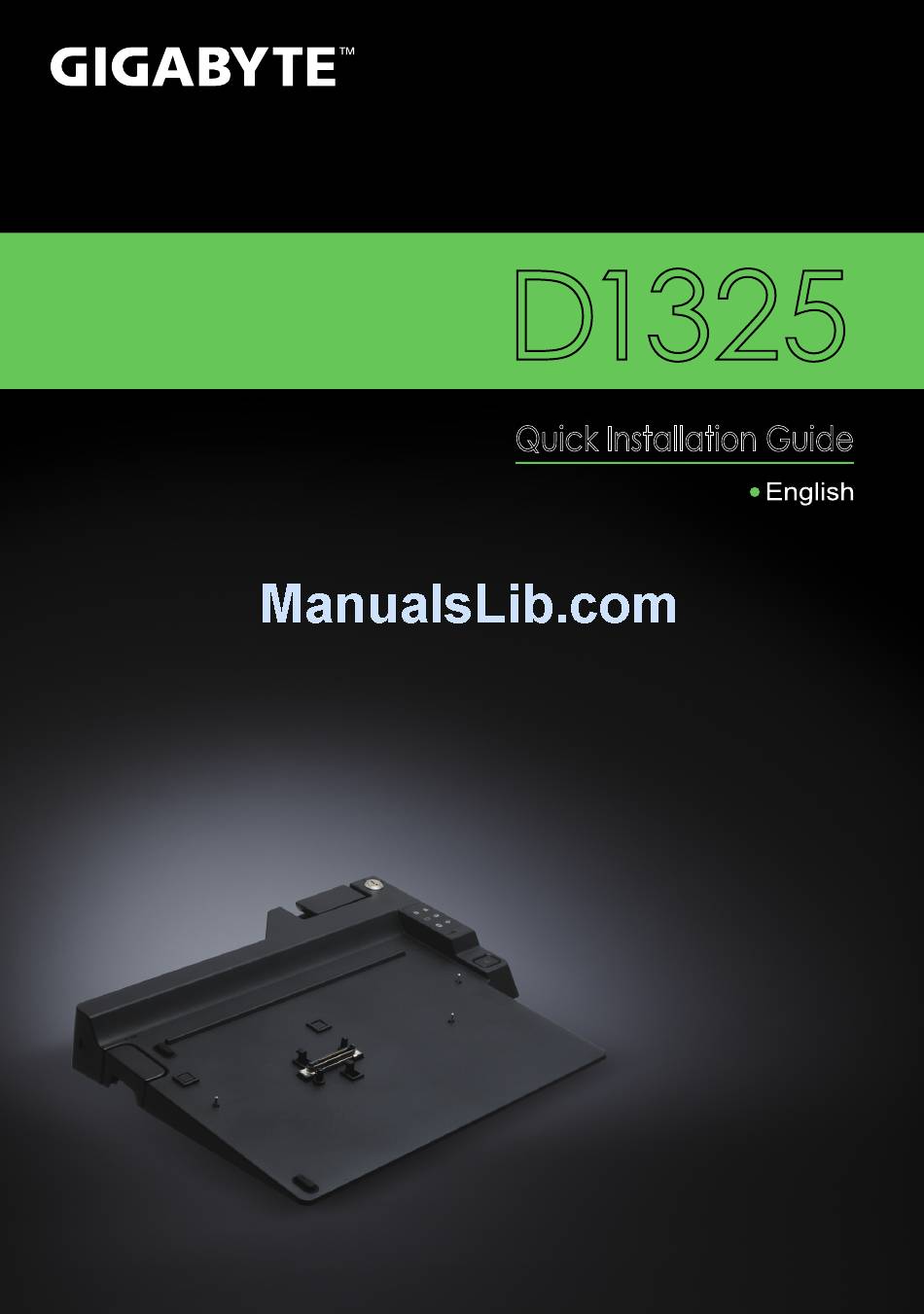

  • Page 1 D1325 Quick Installation Guide V1.0 * Images Used for Reference Only...
  • Page 2: Docking Station

    Docking Station & Optical Disc Drive The system does NOT feature an Optical Disc Drive. The Optical Disc Drive is an optional accessory that will be required when needing to use any type of CD or DVD. There are two options avaible for this - Option One will be an External USB DVD Drive, Option Two will be a Docking Station with a built-in DVD Writer.
  • Page 3: Rear View

    Rear View Headphone Jack D-Sub Port Microphone Jack DVI Port Slim-Line 12.7mm USB Ports Display Port SATA Optical Drive DC-In Jack USB Ports For DVD or Blu-Ray Kensington Lock* LAN Port Item Description The LAN Port is used to connect the Docking Station and docked RJ-45 LAN Port notebook to a wired network.
  • Page 4 USB Optical - Front Activiity LED Eject Button Emergency Release 1. Press the drive eject button to open the drive. Pull gently once it pops open. 2. Place the disc into the center of the drive and click into place onto the round spinner section to secure the disc.
  • Page 5: Docking The Computer

    Docking the computer 1. Align the arrow guides on the computer and expansion base. (as shown in the circle 1 & 2) 2. Make sure the computer is docked to the expansion base by pressing down the computer. (as shown in the circle 3) Undocking the computer 1.
