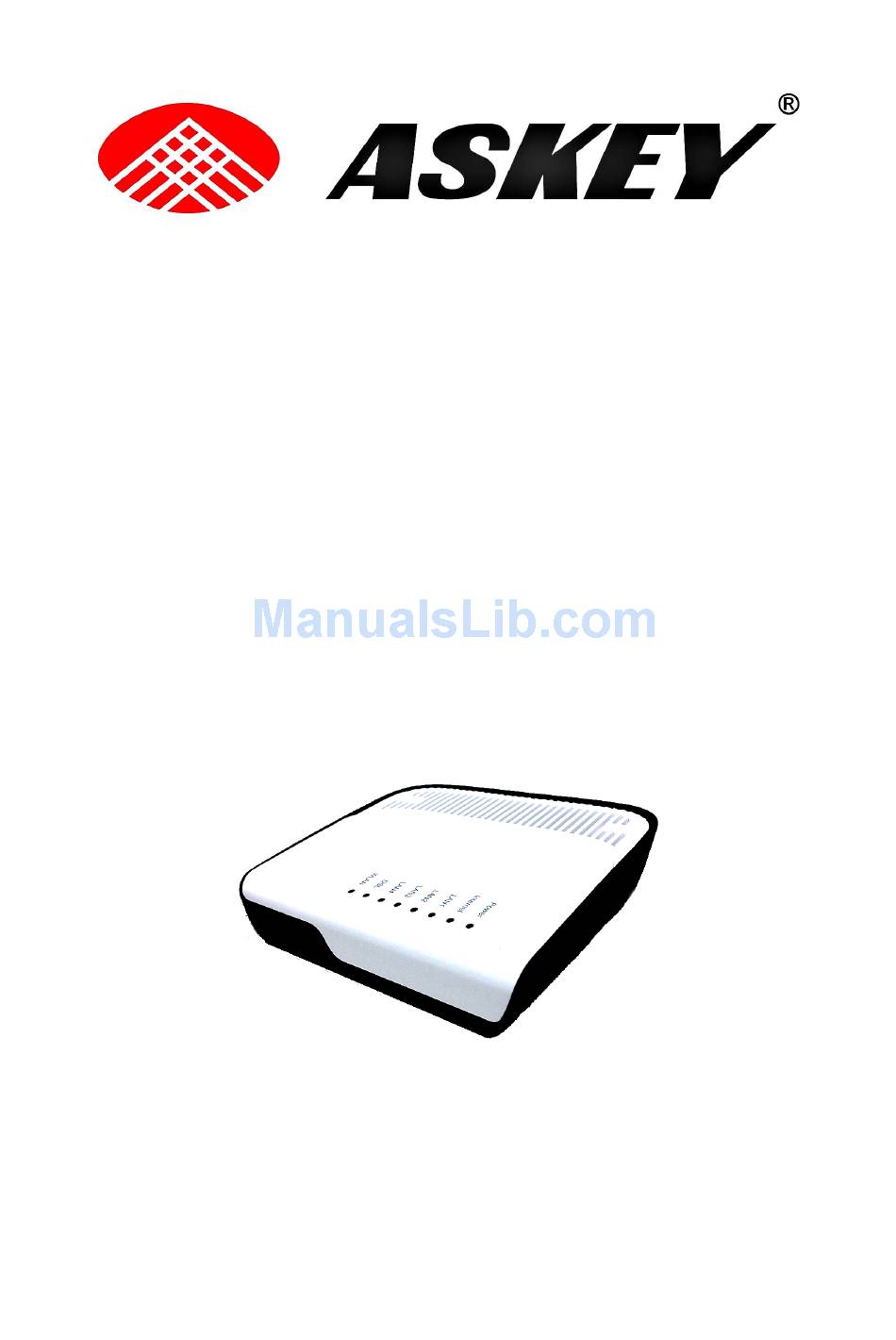

- Page 1 RTV7805VW VDSL Quick Guide Version released : 1.0...
-
Page 2: Table Of Contents
VDSL User Manual ABLE OF ONTENTS ____________________________________________________________________ Before You Use ......................3 Unpacking ........................3 Chapter 1: Overview ....................4 ..................4 Physical Outlook Chapter 2 : System Requirement and Installation ........... 7 ................ 7 Connecting the Wireless IAD ..................... 9 Wall Mounting .................. -
Page 3: Before You Use
Before You Use RTV7805VW(RoHS) is a VDSL (Very High Speed Digital Subscriber Line) residential gateway which allows ethernet connectivity for indoor residential or office installation. It provides Wi-Fi 2.4GHz 802.11 b/g/n and voice over IP function for home or office users. To benefit users’ access to the Internet, VDSL port and 4 fast Ethernet LAN port are equipped with this gateway. -
Page 4: Chapter 1: Overview
VDSL User Manual hapter 1: Overview This chapter provides you the description for the LEDs and connectors on the front and rear surface of the router. Before you use/install this wireless IAD, please take a look at the information first. Physical Outlook... - Page 5 VDSL User Manual FUNCTION COLOR DEFINITION Router powered off Power Router powered on Solid green correctly No PPPoE connection Internet Blinking green PPPoE negotiation Solid green PPPoE up xDSLoff-Line Solid green xDSLon-Line Ethernet connection is not available Ethernet connection is LAN1 Solid green available...
- Page 6 VDSL User Manual...
-
Page 7: Chapter 2 : System Requirement And Installation
VDSL User Manual Chapter 2 : System Requirement and Installation Connecting the Wireless IAD Please follow the steps below to connect the related devices. - Page 8 VDSL User Manual...
-
Page 9: Wall Mounting
VDSL User Manual Wall Mounting Setting up TCP / IP If the TCP/IP protocol has not been installed yet, please follow the steps below for installation. In the following illustrations, we will set the PC to get an IP address automatically at the same time. ... - Page 10 VDSL User Manual Double click the Network Connection. Right click Local Area Connection and then click Properties.
- Page 11 VDSL User Manual On the General tab, check out the list of installed network components. Option 1: If there is no TCP/IP Protocol, click Install. Option 2: If you have TCP/IP Protocol, skip to Step 7. If there is no TCP/IP protocol installed on your PC, press “Install” to continue.
- Page 12 VDSL User Manual Click Internet Protocol (TCP/IP) and then click OK.
- Page 13 VDSL User Manual When it returns to the General Tab on the Local Area Connection Properties window, highlight Internet Protocol (TCP/IP) and then click Properties. Under the General tab, select Obtain an IP address automatically, and Obtain DNS server address automatically. Then click Ok.
-
Page 14: Renewing Ip Address On Client Pc
VDSL User Manual Renewing IP Address on Client PC After the Wireless IAD gets on line, there is a chance that your PC does not renew its IP address and thus causes the PC not able to access the Internet. To solve this problem, please follow the procedures below to renew PC’s IP address. - Page 15 VDSL User Manual Another way to open the command prompt: From Start menu, point to Programs, select Accessories, and then click Command Prompt. Type ipconfig at the command prompt window and press Enter to view the computer’s IP information from DHCP server.
- Page 16 VDSL User Manual If the computer is holding a current IP address, type ipconfig /release to let go of the address, then type ipconfig /renew to obtain a new one.
- Page 17 European Union Regulatory Conformance The equipment complies with the RF Exposure Requirement 1999/5/EC; Council Recommendation of 12 July 1999 on the limitation of exposure of the general public to electromagnetic fields (0–300 GHz). Changes or modifications to this product not authorized by our company could void the EMC compliance and negate your authority to operate the product.
- Page 18 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
