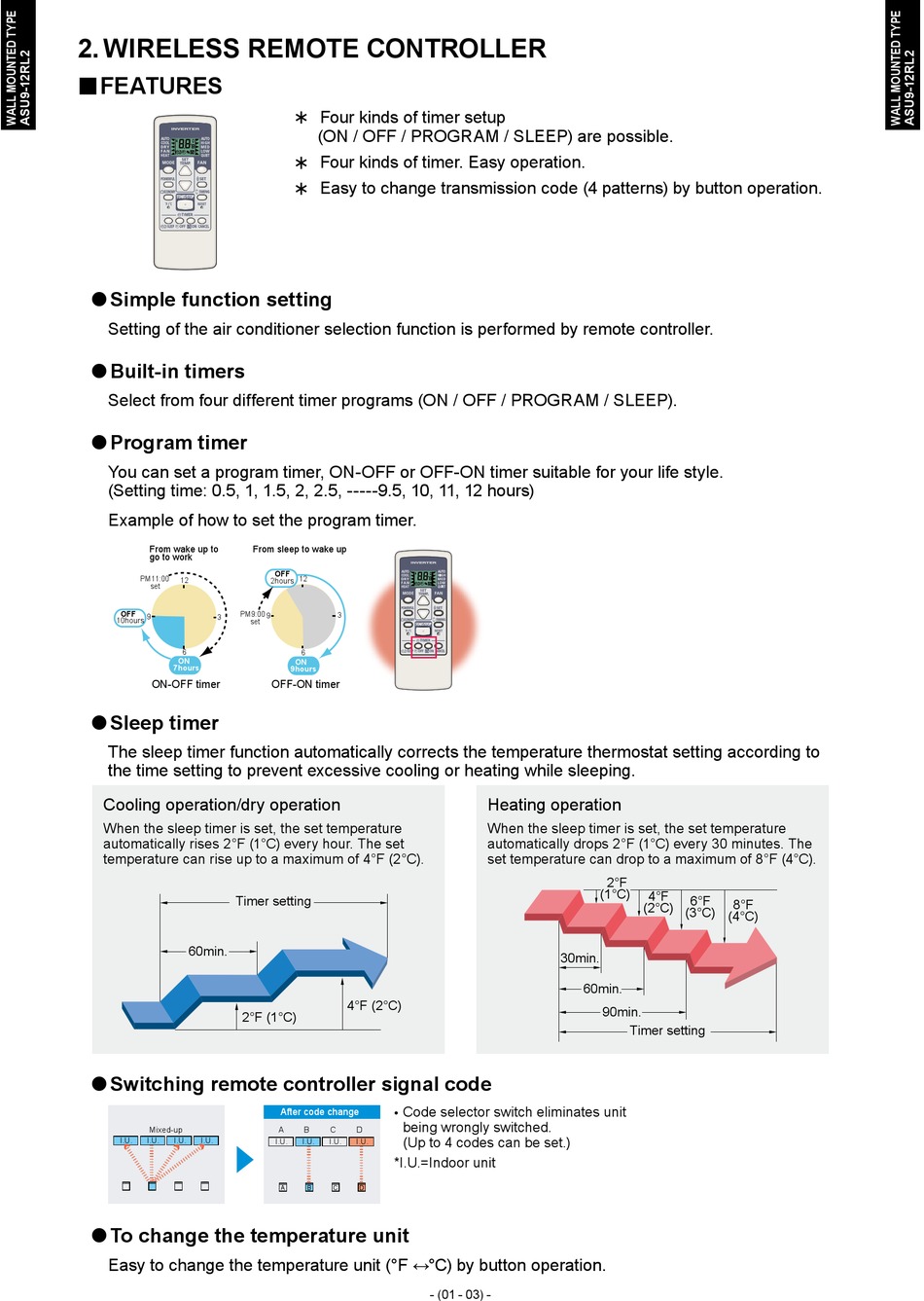

WIRELESS REMOTE CONTROLLER

FEATURES
„ „
Simple function setting
z „
Setting of the air conditioner selection function is performed by remote controller.
Built-in timers
z „
Select from four different timer programs (ON / OFF / PROGRAM / SLEEP).
Program timer
z „
You can set a program timer, ON-OFF or OFF-ON timer suitable for your life style.
(Setting time: 0.5, 1, 1.5, 2, 2.5, -----9.5, 10, 11, 12 hours)
Example of how to set the program timer.
From wake up to
go to work
PM11:00
12
set
OFF
PM9:00
9 3
10hours
set
6
ON
7hours
ON-OFF timer
Sleep timer
z „
The sleep timer function automatically corrects the temperature thermostat setting according to
the time setting to prevent excessive cooling or heating while sleeping.
Cooling operation/dry operation
When the sleep timer is set, the set temperature
automatically rises 2°F (1°C) every hour. The set
temperature can rise up to a maximum of 4°F (2°C).
Timer setting
60min.
2°F (1°C)
Switching remote controller signal code
z „
Mixed-up
I.U. I.U. I.U. I.U.
To change the temperature unit
z „
Easy to change the temperature unit (°F ↔°C) by button operation.
Four kinds of timer setup
¾ „
(ON / OFF / PROGRAM / SLEEP) are possible.
Four kinds of timer. Easy operation.
¾ „
Easy to change transmission code (4 patterns) by button operation.
¾ „
From sleep to wake up
OFF
12
2hours
9 3
6
ON
9hours
OFF-ON timer
4°F (2°C)
Code selector switch eliminates unit
•
„
After code change
being wrongly switched.
A B C D
(Up to 4 codes can be set.)
I.U. I.U. I.U. I.U.
*I.U.=Indoor unit
A B C D
Heating operation
When the sleep timer is set, the set temperature
automatically drops 2°F (1°C) every 30 minutes. The
set temperature can drop to a maximum of 8°F (4°C).
(1°C)
30min.
60min.
90min.
- (01 - 03) -
2°F
4°F
6°F
8°F
(2°C)
(3°C)
(4°C)
Timer setting
