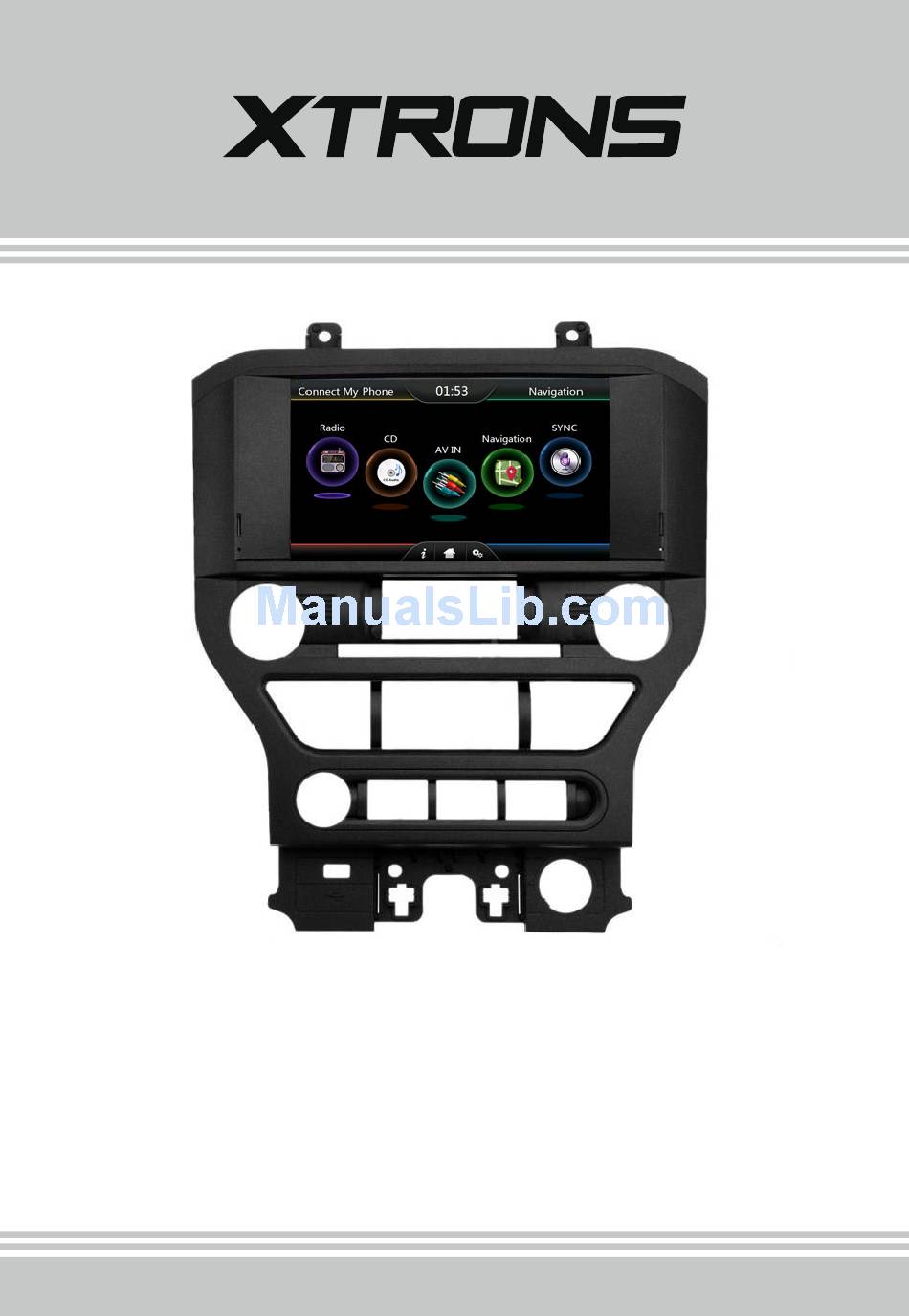

Page 1: User Manual
USER MANUAL Thank you for buying this XTRONS product. Please read through these instructions so you will know how to operate this product properly. After you have finished reading the instructions, keep this document in a safe place for future reference. -
Page 3: Table Of Contents
Contents Precaution ......................Main Menu ......................Radio ........................Play CD ....................... USB/SD ....................... Sync ........................TPMS ........................Navigation ......................AV Input ......................Settings ......................Installation Steps for FordMustang ............14... -
Page 4: Precaution
Precaution Before installing this product - Use this unit with a 12-volt battery and negative grounding only. Failure to do so may result in a fire or malfunction. - To avoid shorts in the electrical system, be sure to disconnect the (-) battery cable before installation. - Page 5 - Do not disassemble or modify this product, as there are high-voltage components inside which may cause an electric shock. Be sure to consult your dealer for internal inspection, adjustments or repairs. Before using this product, be sure to read and fully understand the following safety information: - Do not operate this product or any applications if doing so will divert your attention in any way from the safe operation of your vehicle.
-
Page 6: To Ensure Safe Driving
To ensure safe driving WARNING - LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE. -
Page 7: Main Menu
Main Menu 1. Radio 2. CD 3. AV Input 4. Navigation 5. Sync 6. System Information 7. Home 8. Settings... -
Page 8: Radio
9. Video 10. Front View 11. Music 12. Maintain 13. TPMS Radio This product retains the use of the factory radio. -
Page 9: Play Cd
Play CD This product retains the use of the factory CD player. USB/SD Plug a USB storage device or insert an SD memory card, and then tap Music on the Home screen to play music, or tap Video to play video files. -
Page 10: Sync
Sync Sync allows you to control music and perform other functions with the use of voice commands. TPMS Tire Pressure Monitoring System (TPMS) increases driving safety and provides a better understanding of your vehicle’s tire conditions. Once you have correctly installed the TPMS (sold separately), the sensors will automatically monitor the tire pressure and the temperature, and transmit real-time statistics to the receiver. -
Page 11: Navigation
Navigation Built-in navigation offers detailed, reliable route guidance information to help you get where you want to go. a. Insert an SD card with maps into the GPS card slot. b. Go to Setting > Navi Setting > Navi Path, and then set up the path for the navigation application. -
Page 12: Settings
Settings 1. Clock You can set the date and time manually, set the time zone, and set whether the monitor shows 24-hour time or 12-hour time. 2. Display Adjust the backlight, the contrast, and the brightness. Turn auto-adjust brightness on or off. - Page 13 3. Sound Adjust the levels of Bass, Mid, and Treble. Adjust the front/rear speaker balance and the left/right speaker balance. Select the stored equalizer curves from Rock, Pop, Classic, and Voice. 4. Video Set the rear view camera. (A separately sold rear view camera is required for utilizing the rear view camera function) Set the front view/bird view.
- Page 14 5. Vehicle - Body Control - Other - TPMS - Maintain Setting 6. Setting - Navi Setting You can set up the path for the navigation application, set automatic switching to the navigation screen, turn the speaker on or off, and adjust the volume in navigation mode.
-
Page 16: Installation Steps For Fordmustang
Installation Steps for Ford Mustang Caution: We highly recommend that this product to be installedby a professional. Tools: Removal pry, screwdriver, 3m stickers, scissors, insulating tape, long at nose pliers, and wire stripper. 1. Remove the plastic shell screws and take the rear shell o . 2. - Page 17 Original PCB board installed onto the new plastic shell 6. Install the original silicone keys onto the new plastic housing as shown in picture 1.3 Install the original silicone keys and components onto the new plastic shell 1.3 7. After installing all silicone keys, buttons, car disc annel and car disc mirror onto the new plastic shell, place the original PCB board as shown in picture 1.4 Install the PCB kits to the new plastic shell...
- Page 20 www.xtrons.com...
