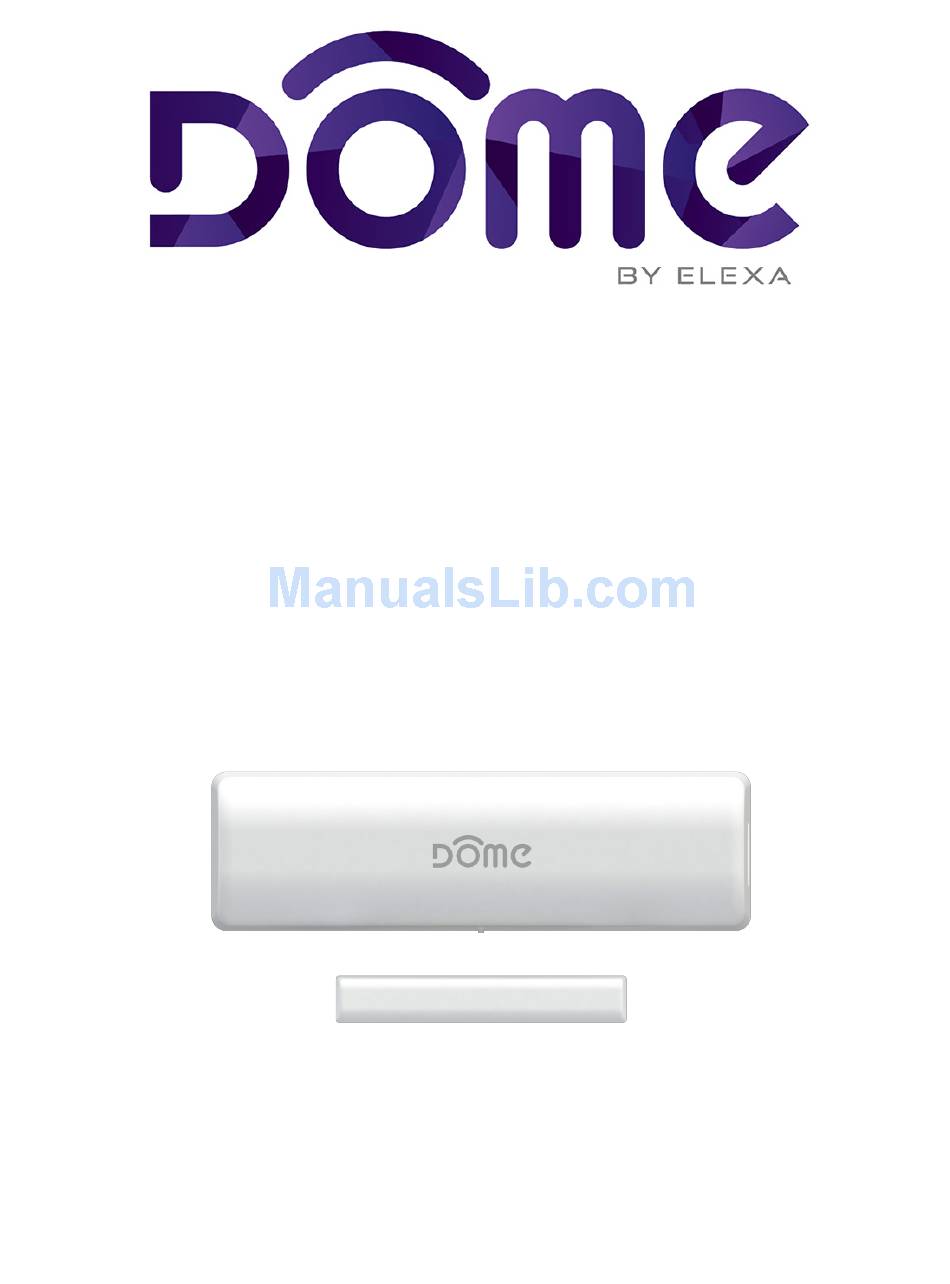

- Page 1 Always Connected. Always Covered. Door/Window Sensor DMDP1 User Manual...
-
Page 2: Preface
Preface As this is the full User Manual, a working knowledge of Z-Wave automa- tion terminology and concepts will be assumed. If you are a beginner user, please visit www.domeha.com for instructions. This manual will provide in-depth technical information about the Door/Window Sensor, especially in regards to its compliance to the Z-Wave standard (such as compatible Com- mand Classes, Association Group capabilities, special features, and other information) that will help you maximize the utility of this product in your... -
Page 3: Table Of Contents
Table of Contents Preface ......................2 Description & Features ................4 Specifications ....................5 Physical Characteristics ................6 Inclusion & Exclusion ...................7 Physical Installation ..................9 LED Behavior ..................... 11 Button Behavior ..................12 Compatible Command Classes..............13 “Configuration” Command Class Parameters ..........16 Troubleshooting ..................19 Warranty &... -
Page 4: Description & Features
Description & Features The Dome Door/Window Sensor is a battery powered security-enabled* Z-Wave Plus magnetic reed switch that can monitor the status of doors, windows, and anything else that opens and closes. It can also report am- bient temperature levels. The Door/Window Sensor consists of two parts - the “sensor,”... -
Page 5: Specifications
Elexa Consumer Products, Inc. (”ECP”) warrants electronic accessories should not be disposed of with other household waste. hours a day, 7 days a week. Contact Dome Customer Service as follows: • In North America to the original retail purchaser (”Purchaser”) -
Page 6: Physical Characteristics
Physical Characteristics The names used in Figures 1 & 2 will be used throughout this manual. Please refer to this page as needed. Sensor Cover Battery Magnet Cover Circuitboard Assembly Magnet Magnet Base Sensor Base Battery Tab Figure 1 - Exploded View SolidWorks Student Edition. -
Page 7: Inclusion & Exclusion
Inclusion & Exclusion Inclusion (Add to System)—New Installation 1. For proper inclusion, bring the Door/Window Sensor to the final location where it will be used*. 2. Follow the instructions for your Z-Wave controller to enter inclusion mode. 3. Remove the Battery Tab protruding from the Battery Tab Slit. 4. - Page 8 Resetting the Door/Window Sensor If needed, the Door/Window Sensor can be reset locally by following these steps. Only do this if your Z-Wave controller is missing or otherwise un- reachable. Beware that resetting your device will disconnect it from the system: 1.
-
Page 9: Physical Installation
Physical Installation The Door/Window Sensor can be secured with the pre-applied double stick tape or the provided hardware. The device should already be included in your Z-Wave system before continuing further. Pre-Installation Checklist 9 The Magnet Assembly and Sensor Assembly should be less than 1-1/4”... - Page 10 Installation Using Double-Stick Tape 1. Wipe the door and door-frame clean of dust and anything else that will interfere with the tape’s stickiness. 2. Peel the double-stick tape and adhere the Sensor Assembly to the door surface. 3. Repeat the process for the Magnet Assembly, making sure the Magnet Assembly, and Sensor Assembly are no more than 1-1/4”...
-
Page 11: Led Behavior
LED Behavior Color Behavior This happens when… …the sensor Detects the Magnet moving away or Blinks Twice Within 5 getting close (as the Door is opened or closed) Seconds and Z-Wave signal strength is high. Green …the device is successfully included into the Blinks 3 times quickly system. -
Page 12: Button Behavior
Button Behavior Action Condition Result Door/Window Sensor Not LED Indicator blinks yellow (red + green) until the Yet Included in System Sensor Cover is replaced Open the Cover Device sends a tamper notification to its controller, Door/Window Sensor awaits further instructions, and the LED Indicator Already Included in blinks red until the Sensor Cover is replaced System... -
Page 13: Compatible Command Classes
Compatible Command Classes Command Class Notes Device Reset Locally V1 (5A) Powerlevel V1 (73) Battery V1(80) Association Group Information V1 (59) Returned Value: 01 06 00 0C 06 0C 06 Z-Wave Plus Version: 01 Role Type: 06 (Slave Sleeping Reporting) Z-Wave Plus Info V2 (5E) Node Type: 00 (Z-Wave Plus Node) - Page 14 Command Class Notes Group 1 Group 1 is the “Lifeline” group, which can hold five members, typically including the main Z-Wave controller. The Door/Window Sensor sends this group a Notification Report or a Binary Sensor Report when it is opened or closed (see Configuration Parameter 3.) It also sends this group a multilevel sensor report to report the temperature (if Configura- tion Parameter 4 is set to 01)and a Battery Report in response to Battery Get commands.
- Page 15 Command Class Notes If Configuration Parameter 3 is set to 00, the Door/Window Sensor sends a Notification Report to the main controller whenever the door is opened and closed and also when tamper events are detected. Two different Notification Types are used to achieve this. Returned Value: 00 00 00 FF XX XX 00 00 V1 Alarm Type: 00 (Unsupported)
-
Page 16: Configuration" Command Class Parameters
“Configuration” Command Class Parameters Configuration parameters are sent using a standard syntax to ensure interoper- ability between all manufacturers’ products. All values are represented using the hexadecimal number system. Typical syntax is as shown below. Note that the value sent must be the exact size, in bytes, as accepted by the setting. - Page 17 Param Default Size Name Available Values Value By default, the Door/Window Sensor uses the Notification command class to communicate open/close and tamper events. If this Parameter is set to 1, the device will instead use the Binary Sensor command class. To apply this setting, the battery needs be removed and replaced! This is because the supported command classes will change according to this setting, so the device must restart to advertise its new command classes.
- Page 18 Param Default Size Name Available Values Value The Door/Window Sensor can report temperature values in either Celsius or Fahrenheit, and this parameter allows the user to decide which unit is used. (Temperature is Reported in Fahrenheit) (Temperature Temperature Units is Reported in (Temperature is Reported in Celsius) Fahrenheit) This parameter sets the value sent by the Basic Set command to Association Group 2.
-
Page 19: Troubleshooting
To boost your Z-Wave network coverage, add a few non- battery powered Z-Wave devices between the controller and the furthest device, like the Dome On/Off Plug or Water Main Shut-Off. You can even purchase dedicated Z-Wave extenders from 3rd party manufacturers. -
Page 20: Warranty & Support
If you have questions, our trained Customer Service Department is hap- Elexa Consumer Products, c/o Promac, py to assist you 24 hours a day, 7 days a week. Contact Dome Custom- 1153 Timber Dr., Elgin, IL 60123 er Service as follows: • In North America dial: 1-855-249-1754 • Email Dome at support@domeHA.com...
